[ugo mini G1] Parts Names/Specifications/Interfaces

Table of Contents

• ugo mini parts names/specifications/interface
• Charging station part names/specifications

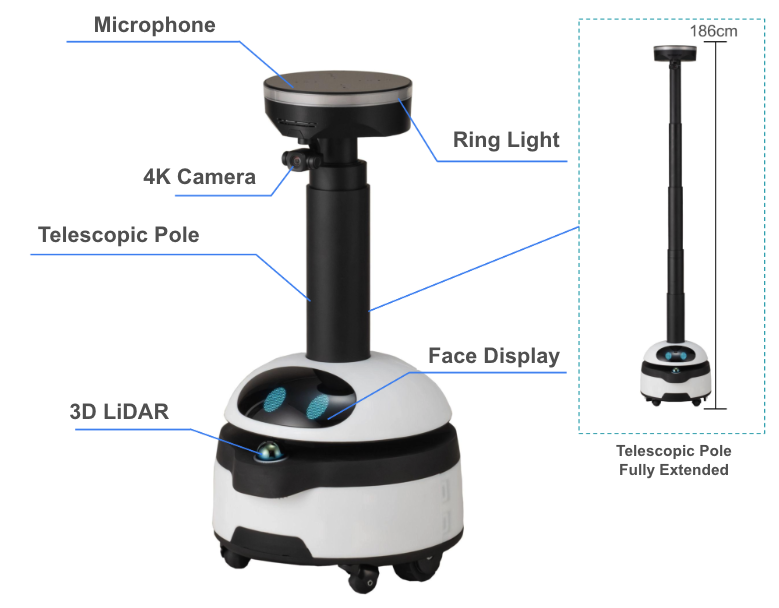

ugo mini Parts Names/Specifications/Interface

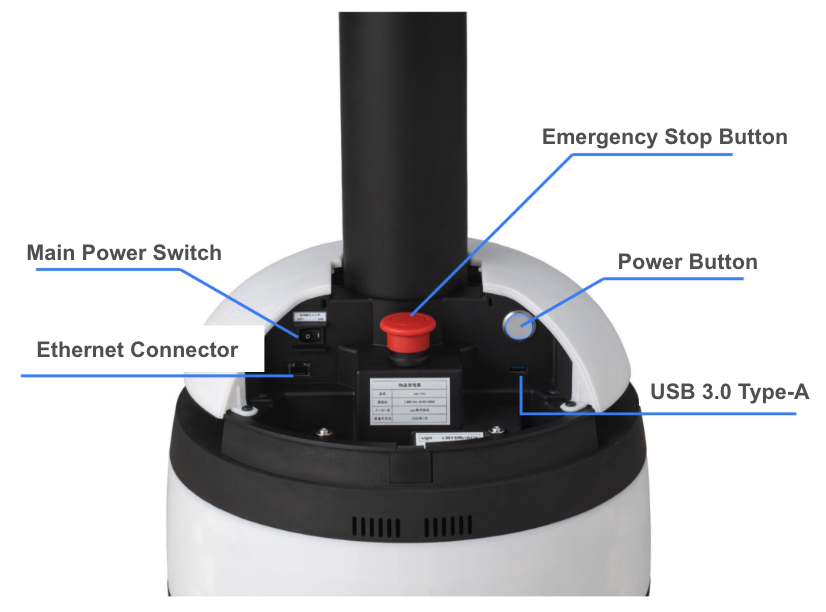

■About the main power switch
Even when the power button is turned off, the internal microcomputer of the ugo mini continues to consume a small amount of battery power, but turning off the main power switch will reduce the battery consumption.
If you are not going to use the ugo mini for an extended period of time, turn off the main power switch.
Note: Do not turn off the main power switch before turning off the power button.

■ About the battery
If the device continues to run when the battery is low or is forced to shut down due to a complete battery failure, it may not start up again even after recharging.
In this case, please try the following steps to recover the device. "ugo mini (G1) will not turn on"

●ugo mini Specifications/Interface

Name	ugo mini
Size	Body: Width: 37cm, Depth: 37cm, Height: 62-186cm *Telescopic pole initial position to extended position (Camera height: 58-176cm *Telescopic pole initial position to extended position)
Weight	Approx. 16 kg

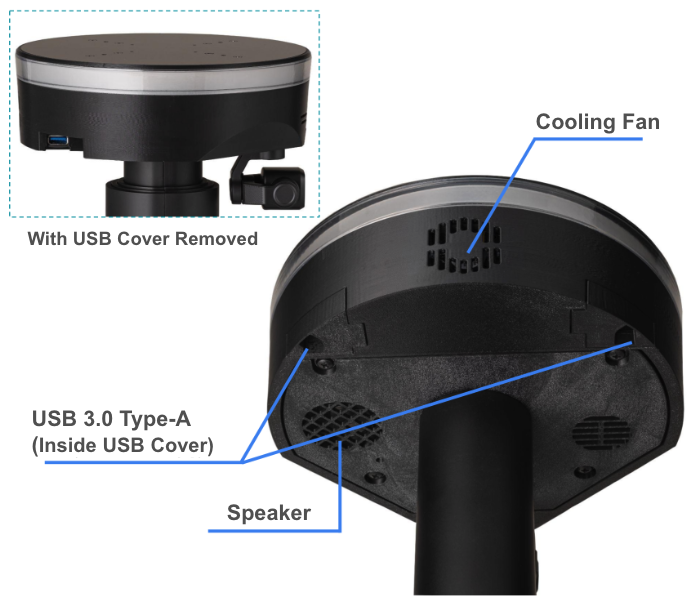

Interface	Top case: USB 3.0 Type-A (power supply 900mA max) x 2 (inside cover) Cart: USB 3.0 Type-A (power supply 900mA max) x 1 Ethernet connector (power supply without PoE) x 1
Telescopic Pole	◯ (Electric expansion and contraction mechanism)
Camera	4K camera × 1 (*1)
Continuous Operating Time	Approx. 8 hours (continuous standby), Approx. 3 hours (continuous driving)
Charging Time	Approx. 1.5 hours
Charging Method	Automatic return to charging station
Sensor	3D LiDAR / Separate option available (*2)
Movement Speed	Approx. 0.4km/h to 3.6km/h
Others	Face display / Speaker / Microphone / Ring light
Step Height	Approx. 1cm
Climbing Performance	Approximately 5 degrees (1/12 gradient 8.5%)
Communication Method	Wireless LAN (*2) (A separate wireless LAN adapter is required) 4G / 5G (A separate mobile router and SIM line contract are required)

*1 Gimbal 4K camera: Still image recording 8 megapixels (4,096 x 2,160), video recording 920,000 pixels (1280 x 720), streaming video 920,000 pixels (1280 x 720)
*2 Please refer here for how to use optional products
*3-a A separate wireless LAN adapter is required to use wireless LAN
*3-b A separate mobile router and SIM line contract are required to use 4G and 5G
*3-c Customers must provide their own communications equipment
*3-d For the communications equipment (mobile router / wireless LAN adapter) that you have provided ,
　　　- When using with a LAN cable, connect it to the "Ethernet connector" on the back of the ugo mini
　　　- When using with USB tethering, connect it to the "USB 3.0 Type-A" on the back of the ugo mini
