◆ ugo Pro (G4)
■ About the main power switch
For ugo Pro (G4) models manufactured in March 2025 or later, a main power switch has been newly implemented.
Even when the power button is OFF, the ugo Pro continues to consume a small amount of battery power due to its internal microcomputer. Turning off the main power switch will reduce this battery consumption.
If you will not be using your ugo Pro for an extended period, please turn off the main power switch.
Note: Please do not turn off the main power switch before turning off the power button.
◆ Rear view of the ugo cart unit
◆ Specifications / Interfaces
| Name | ugo Pro (G4) |
| Size (mm) | H:1800 W:440 D:580 |
| Weight (kg) | Approximately 58 kg |
|
Input/Output Interface |
・USB 3.0 Type-A(Female)x1 ・USB Type-C(PD・Female)x1 ・RJ45(Female)x1 |
| Face display | 〇 |
| Arm | 〇 |
| Lifter (lifting function) | 〇 |
| Voice function | 〇 |
| Camera | 3 (HD quality) |
| Sensor | • 2D LiDAR • Depth sensor x2 [body, cart *1 ] • Ultrasonic sensor *2 • Barometric pressure sensor • Marker sensor for automatic charging |
| Light | • Multicolor ring light |
| Communication method *3*4 | Wireless LAN *5 /4G *6 /5G *6 |
| Continuous operation | Approximately 4 hours *7 (measured at the default speed when using the keyboard [approximately 1.9 km/h]) |
| Charging time | Approximately 2.5 hours |
| Movement speed | Approximately 0.4 km/h to 3.6 km/h |
*1 Although implemented in hardware, it is currently unavailable as it is still under development.
*2 Due to the specifications, the setting is disabled by default, so you will need to enable the setting using a command to use it.
*3 You will need to provide your own communication equipment.
*4 When using your own communication equipment (mobile router / wireless LAN adapter) ,
- If using a LAN cable, connect it to the "RJ45" on the rear of the ugo cart unit as shown in the diagram below .

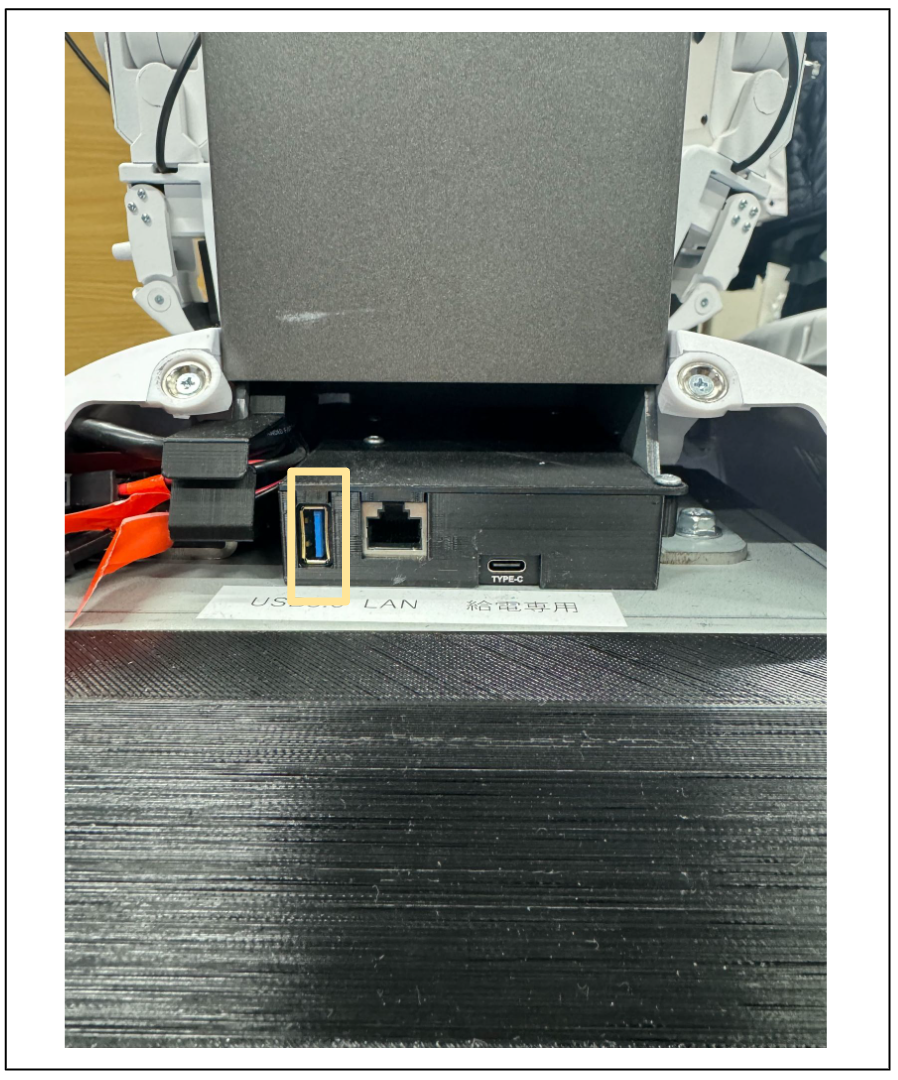

- If using USB tethering, connect it to the "USB 3.0 Type-A" on the rear of the ugo cart unit as shown in the diagram below .
*5 A separate wireless LAN adapter is required when using wireless LAN.
*6 A separate mobile router and SIM line contract are required when using 4G or 5G. *7 Operating time may vary depending on the usage environment and driving conditions.

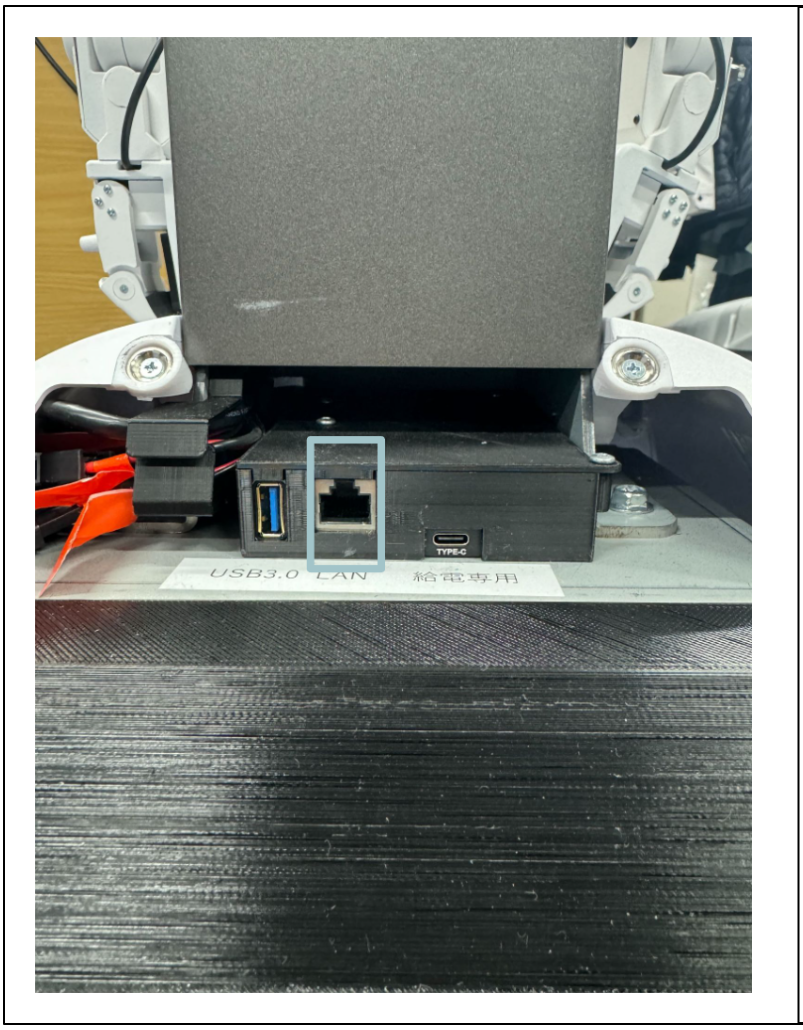

Please connect the LAN cable to the location shown in the figure below.
・ugo Pro(G4) (RJ45 female)
