◆Table of Contents
・STEP 1: Check the Charger Unit
・STEP 2: Check Cable Connections
・STEP 3: Confirm Charging by Manual Docking
・STEP 4: Confirm Requirements for Automatic Charging Return

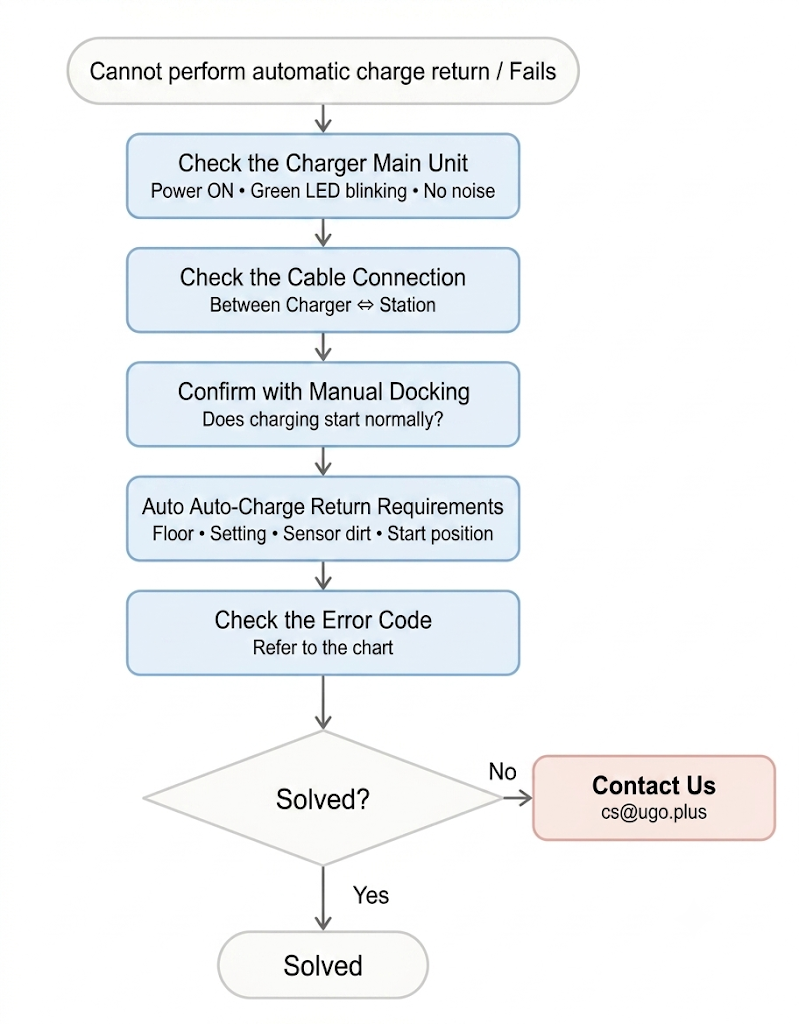

◆Diagnostic Flow
◆STEP 1: Check the Charger Unit

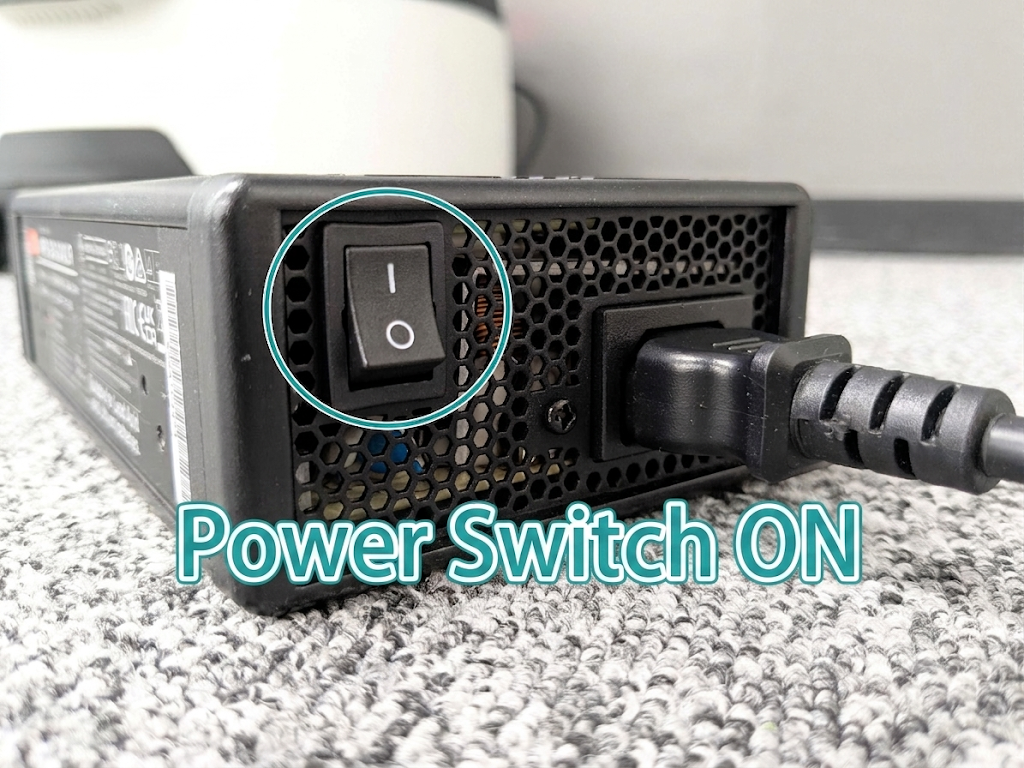

- Is the charger (black box) plugged into the outlet and powered on?

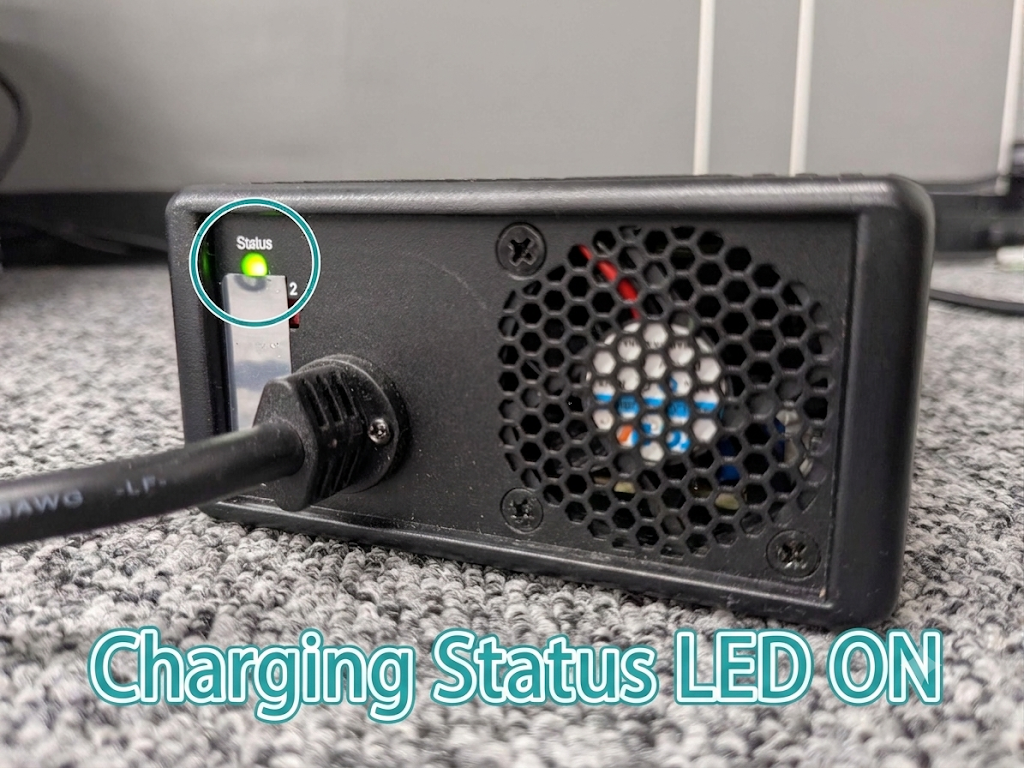

- Is the charger's LED blinking green and is there no clicking sound?
- If the LED blinks accompanied by a clicking sound, the charger itself may be malfunctioning.
- Please record a video and contact Technical Support via inquiry.
◆STEP 2: Check Cable Connections
Please confirm that the cable between the charger and the charging station is securely connected.

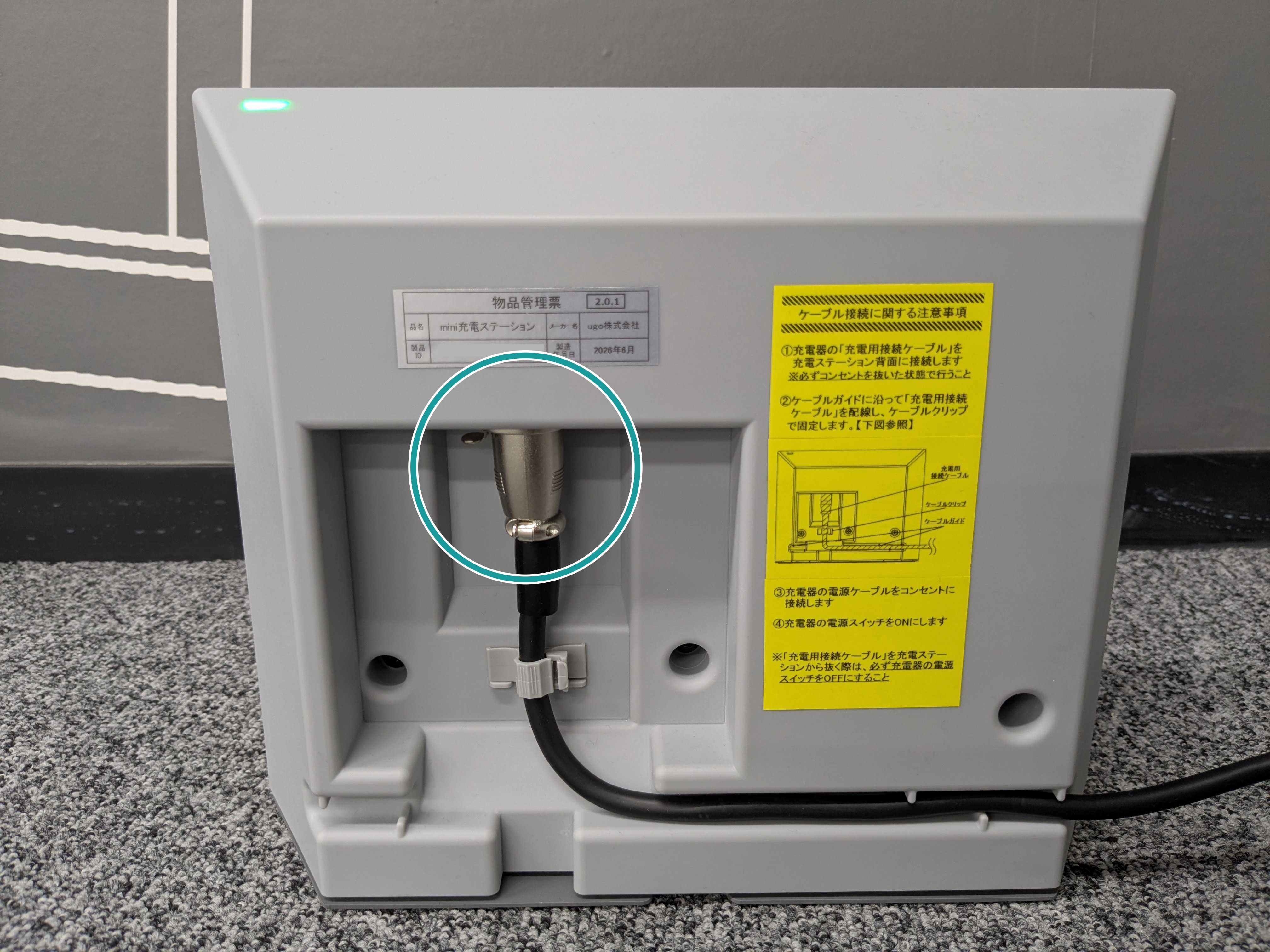

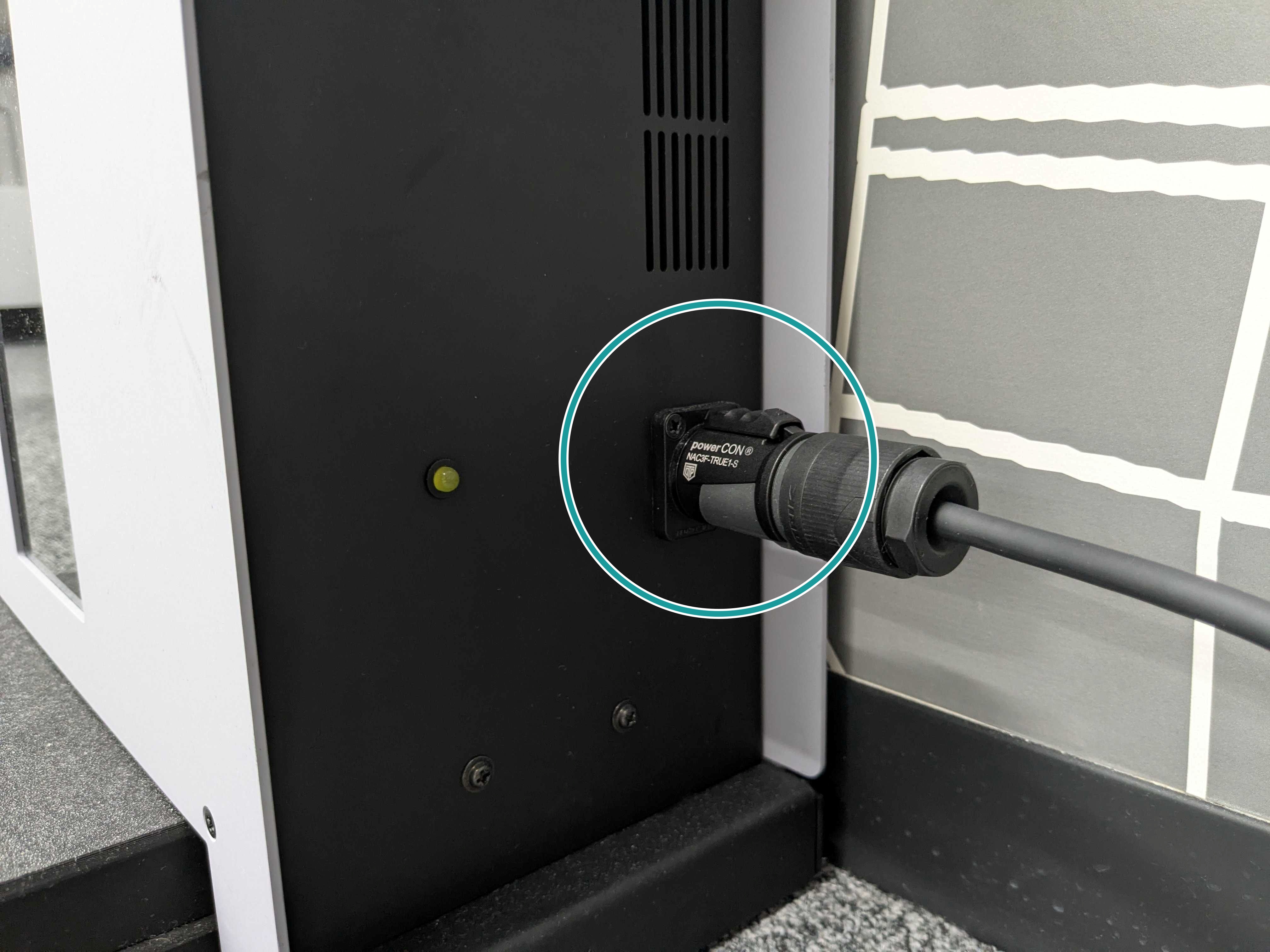

| ugo Pro/Ex Charging Station | ugo mini Charging Station |
◆STEP 3: Confirm Charging by Manual Docking
Manually dock the ugo onto the station and confirm if charging starts normally.
- The battery icon in the upper right corner of the control screen changes to charging status
- The charger's charging status LED lights up

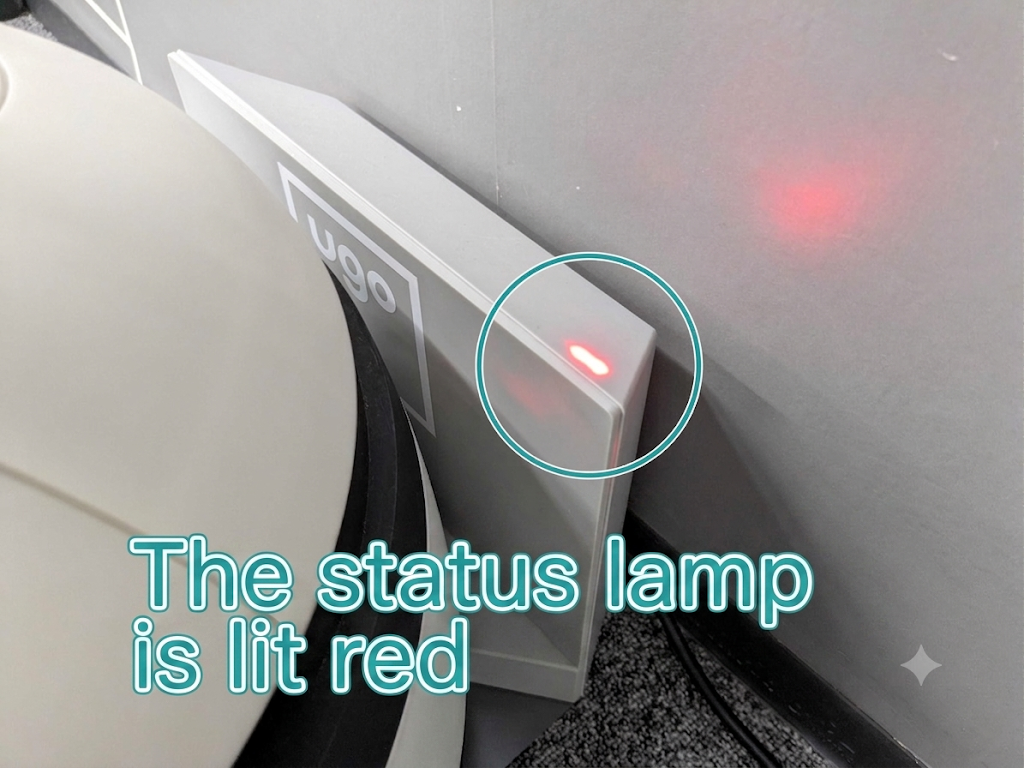

- The charging station's status lamp lights up (may take about 10 seconds to light)

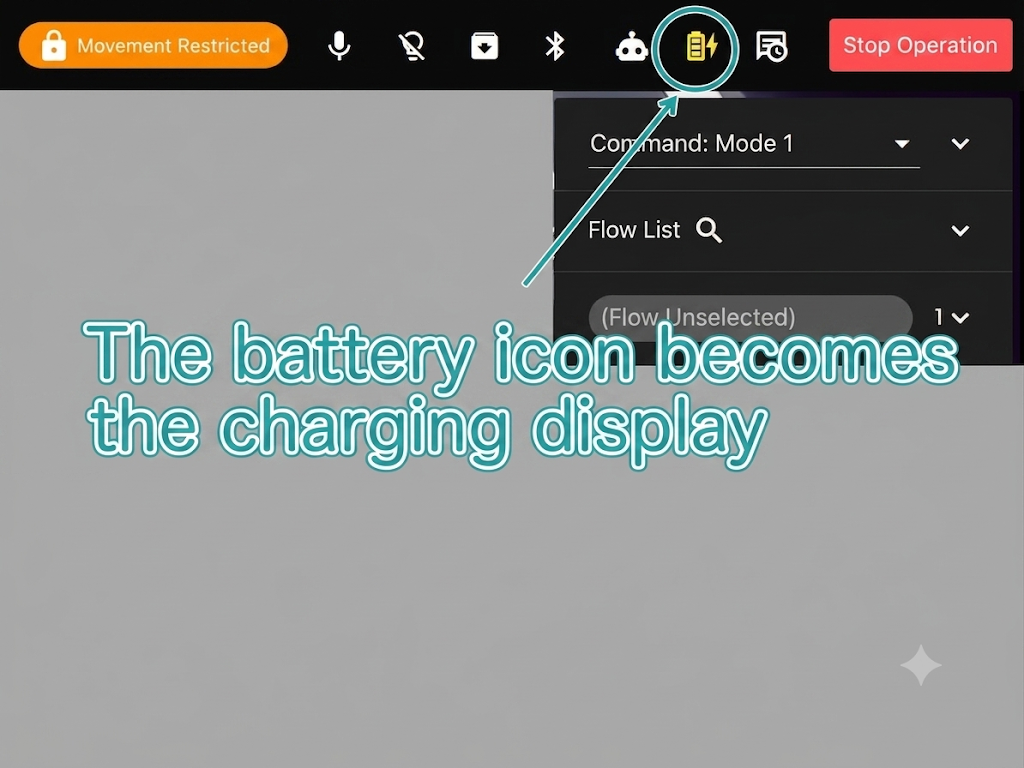

| Battery Icon in Upper Right of Control Screen | |

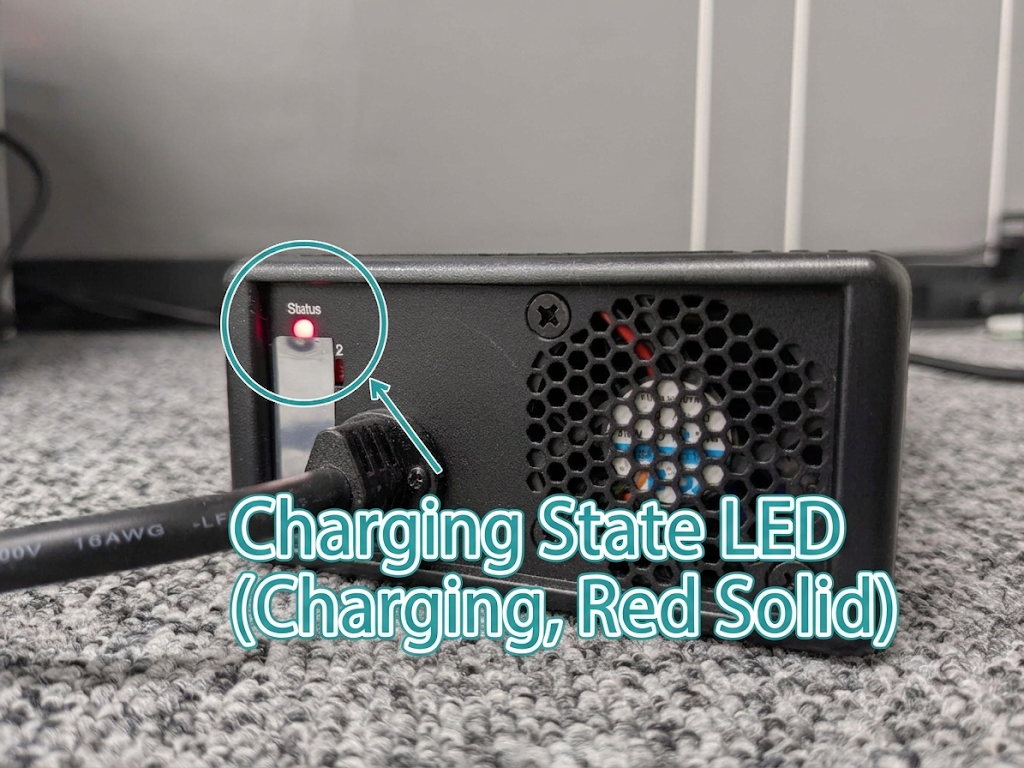

| Charger Charging Status LED | |

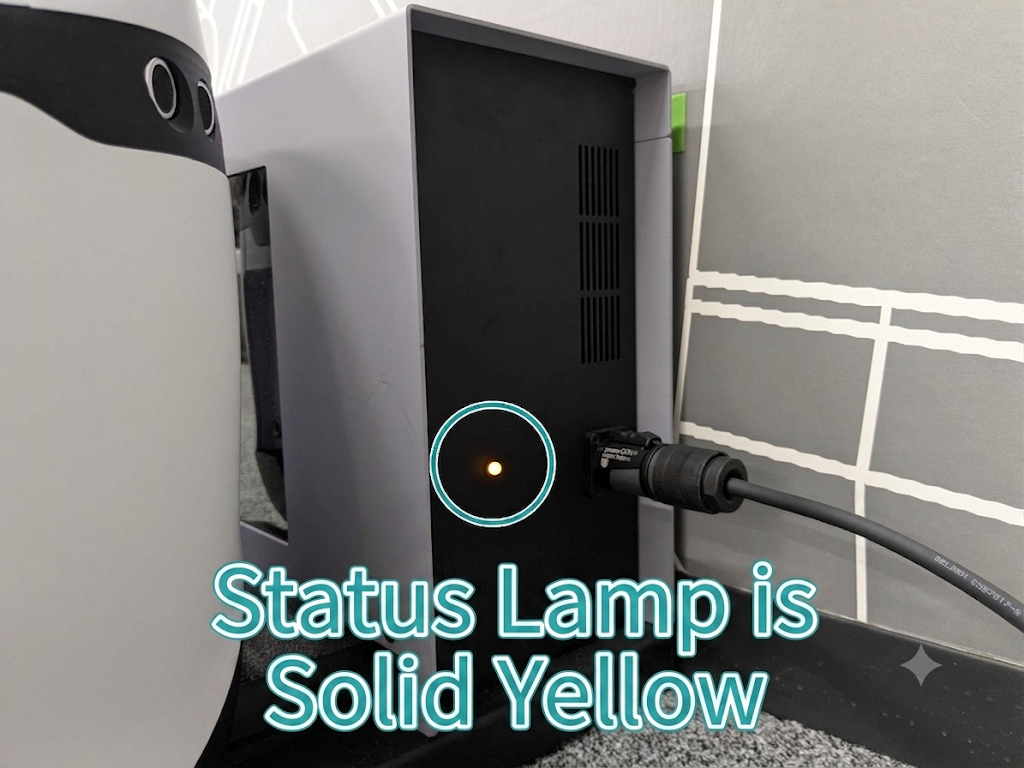

| ugo Pro/Ex Charging Station | ugo mini Charging Station |
If the charging station's status lamp is blinking, please refer to the following pages.
- [Pro] Charging Station Charging Status LED is Blinking Yellow
- [mini] Charging Station Status Lamp is Blinking Red
- [mini] Charging Station Status Lamp is Blinking Yellow
If charging still does not start normally after the above steps, there may be an issue with the charger or the charging station unit.
Please record a video and contact Technical Support via inquiry.
◆STEP 4: Confirm Requirements for Automatic Charging Return
If there are no issues in STEPS 1 to 3, check the specific requirements for automatic charging return.
If the following requirements are not met, automatic charging return may fail.
- [ugo Pro /Ex] Requirements for Automatic Charging Return
- [ugo mini G1] Requirements for Automatic Charging Return
◆STEP 5: Check Error Codes
If automatic charging return fails, an error code and message will be displayed on the control screen.
For the major codes below, we provide specific check items.
| ERR No | Target | Displayed Message | Check / Action Items |
| ERR_0041 | Pro/Ex | The station is too close to start charging return. | Check the starting position |
| ERR_0042 | Pro/Ex | Cannot start charging return due to obstacle behind. | Check for obstacles behind the unit |
| ERR_0043 | Common | Cannot start charging return due to obstacle on the left side. | Check for obstacles on the left side of the unit |
| ERR_0044 | Common | Cannot start charging return due to obstacle on the right side. | Check for obstacles on the right side of the unit |
| ERR_0051 | Common | Marker could not be detected. | [Pro/Ex] Confirm the rear of the unit is facing the station at the start of automatic charging return [mini] Confirm the unit is facing the station directly at the start of automatic charging return / the environment is not too dark Check if markers are hidden due to environmental factors (obstacles, fixtures, direct sunlight, etc.) |
| ERR_0060 | Common | Collision detection timeout error | Stopped by collision prevention function Check surrounding obstacles Because the starting position, orientation, and approach angle can affect this, adjust the starting position slightly |
| ERR_0103 | Common | Failed to detect the station. | Check if the charger is powered on Check if the charger LED is blinking green Confirm station installation requirements (including protrusions) [Pro/Ex] Confirm the rear of the unit is facing the station at the start of automatic charging return [mini] Confirm the unit is facing the station directly at the start of automatic charging return / the environment is not too dark |
| ERR_0110 | Common | Collision detection timeout error | Stopped by collision prevention function Check surrounding obstacles Because the starting position, orientation, and approach angle can affect this, adjust the starting position slightly |
| ERR_0150 | Common | Marker could not be detected. | [Pro/Ex] Confirm the rear of the unit is facing the station at the start of automatic charging return [mini] Confirm the unit is facing the station directly at the start of automatic charging return / the environment is not too dark Check if markers are hidden due to environmental factors (obstacles, fixtures, direct sunlight, etc.) |
| ERR_0200 | Common | Return retry error | Error occurs when the retry count for charging return exceeds the specified number and return fails Check surrounding obstacles Because the starting position, orientation, and approach angle can affect this, adjust the starting position slightly |
If automatic charging return fails in Flow, an error message saying "timeout" may appear.
In that case, please refer to the check and action items in the above error code table.
If an error code other than those above is displayed, please contact us.
We recommend using the notification feature and contacting us with the sent error message.
・How to set up the notification feature
◆If the Issue Still Persists
If the issue is not resolved or if you have any other questions, please contact us at the following.
ugo Technical Support Team
✉️ cs@ugo.plus
