The call button is available to customers who have signed up for the optional contract.
If you would like to use the call button, please contact us.
◆Table of Contents
・Add the "Beacon Detection (Bluetooth)" command to the command list
・How to set up to receive call button notifications via email or various messaging apps
・When the Floor of Ugo is Changed
・If you change the call button to another ugo in the same building
◆Function Overview
- An IoT device that transmits specific data (iBeacon Advertising Packet) using Bluetooth is called a "beacon".
The data transmitted by a beacon contains information that identifies the device,
so ugo can detect a specific beacon by performing a Bluetooth scan.
- This beacon and Bluetooth scanning technology allows the operation screen to display that the call button has been pressed.
◆What is a Call Button?
- The call button is an IoT device that emits a beacon signal when pressed.
Ugo is capable of detecting this signal and displays a message on the bottom of the operation screen when the button is pressed.
- It is also possible to configure the button to notify the user visa email or other messaging apps when the button is pressed. This can be used in use-cases where an operator can talk to a customer through ugo or where a staff member
can be sent to the customer's location after receiving an email or message notification of the button press.
*The notification function for email or other messaging apps is available from ugo OS v4.0.0 or later.
◆Installation Method

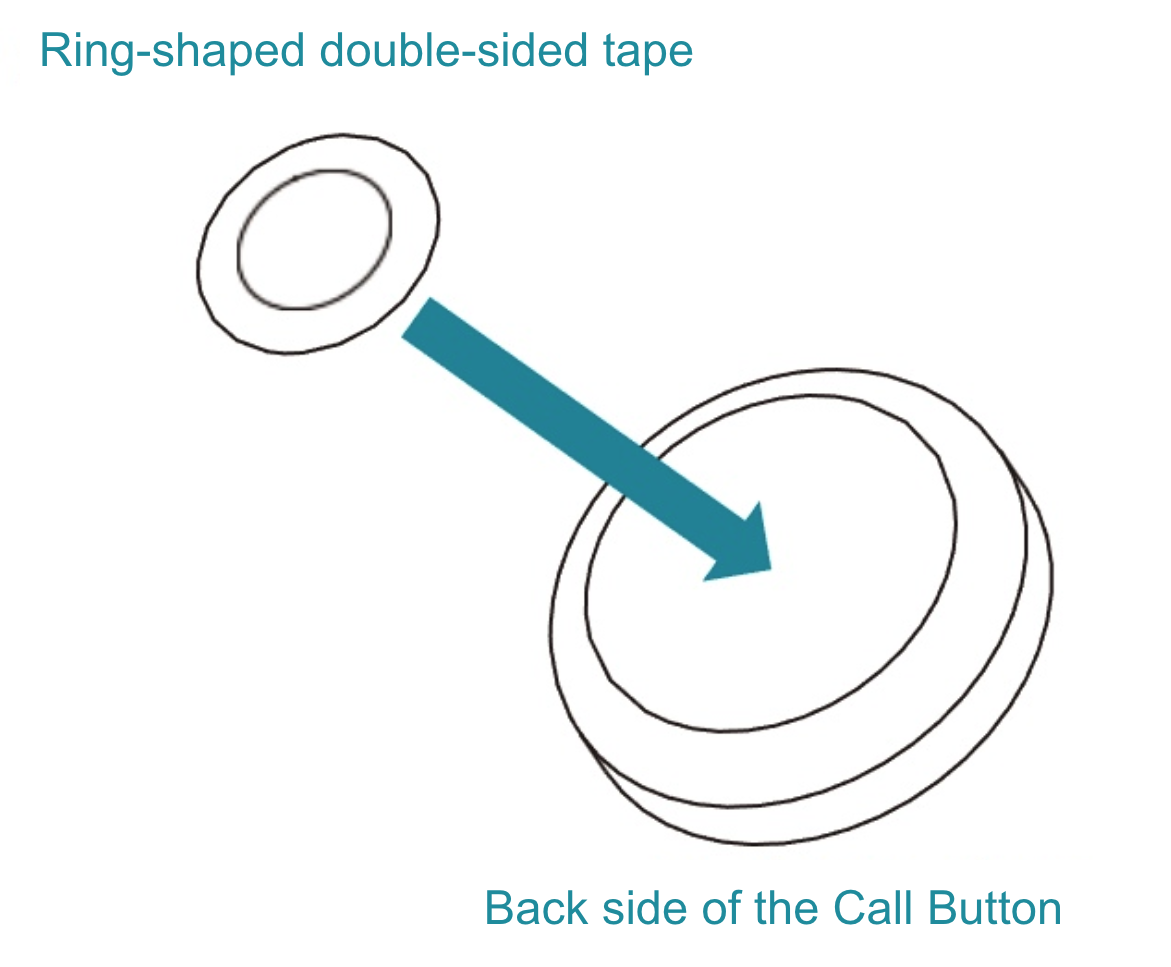

① Open the call button packaging box and attach the included ring-shaped double-sided tape over the serial number sticker on the back of the button, then
peel off the release paper.

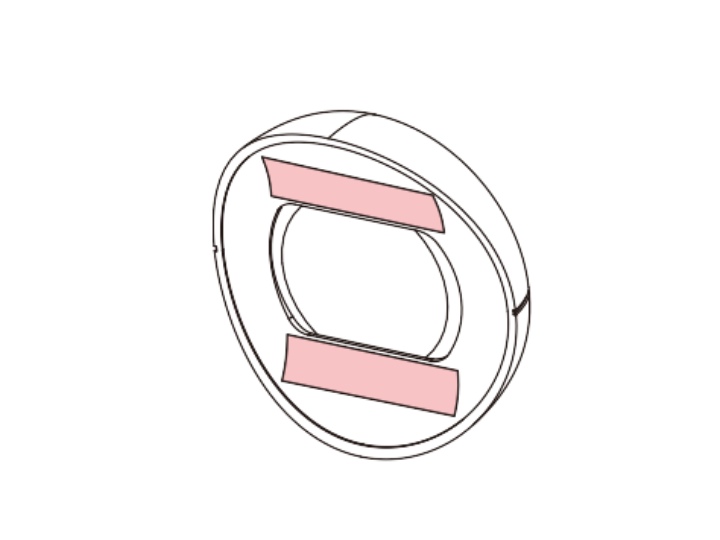

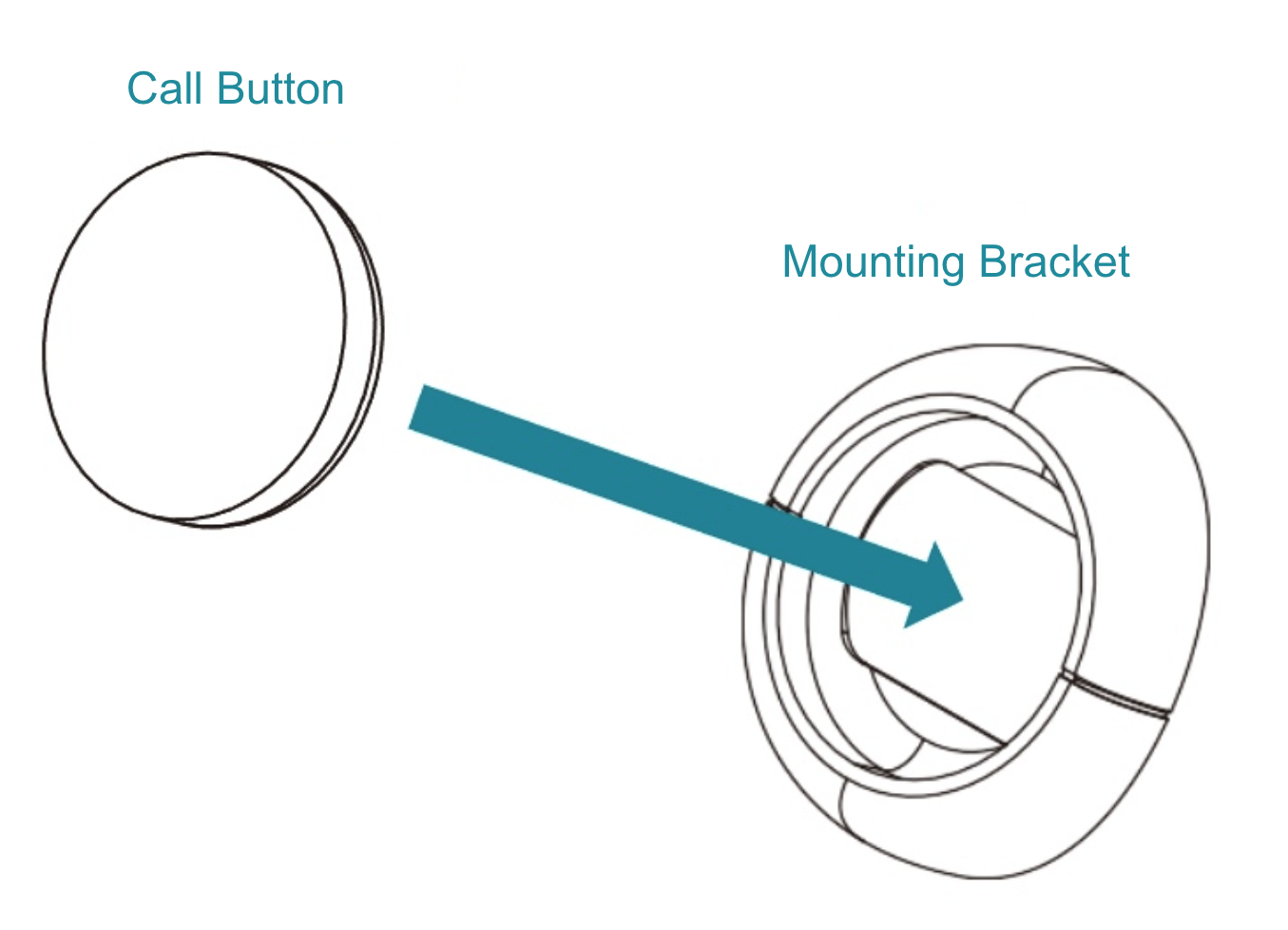

② Attach the call button to the Mounting Bracket.
③ Peel off the release paper from the double-sided tape on the back of the fixture.

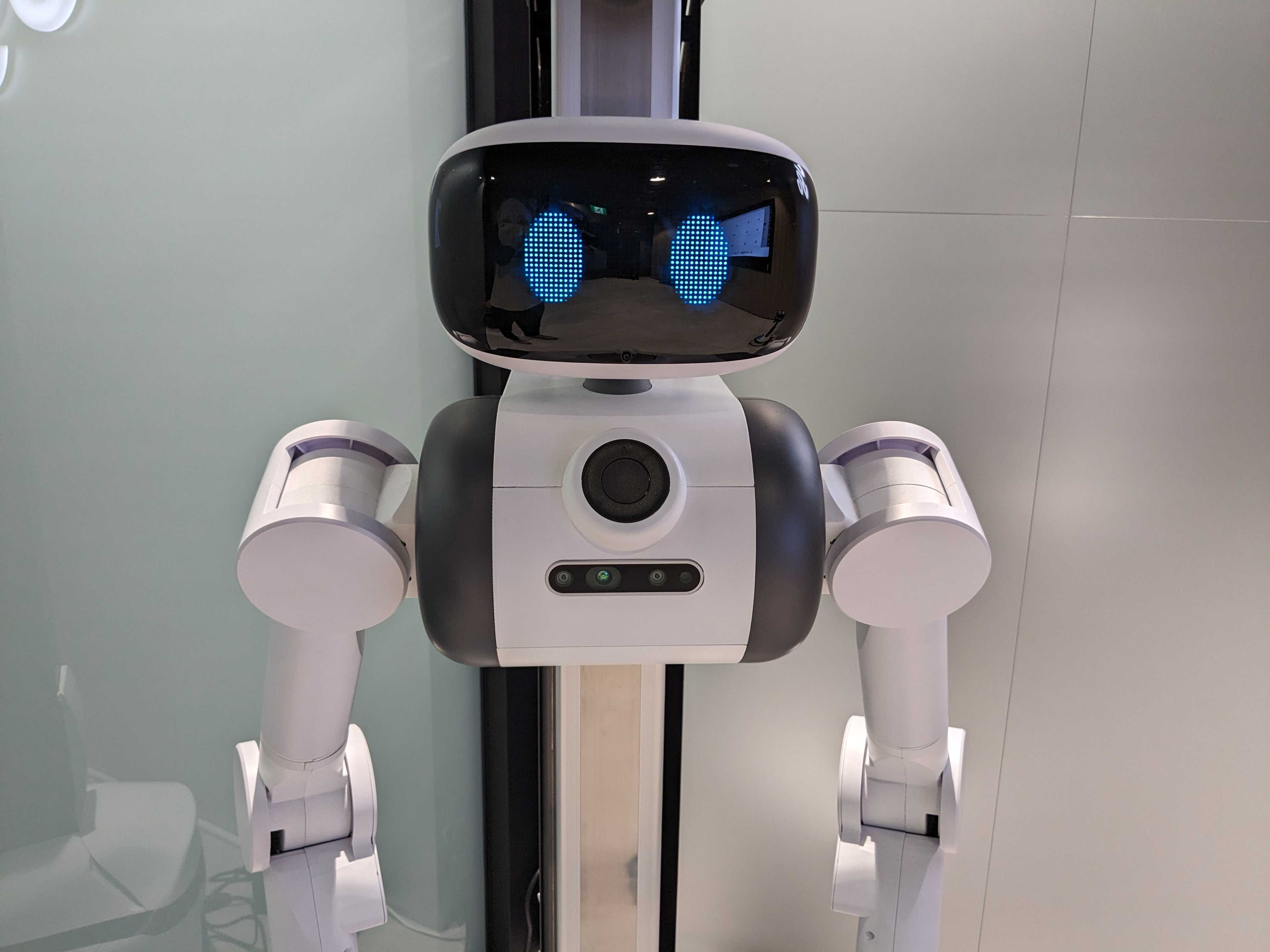

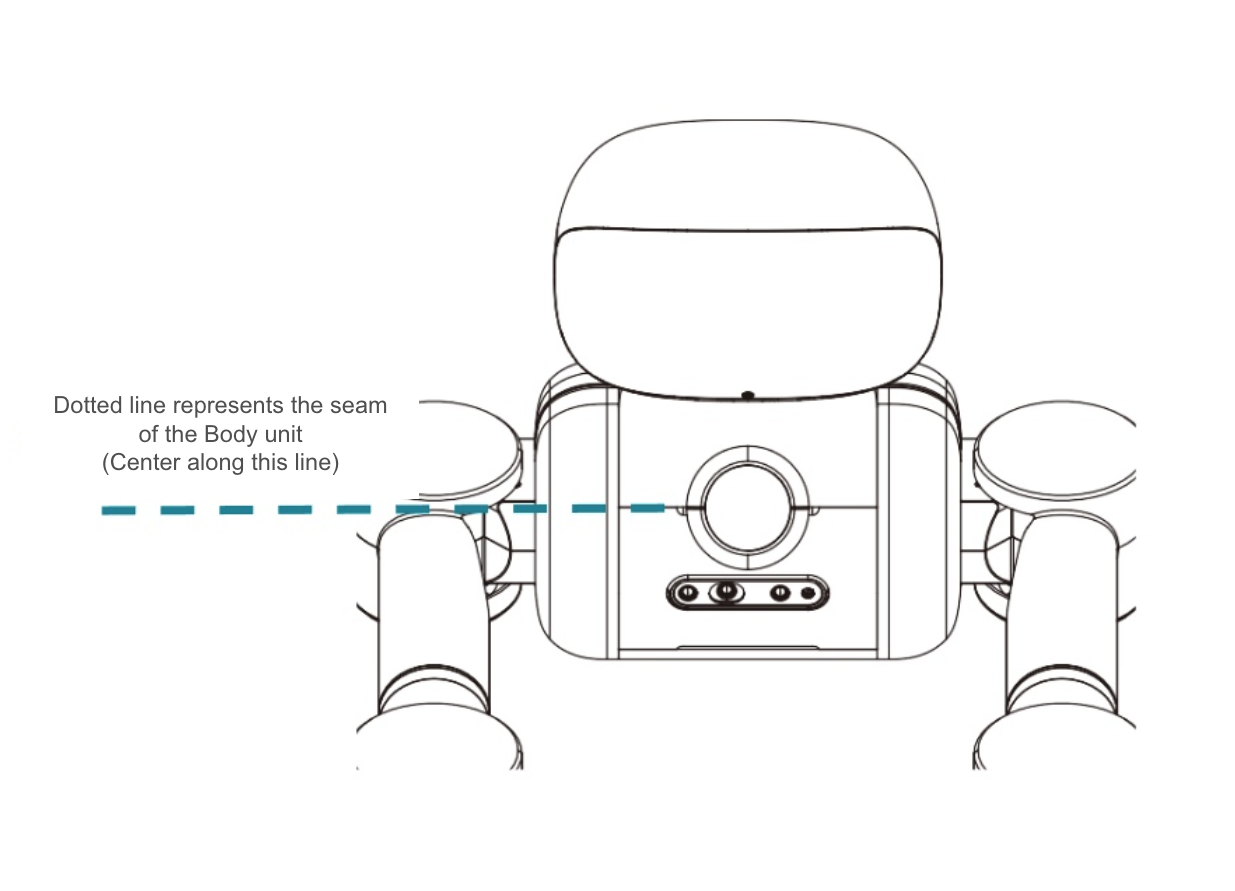

④ Attach the mounting bracket, with the call button attached, above chest sensor of the body unit.
When attaching, align the center with the seam line of the body unit.
⑤ This completes the installation of the call button.
◆ Setup

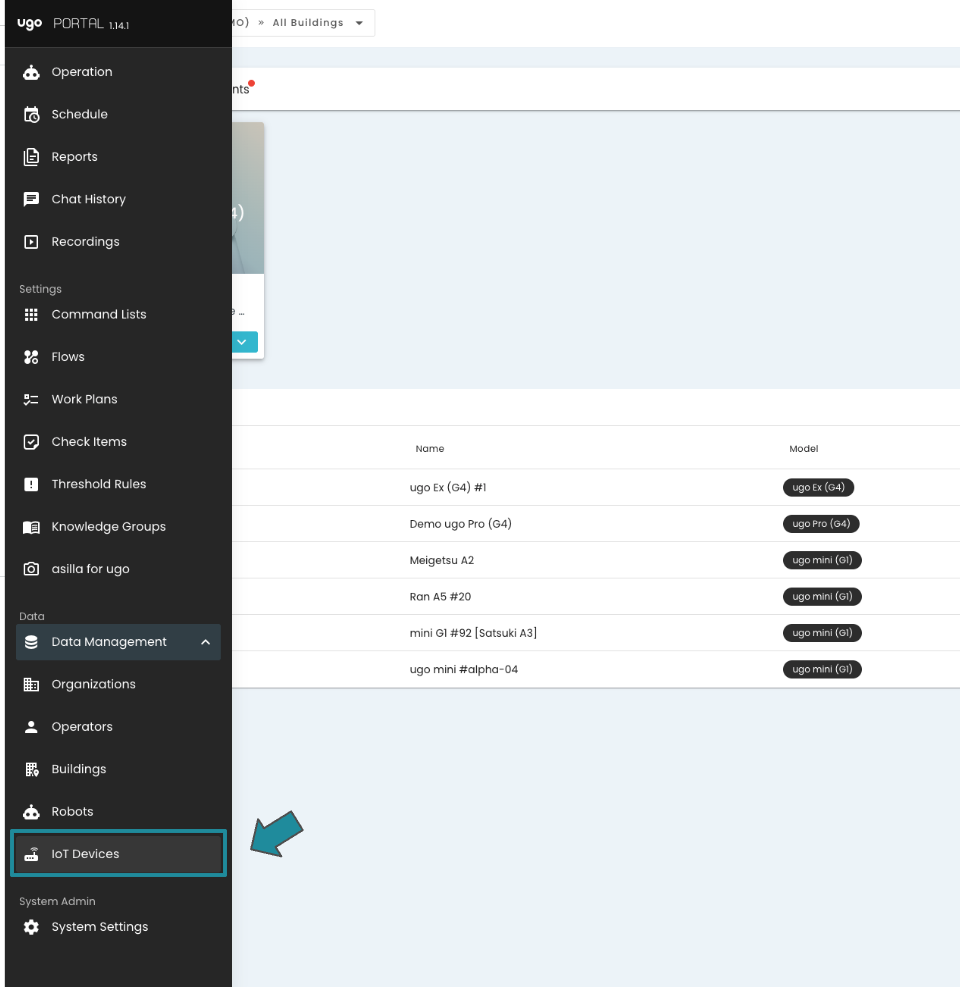

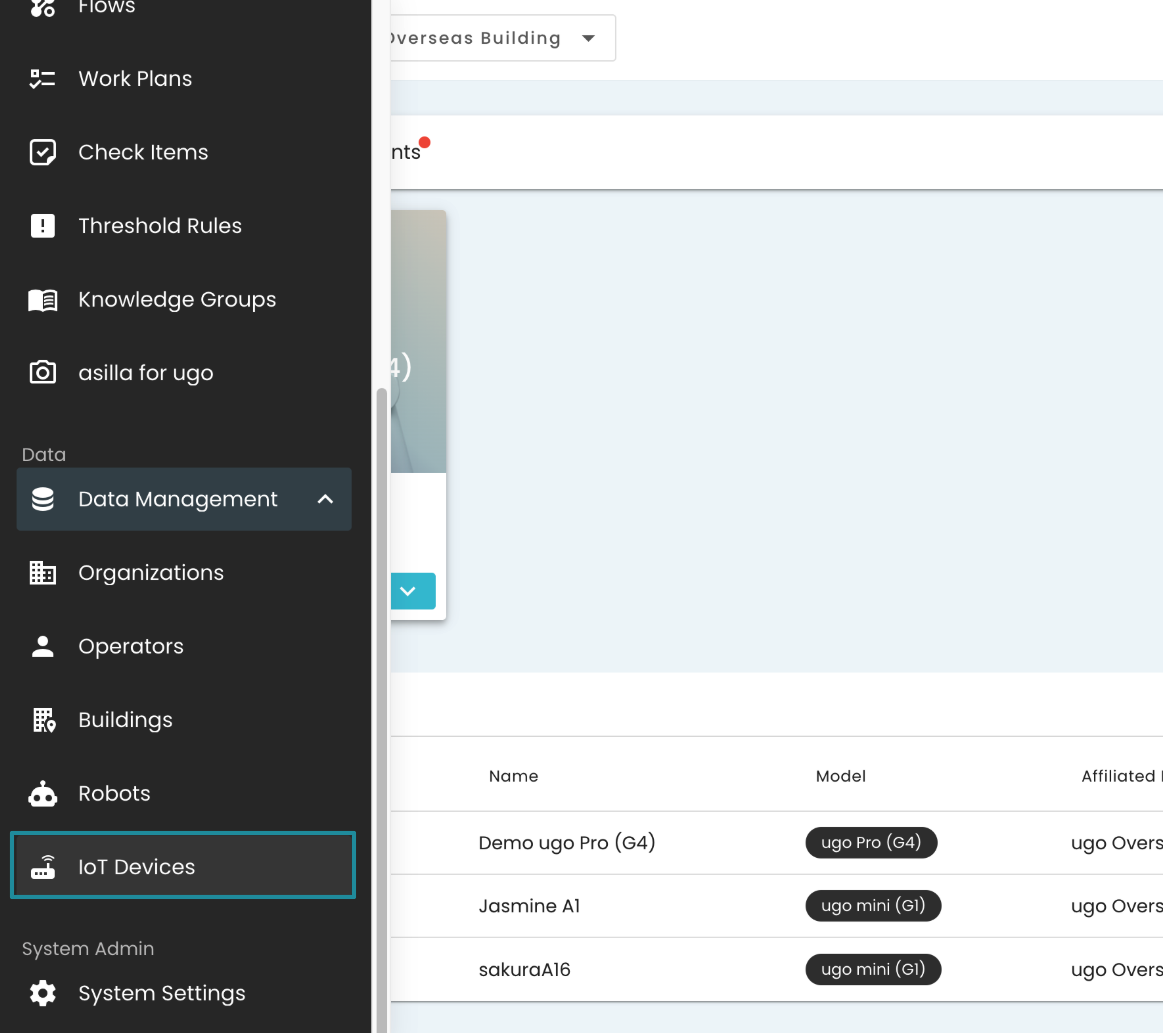

① From the global menu, select [Data Management] > [IoT Device Management] .

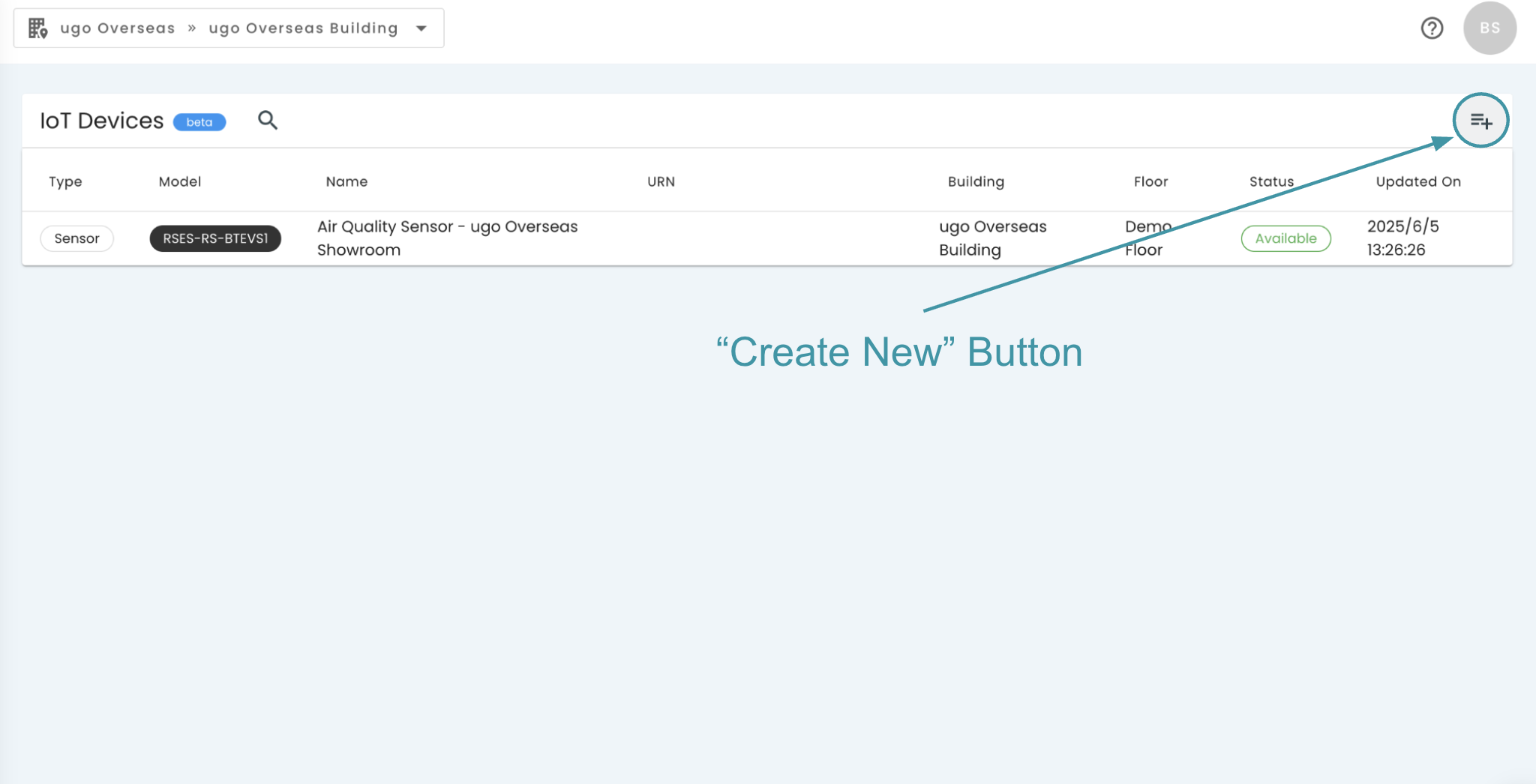

② Click the [Create New] button (+ button) in the upper right corner of the screen

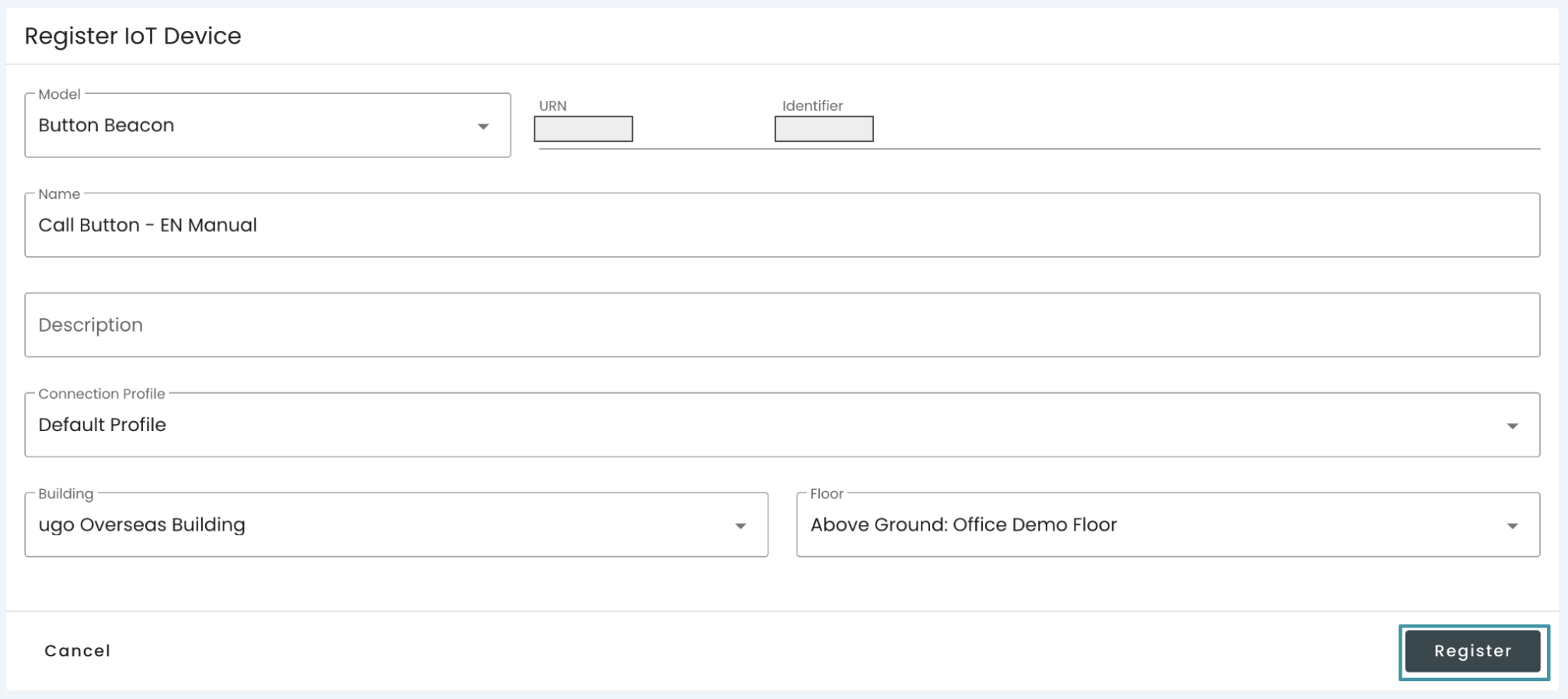

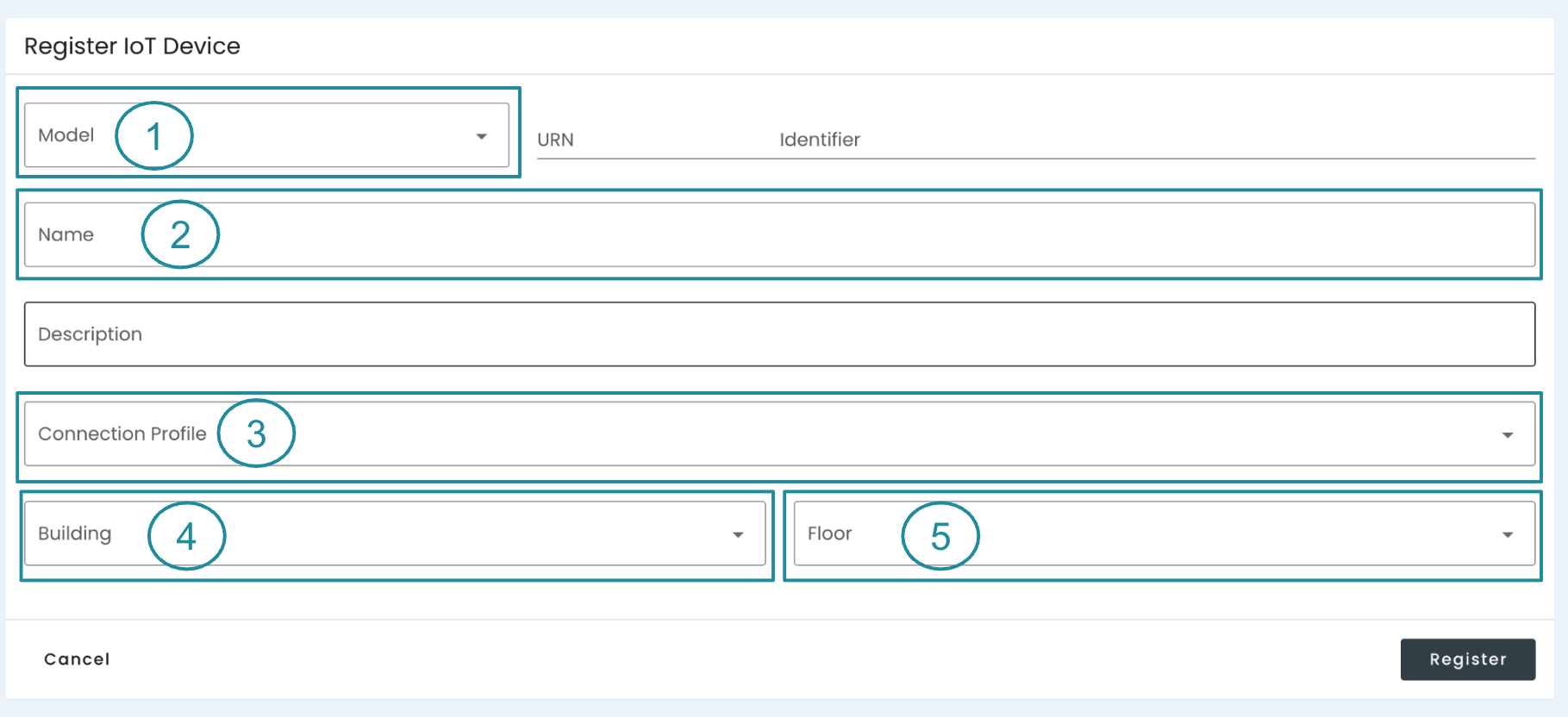

③ On the [IoT Device Registration] screen, enter the following:
① Select [Button-type Beacon] from the [Model] pull-down menu.
② Enter any name for [Name].
③ Select [Deafult Profile] from the [Connection Profile] pull-down menu.
④ Select the building to be used from the [Building] pull-down menu.
⑤ Select the floor to be used from the [Floor] pull-down menu.
※ Enter any description as necessary.
④ After entering the information, click [Register]
This completes the setup for the IoT device.
◆ Add the "Beacon Detection (Bluetooth)" command to the command list

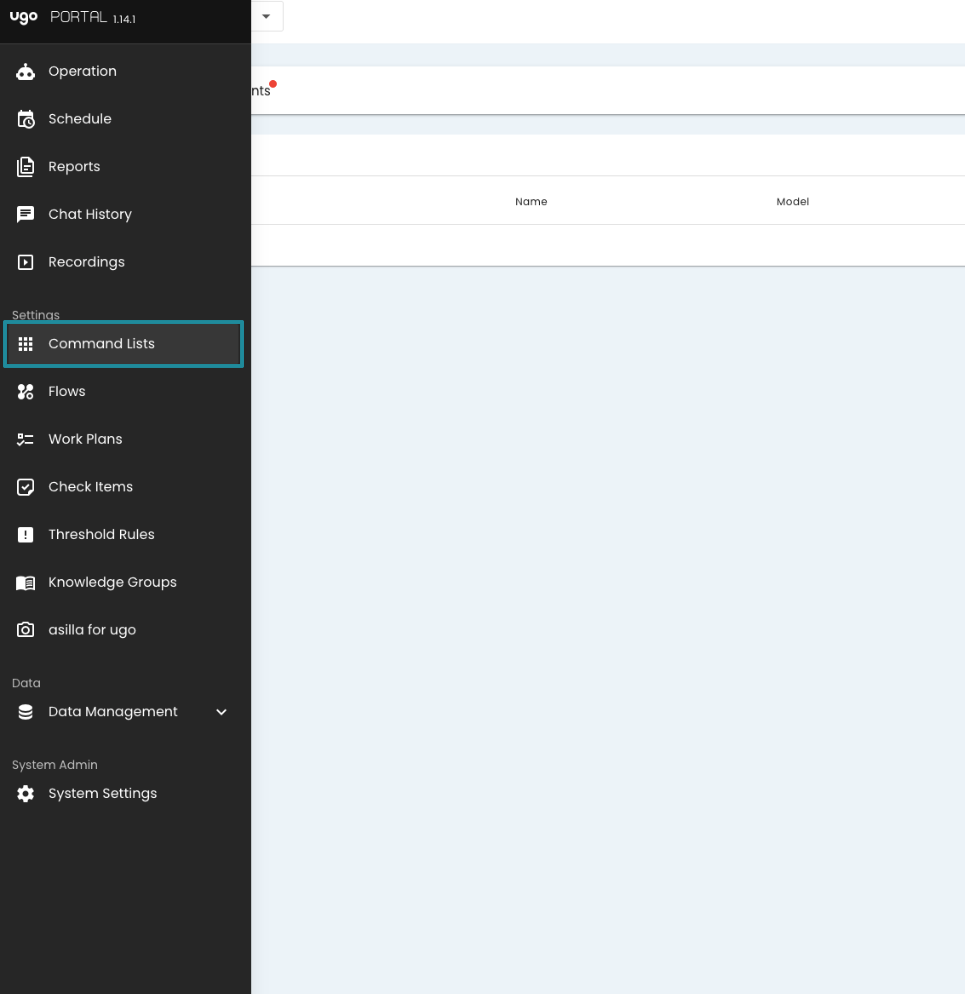

① Click [Command Lists] Settings from the global menu

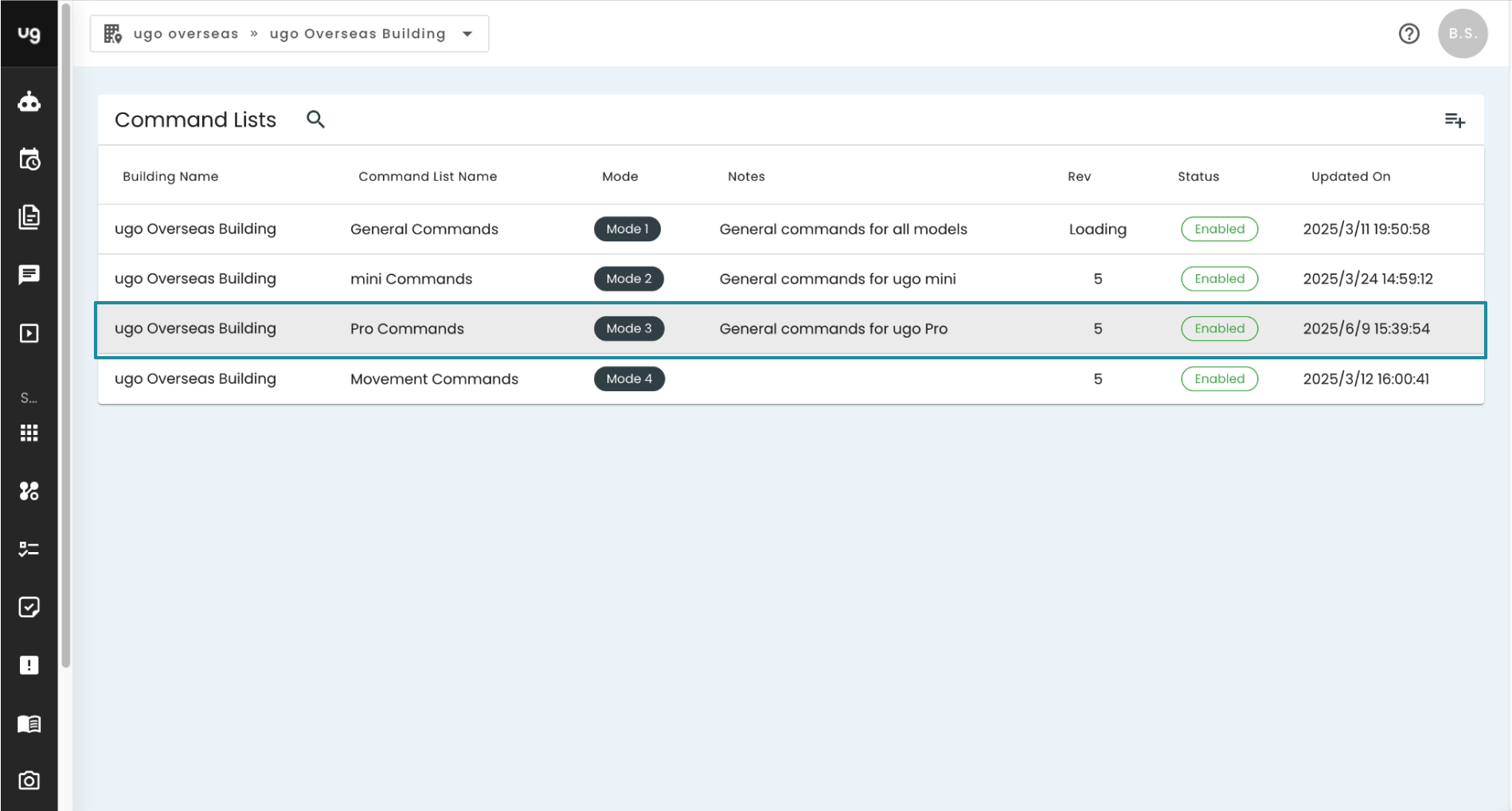

② Select the command list to which you want to add the [Beacon Detection (Bluetooth)] command.

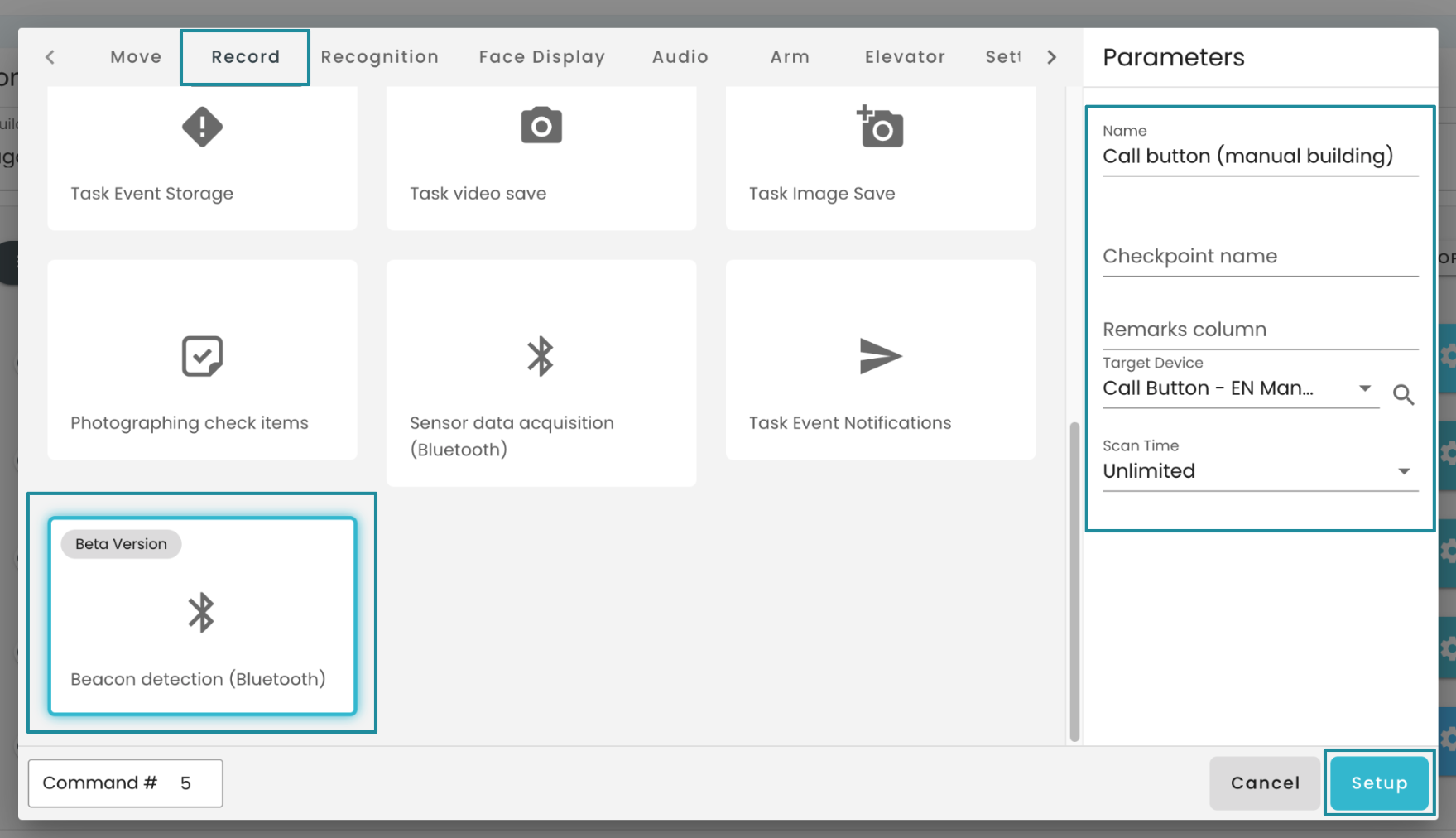

③ Add the [Beacon Detection (Bluetooth)] command from the [Record] tab of the command picker .
Enter the parameters as follows
[Name] will automatically be entered as you search for [IoT device name].
For [Target device] , select the [IoT device name] set in the previous section.
Do not enter anything in [Checkpoint name] or [Notes].
For [Scan time] , select [Unlimited].

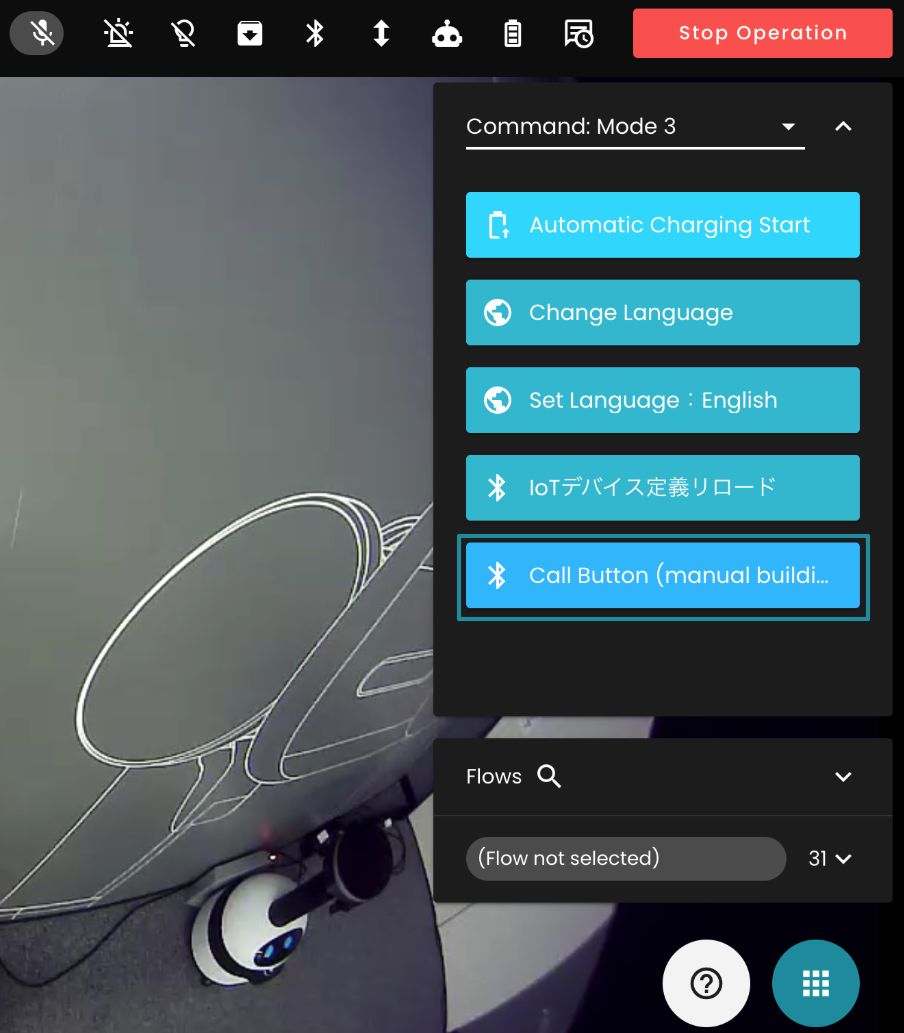

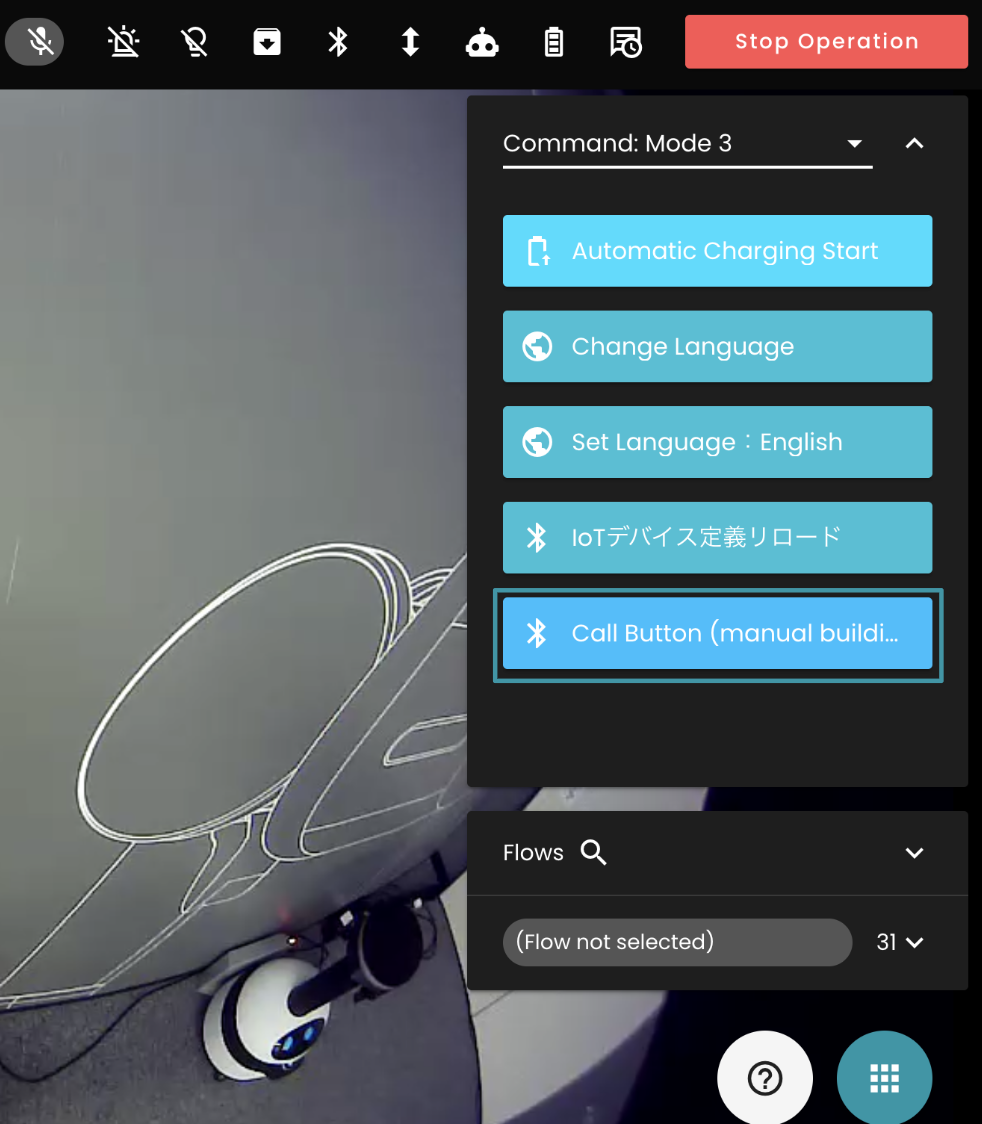

④ Open the operation screen and click the [Beacon Detection (Bluetooth)] command you set.
*The default command name is [Find "IoT device name"]

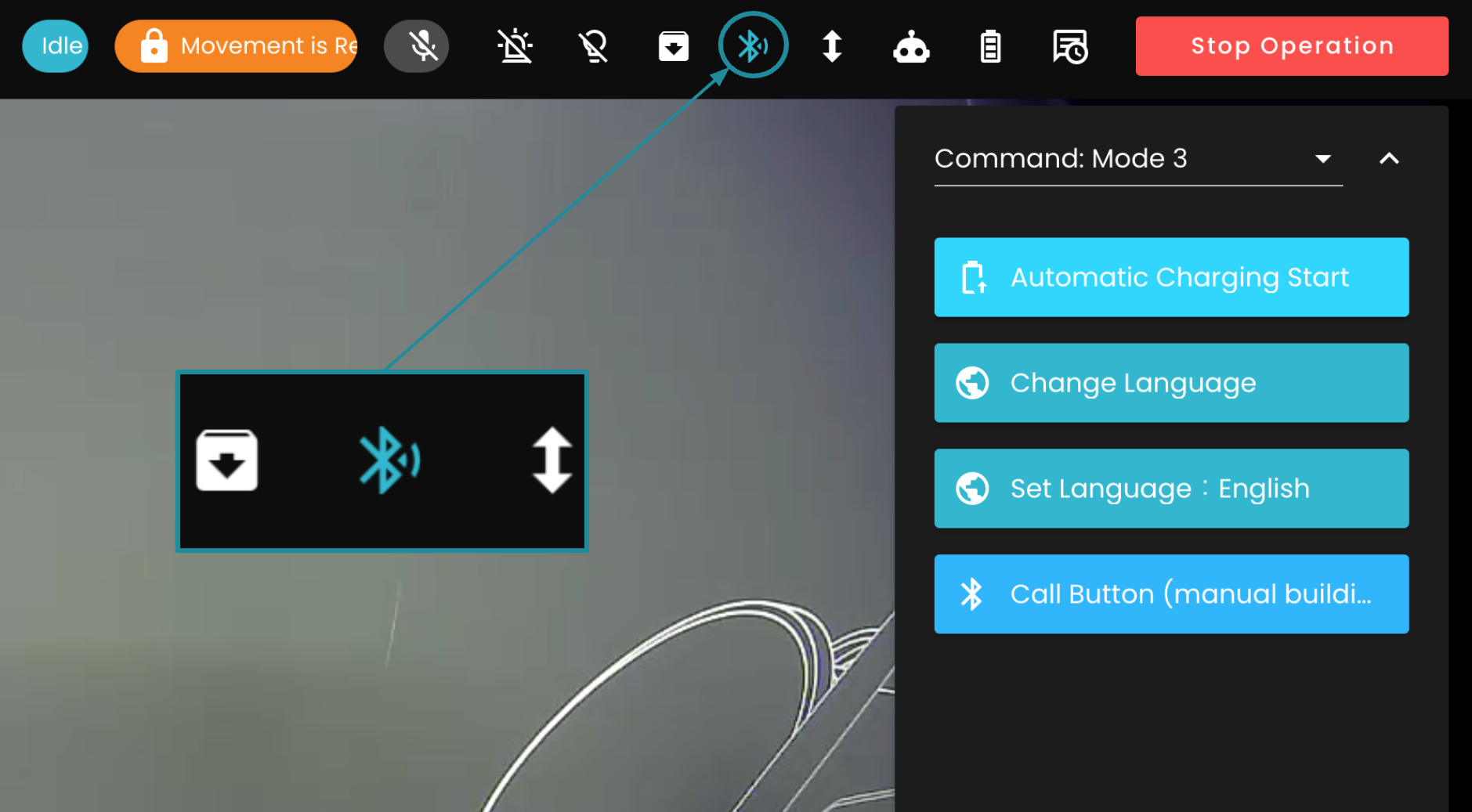

⑤ Ensure that the 【Bluetooth icon】 in the upper right corner of the operation screen turns blue, then press the call button.

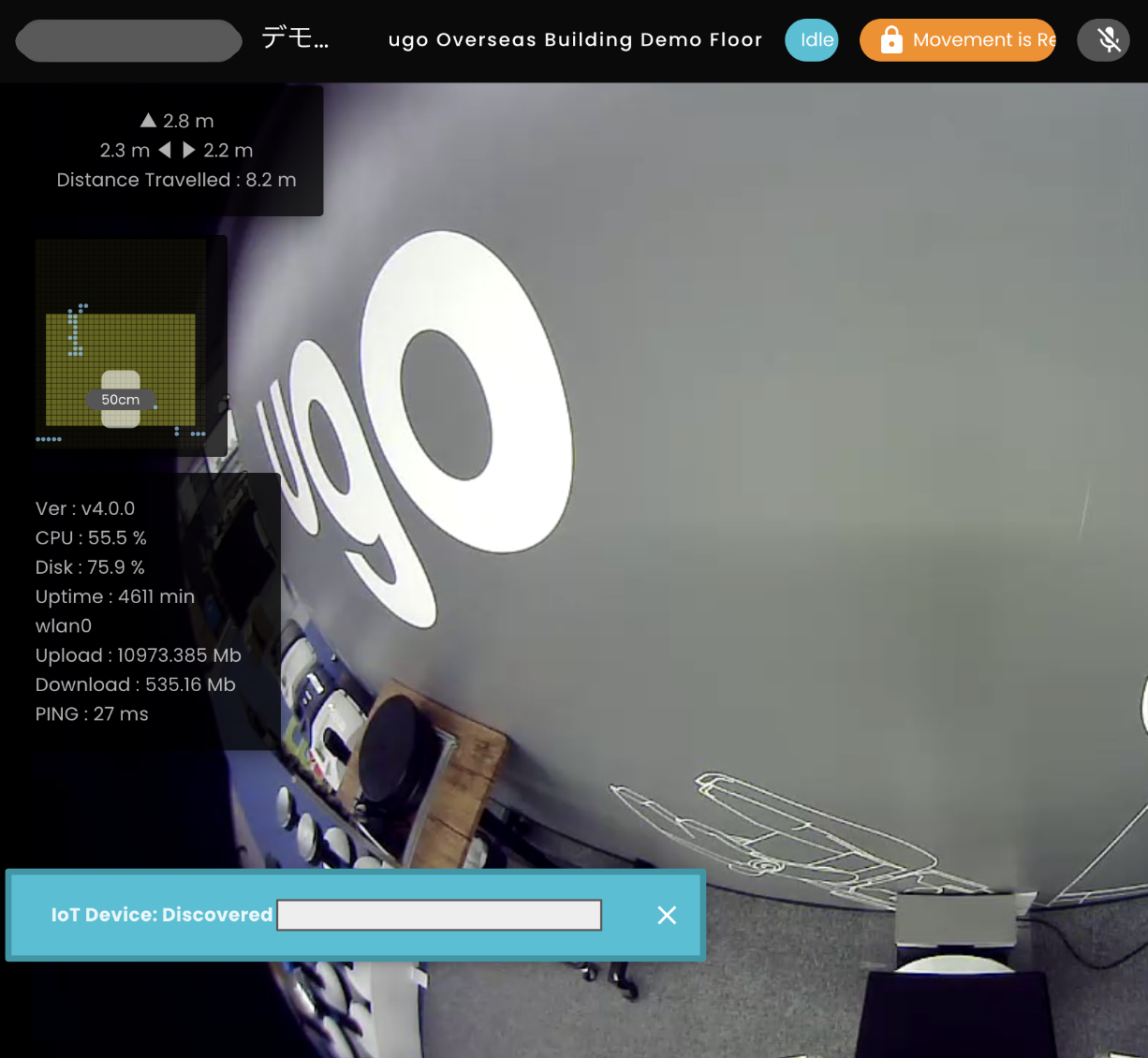

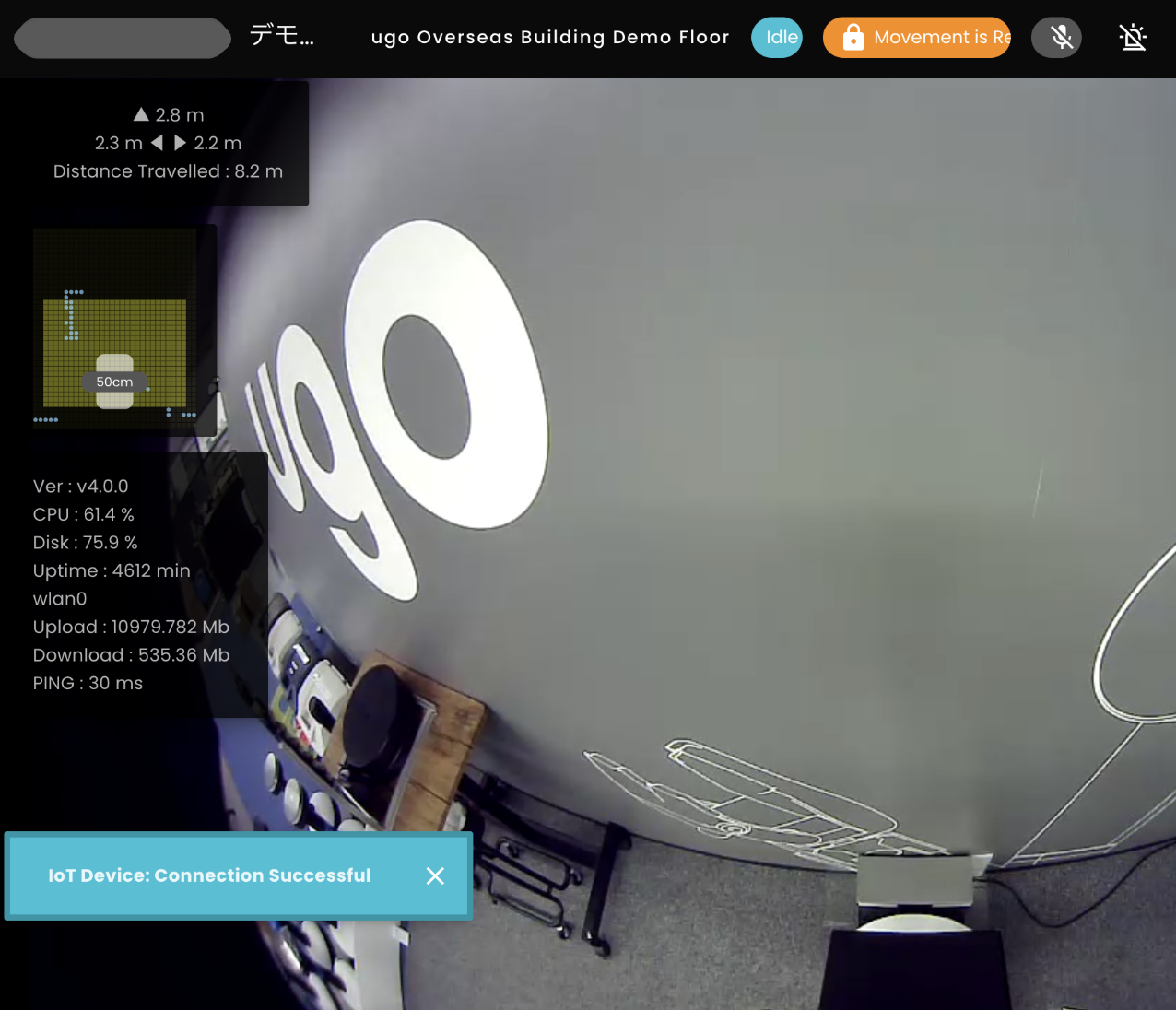

⑥ When the messages " IoT Device: Discovered " and " IoT Device: Connection Successful " appear at the bottom of the operation screen, the setup is complete.
◆Usage Instructions
① From the global menu, select [Data Management] > [IoT Device Management]

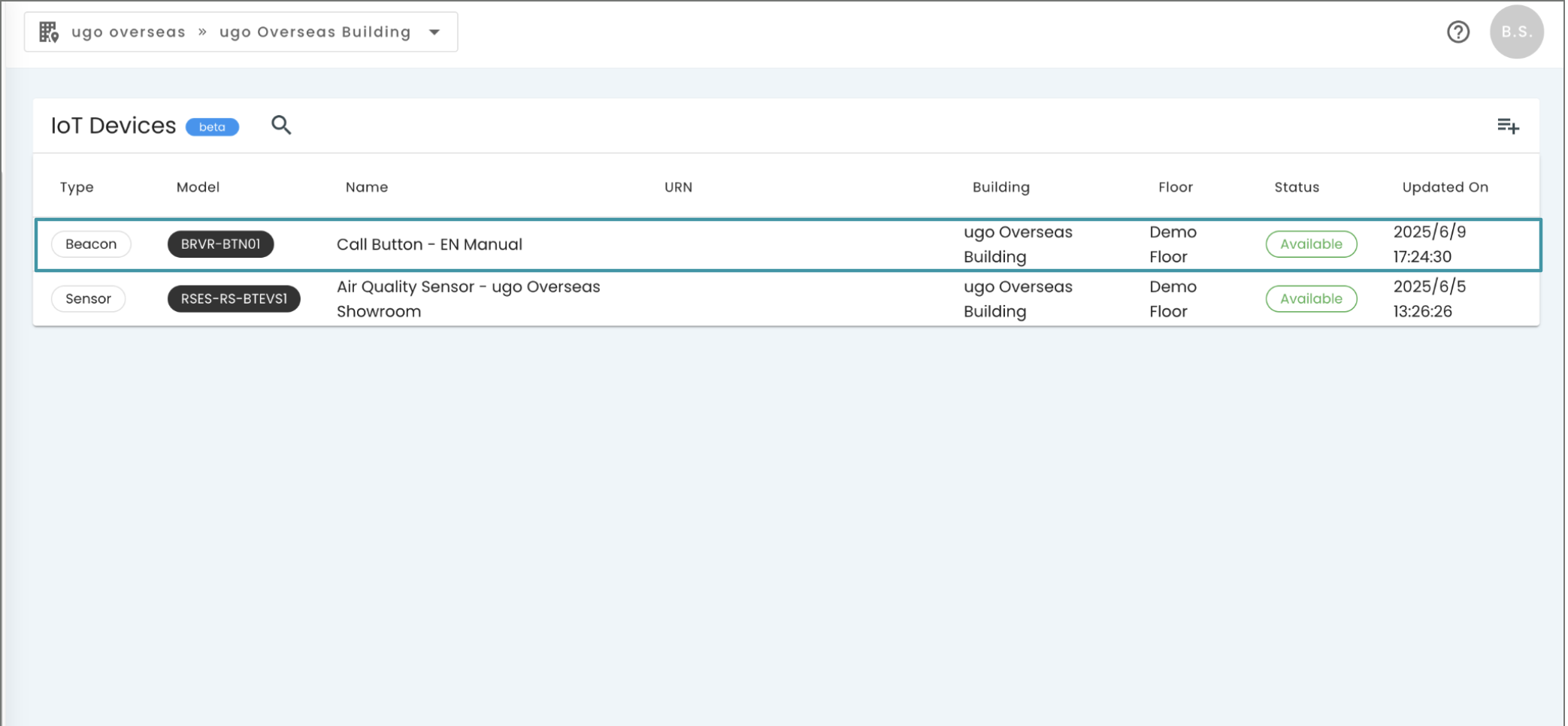

② Click on the data of the IoT device you set up in the previous section.

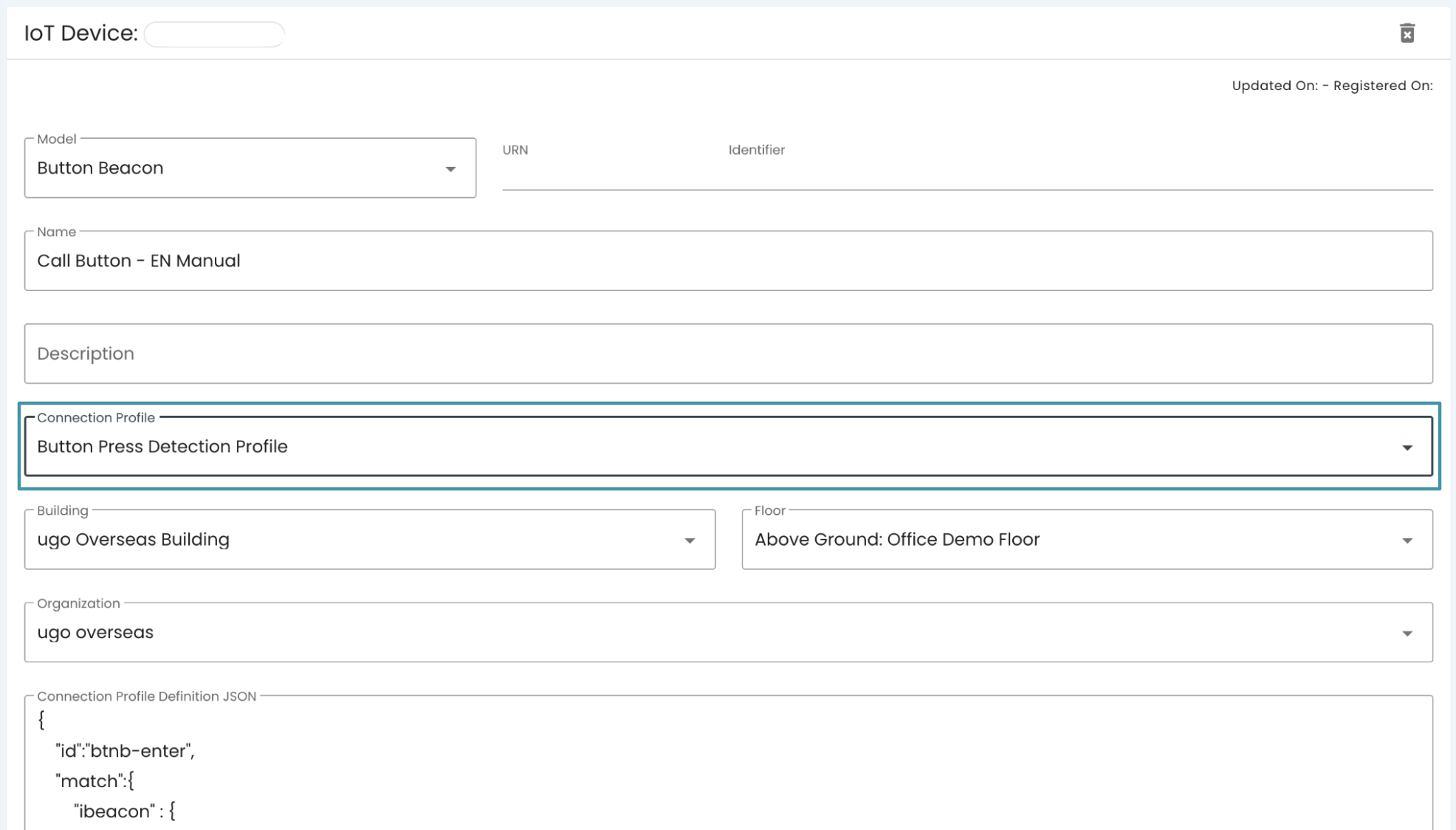

③ On the [IoT Device Registration] screen, change the [Connection Profile]
from [Default Profile] to [Button Press Detection Profile] and click [Update] to save the settings.
④ Reload the operation screen and click the [Beacon Detection (Bluetooth)] command.

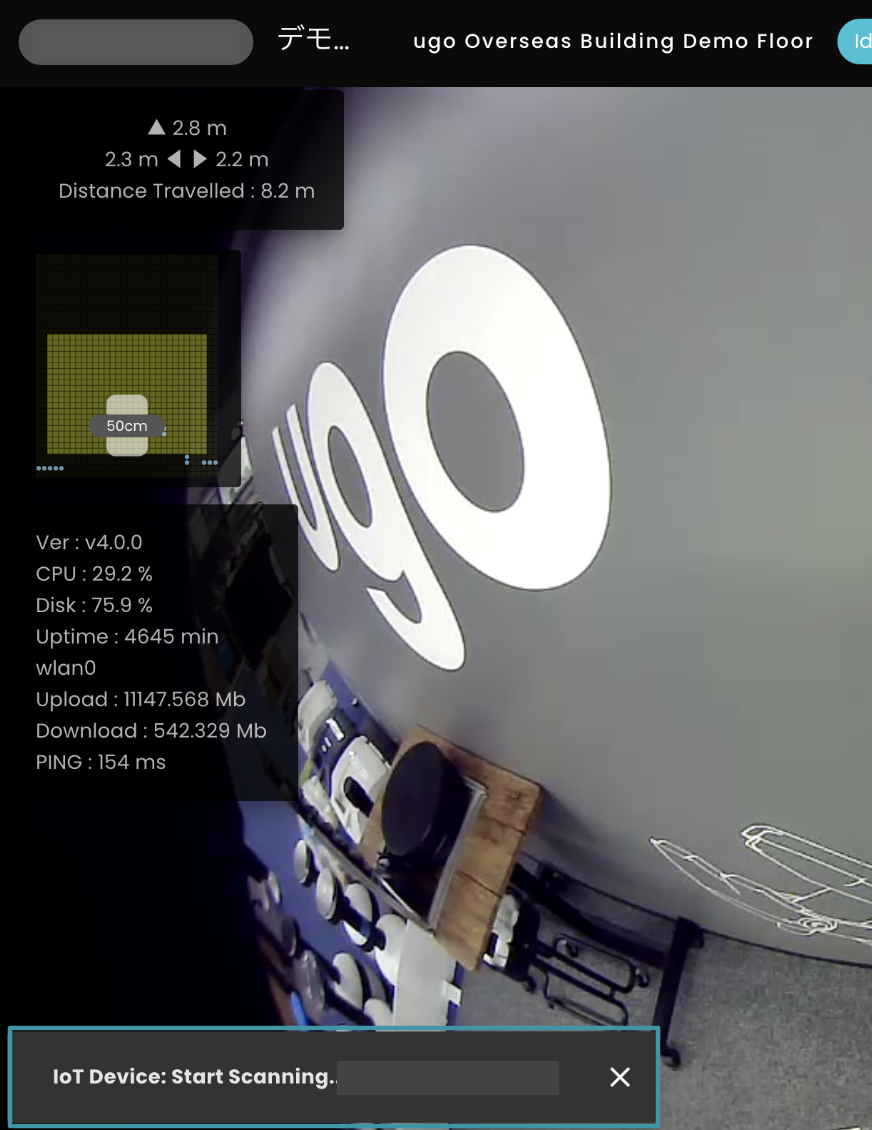

The message " IoT Device: Start Scanning " will be displayed.
*The default command name is [Find "IoT Device Name"] .

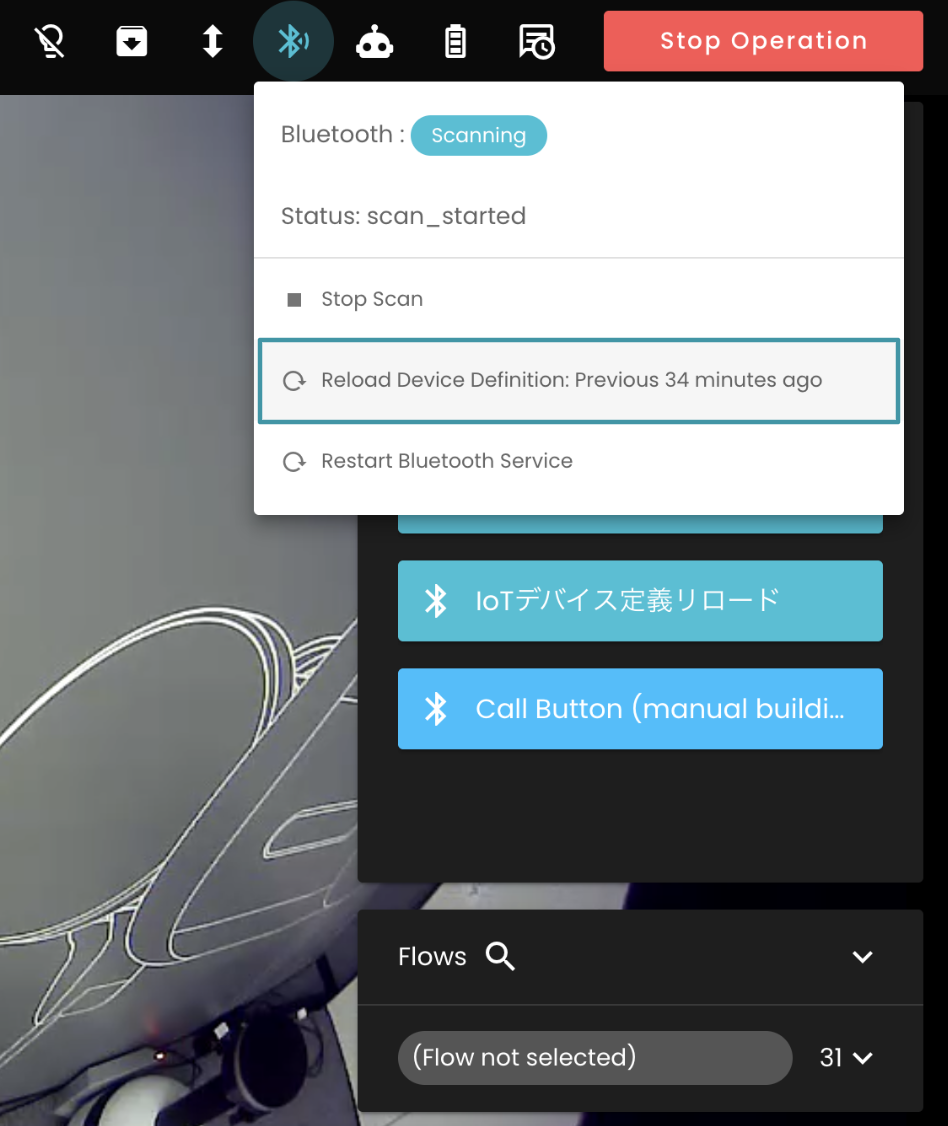

⑤ Ensure that the Bluetooth icon turns blue, then press [Reload Device Definition]

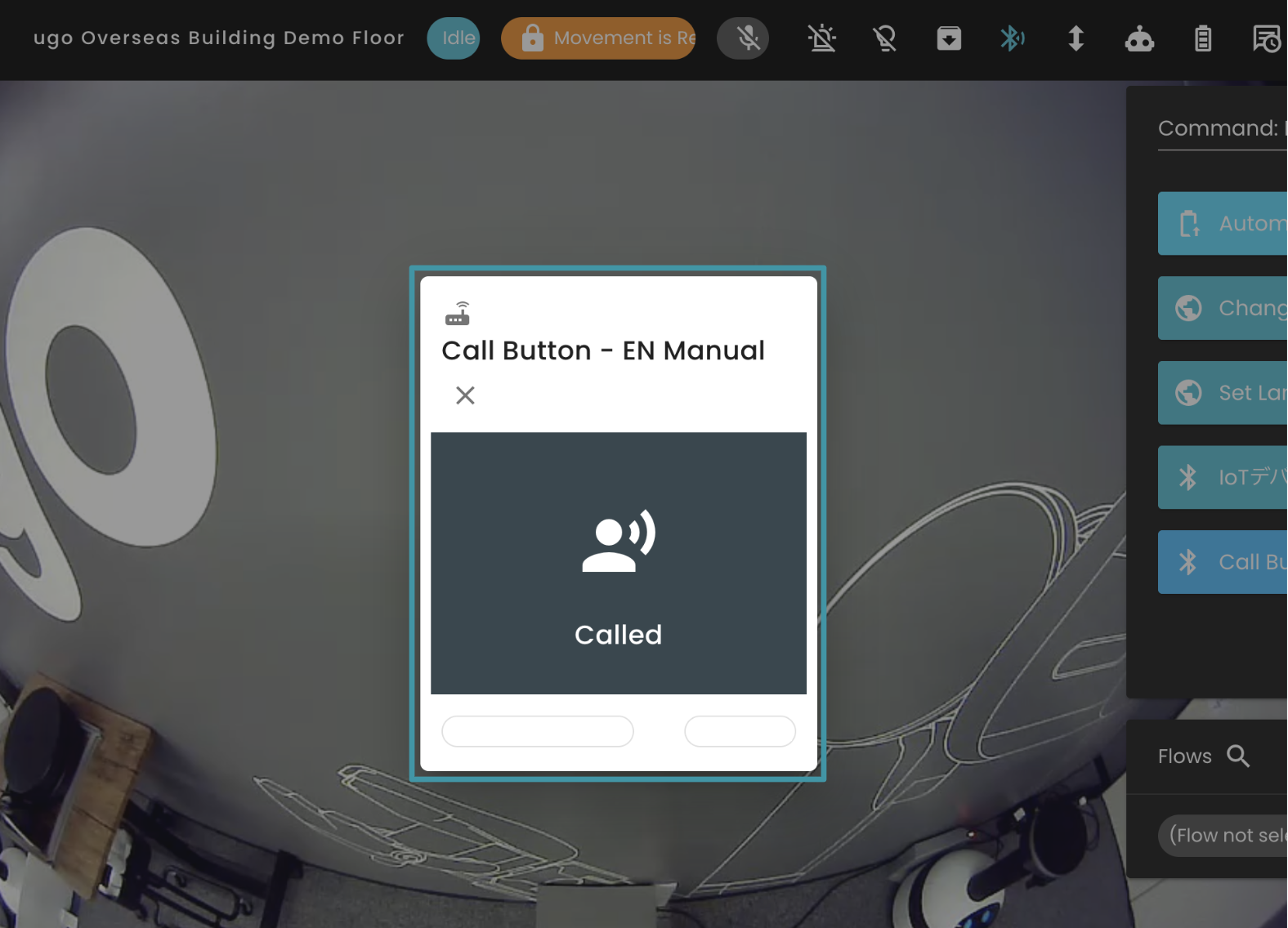

⑥ When you press the call button, the following dialogue will be displayed on the operation screen for a certain period of time along with an audio notification.
The ugo Pro cart unit will also emit an audio notification.
*The volume of the notification will be based on the volume settings of your computer or ugo. Please refer here for instructions on how to set the volume of ugo.
◆How to set up to receive call button notifications via email and various messaging apps
* Notification settings can only be done by accounts with "Organization Administrator" privileges.
- If you set up the notification function using the method described in How to set up Flow event notifications ,

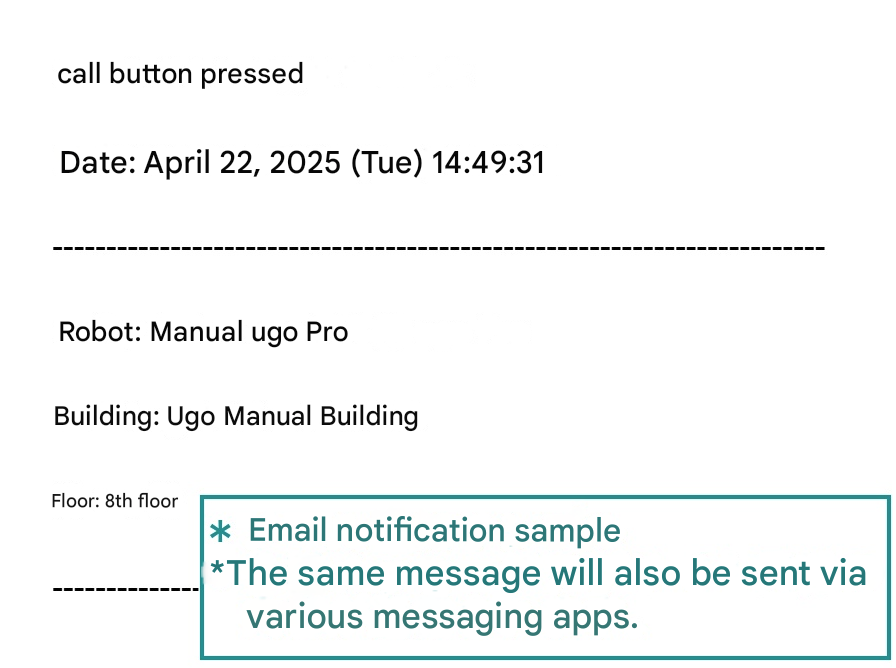

the following message will be sent to an email or various messaging apps when the call button is pressed.
- Call button notifications are sent at the notification level.
If the notification level is set to warning or emergency, call button notifications will not be sent.
- For information on the setup method and notification levels, please refer to the following page:
How to set up Flow event notifications
◆When the floor of ugo is changed
① Add the [Beacon Detection (Bluetooth)] command with the call button you want to use
to the command list for the modified building . Enter the parameters as follows.
[Name] will automatically be entered as [Search for "IoT Device Name"].
For [Target Device] , select the [IoT Device Name] you set in the previous section.
Do not enter anything in [Checkpoint Name] or [Notes].
For [Scan Time], select [Unlimited].

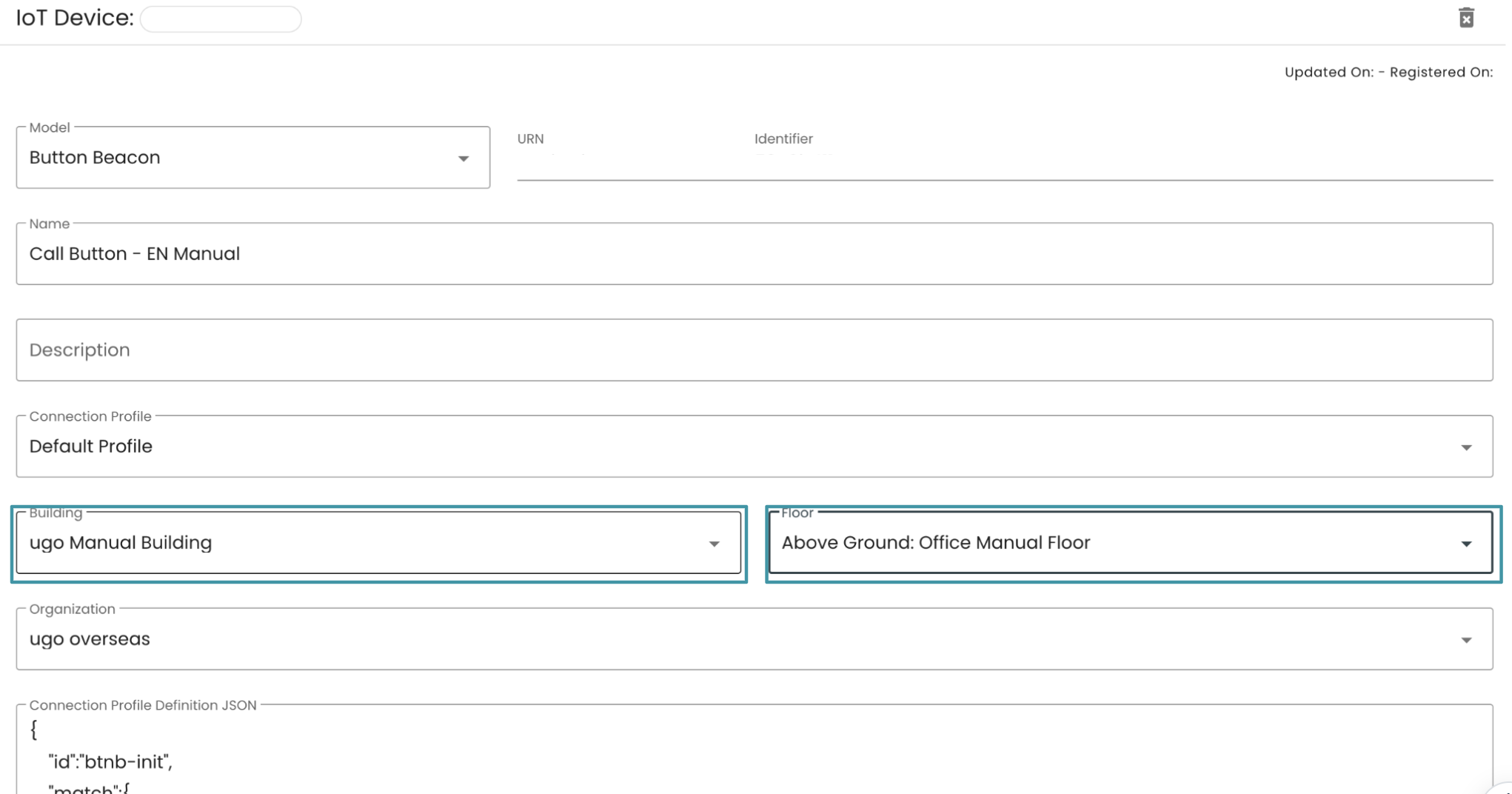

② On the [IoT Device Registration] screen, select the new building and floor from the drop-down menu, then click [Update] to save the settings.
② Open the operation screen and press [Reload Device Definition]
③ Click the [Beacon Detection (Bluetooth)] command.
*The default command name is [Find "IoT device name"].
④ This completes the settings for when you change the building or floor to which ugo belongs.
When you press the call button, the call button notification message will be sent with the new building and floor information to which ugo belongs.
◆If you change the call button to another ugo in the same building
This section explains the procedure for setting up the call button when switching from ugo A to ugo B in the same building.
① Open the operation screen of the ugo with the replaced call button and press [Reload device definition]
② Click the configured [Beacon Detection (Bluetooth)] command from the command list.
*The default command name is [Find "IoT device name"].
③ This completes the setup when you change the call button to another ugo in the same building.
◆Notes
- The call button being pressed will only be detected and notified when the [Beacon Detection (Bluetooth)] command is being executed.
If you turn off the power of ugo, please execute the [Beacon Detection (Bluetooth)] command on the operation screen after turning the power on.
- The volume of the call button notification sound will depend on the volume settings of your computer, smartphone, or ugo.
If you don't hear the notification sound, please check the volume settings of your computer, smartphone, or ugo.
- Please refer to the following page for how to set the volume of ugo
Device Settings
- The call button is powered by a battery, but the battery cannot be replaced.
If you wish to dispose of the battery, please follow the rules of your local government.
