◆ Device settings
No special settings are required on the device side since advertising is performed periodically when the power is turned on.
◆ Setup
How to register a device
- Please open the ugo Portal global menu , select " Data Management " > " IoT Device Management "

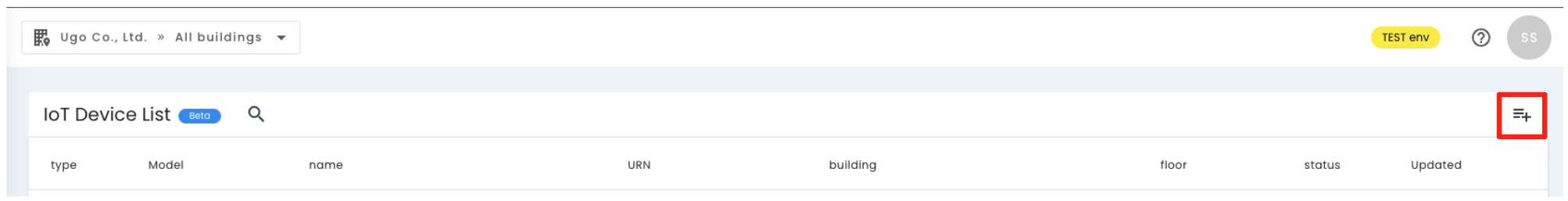

- After opening " IoT Device Management ", click the icon in the top right of the " IoT Device List ".

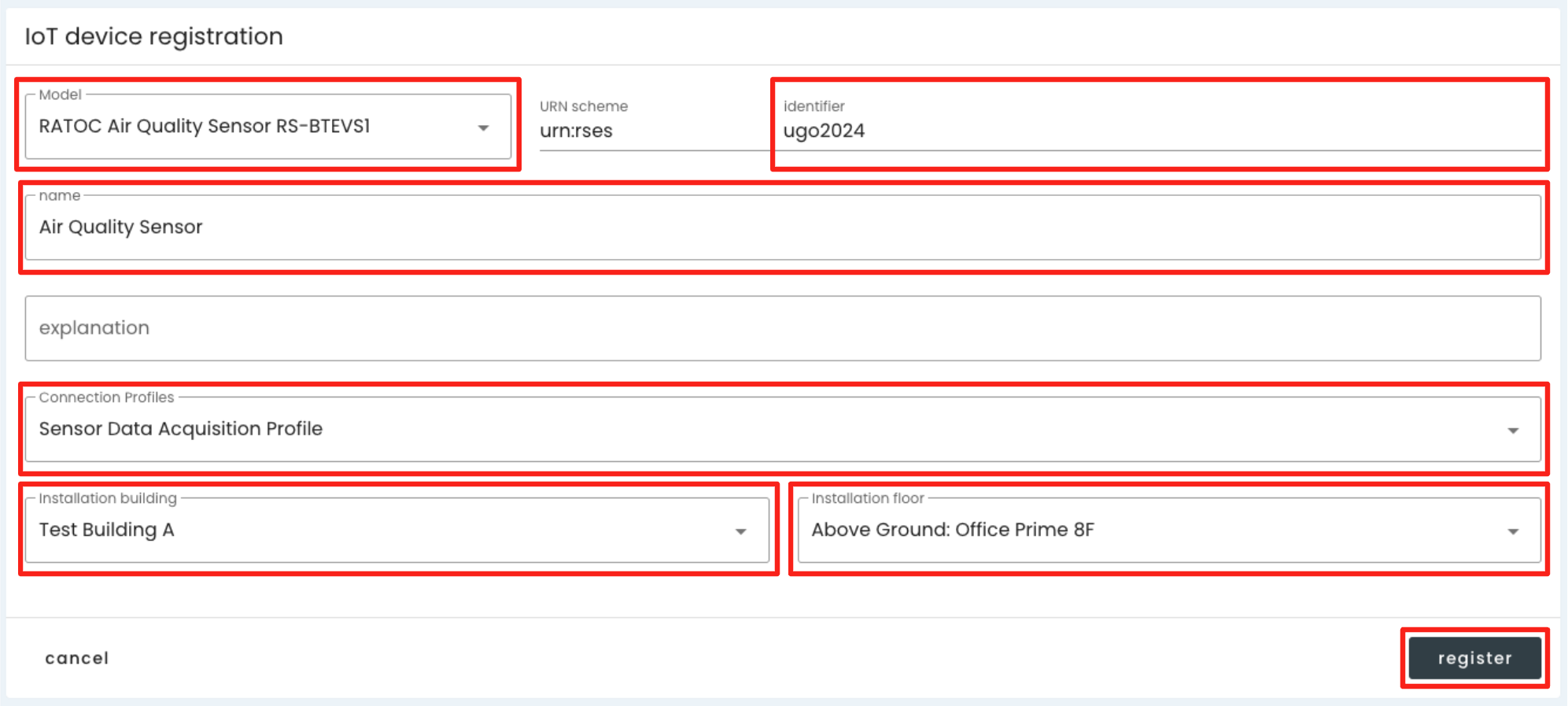

- On the IoT device registration screen, select the model " RATOC Air Quality Sensor RS-BTEVS1 ".
- In the " Identifier " field, enter any ID, such as the RATOC Air Quality Sensor serial number.
- (Not used for Bluetooth Scan)
- Please enter a " Name ".
- Select " Sensor data acquisition profile" as the connection profile .
- Please enter the " Installation building " and " Installation floor ".
- Please press " Register".
◆ How to use in Command List/Flow
Command List
・Open the command list settings list and edit the command list.

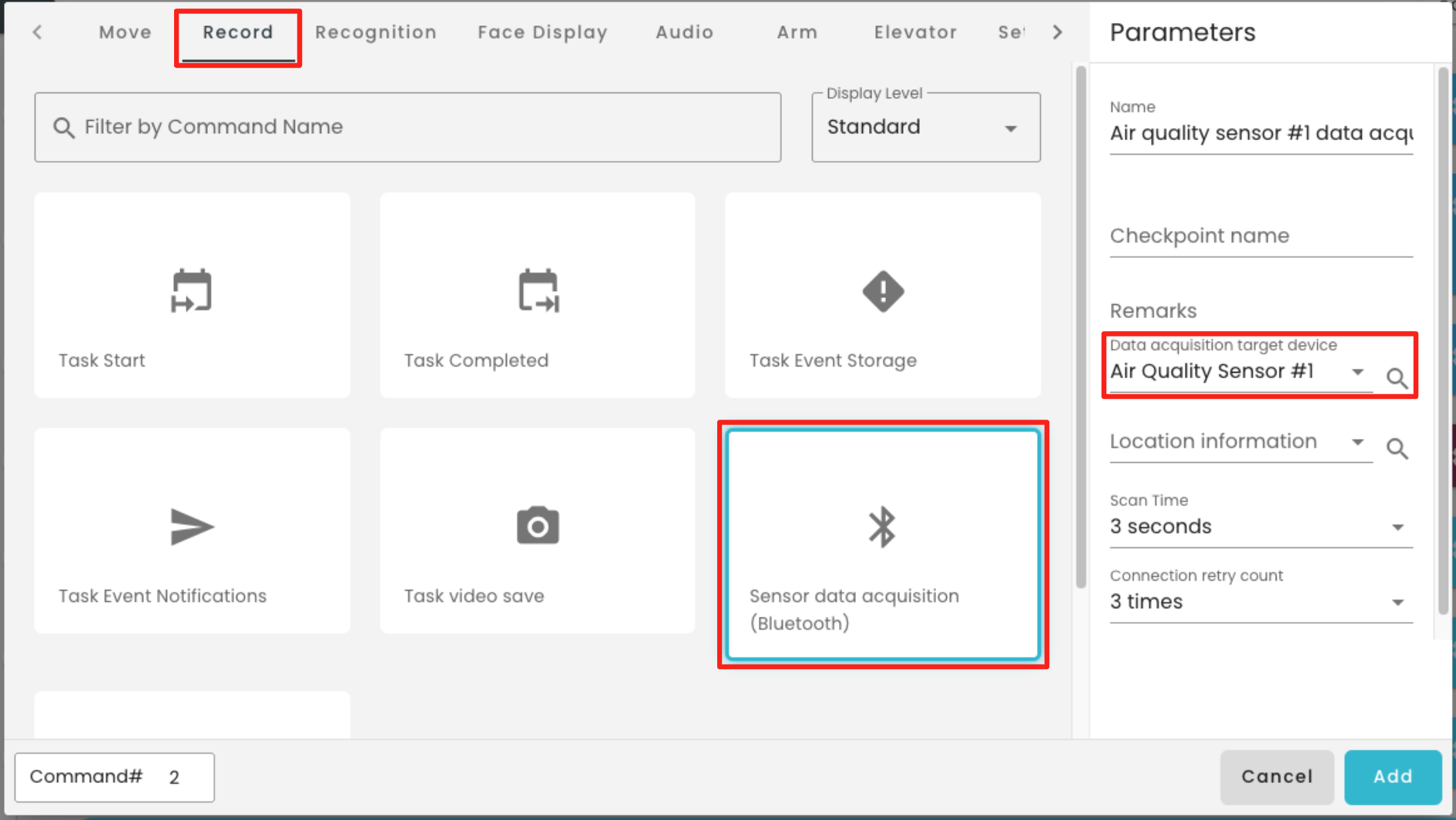

・Click the Add Command button and select " Record " > " Acquire Sensor Data (Bluetooth") from the command picker.
・Select the registered device from the " Data Acquisition Device" pull-down menu , and click " Add " to register.
Flow

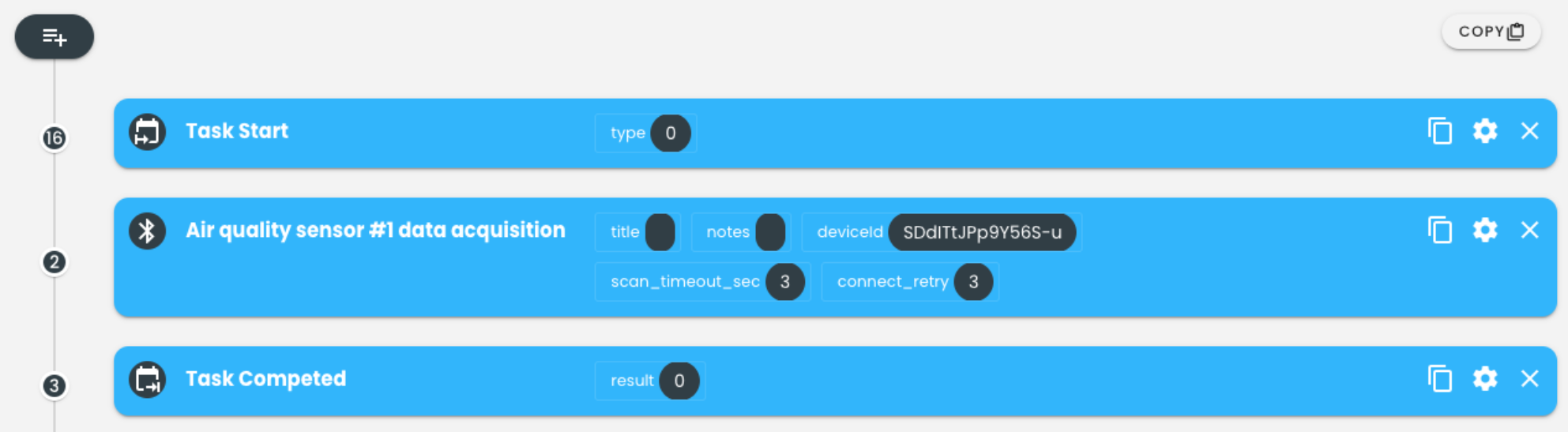

When using with Flow, you can upload sensor data as a report by using " Task Started " and " Task Completed".
You can view the uploaded data in the Report Management tab.
◆ Precautions for use
Due to the specifications of this device, it takes a few minutes for calibration after the device is turned on before the sensor values can be obtained. Therefore, the sensor values may not be read correctly immediately after the device is started.
The advertising interval for this device is once every few seconds, so it may occasionally be missed by a scan so t here is a possibility of failure.
In that case, use the parameter " Get sensor data (Bluetooth) "
This can be improved by increasing the " scan time" from 3 seconds.
The device is designed so that the robot cannot identify each device individually.
If there are multiple devices of the same type in the same location, it is possible that the data will be randomly collected from each device.
