◆Table of Contents
・ugo Pro / Ex operation screen
・ Movement restrictions while charging
・ Arm and cart contact avoidance function
◆ ugo Pro / Ex operation screen

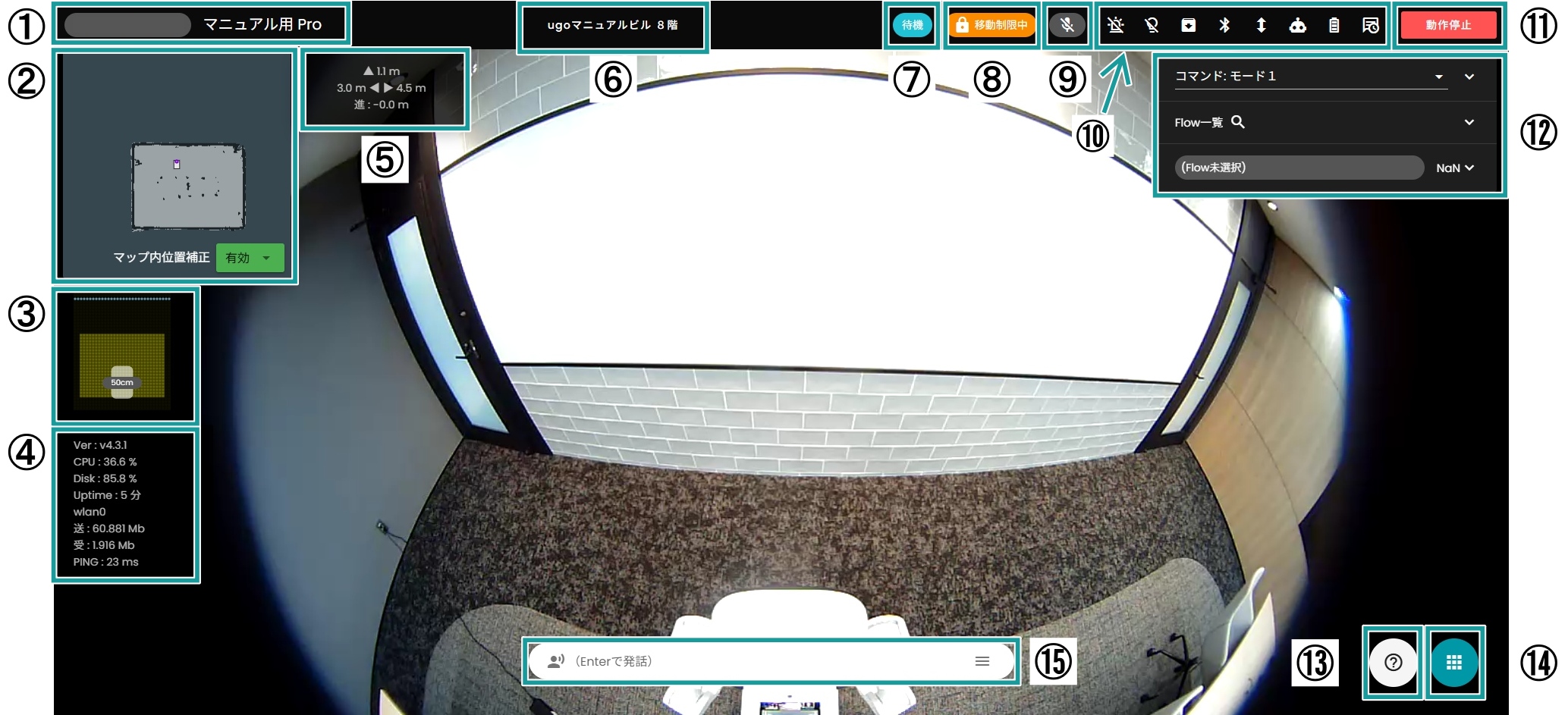

| name | explanation | |
| ① | Serial number and model name | The serial number is the same as the "Product ID" on the item management slip attached to the ugo unit. The robot name can be changed to any name in Robot Management . |
| ② | Minimap | The map linked to the floor will be displayed. If the map is not linked to the floor, it will not be displayed. For details, please refer to Map Data Creation/Floor Linkage . For details on the minimap, please refer here . |
| Map position correction enable/disable | When driving the ugo mini, be sure to enable position correction within the map using this switch before proceeding. | |
| ③ | Surrounding information detected by 2D LiDAR Collision prevention range |
The surrounding information detected by 3D LiDAR and the range in which the collision prevention function will work are displayed. The collision prevention range can be widened or narrowed using commands. |
| ④ | Various data | The ugo mini's ugo OS version, CPU usage, disk usage, continuous boot time, etc. are displayed. |
| ⑤ | ▲◀▶: Spatial distance in front of/left and right of ugo (m) | The distance to obstacles detected by the 3D LiDAR in the front and left/right directions is displayed. |
| Forward: Last ugo distance traveled (m) | The distance traveled since startup or the last movement command executed is displayed. | |
| ⑥ | Building name and floor | The building name and current floor of the ugo mini are displayed. Please refer to the following for the building and floor. Map data creation and floor linkage |
| ⑦ | Mode Icon (Pro only) |
This feature is only available to customers who have subscribed to the optional automatic response feature. For details, please see below. What is the automatic response feature? |

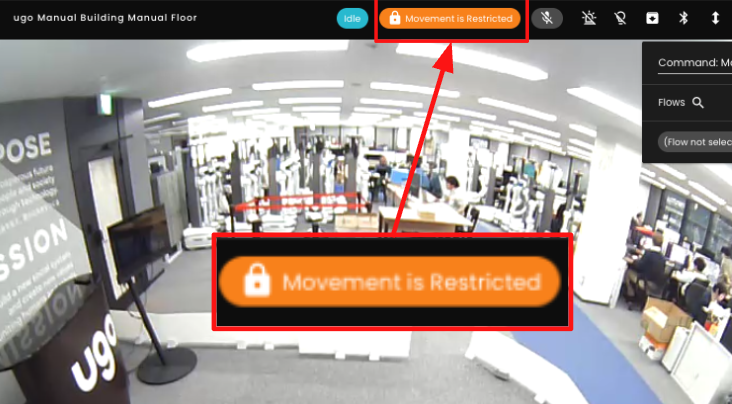

| ⑧ | Charging station connected: Movement restriction icon | A safety feature is activated that prevents turning and reverse operations while the vehicle is connected to the charging station. For details on movement restrictions while charging, please see here . |
| Not charging: Keyboard lock icon | To prevent accidental or unintended operation, keyboard operation will be restricted the first time you operate the keyboard (locked). A lock symbol will appear when the keyboard is locked. For details on keyboard operation lock, please see here . |
|
| ⑨ | Microphone icon | PC microphone ON/OFF status display |
| ⑩ | Police lamp icon | Police lamp ON/OFF |
| Ring Light Icon | Ring light ON/OFF | |
| Rearview monitor icon | The rear camera image will be displayed in the bottom left corner of the operation screen. | |
| Bluetooth icon | Used when connecting to optional IoT devices . | |
| Lift icon (Pro only) |
The height of the lifter can be adjusted. If the arm is judged to come into contact with the cart unit when the lifter height is changed, a protection function will limit the lifter's movement and the height change will not be performed. |
|
| Service Icon | Displays the status of various services. If an error occurs, it will turn orange. For details, please see here . |
|
| Battery icon | Displays the remaining battery level (4 levels) and charging status. | |
| Activity Icons | The operations you have performed since logging in to the operation screen will be displayed as an activity report. For details, please refer to Activity Report/Health Check . |
|
| ⑪ | Stop button | ugo's operation (including commands and Flow) will stop immediately. |
| ⑫ | Command List | The command list will be displayed. For details, see Command List Settings . |
| Flow list | A list of flows will be displayed. For details, please refer to Flow settings . |
|
| ⑬ | Help icon | The keyboard operation guide will be displayed. |
| ⑭ | Action Menu | Please see here for details . |
| ⑮ | Text dialogue input field | ugo will speak the text you entered. *If it is not displayed, turn on "Text Dialogue" in the Action Menu to display it. |
| Speech text selection field | Select the speech text you set and execute it, and ugo will speak it. For details, please see here . *If it is not displayed, turn on "Text Dialogue" in the Action Menu to display it. |
◆ Action Menu
| icon | name | explanation | |
| ① | Settings | You can configure various settings such as volume settings, ugo OS updates, service restarts, etc. For details, please refer to the device settings page. |
|
| ② | Current Floor Display | You can turn on/off the display of the current floor where ugo is located. | |
| ③ | Remote Control Speed | You can switch the running speed using keyboard controls between "normal" and "slow." | |
| ④ | Guide | You can turn on/off the guide lines displayed on the operation screen. When setting up the ugo for taking photos, you can use this to check whether the subject is captured in the center of the camera. |
|
| ⑤ | Text dialogue | You can turn the text input field display ON/OFF. | |
| ⑥ | Check item settings | This is used when setting check items. Since ugo Pro/Ex does not read meters, it is not generally used. |
|
| ⑦ | Pose Editor | Launch the Pose Editor. For details, please see here . |
|
| ⑧ | Launch WorkPlan | You can launch WorkPlan. For details, please refer to the WorkPlan page. |
|
| ⑨ | Video Recording | You can record video of the operation screen. You can record for up to one minute ( please do not record for more than one minute ). * Please refer here for how to set up the camera used for recording . *Recorded video can be viewed from the report management . *Audio is also recorded. If the audio is too quiet, adjust the microphone input gain . |
|
| ⑩ | Long-time recording begins | Long-time recording will start. For details, please refer to the Long-time Recording function page. |
|
| ⑪ | Photo shoot | You can take photos with the camera you have set up. * Please refer here for instructions on how to set up the camera you will use for taking photos . * You can check the records you have taken from the report management . |
* Will be updated as the UI changes.
◆ Keyboard operation
Before using ugo, please read [⚠Please read before using ugo ].

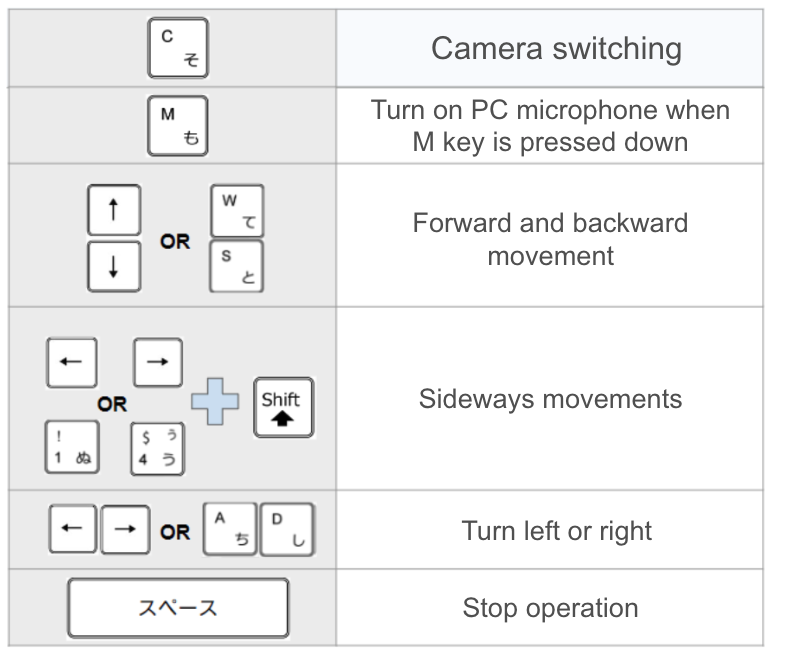

Click the help icon at the bottom right of the operation screen to display the keyboard operation guide.
◆ Keyboard operation lock
After logging in to the operation screen and reloading the operation screen, when you perform keyboard operations for the first time, keyboard operations will be locked (restricted) to prevent incorrect operations or unintended actions.

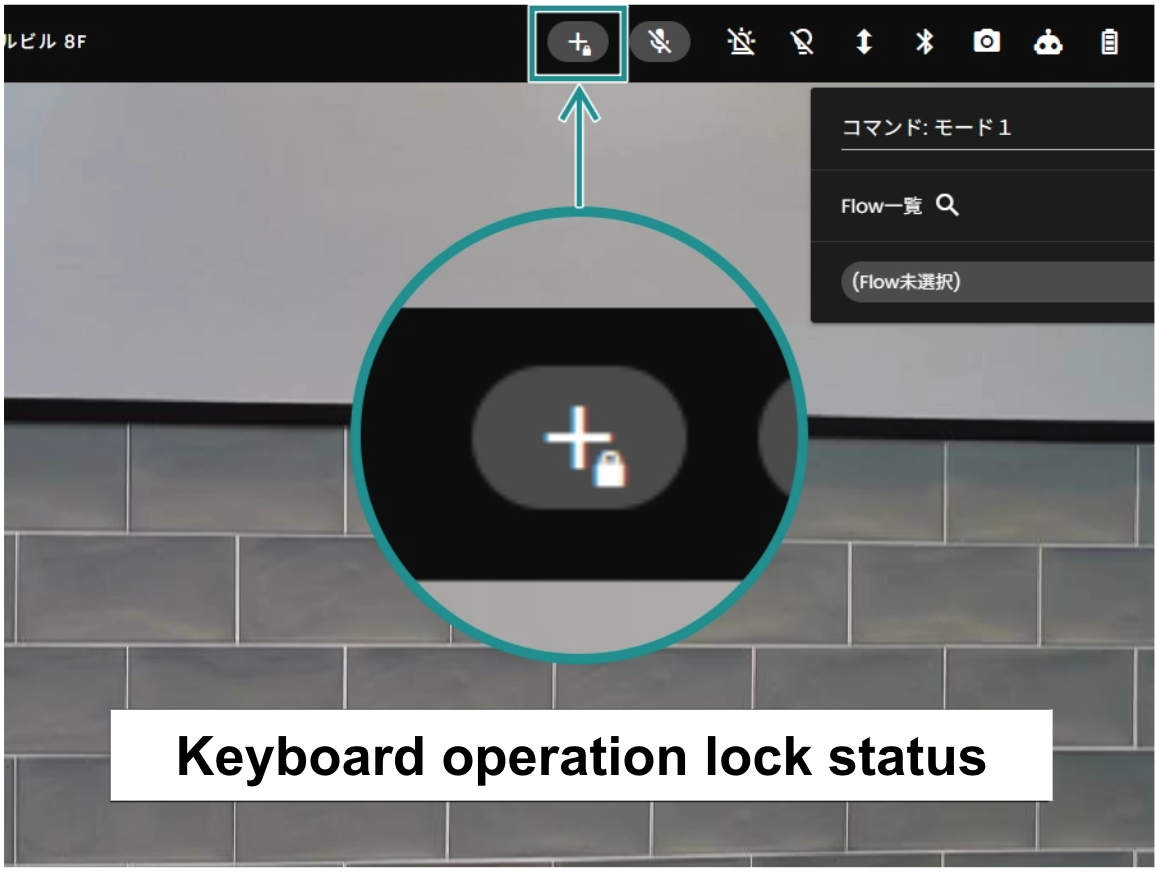

When the keyboard is locked, a small lock symbol is displayed on the keyboard lock icon.

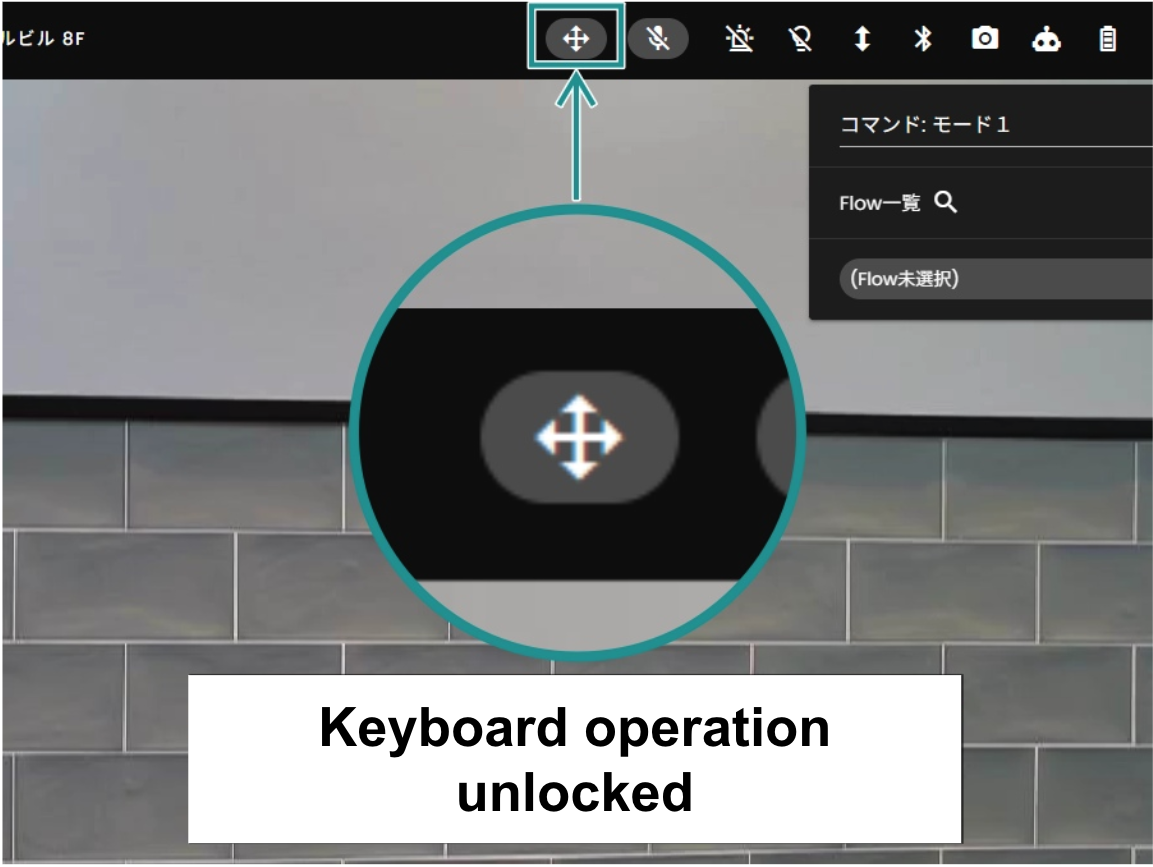

When the keyboard is unlocked, the cross arrow icon lights up when you perform keyboard operations.
When you reload or reopen the operation screen, keyboard operations are locked again.

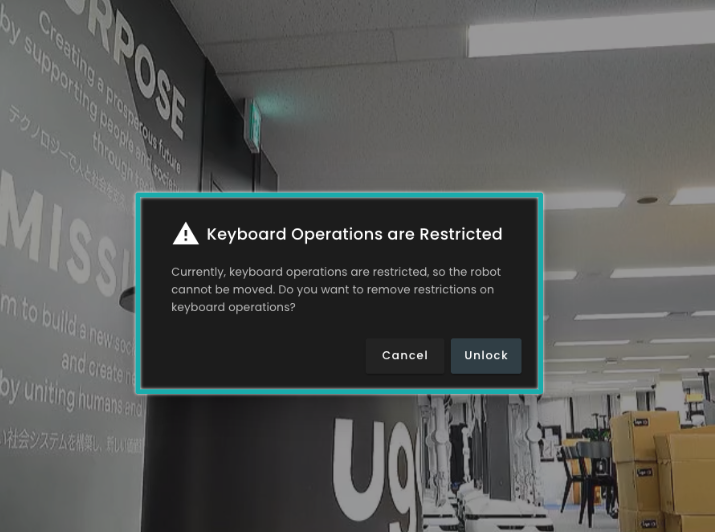

If you try to move forward/backward or turn left/right using the keyboard while the keyboard is locked, the following pop-up will be displayed.
Clicking "Unlock" will unlock the keyboard and allow you to use the keyboard.
In addition to being able to unlock the keyboard operation lock from the pop-up, you can also unlock it by pressing the [Keyboard Lock Icon] at the top of the operation screen.
◆ Movement restrictions while charging
While ugo is charging (charging from a charger or charging while connected to a charging station), movement and turning operations other than in a straight line are restricted (locked) to prevent the charger or charging station from being dragged along while moving or turning.

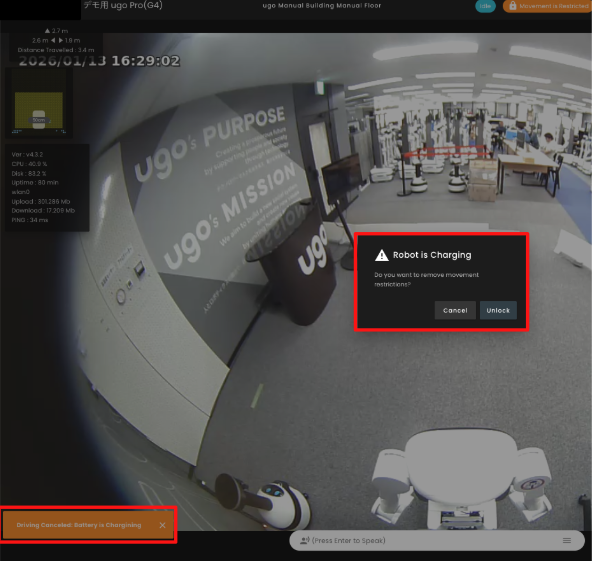

If you try to move backward or turn left or right while the movement is restricted while charging, a pop-up message will appear saying "Robot is charging" and "Driving canceled because the battery is charging.
Clicking "Remove" will remove the movement restriction while connected to the charging station, allowing you to move backward or turn left or right.
Movement operations that can be performed when movement is restricted while charging
・Advancement of keyboard operation ・"Go straight ◯m" command
*Please refrain from executing the "Start Map Patrol" command as it may damage the terminals of the charging station. When patrolling the map with a charging station as the starting point, execute the go straight command and then leave the charging station. Configure the Flow to execute the Map Patrol Start command.
Movement operations that cannot be performed when movement is restricted while charging
・Backward keyboard operation ・ Left and right rotation using keyboard controls ・"Rotate left ◯°" command ・"Rotate right ◯°" command ・"Route specified move" command ・"Move to specified destination" command
◆ Minimap
Clicking on the minimap will display the map on the operation screen.
■ Executing "Move to Destination" from the Mini Map
Applicable models: ugo Pro (G4) manufactured after March 2025 and ugo OS v4.1.0 or later

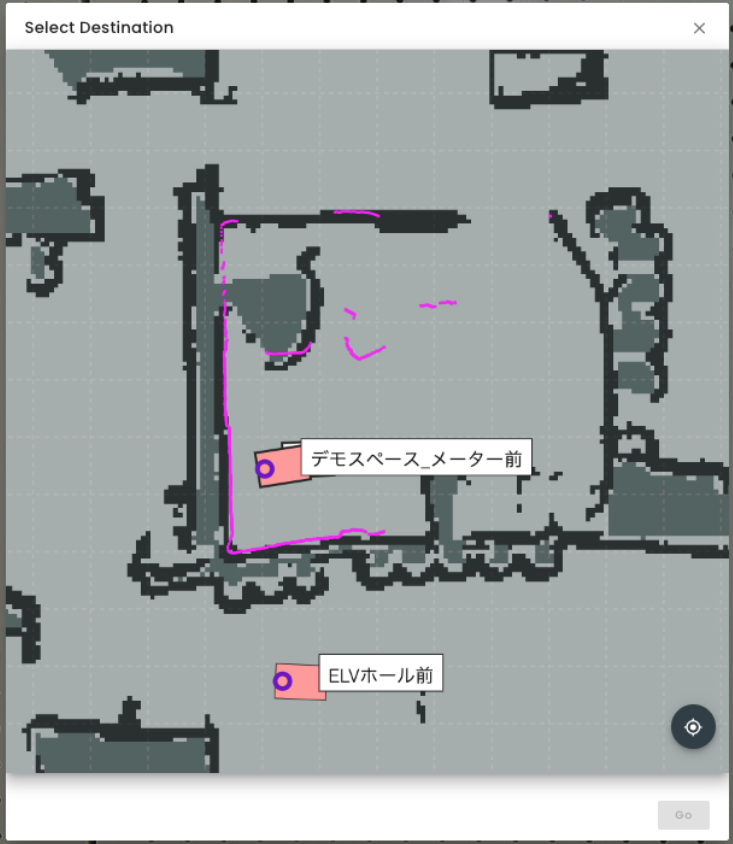

You can execute "Specify destination move" from the map displayed on the operation screen.
For details on "Specify destination move", please refer to " Specify destination move > How to use on the operation screen" .
◆ Lifter height adjustment

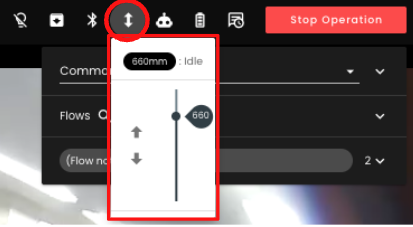

You can adjust the height of the ugo Pro lifter by clicking the up/down slider or the arrow buttons from the lift icon.
The lifter height displayed in the lift icon is synchronized with the actual height.
|
|

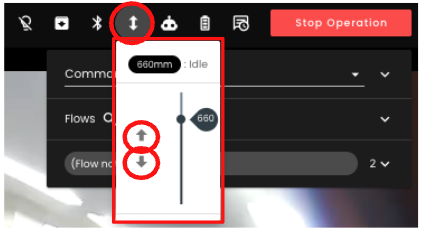

By clicking the up and down arrow buttons, you can adjust the lifter height in 100mm increments per click.
|
|
◆ Arm and cart contact prevention function

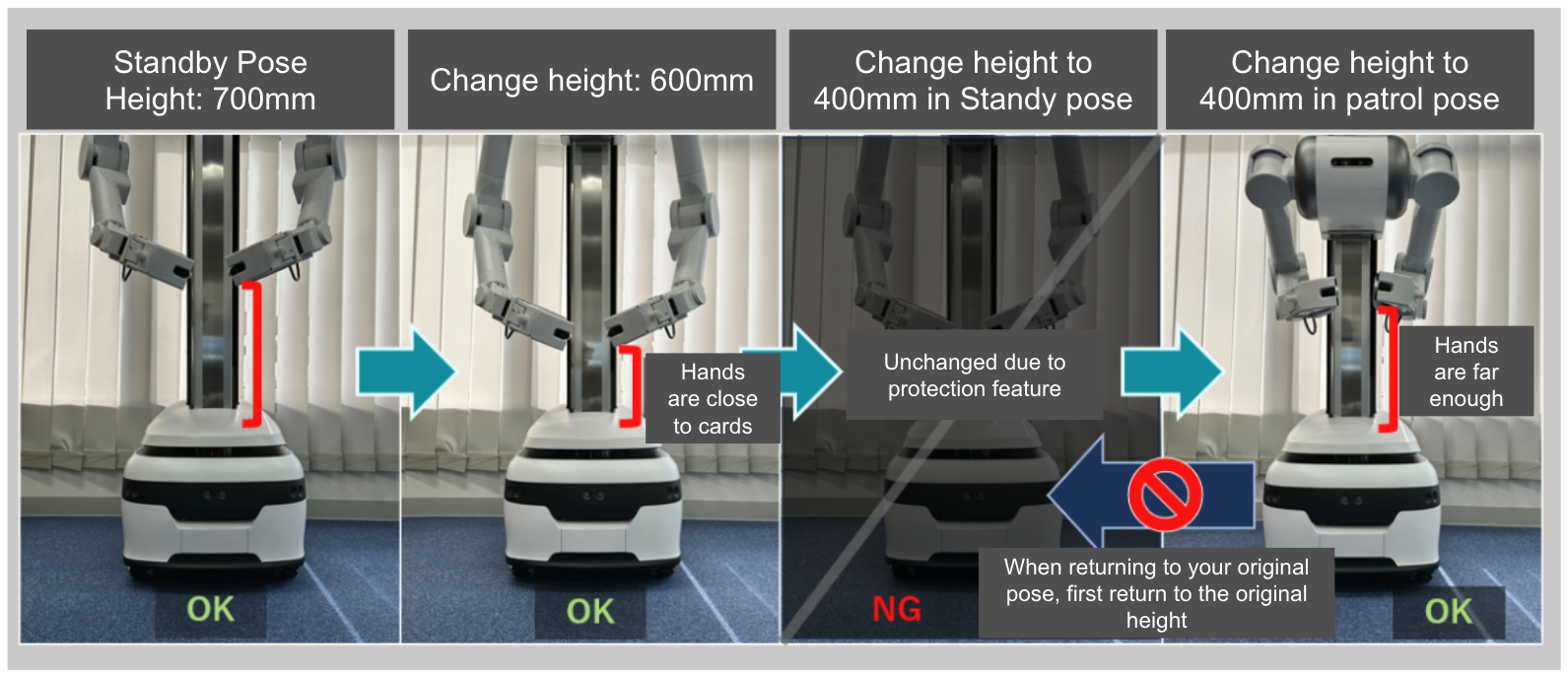

When changing the height of the lifter, if it is determined that the arm will come into contact with the cart unit if the lifter continues to operate, a protection function will limit the lifter's operation and the height change will not be performed.

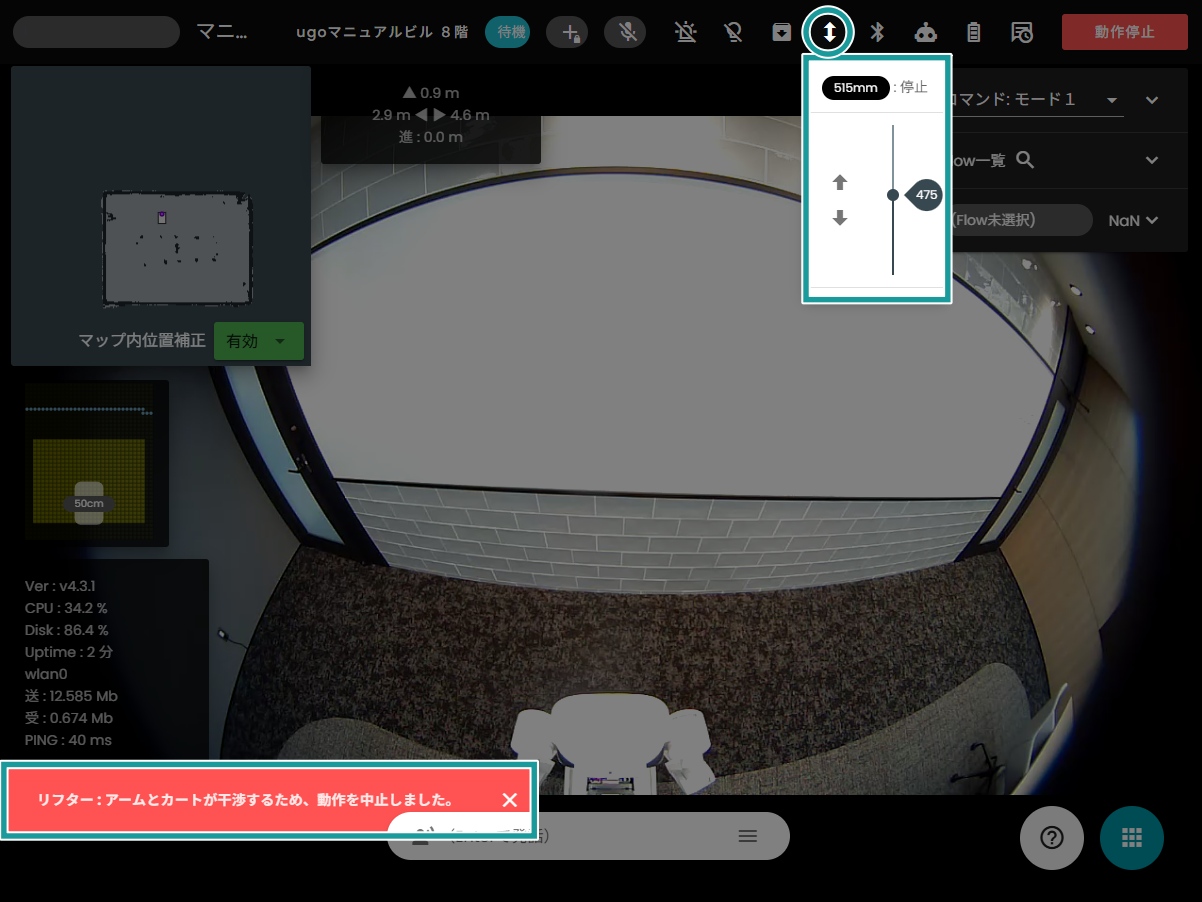

If the lifter's operation restriction is activated, the following error message will be displayed on the operation screen.
In this case, please raise the lifter and then operate the arm. (The error message will be displayed even if Flow is running.)
