To ensure safe and secure use of ugo Pro/Ex, we recommend that you perform regular inspections to maintain performance and detect any malfunctions or breakdowns early .
Please check the inspection items below and use them for daily and periodic inspections.
・Daily inspection: Carry out before daily operation
・Regular inspection: Carry out after 6 months of use
◆Table of Contents
・ugo Pro/Ex daily inspection items
・Charging station/charger daily inspection items
・ugo Pro/Ex periodic inspection items
◆ ugo Pro/Ex daily Inspection Items
Please perform this before daily operation.
To operate ugo Pro/Ex, please perform this with the robot power ON.
| Inspection items | Inspection contents |
| Various cameras | Press "C" on the keyboard to switch the image displayed on the operation screen and check if the image is displayed correctly. The camera switches in the following order: front camera → face camera → rear camera. *Face camera is only available on the Pro . |
|
Lifter unit (Pro only) |
Use the lift icon on the operation screen to move the lifter to a height of 850mm and 650mm. Check that it moves all the way and that there are no abnormal noises along the way. |
|
Arm (Pro only) |
Execute the "Initial Posture" command and "Traveling Posture" command on the operation screen and check that the arm posture transitions smoothly and without any abnormal noise. |
| Movement/Rotation | On the operation screen, use the keyboard or execute the commands "Go straight ◯ m", "Turn left ◯ degrees" and "Turn right ◯ degrees" and check that they are performed smoothly and without any abnormal noise. |
| Ring light | On the operation screen, operate the ring light icon and the patrol lamp icon and check that they light up properly. |
| Microphone/Speaker | Please check each item on the operation screen. Microphone: Check that the sound picked up by the ugo Pro/Ex microphone can be heard from the PC you are using. Speaker: While pressing the M key, the sound input from the PC microphone can be heard from the ugo. Releasing the M key ends the voice call. (Walkie-talkie type) |
| Face Display | On the operation screen, execute the "Default" command and the "On Guard" command and check if the face display appears. |
| Operation stopped |
Please check whether keyboard operation, Flow, and commands stop when you press the stop button on the operation screen or the space bar. Verification procedure: |
| Displaying LiDAR information |
Please check that the LiDAR information on the operation screen shows light blue dots indicating obstacles. Verification procedure: |
| Anti-collision function |
Make sure your ugo Pro/Ex slows down and stops when approaching an obstacle within the collision prevention range. Steps to check: |
| Emergency stop switch |
Press the emergency stop switch and make sure the ugo Pro/Ex enters emergency stop mode. Check items: |
| Charging |
When using a charger: Insert the charging cable into the charging cable jack of the ugo Pro/Ex, and check that the battery icon on the operation screen is charging. At the same time, check that the charging status LED on the charger is lit red. |
|
When using the charging station: Press the ugo Pro/Ex into the charging station by hand and check whether the battery icon on the operation screen shows charging status. For the charging station P2 , check whether the charging status LED on the charger is lit red. | |
| Automatic charging | Execute the "Start automatic charging" command and check whether automatic charging and return are working properly. Also, make sure the cart rear camera and charging station marker window are clean. |
[Note] Please make sure that the ugo Pro/Ex is turned off before proceeding.
| Inspection items | Inspection contents |
| Appearance of each cover |
Please visually and tactilely check that all of the following covers are attached and that there is no damage. For Cart unit: Front cover, rear cover, side covers (left and right), rear hatch |
| Wiring and Cables | Remove the cart unit cover and the body unit back cover (Pro only) and visually check that the cables are not broken, disconnected, or pinched. |
|
Cleaning the equipment (check that the exterior of the equipment is clean) |
Wipe gently with a dry cloth or a cloth dampened with water and wrung out tightly. |
| Fan vent | To prevent dust from accumulating in the fan vent openings on the top case, clean them regularly (about once a week, depending on the dust level in the environment) (Figure 1). |
|
[Only for Pro models manufactured after March 2025] To prevent dust from accumulating in the opening of the body unit's fan vent, clean it regularly (approximately once a week, depending on the dust level in the environment) [Figure 2] . |
|

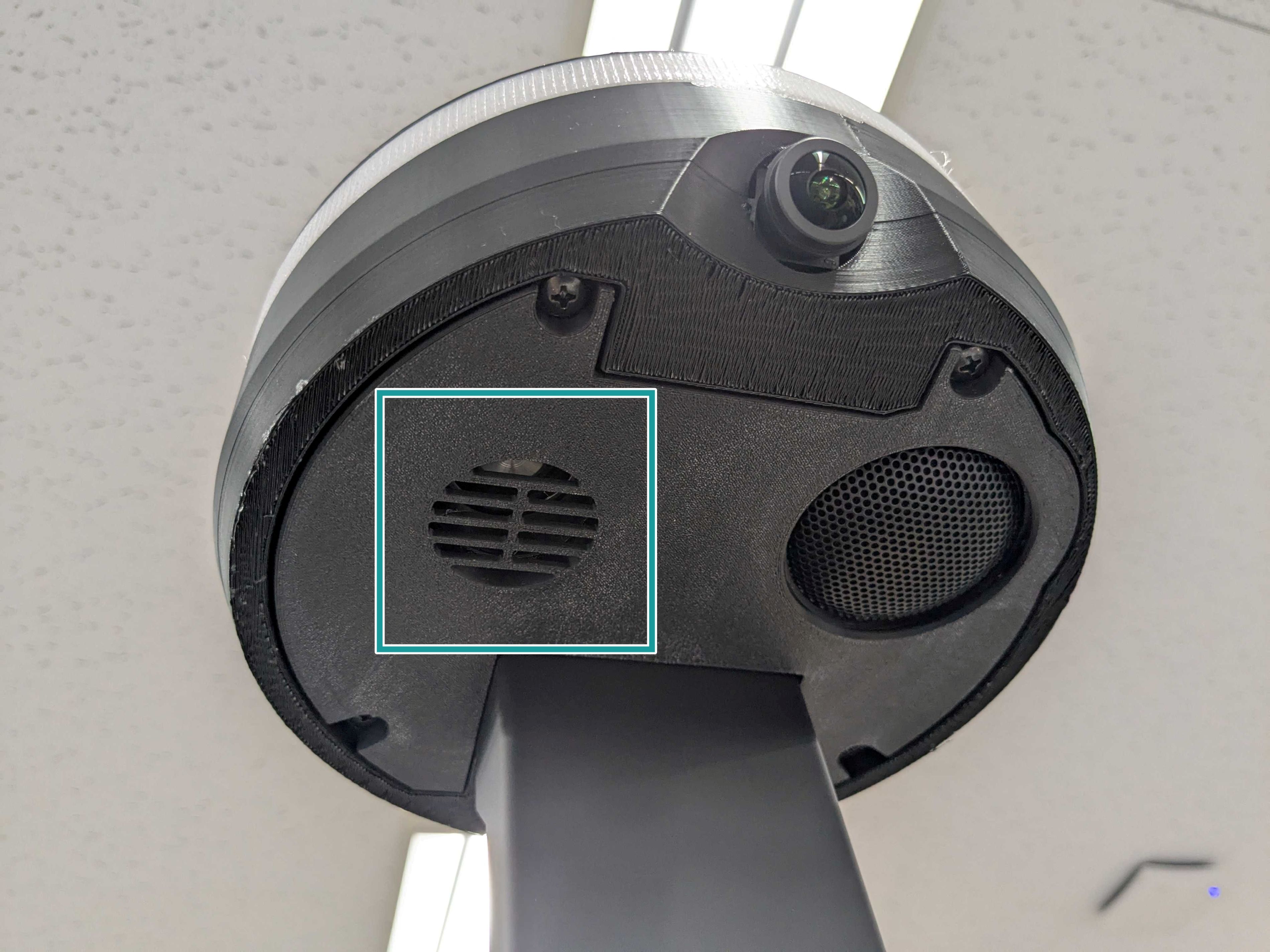

Figure 1 Top case |

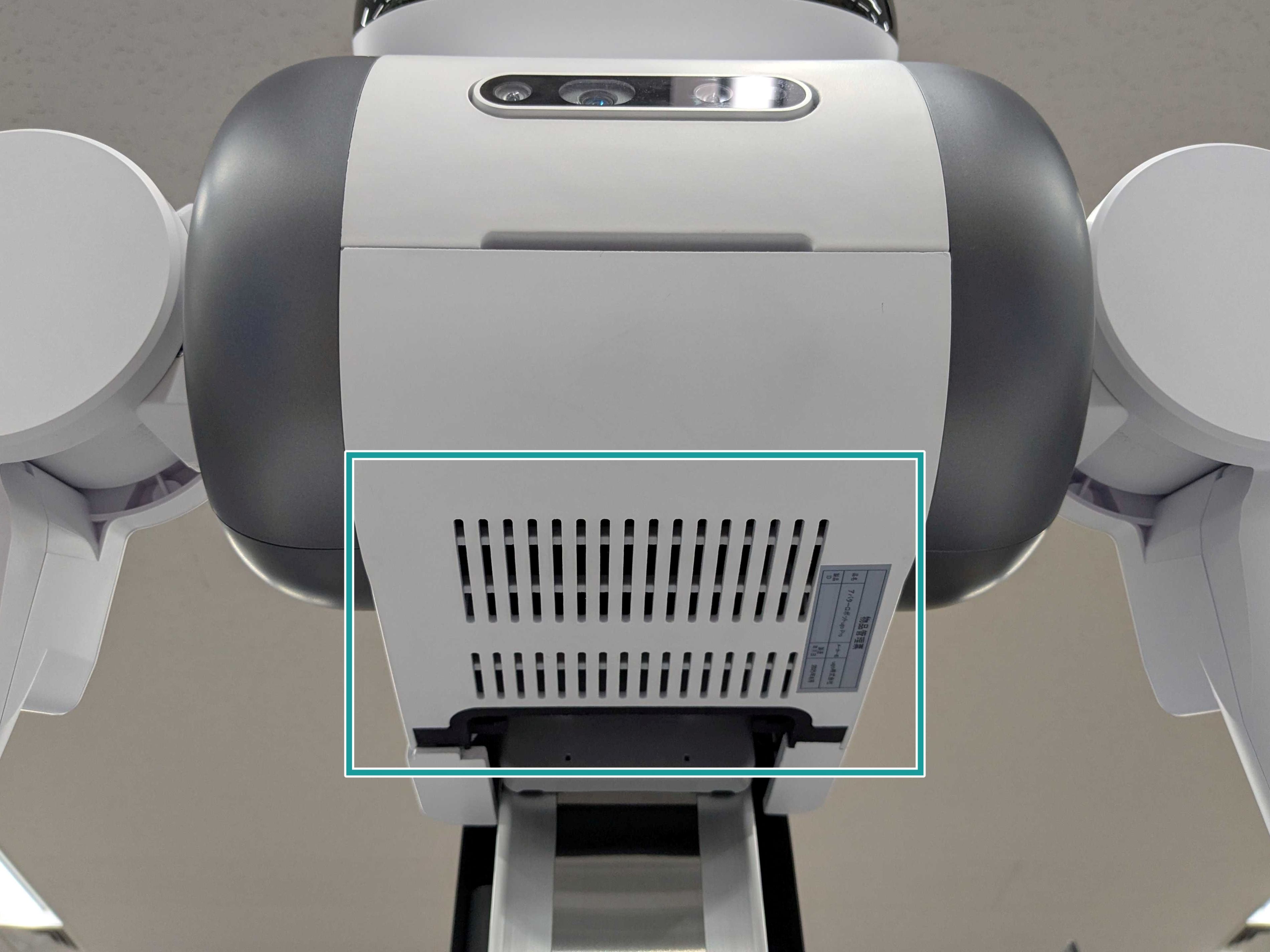

Figure 2 Body unit (robot manufactured after March 2025) |
◆ Charging station/charger daily inspection items
Please carry out this procedure before each day's operation.
[Caution] Make sure to turn off the charger and charging station and unplug the power cord from the outlet before proceeding.
| Inspection items | Inspection contents |
| Connectors and Plugs | Please check that there are no foreign objects or abnormalities in the connectors or plugs of your ugo/charger/charging station. Blow away any dust from the connectors and plugs with an air duster (approximately once a week, depending on the dust level in the environment). (See Figures 3, 4, and 5.) |
| Marker Window | Blow off any dust from the marker area with an air duster. Then gently wipe it with a cleaning cloth, such as the one used to clean glasses. (Figure 6) |
| Fan vent | To prevent dust from accumulating in the fan vent openings, periodically remove dust from the filter with a vacuum cleaner (approximately once a week, depending on the dust level in the environment) (Figure 7). |
| ugo connection | When you insert the ugo into the charging station, make sure it connects smoothly and without any noise. To prevent dust from accumulating on the ugo connection part of the charging station, clean it regularly. (Approximately once a week, depending on the dust level in the environment) Blow away dust from the contacts with an air duster. (Figure 8) |
|

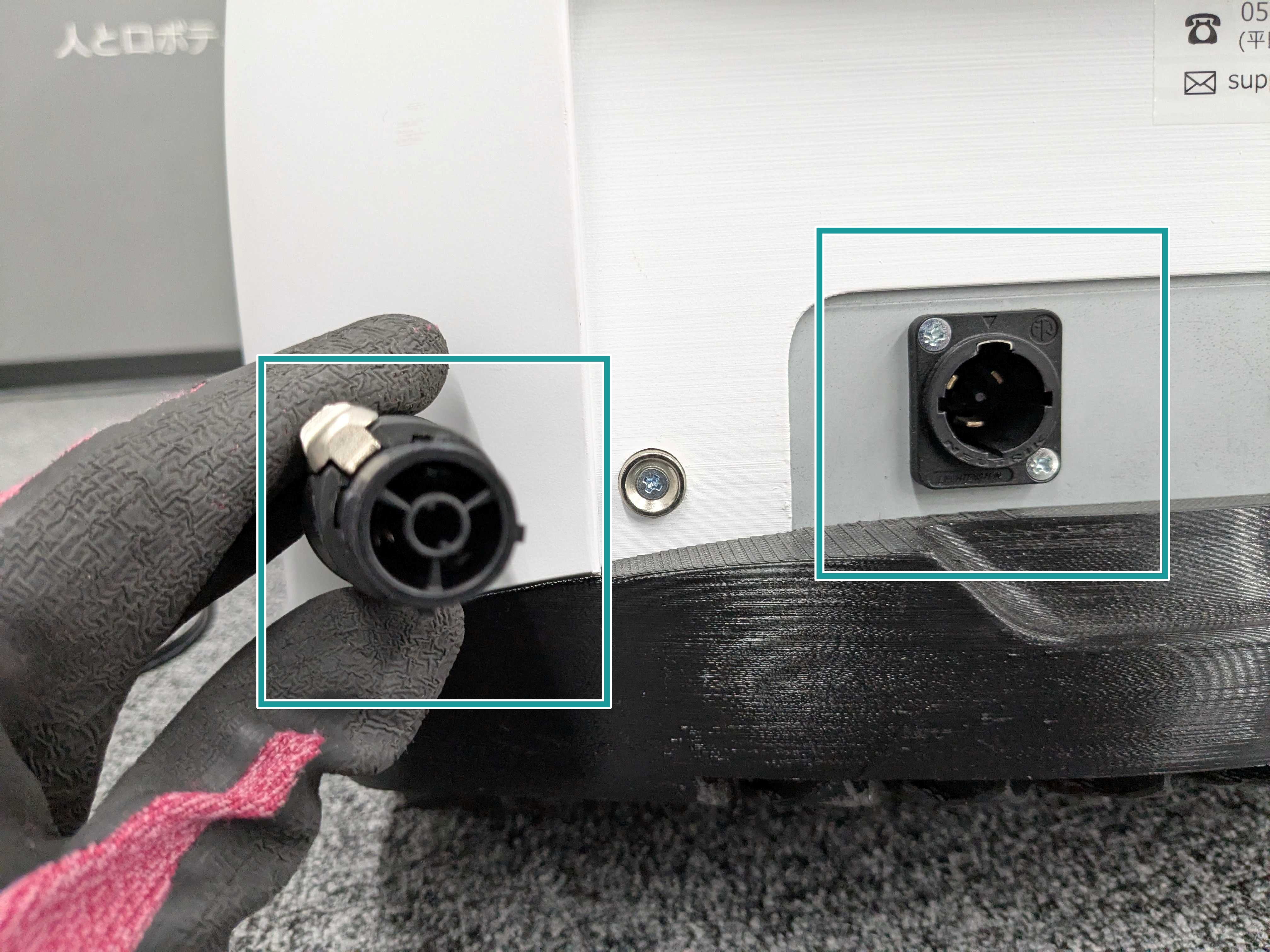

Figure 3 ugo connection cable outlet |

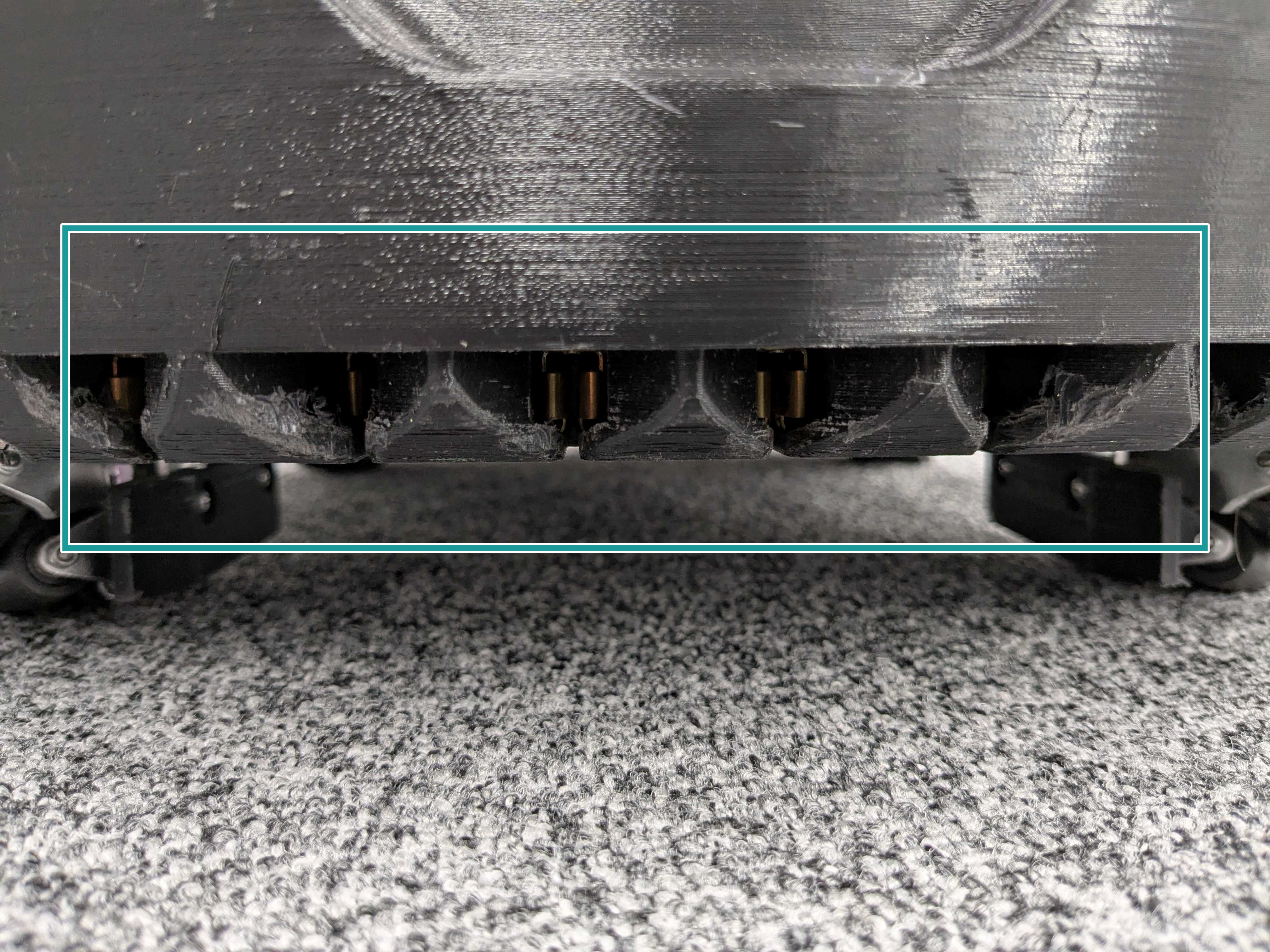

Figure 4 Charging terminal |
|

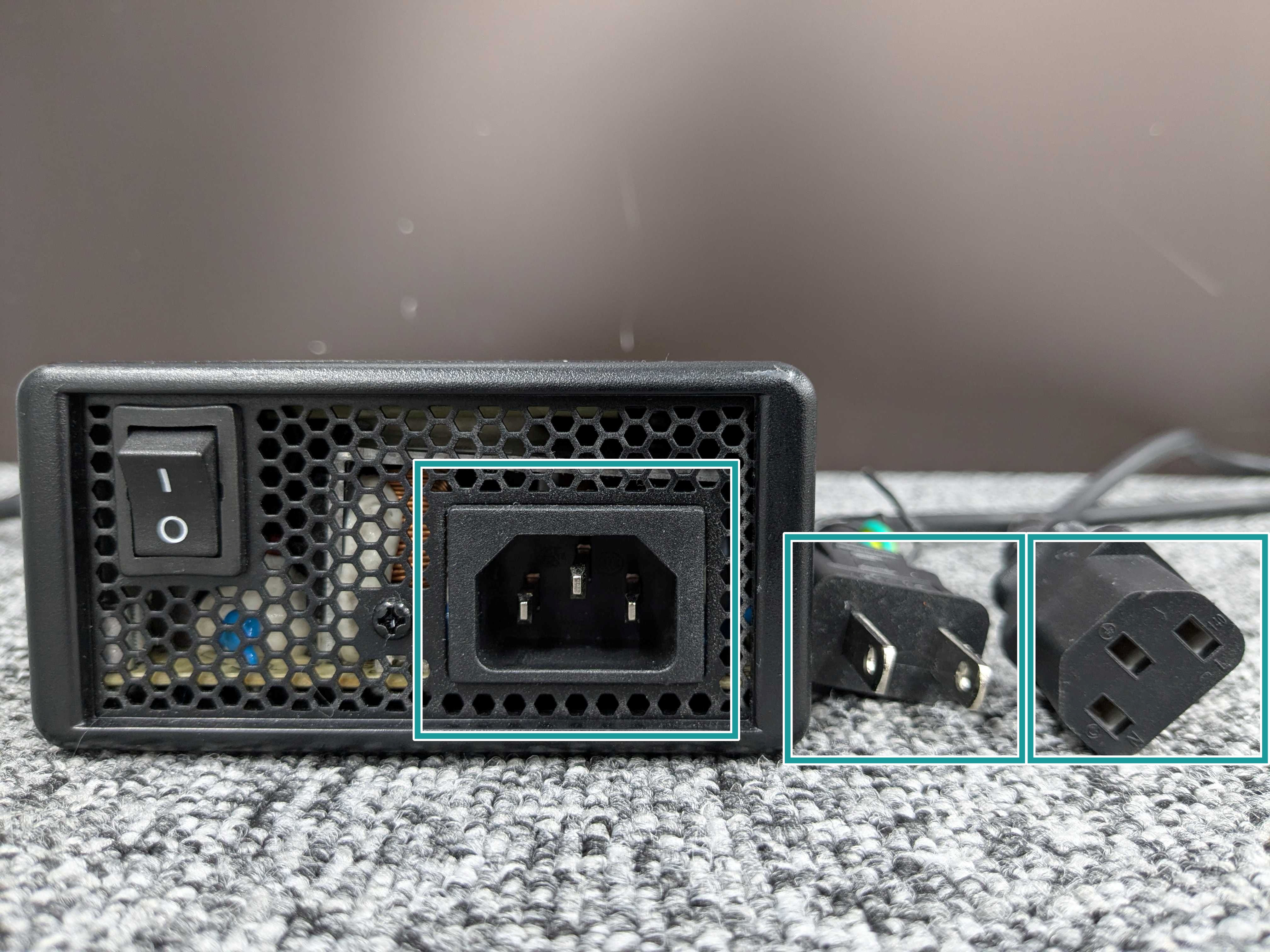

Figure 5 Charger connector and plug |

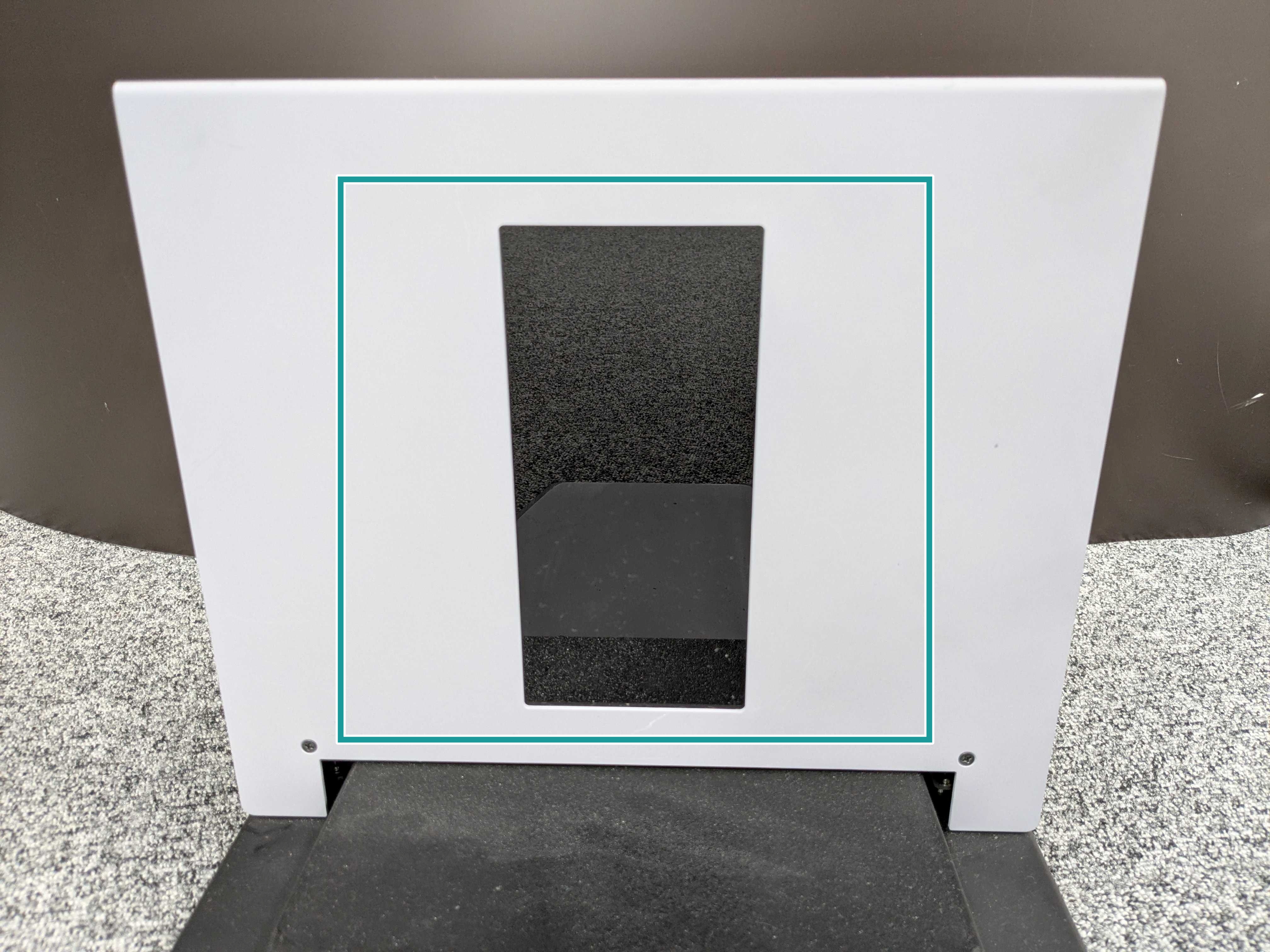

Figure 6 Marker window |
|

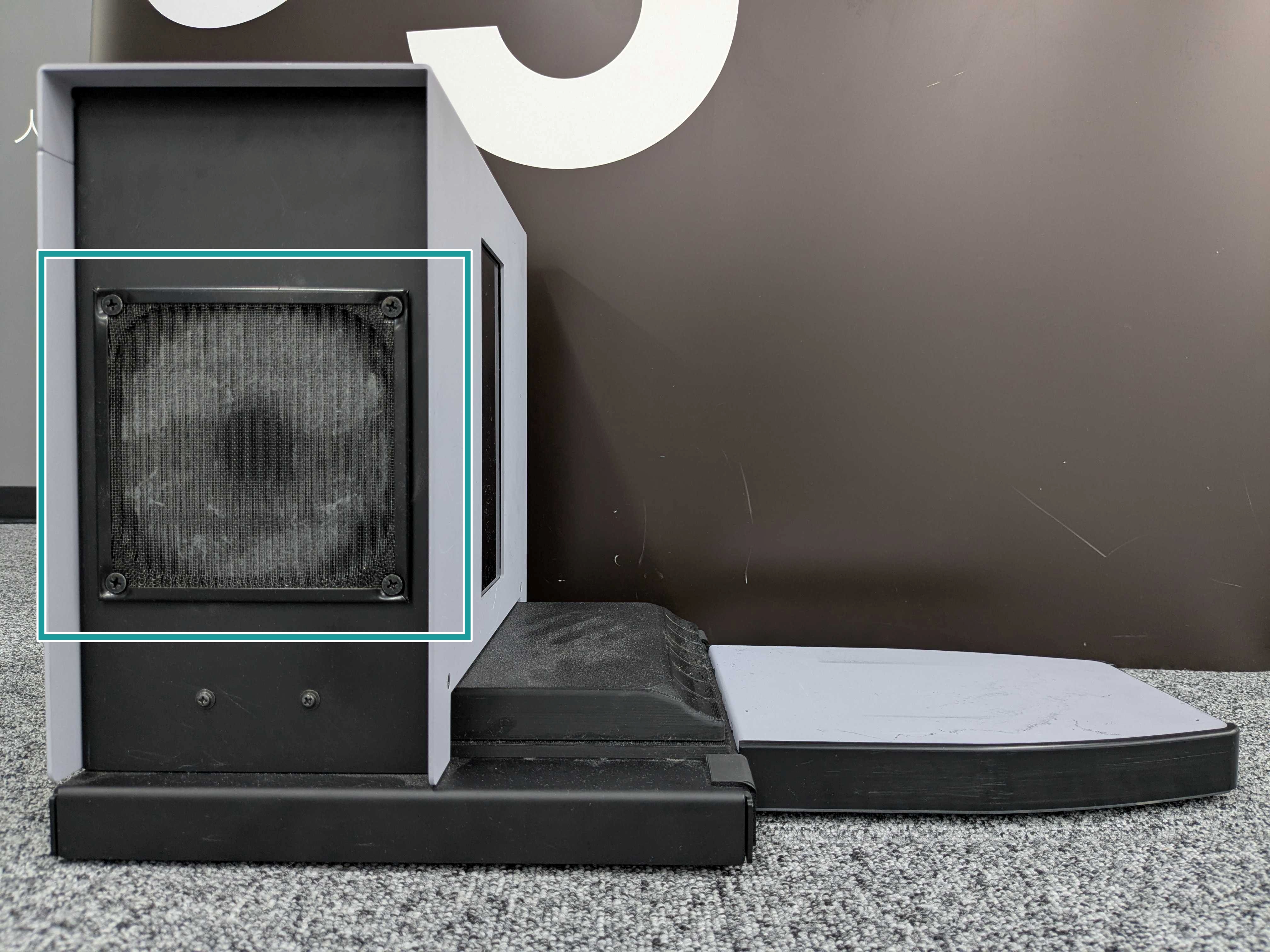

Figure 7 Fan vent |

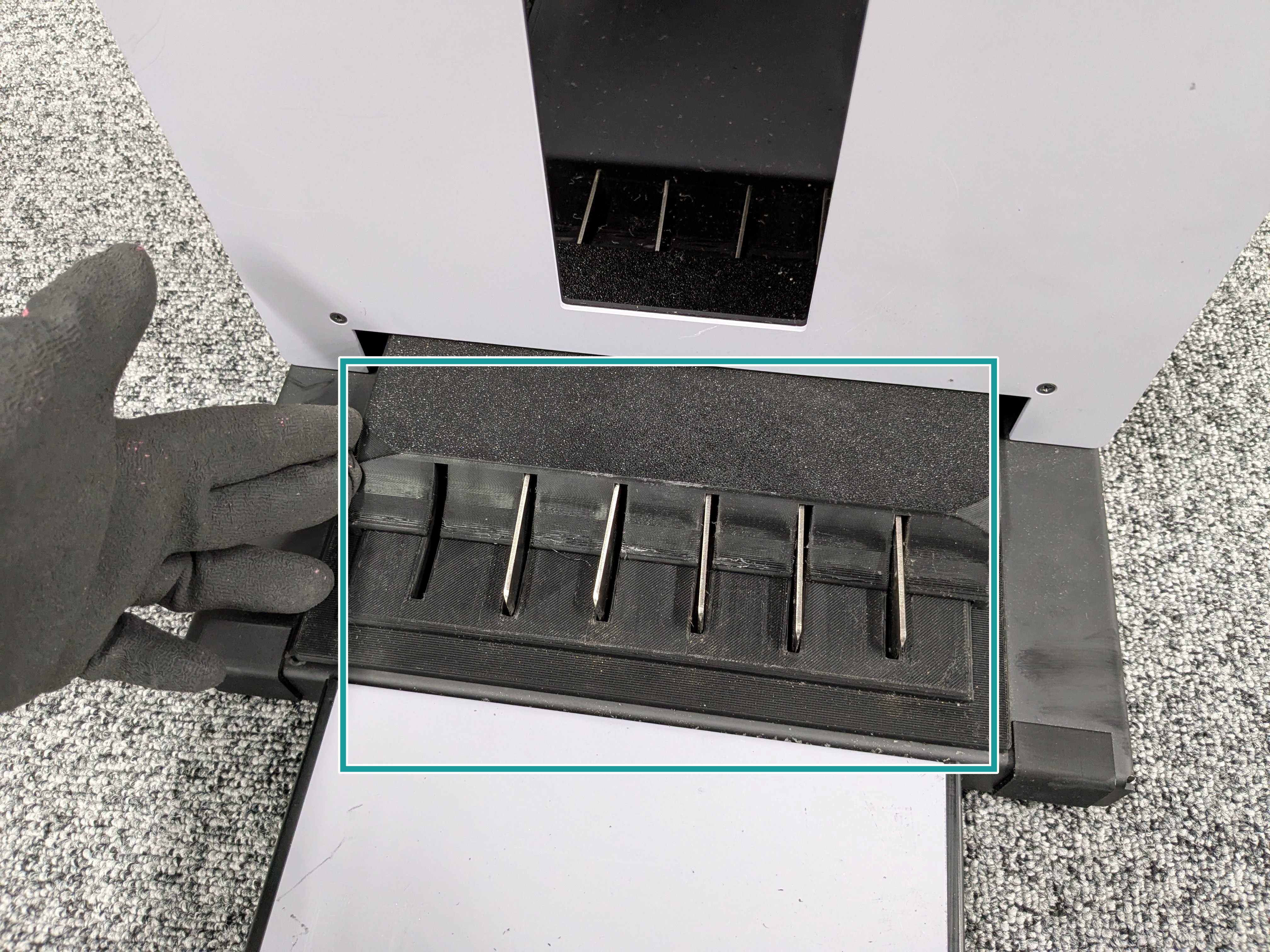

Figure 8 ugo connection part |
◆ ugo Pro/Ex periodic inspection items
Please perform this check approximately every 6 months of use.
[Note] Please perform this check with the ugo Pro/Ex turned off.
| Inspection items | Inspection contents |
| Cart unit tires | Visually check the tires for wear, cracks, or deterioration of the resin. When you push the ugo Pro/Ex by hand, make sure it moves smoothly and without any abnormal noises. |
| Visually check that the tire is properly attached to the axle. Visually check that all nuts are attached. | |
| Various sensors | Visually check the following sensors for scratches and dirt. Cart unit: 2D LiDAR, ultrasonic sensor, cart front sensor, cart rear camera Body unit: chest sensor (Pro only) |
| Lifter Unit | Visually and tactilely check that the bolts at the joints between the lifter unit (Pro) or pole unit (Ex) and the cart unit are not loose. |
| Each unit joint | Check that there are no strange noises or rattles at any of the joints. |
| Check for other damage etc. | Please check visually and by touch. |
