For ugo Pro / Ex (G4) running ugo OS v4.4.0 or later, the following requirements must be met for automatic charging return via the "Start Automatic Charging" command to work.
◆ Table of Contents
- Specifications of the feedback operation area
- Specifications of the obstacle interference area
- Installation conditions
◆ Specifications of the feedback operation area

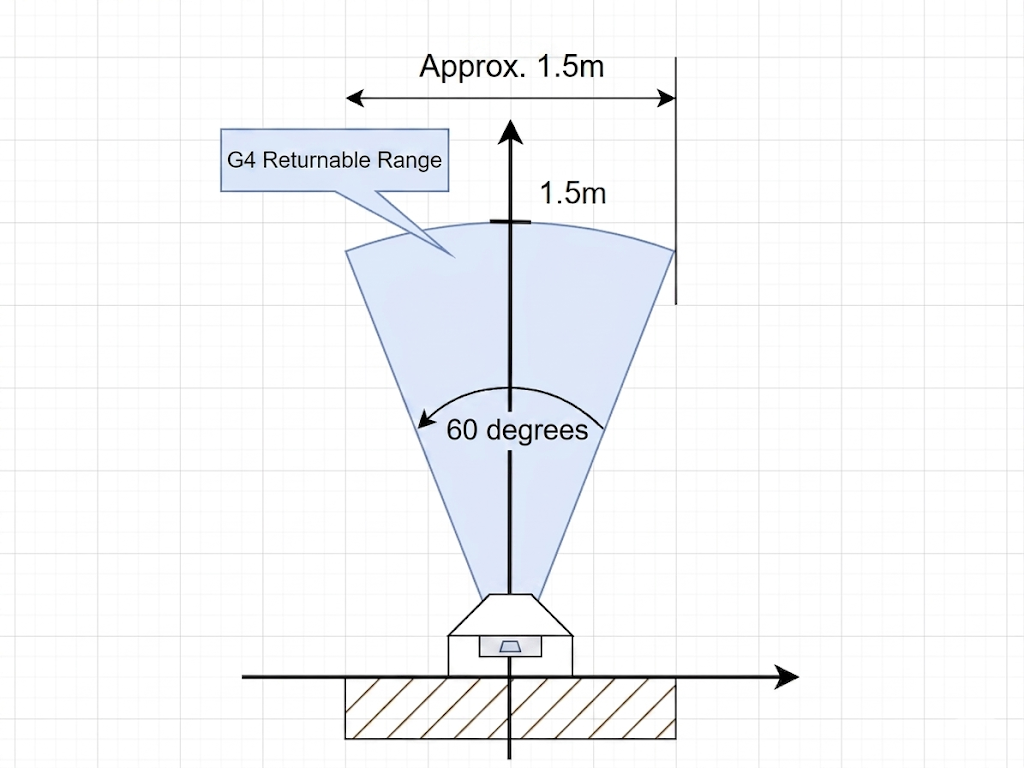

- Charging will begin within a radius of 1.5m ±30 degrees from the charging station.
- Make sure the ugo Pro/Ex is facing away from the charging station.
- The starting angle must be within ±90 degrees relative to the wall.
◆ Specifications of the obstacle interference area

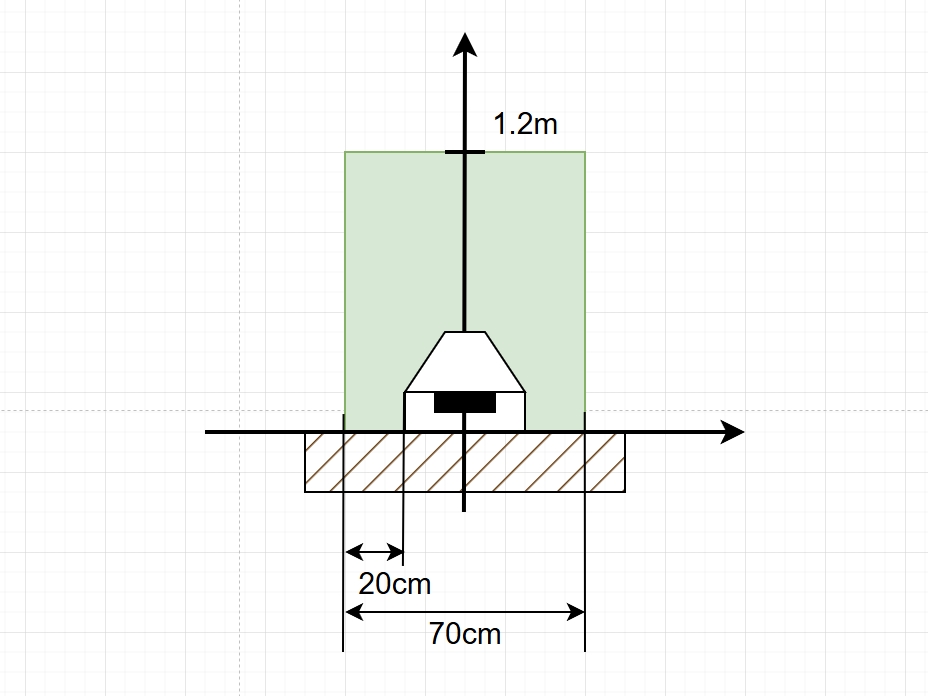

- There must be no obstacles within a rectangle 1.2m in front of the station and 20cm to the left and right.
- If the return starting point is outside the above range, there must be no obstacles within the return range arc.
- Do not place objects that are approximately 15% of the station's width (25-35 cm) on the left, right, or front of the station.
◆ Installation conditions

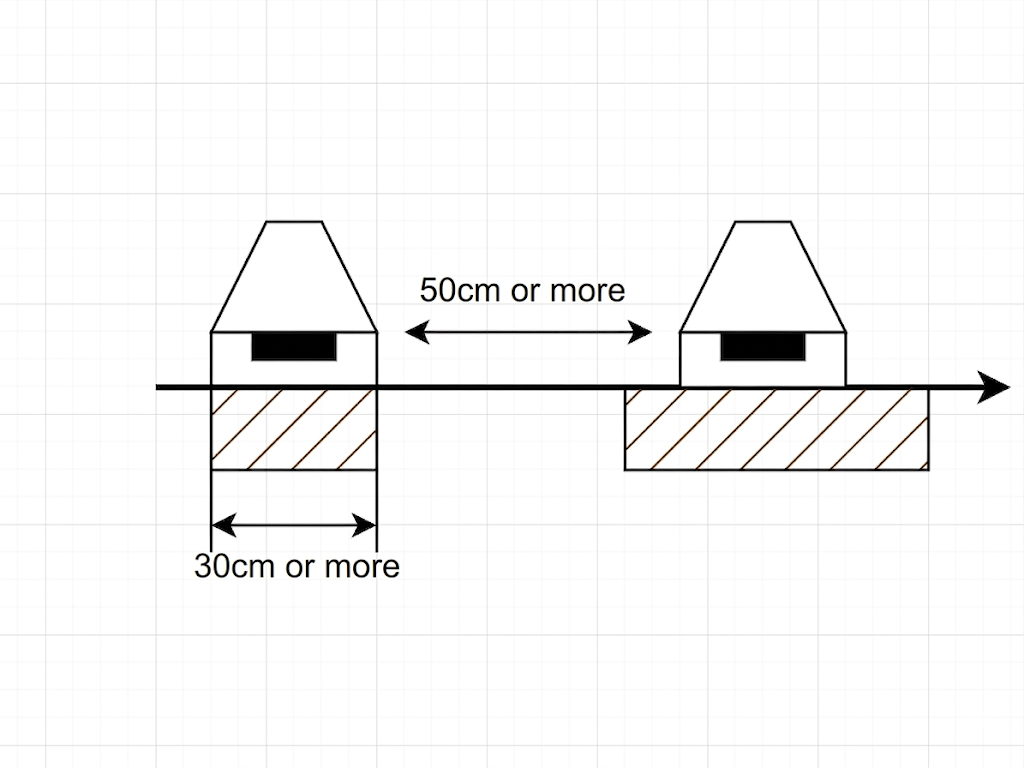

- The station must be installed in contact with a flat wall surface that is wider than the station's own width (30 cm).
- When installing multiple stations side by side, they must be placed at least 50 cm apart.
- Ensure that the area around the station is not exposed to direct sunlight.
- The flooring material is assumed to be hardwood.
- When returning to the charging station on a carpeted surface, a separate special sheet must be laid down.
