With ugo Portal Ver.v1.16.6 [2026.03.12], the command picker UI has been revamped, and there are now Favorite commands that the user can select and Recommended commands.
By utilizing the newly added "Favorites" and "Recommended" commands, the time spent searching for the desired command will be reduced, and the speed of Flow creation will be improved.
This page explains how to use the command picker.
◆ Table of Contents
- What is the command picker?
- Explanation of the command picker screen
- How to add a command from the command picker?
- What are favorited commands?
- How to use Favorited commands
- What are recommended commands?
- Notes
◆ What is a command picker?
The command picker is a "toolbox" that stores commands for creating Flows and WorkPlans that ugo will execute.
Various commands such as "move," "speak," and "move the arm" are stored here.
By selecting the necessary commands from here and arranging them in order, you can complete ugo's command list, Flow, and WorkPlan.
The tabs, which were previously switched horizontally, have been changed to a vertical layout. (From ugo Portal Ver.v1.16.6 [2026.03.12])
Clicking the "V" expander next to the command type name will display the hidden command, and clicking it again will hide it.
◆ Explanation of the Command Picker screen

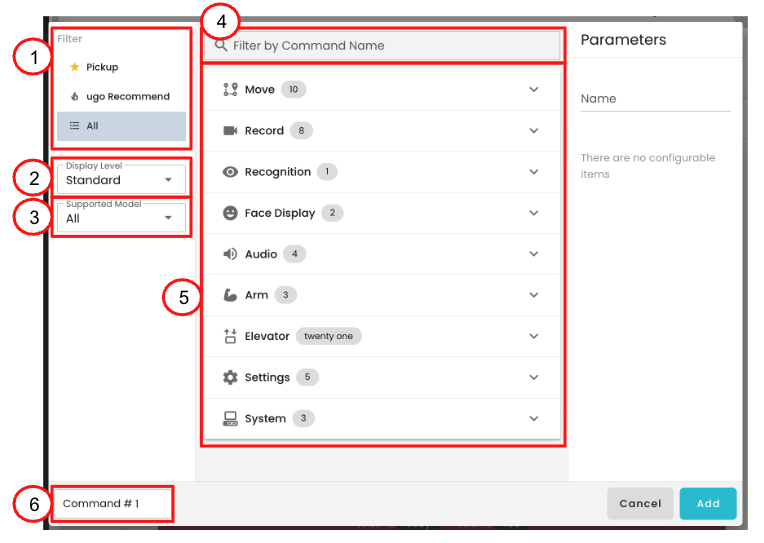

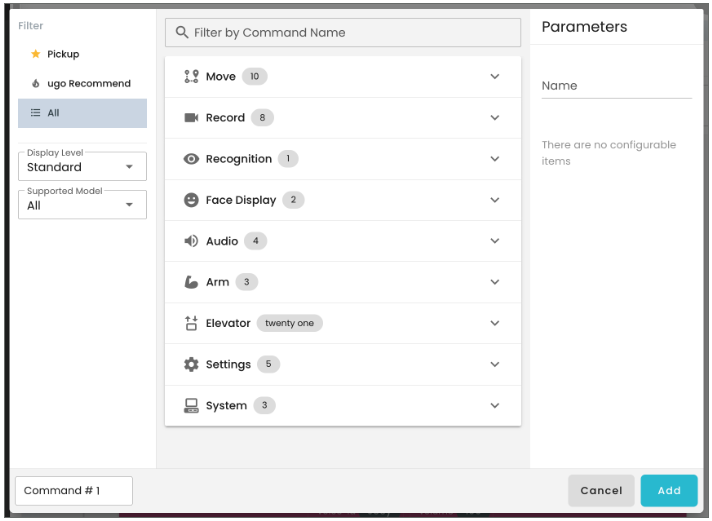

■ Command picker
| Item | Explanation | |
| ① | Filter | The commands displayed in the command picker can be filtered by "Favorites," "Recommended," and "All. " |
| ② | Display level | Please use the "Standard" level. Certain customers who may need to use "Beta" or "Deprecated" commands should change the display level from the dropdown menu. |
| ③ | Target models | This filters and displays commands that are only available for specific ugo models. Target models: Pro, mini, Ex, All |
| ④ | Command search box | You can search for and display the command you are looking for by its name. |
| ⑤ | Command Type | Commands available in ugo are categorized according to their function and purpose. Clicking the "V" icon to the right of a command type will display the commands in that category. Clicking the "V" expander again will hide the commands in that category. |
| ⑥ | Order in which to add commands | When adding a command to a command list or Flow, you can specify the position in the command list or Flow where the command should be added. |

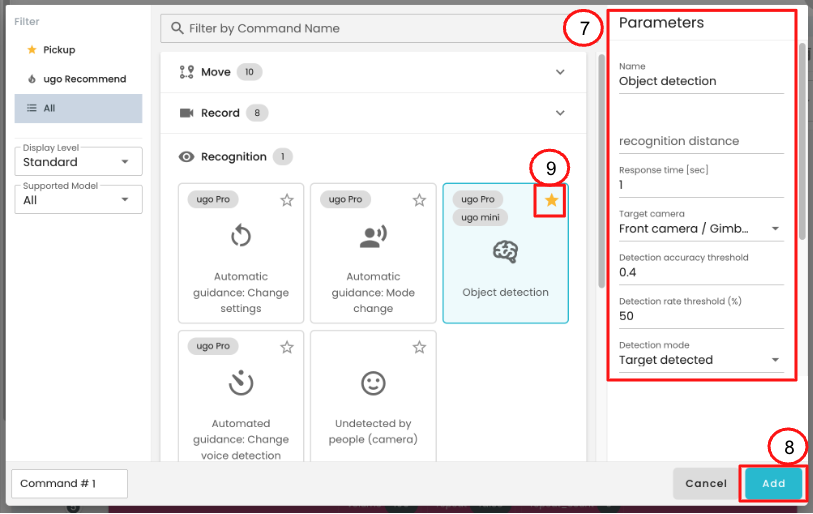

■ Command selected in the command picker
| Item | Explanation | |
| ⑦ | Parameters | Sets the parameters for the selected command. |
| ⑧ | Add | Add the selected and parameterized command to the command list, Flow, or WorkPlan. |
| ⑨ | Favorite | Clicking the "☆" mark will highlight it in yellow, and the command will be added to the "Favorite" filter as a "Favorite Command". For more details, please see below: • What are favorite commands? |
◆ How to add commands from the command picker

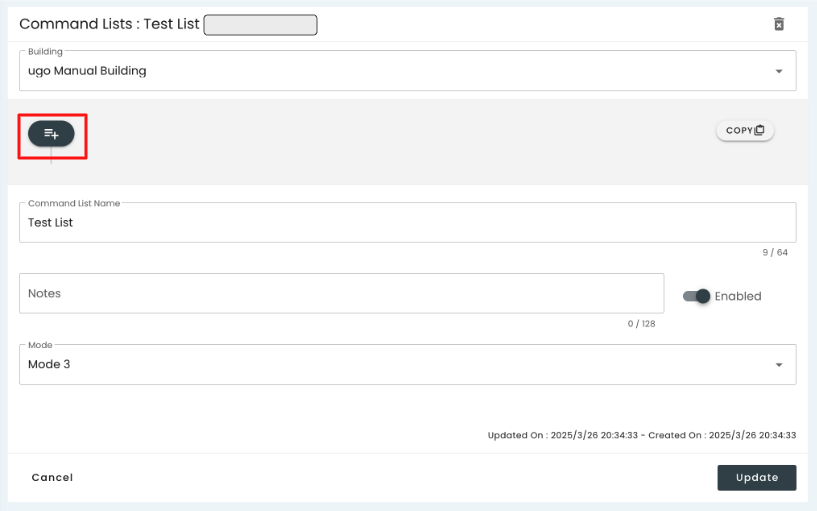

① Click the "Create New" button in the upper left corner of the command list or Flow editing screen.

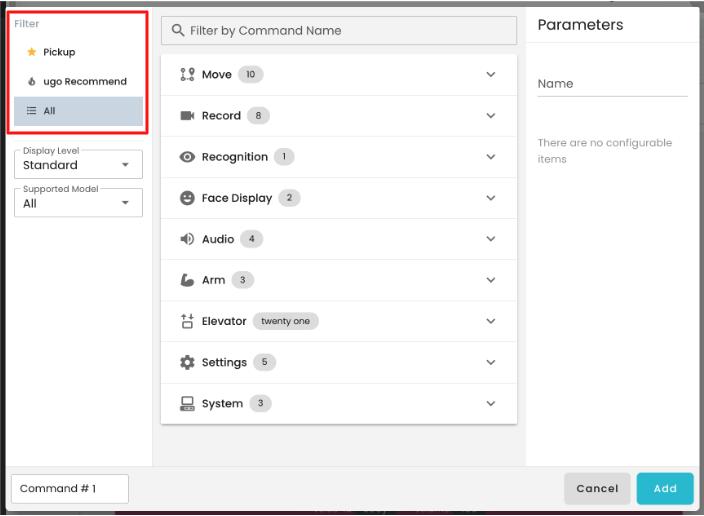

② In the [Filter] section, select one of the following filtering options from the command picker: [Favorites], [Recommended], or [All] .

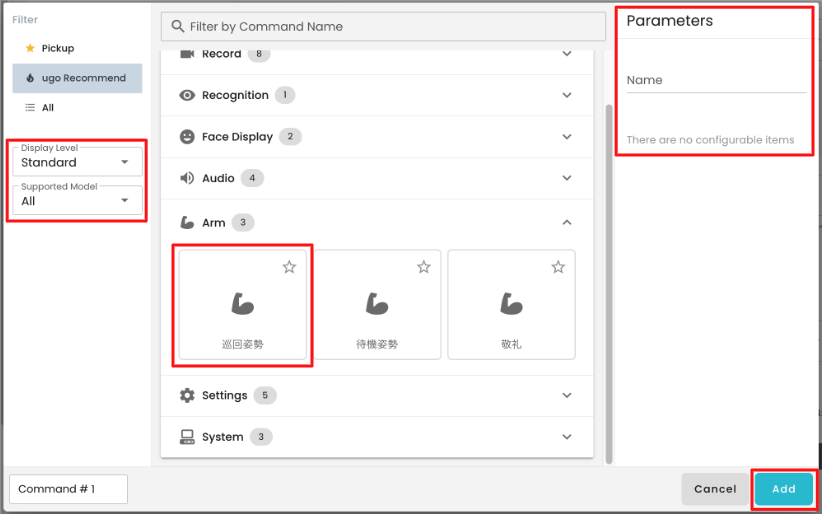

③ Select the command, set the parameters if necessary, and then click [Add].
*If necessary, change the command display level to [Beta] or [Deprecated], and the target model from [All], [Pro], [mini], or [Ex].
④ The configured command will be added to the command list or Flow.

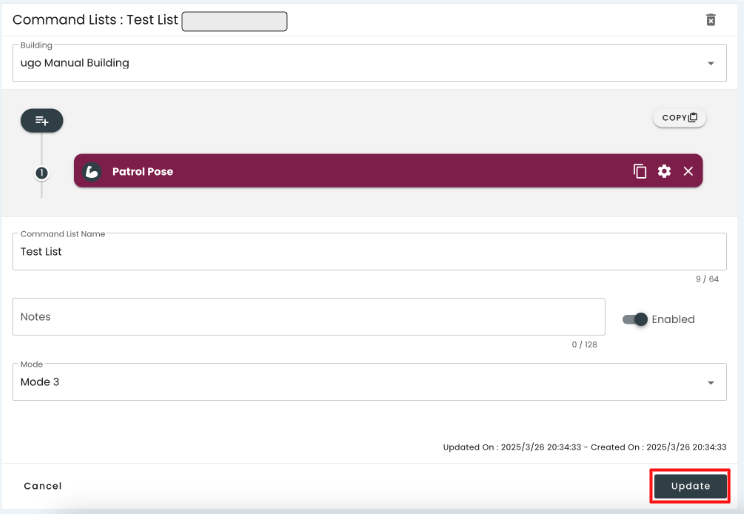

⑤ After adding a command, be sure to click [Update]. This completes the registration of the command to the command list or Flow. After editing the command list or Flow, be sure to refresh the operation screen to reflect the settings.
◆ What are favorited commands?
Customers can now select and pick out only the commands they frequently use from the command picker for each building.
This improves the ability to quickly find frequently used commands when editing Flows, etc.
◆ How to use the favorited commands
■ How to add favorite commands

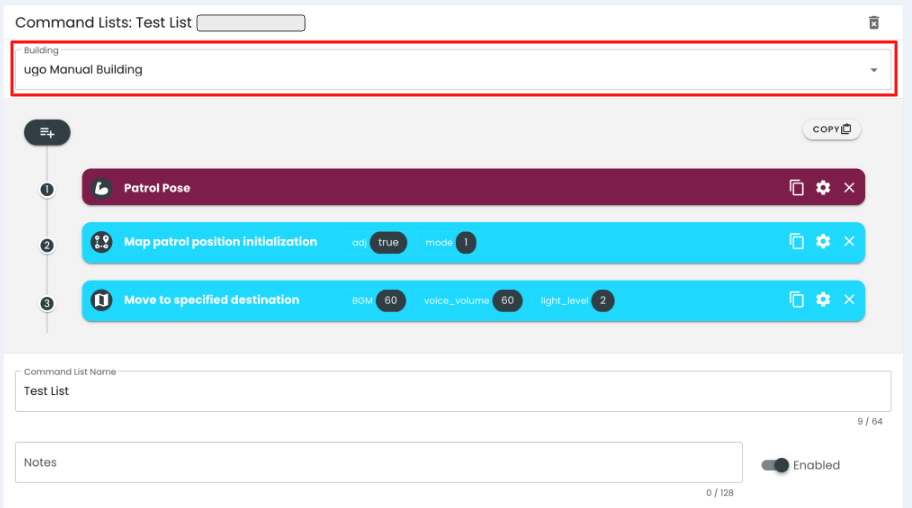

① Favorite commands can be set for each building. Set the favorited command in a way that is linked to the command list or the building to which the Flow is associated. Please verify that the command list or the building associated with the Flow is correct.
*Only operators with "Organization Administrator" privileges can view this. Operators with "General" privileges will only see the building they belong to.
② In the command picker, select the command you want to favorite.

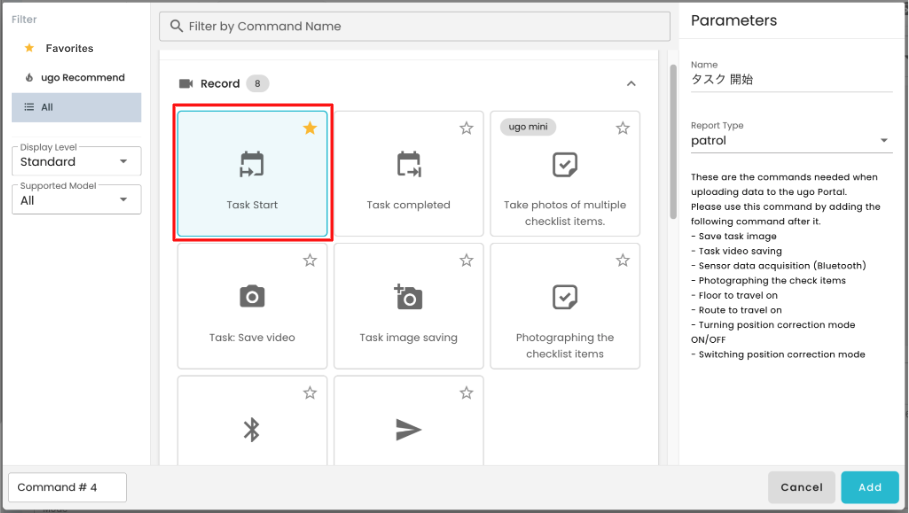

③ Clicking the "☆" mark in the upper right corner of the command will make the "☆" mark turn yellow.

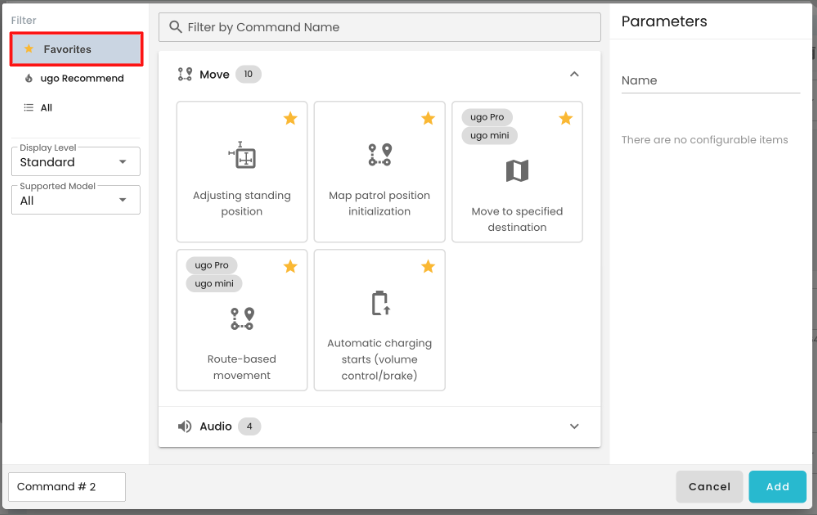

④ The command in question will now be displayed as a [Favorite] in the [Favorites] filter.
■ How to add commands to the command list and Flow from the favorited command

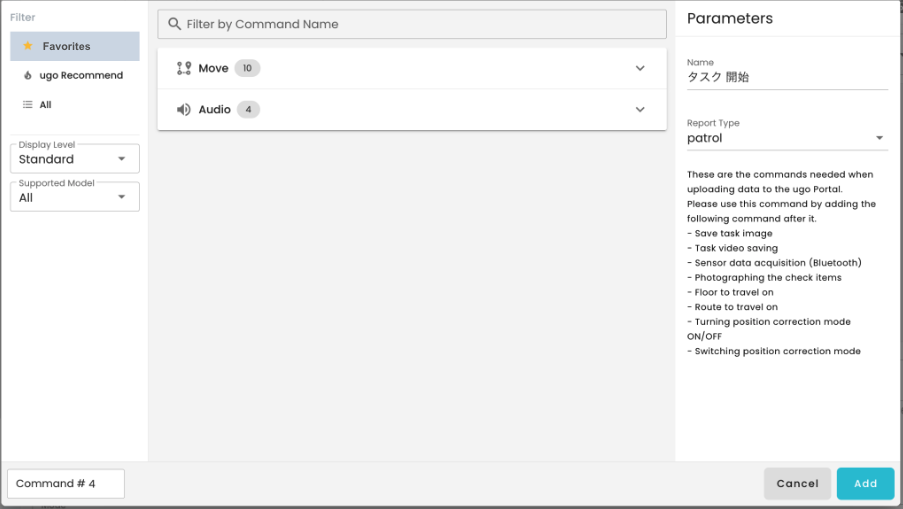

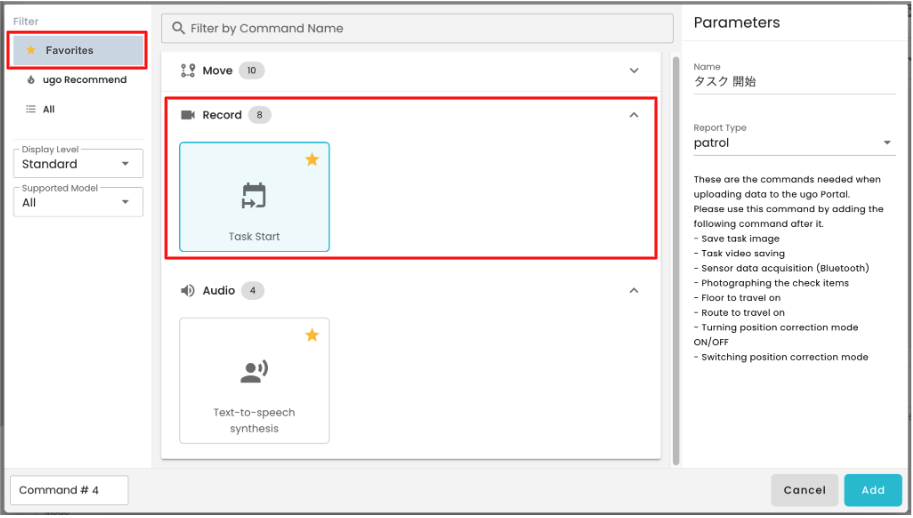

① In the command picker, set [Filter] to [Favorites].
② The commands you added as [Favorites] will be displayed. Set the parameters as needed, and click [Add] to add it to the command list or Flow.
■ How to remove a command from Favorites

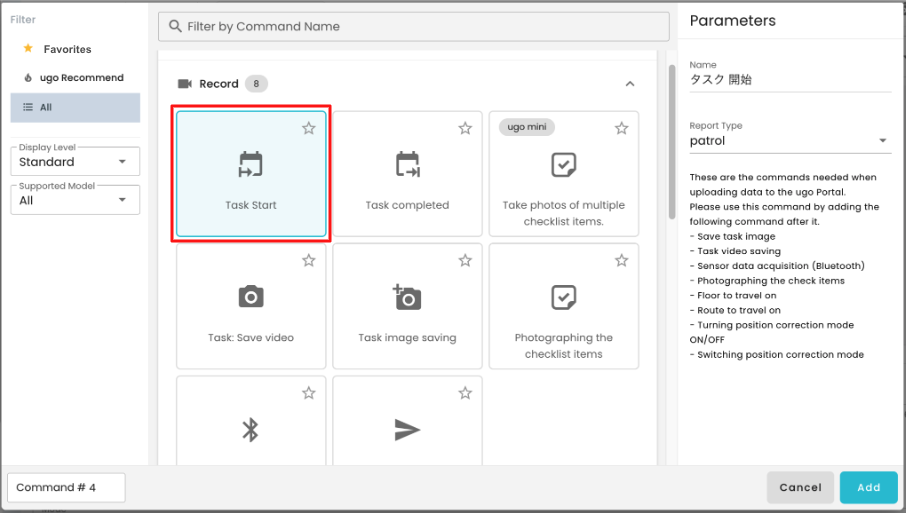

① Click the yellow "☆" mark in the upper right corner of the command you added as a [Favorites].

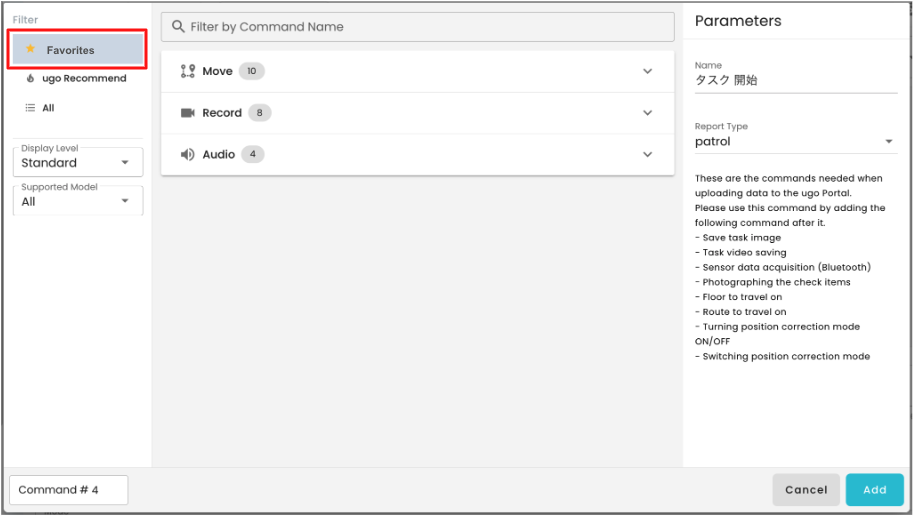

② The command will no longer be displayed in the [Favrorites] filter.
*The command itself will not disappear from the command picker,
so you can continue to add and use it by setting the filter to "All".

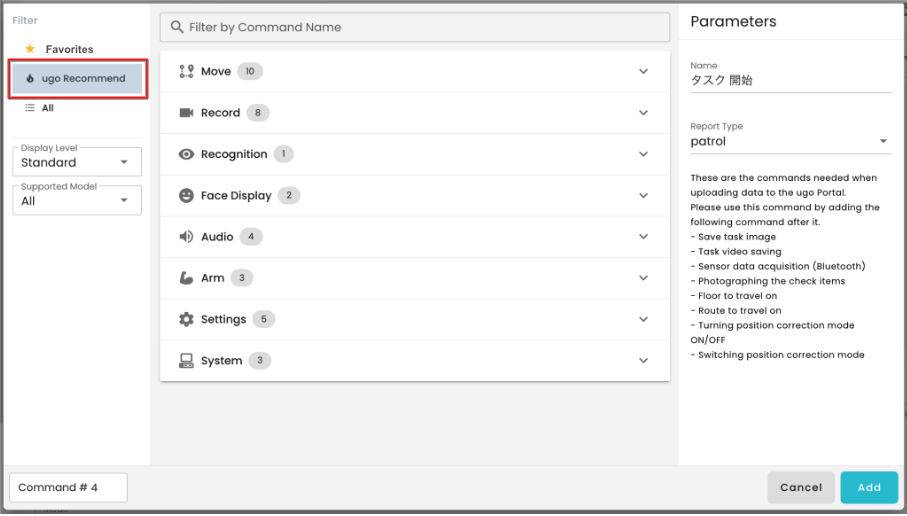

◆ What are recommended commands?
In the "Recommended" tab, we have configured a list of commands that are frequently used in ugo operations. Please use this to help you create your Flows. You cannot individually add or remove commands within the "Recommende" tab.
Adding commands to the command list or Flow is the same as with favorite commands.
◆ Notes
- The status of adding commands to [Favorites] is configured on a building-by-building basis within your organization. It is not possible to set separate [Favorites] commands for each operator. For example, you cannot set separate
[Favorites] commands for operator A and operator B, both belonging to the ugo manual building.
- Adding/removing commands from [Favorites] can be done by operators with both "Organization Administrator" and "General" privileges.
- Operators with "Organization Administrator" privileges can add or remove [Favorites] commands
for the building to which the command list or Flow is associated, in the command list or Flow editing screen. Example: An organization administrator can add/remove pickup commands for the command pickers of all buildings within the organization,
regardless of which building they belong to. Adding/removing [Favorites] commands for "ugo manual building A" Adding/removing [Favorites] commands for "ugo manual building B"
- Users cannot change the order of commands or command types displayed in the [Favorites] or [Recommended] filters.
- There is currently no limit to the number of commands that can be added to [Favorites].
