◆ Table of Contents
・How to open the "Map View" on the Flow editing screen
◆ Function Overview
This function allows you to check the "floor map" associated with the Flow you are creating and the "driving route (route and destination)" set using command parameters on the Flow editing screen.
By linking the commands and map in the Flow, you can prevent setting errors and enable intuitive Flow setting.
◆ How to open the "Map View" on the Flow editing screen

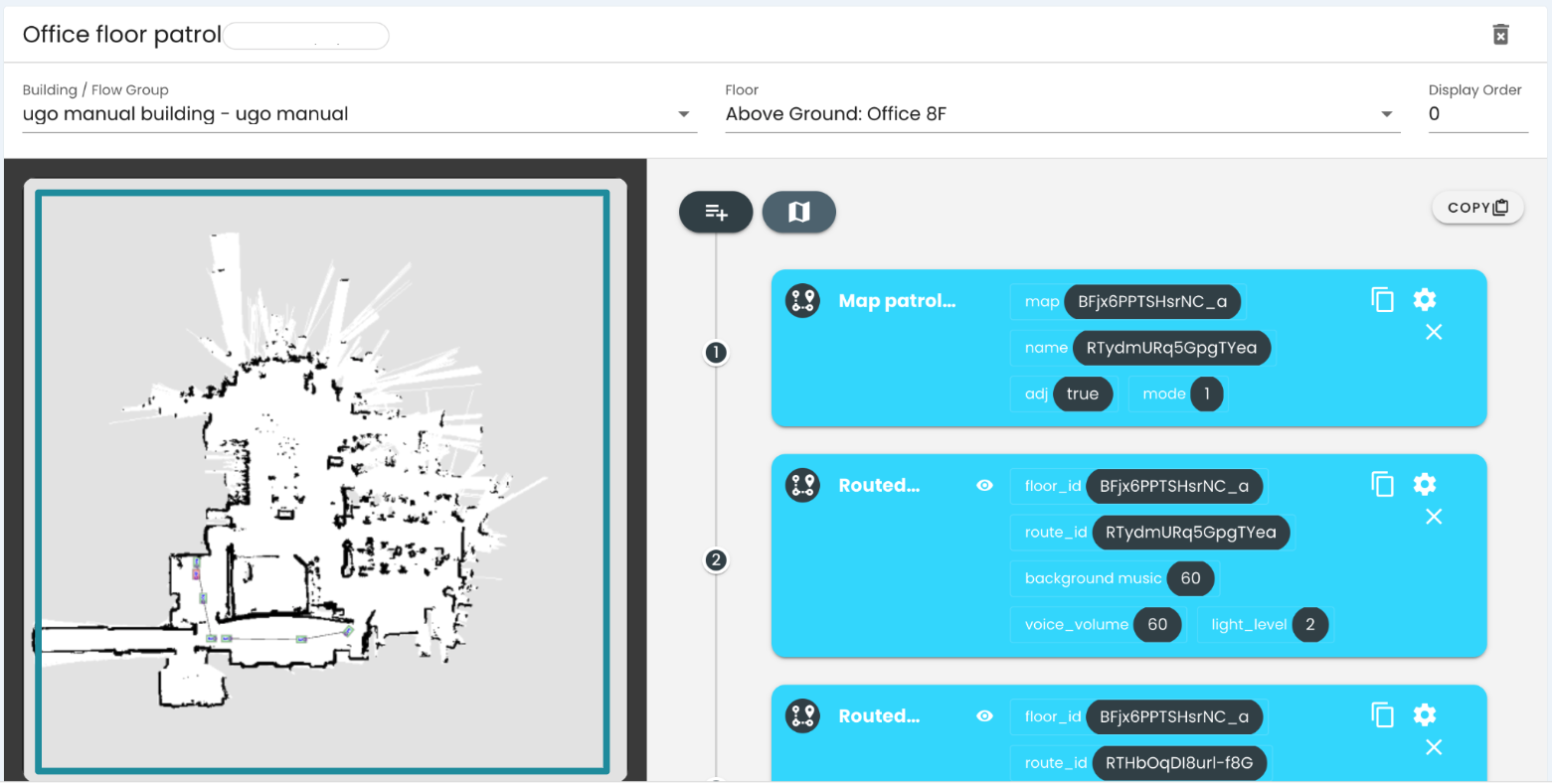

On the Flow editing screen, click the [Map icon].
◆ Information Displayed

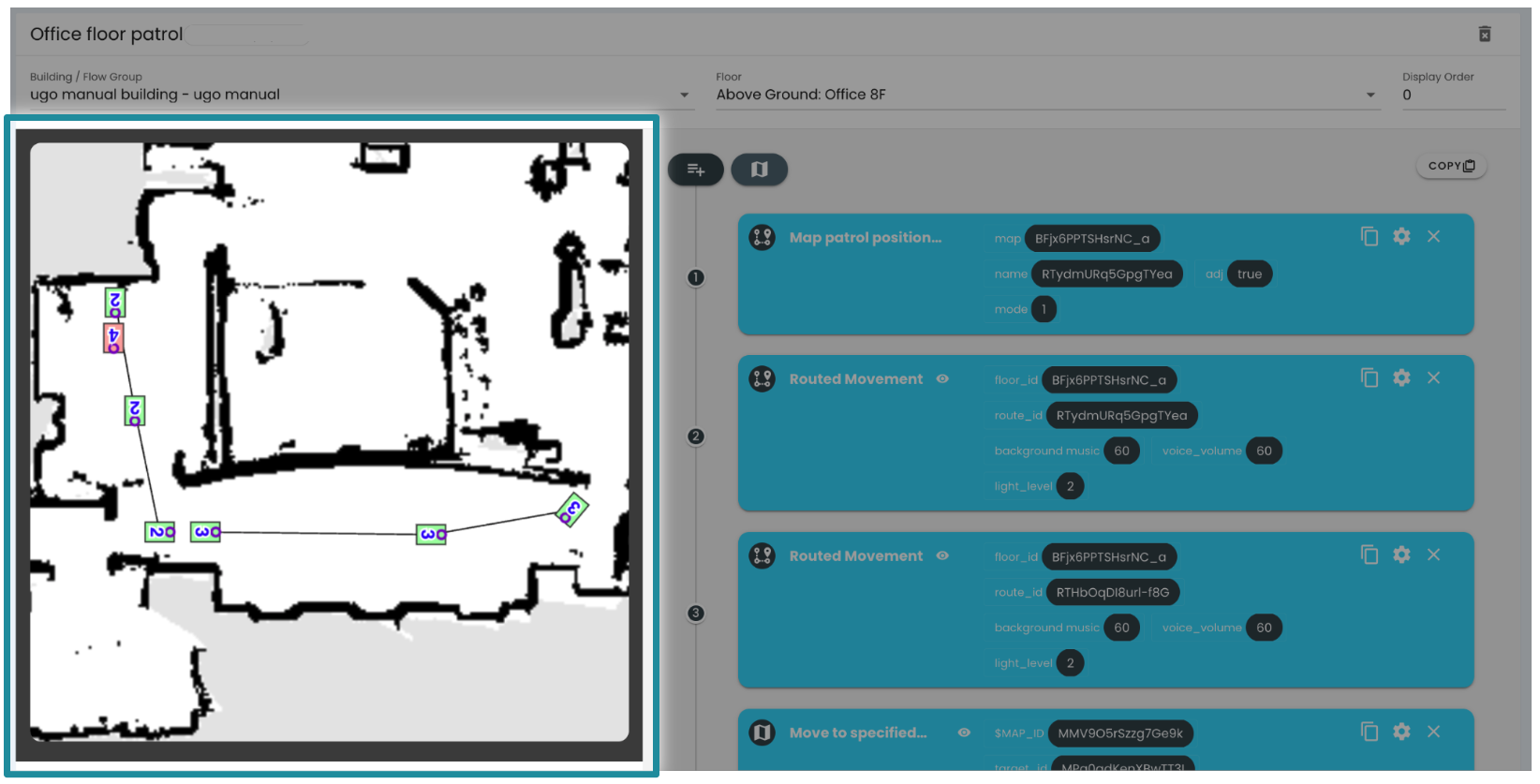

① Floor map
- A map of the floor to which the Flow is linked, is displayed on the left side of the Flow editing screen. You can move the map display position and zoom in/out by dragging and scrolling the mouse cursor on the map.

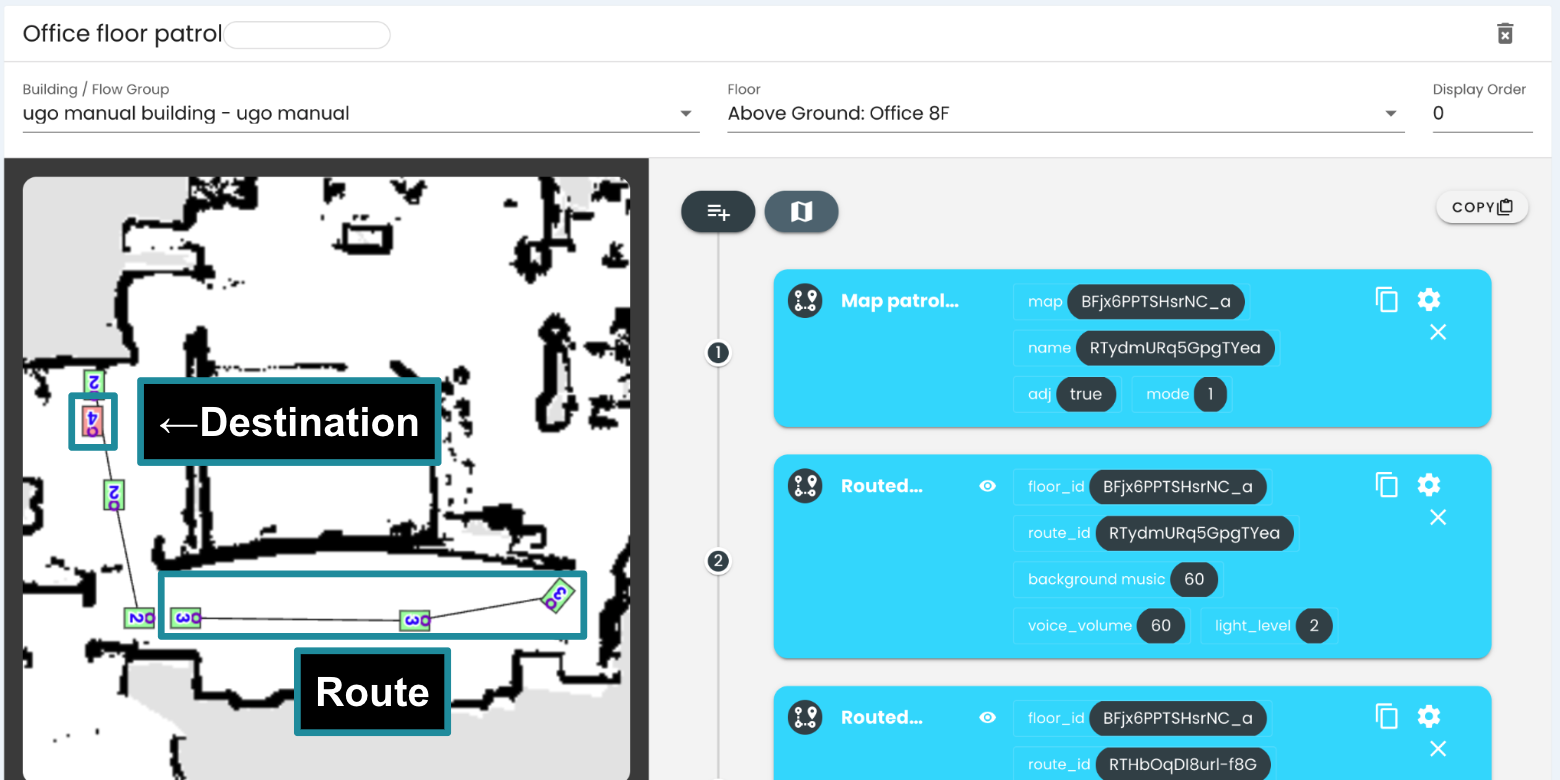

② Route and destination
- If the following commands are included in a Flow, they will automatically be displayed on the map. If the parameters are not set in the command, they will not be displayed. ・ "Start Map Tour" / "Move to specified route": The waypoints of the route set in the parameters will be displayed. ・ "Move to specified destination": The waypoint of the destination set in the parameters will be displayed.
③ Synchronization with command number
- Numbers will appear on the map for routes and destination waypoints. These numbers correspond to the numbers (order) displayed to the left of the commands in Flow.

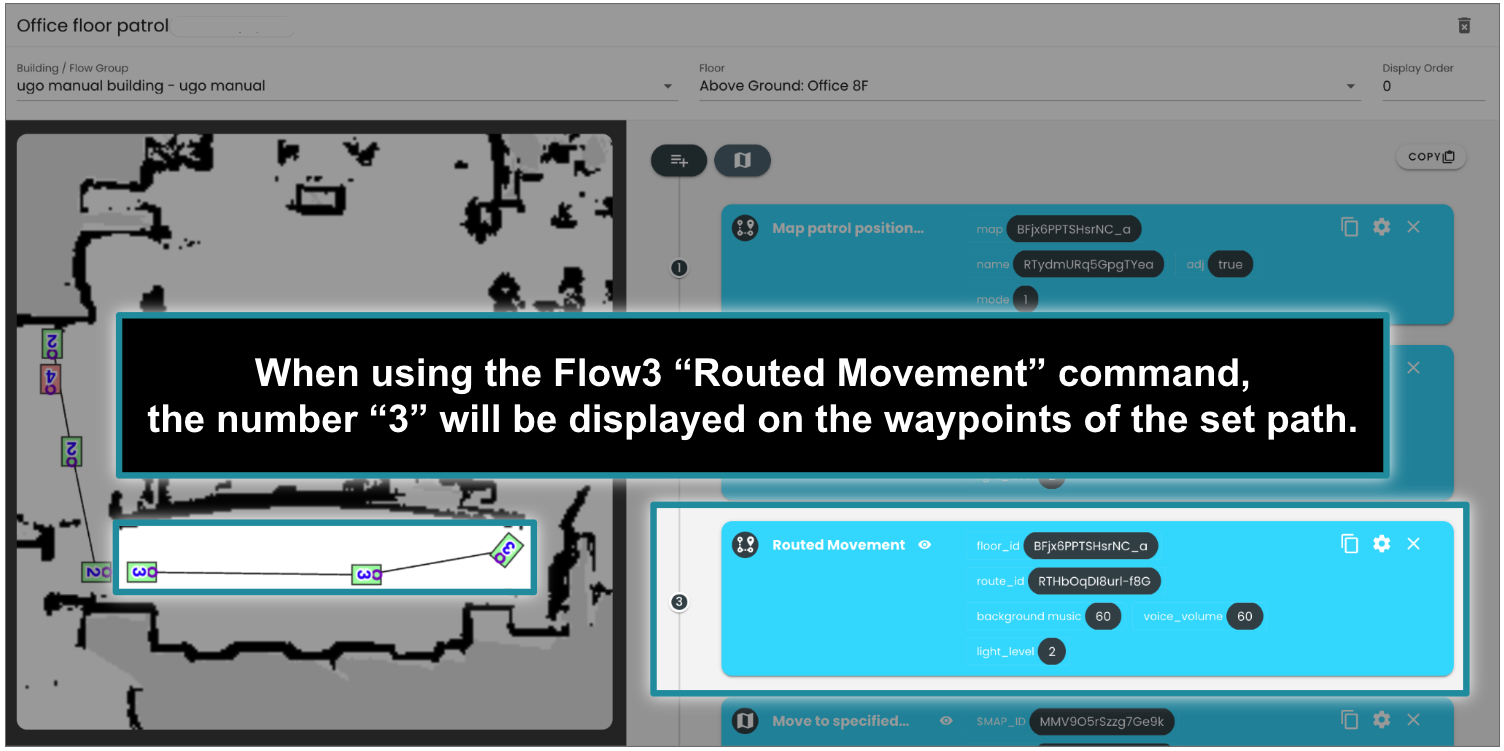

For example, if you include a "Routed Movement" command as the third step in a Flow,
a "3" badge will appear on the corresponding route on the map.

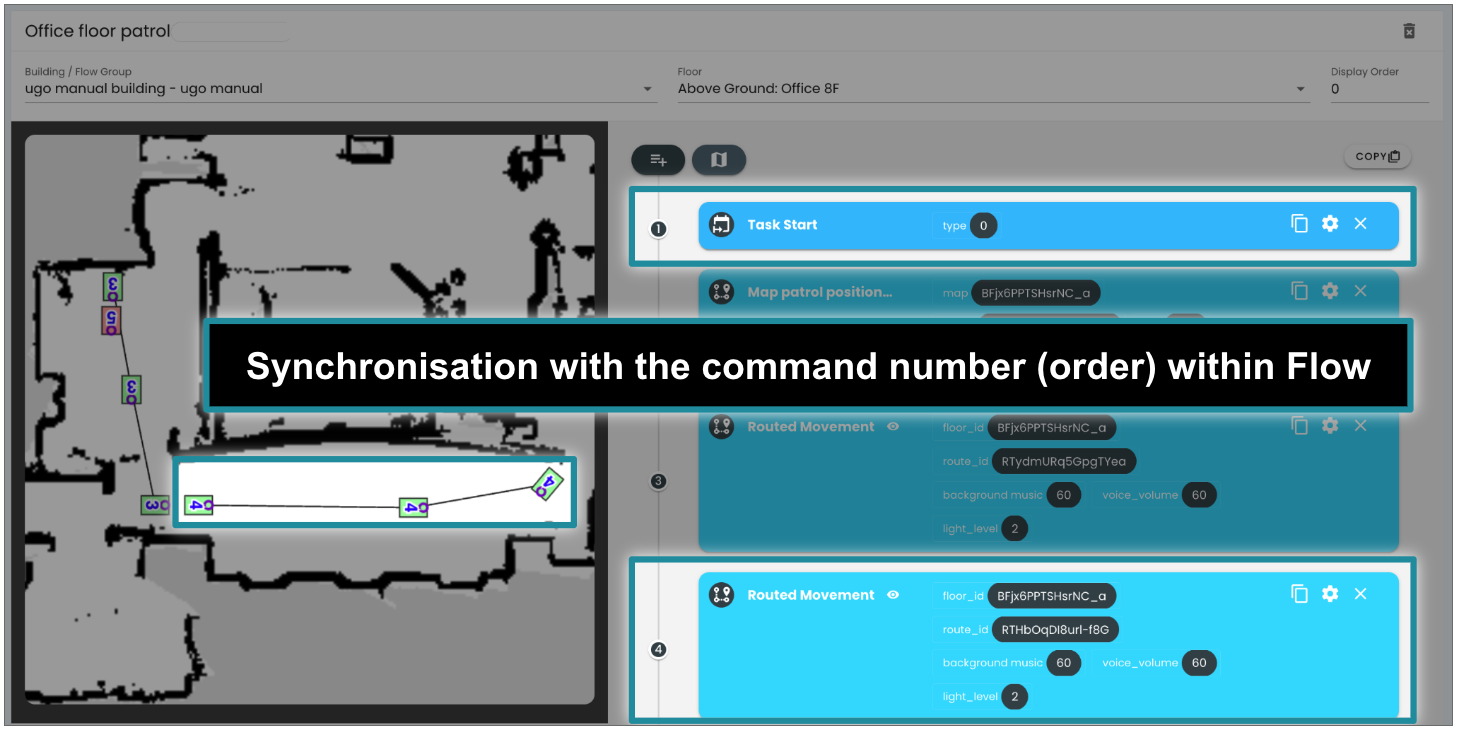

For example, if you include the "Start Task" command as the first command in a Flow, the "Routed Movement" command will be the fourth command.
In this case, a "4" badge will appear on the corresponding route on the map.
④ Simultaneous confirmation of multiple routes
- If there are multiple "Start Map Tour," "Routed Movement," and "Move to Destination" commands in one Flow, all of those
routes and destinations will be displayed on the map. This allows you to see the entire Flow tour as a series of steps at a glance. *If the route and destination are set in the parameters of each command

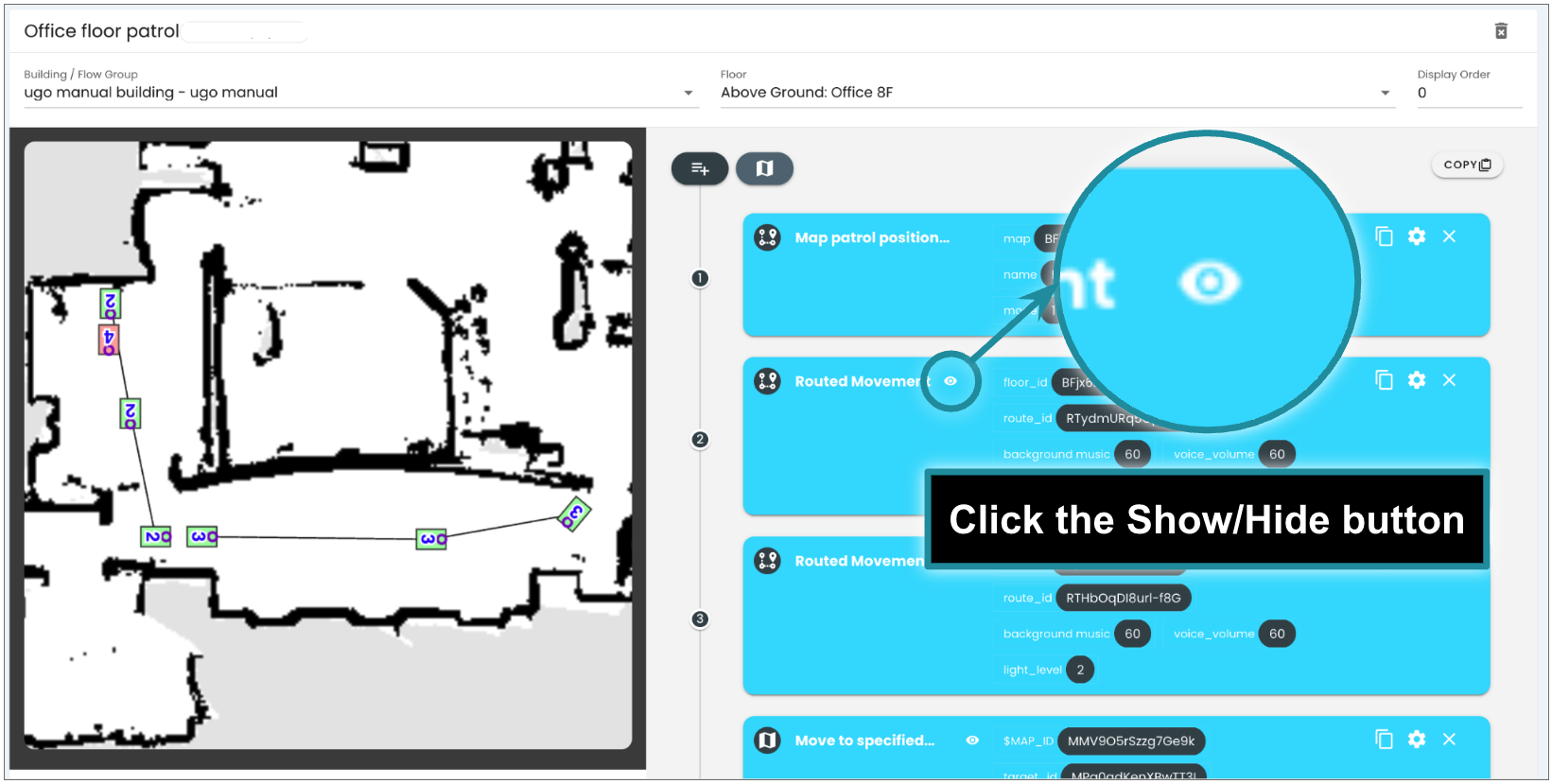

⑤ Switching between showing and hiding routes and destinations
- There is a show/hide button next to the name of each command: "Start Map Tour," "Routed Movement," and "Move to Destination Specified".

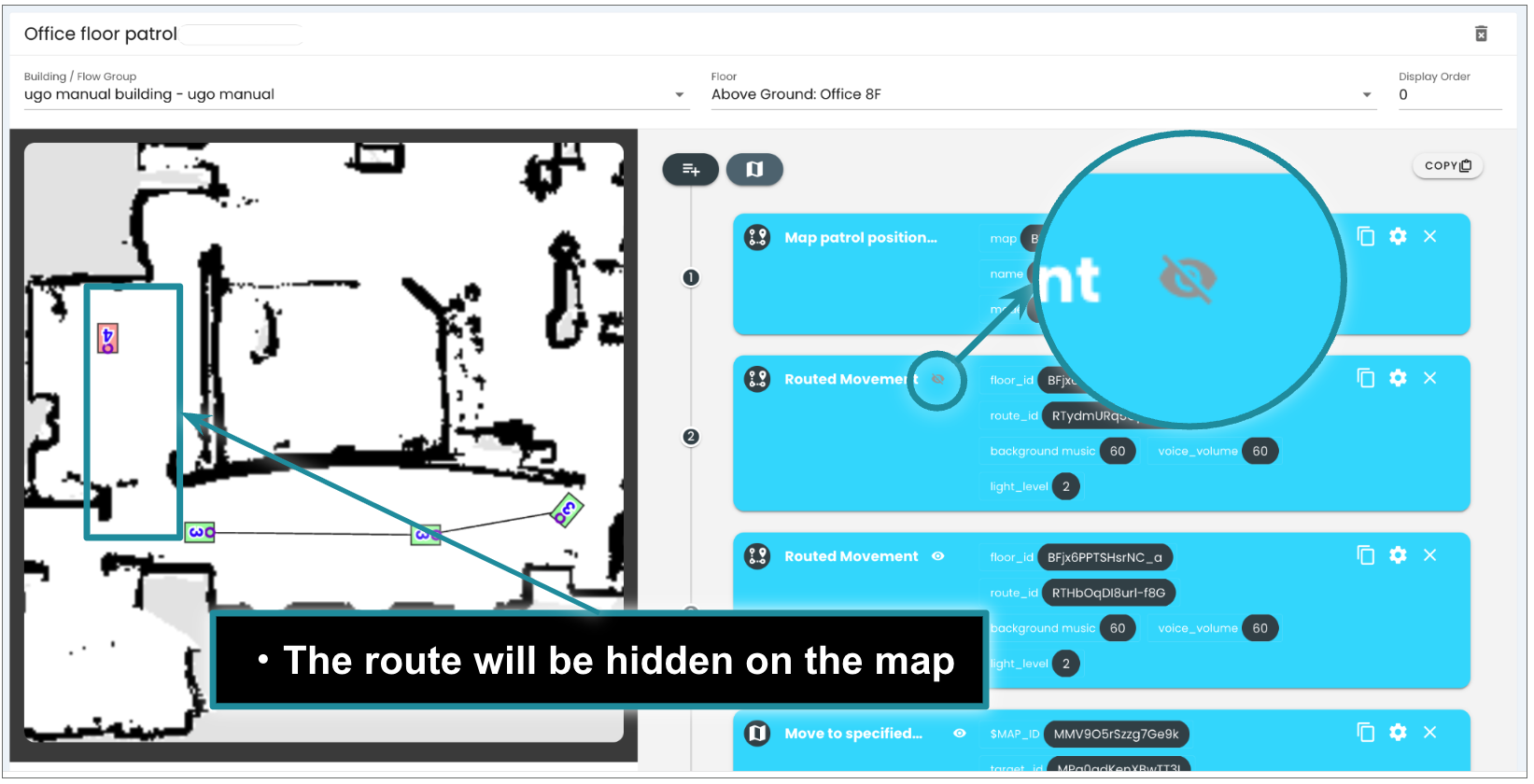

Pressing the show/hide button will hide the route and destination set by the parameters of that command on the map on the left side of the Flow editing screen. Pressing it again will display it on the map.
◆ Notes
Map binding:
- If the "Floor" is not selected correctly in the Flow settings, the map will not be displayed. If a different map is displayed, please check that the map applied to the floor is correct.
Editing the route and destination itself:
- This function is only for checking the route and destination on the map on the Flow editing screen. If you want to edit the route or destination itself, please go to the "Map Editor" and edit as usual.
No entry and speed limit areas:
- No entry areas and speed limit areas set in the map editor cannot be viewed on the map on the Flow editing screen. Please open the map editor as usual to view them.
