*The hardware changes listed on this page may be reflected in units manufactured before the target manufacturing date if they have been returned to us for repair or modification.
【Addition】

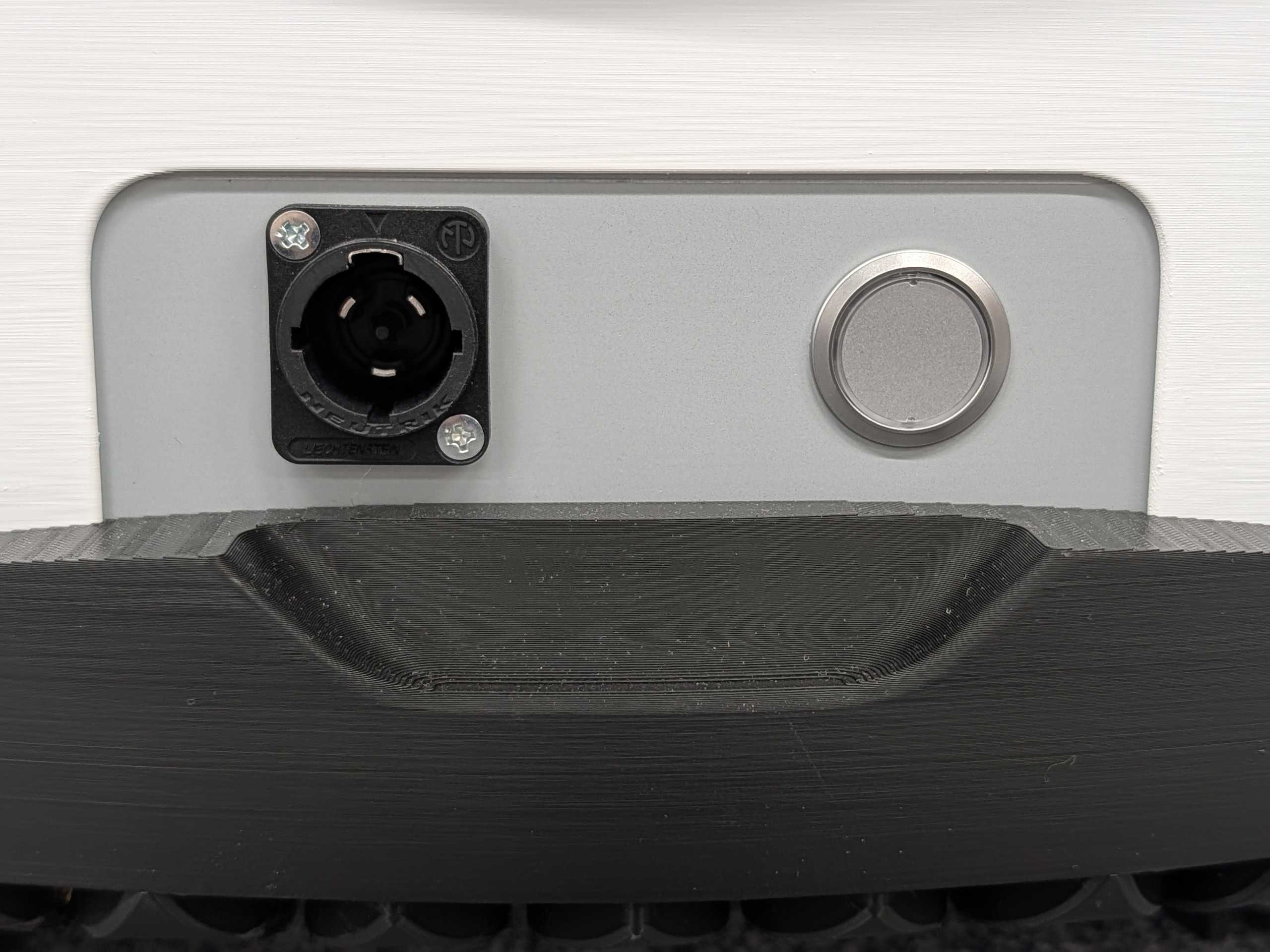

- Added "Main power switch"
- A main power switch has been added to the front cover next to the LiDAR sensor to physically disconnect the battery from ugo. By turning it off when storing or transporting the device for a long period of time, you can reduce battery consumption when not in use.
Before change
After the change
【Change】

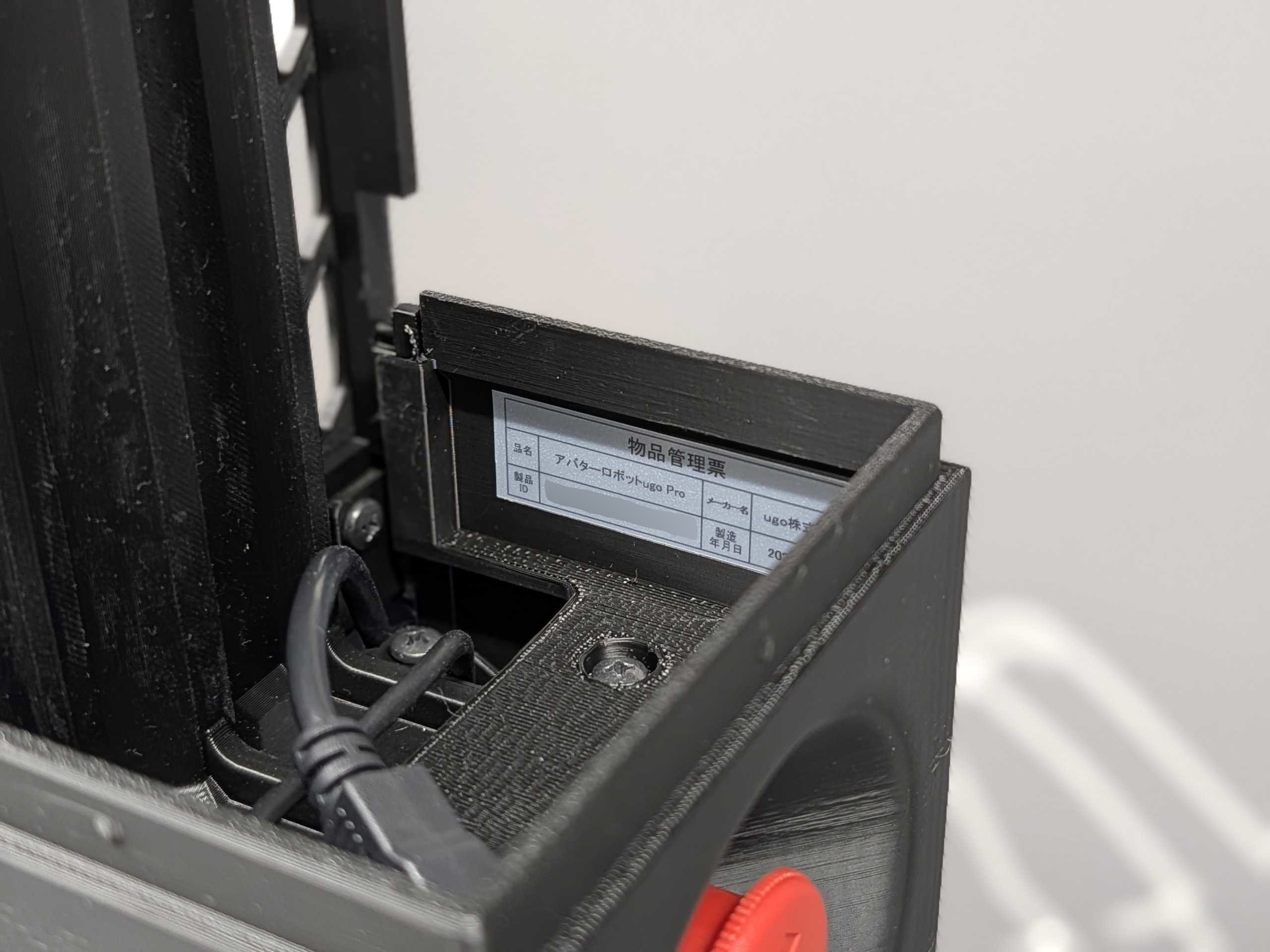

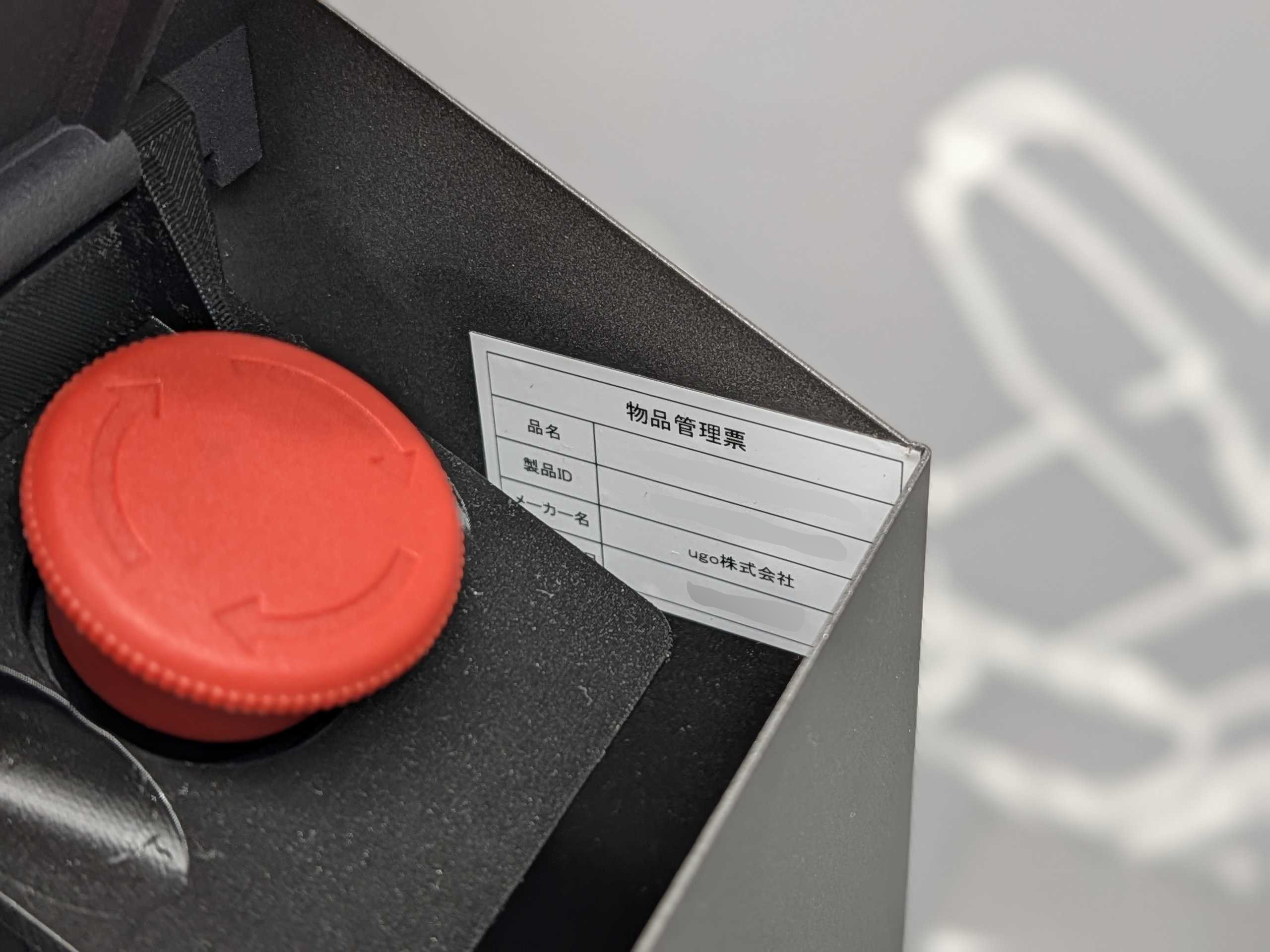

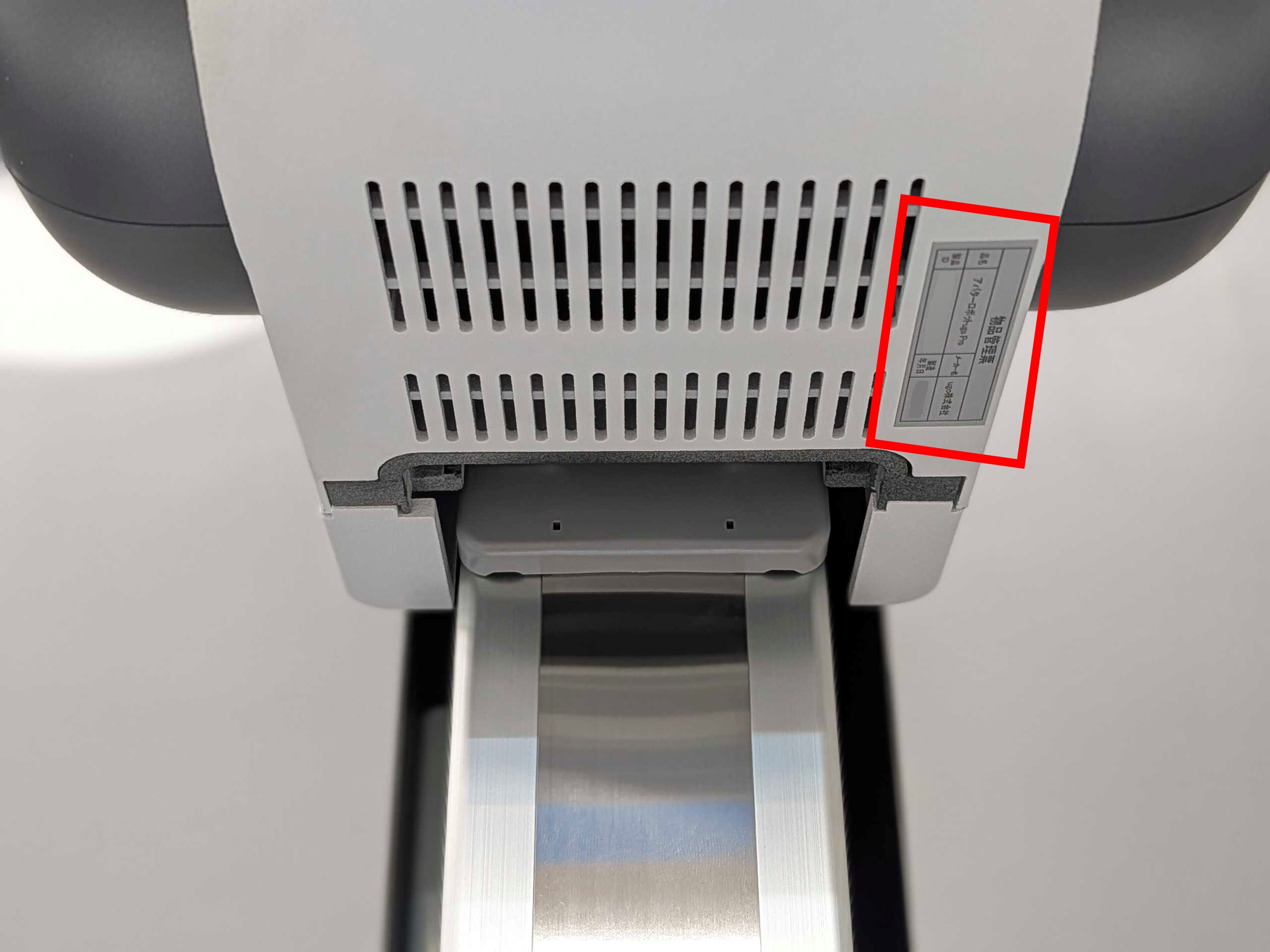

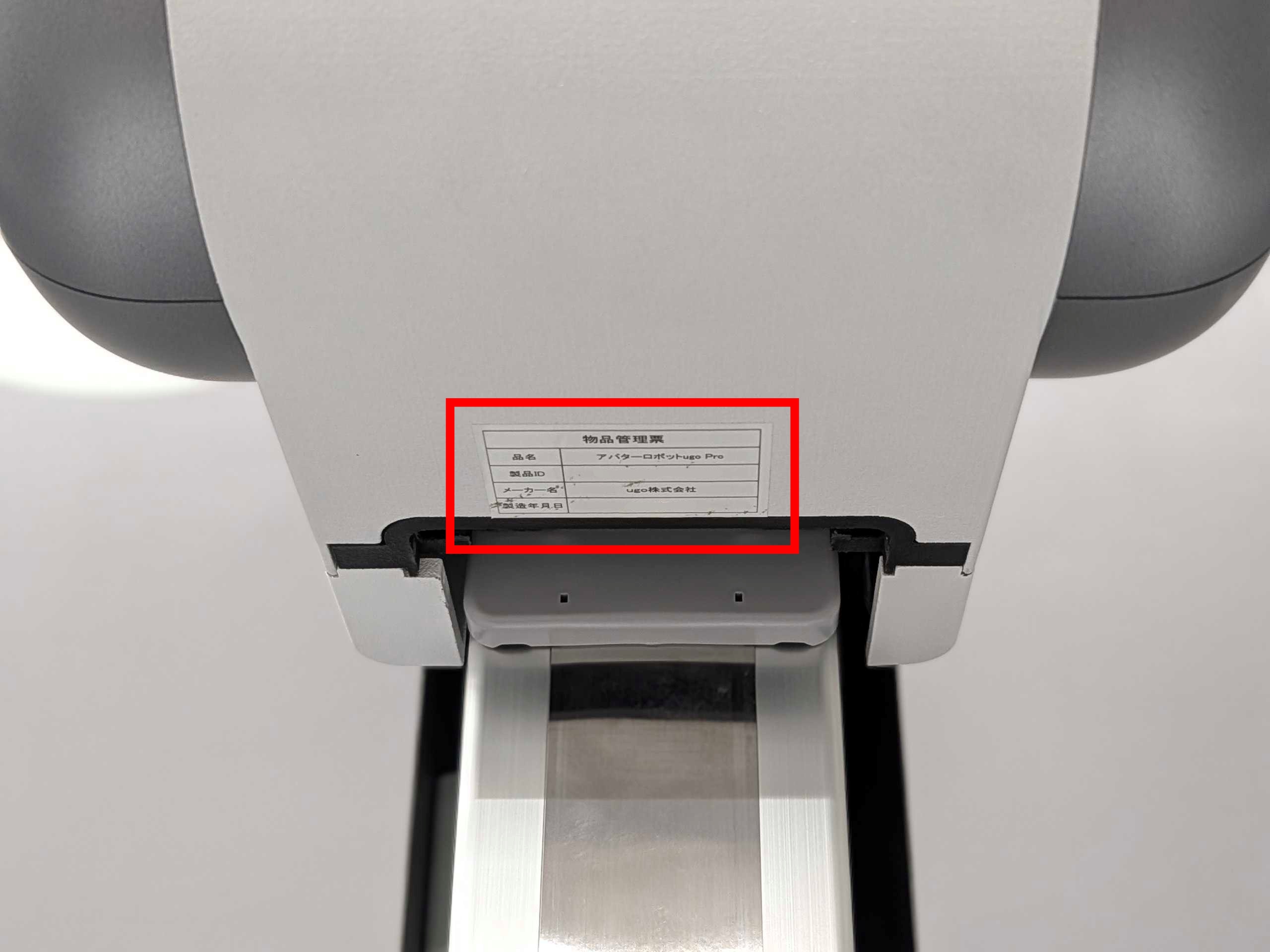

-The attachment position and shape of the "Item Management Table" have been changed.
- The inventory management sheets attached to various parts of the ugo Pro have been changed. In addition, due to some shape changes, the location of the inventory management sheets in the following places has been changed. ・Lifter unit: Next to the emergency stop switch ➡ Inside the router case ・Body unit: Center of the bottom of the body unit ➡ Bottom edge of the body unit
Before change
After the change

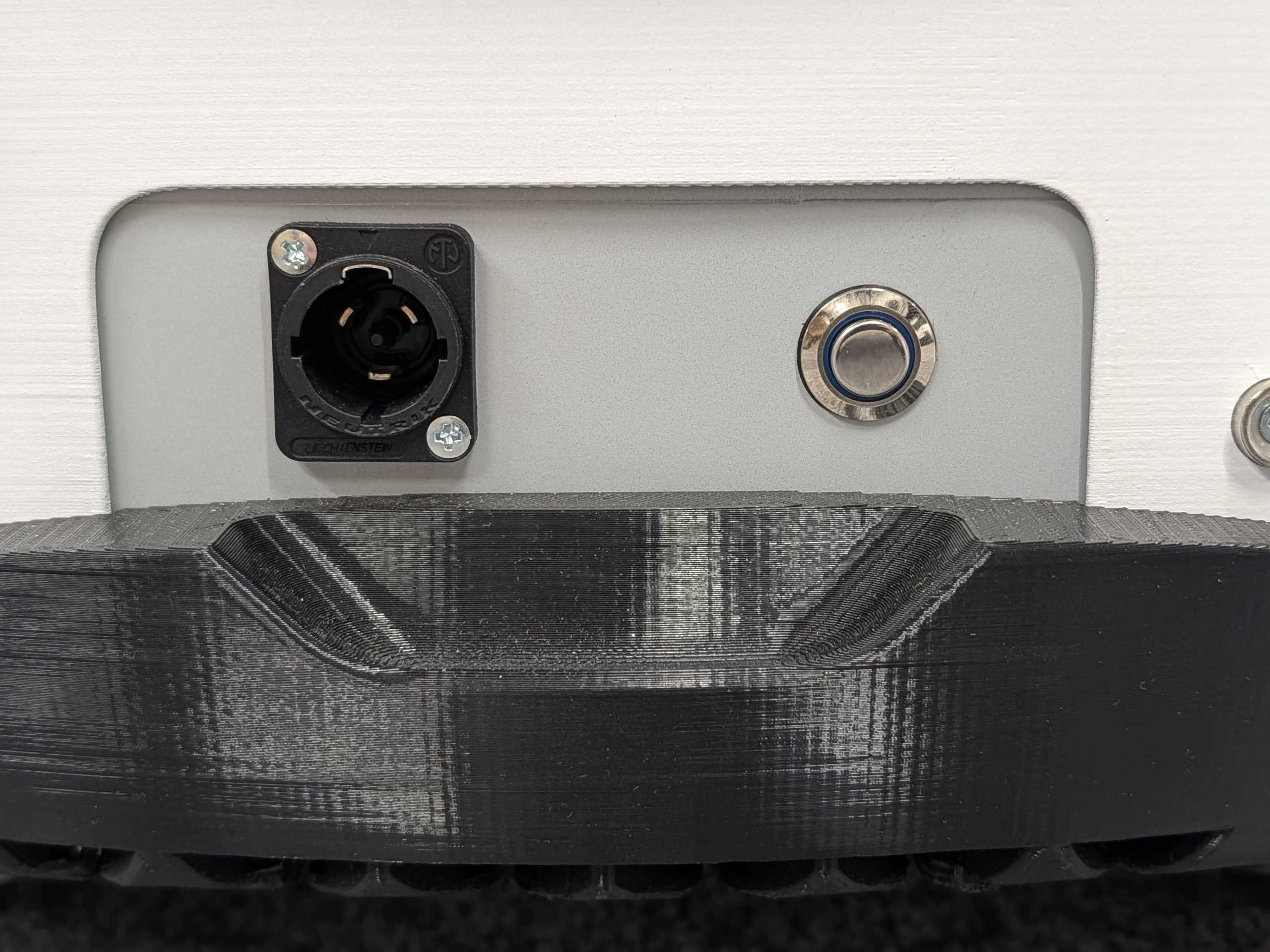

- Changed the "power button"
- The power button has been changed from an alternate type switch to a momentary type switch. As a result of this change, the method for turning the power on and off has also changed. ・Power on: LED goes out ➡ Press for 2 seconds ➡ (after a short pause) LED starts flashing ・Power off: LED goes on ➡ Press for 2 seconds ➡ (after a short pause) LED starts flashing
Before change
After the change
- The shape of the "router case" has been changed.
- Changed the layout and shape of the router case.
Before change
After the change

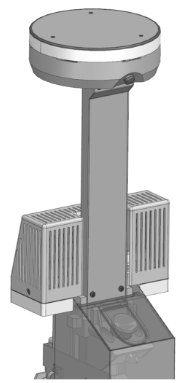

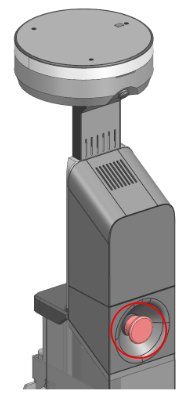

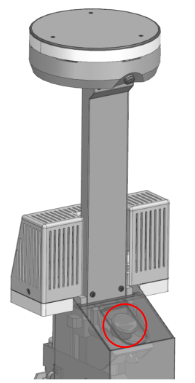

- The position of the "emergency stop switch" has been changed.
- The position of the emergency stop switch has been changed from inside the lifter to a position exposed to the outside.
Before change
After the change

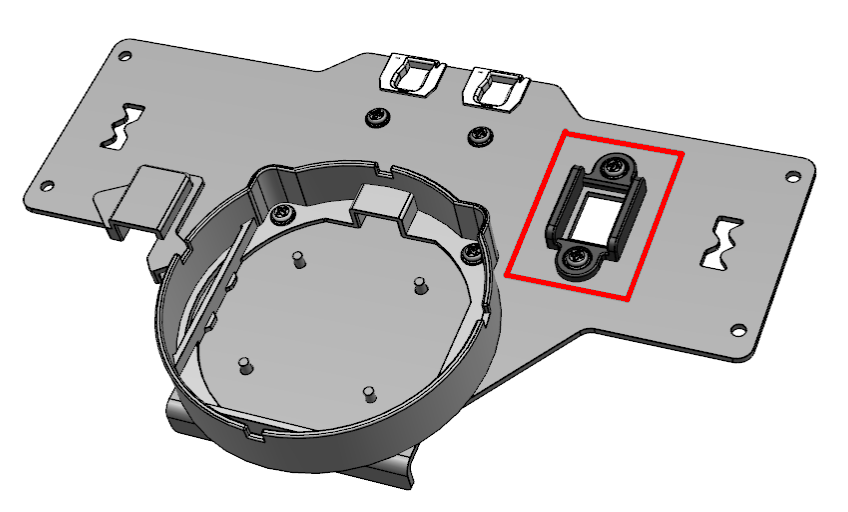

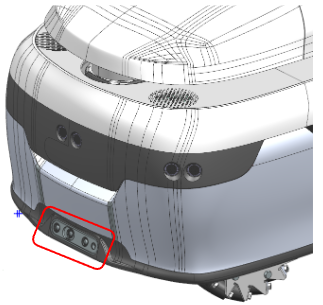

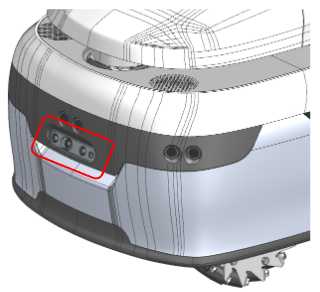

- The position of the "cart front sensor" has been changed.
- The position of the cart front sensor has been changed to a position that allows it to detect obstacles at a lower position.
Before change
After the change

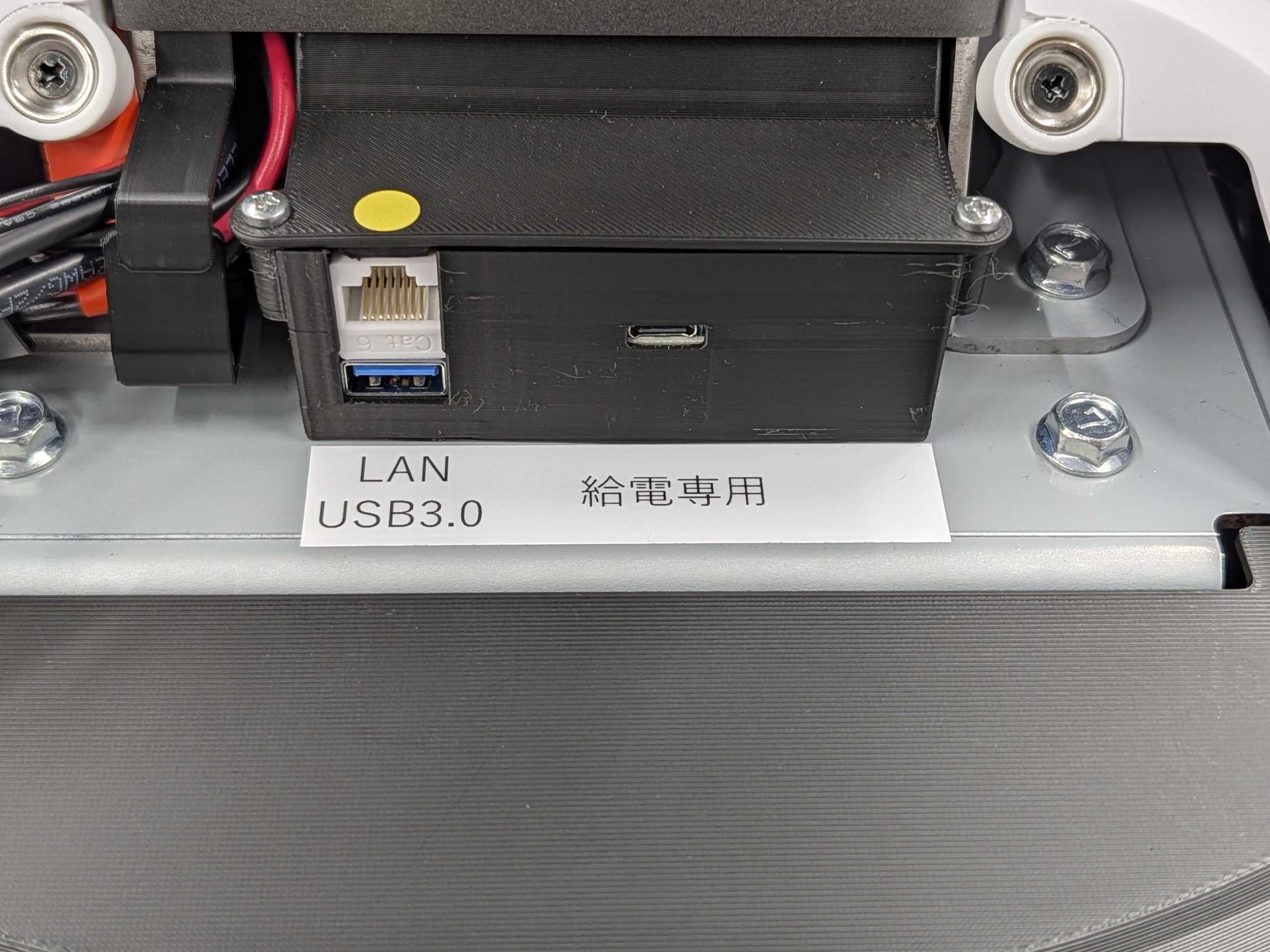

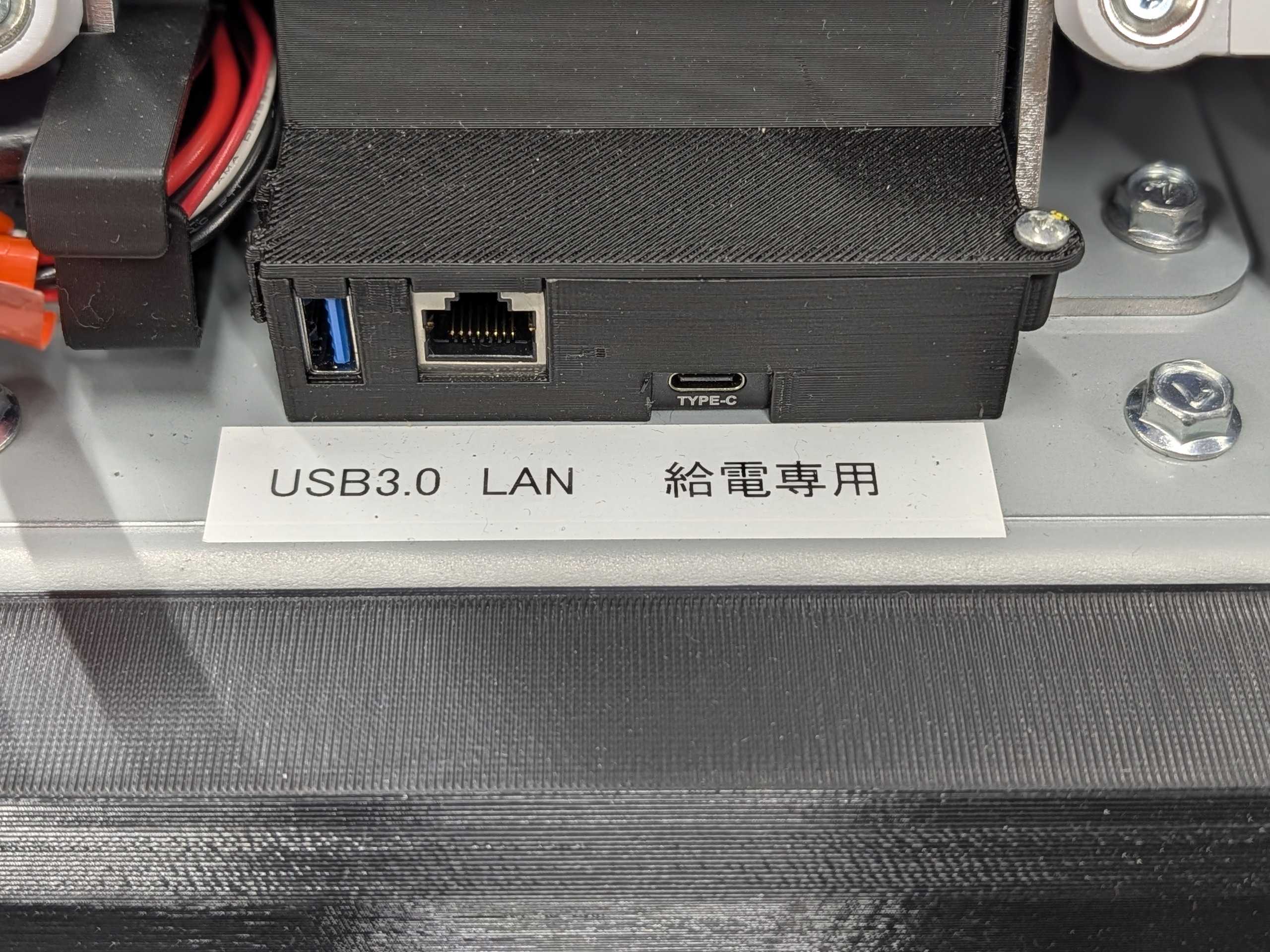

- The shape of the "External Interface Port" has been changed.
- The shape of the external interface port inside the rear cover of the cart unit has been changed. As a result of the change in shape, the locations of the USB 3.0 Type A port, Ethernet connector, and PD port (dedicated for power supply) have also been changed.
Before change
After the change

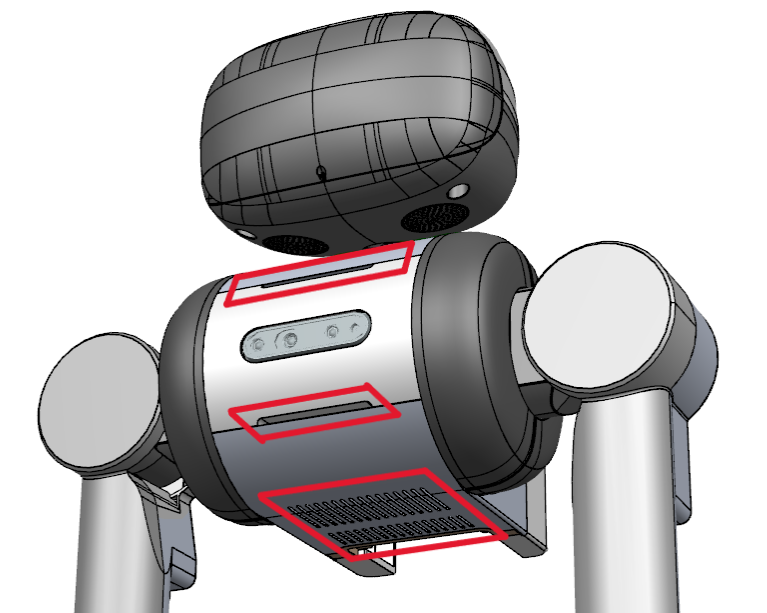

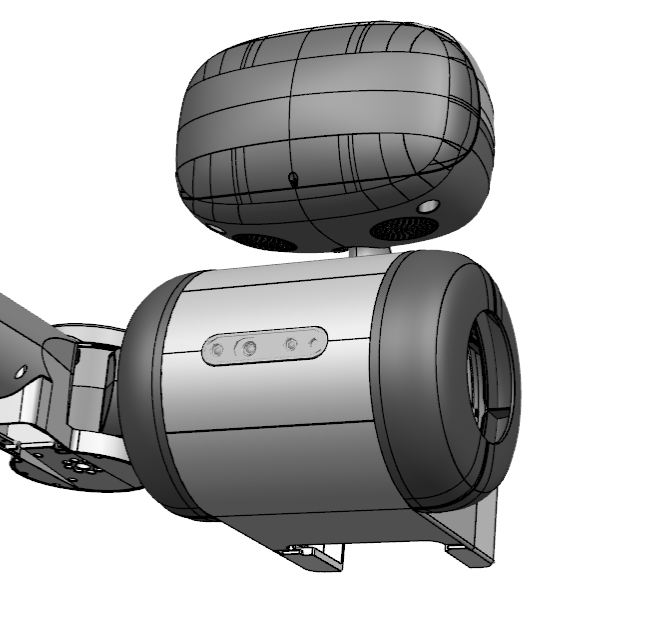

- Some of the body unit shapes have been changed.
- To improve the cooling performance of the computer inside the body unit, ventilation holes have been added to the front and bottom of the body unit, and a cooling fan has been added to the rear.
Before change
After the change

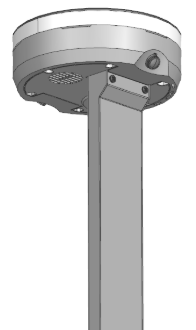

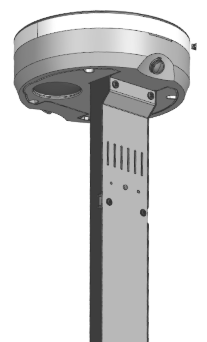

- The shape of the "top pillar" has been changed.
- Ventilation holes have been added to the back of the top pillar to improve the cooling performance of the computer inside the top case.
