This step explains the procedure for operating flow in combination with the automated conversation function, as well as the specifications regarding the ON/OFF state of automated conversation.
◆ Table of Contents
- Commands used in the automated conversation function
- Commands not used in AI automated conversation function
- How to turn on the automated conversation function
- How to turn off automated conversations
- Flow's behavior when automated conversation is turned ON
- Recommended usage examples
- Operational precautions
◆ Commands used in the automated conversation function
■ "Automatic Conversation ON / OFF" command
It can be executed directly from the command list or used by integrating it into a Flow.
[Example]
"Automatic Conversation ON" command:
- By integrating this into the beginning of the reception workflow,
the AI automated conversation function is enabled,
enabling a smooth transition from an automated greeting to conversation when a person is detected.
"Automatic Conversation OFF" command:

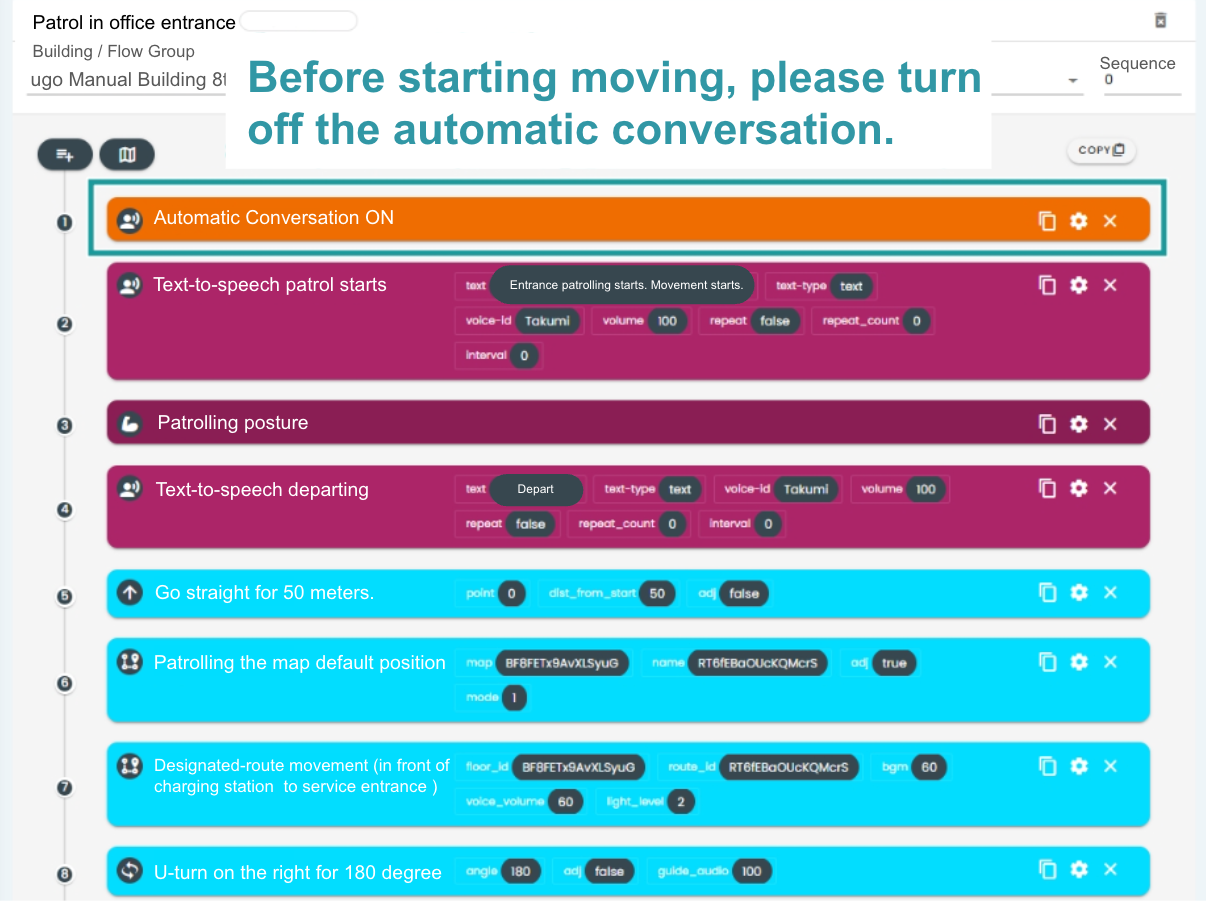

- By incorporating this at the beginning of the patrol flow, it prevents unintended conversations from occurring while moving.
Important: For safety reasons, always turn off "Automatic Conversation" when moving (patrolling)."Automatic Conversation Settings" command

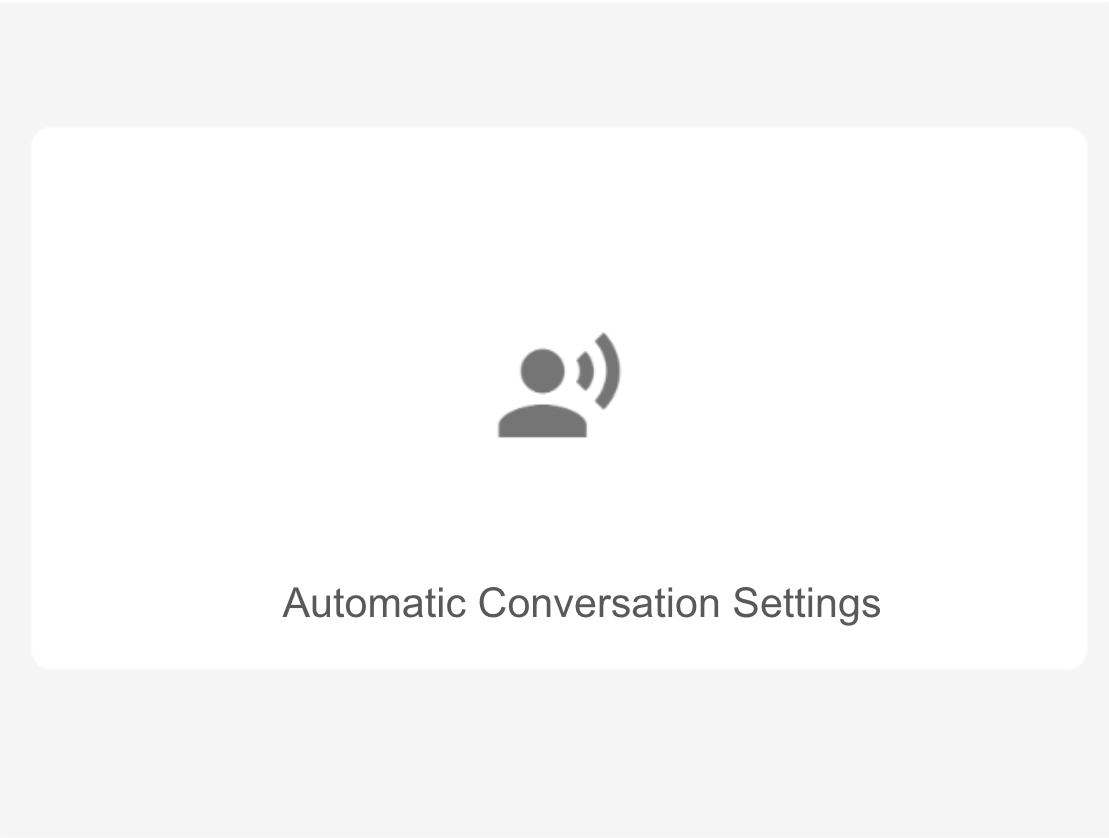

This command performs the same settings as the [Automatic Conversation Icon] > [Automatic Conversation Settings] on the operation screen.
The settings are retained within the ugo even after restarting, so you normally do not need to use this command for each Flow.
|
Automatic Conversation Settings |
◆ Commands not used in AI automated conversation function
The following commands are not used in the AI automated conversation function.
Commands in the table below that begin with "Automatic guidance:" will be made private on the ugo Portal and will no longer be available.
We will announce the decision to make them private on our support page in advance.
| Automatic guidance: Change settings | Automatic guidance: Mode change | Automated guidance: Casual conversation |
| Automated guidance: Answer the questions | Automated guidance: Voice recognition β2 | Automated guidance: Casual chat β2 |
| Automated guidance: Answer questions β2 | Automated guidance: Reaction execution β2 | Automated guidance: Settings change β3 |
| Automated guidance: Answer questions β3 | Automated guidance: Response generation | Automated guidance: Answer the question |
| Automated guidance: Execute reaction | Automated guidance: Voice detection | Automated guidance: Voice recognition |
| Audio source selection |
◆ How to turn on the automatic conversation function
When you turn on automatic conversation, the [Automatic Conversation Icon] at the top of the operation screen will turn ON, and the system will enter "conversation waiting mode".
When a person stands in front of ugo while it is in Conversation Waiting Mode, the conversation will begin.
There are three methods:
(1) Execute the "Automatic Conversation ON" command from the command list. (2) Execute the "Automatic Conversation ON" command in Flow. (3) Turn it ON from the "Automatic Conversation Icon" at the top of the operation screen.
⚠️Notes
The ON/OFF state of automatic conversation is retained even after a restart.
If you shut down the computer with the automatic conversation enabled, it will be enabled automatically next time you boot up.
■ Execute the "Automatic Conversation ON" command from the command list.

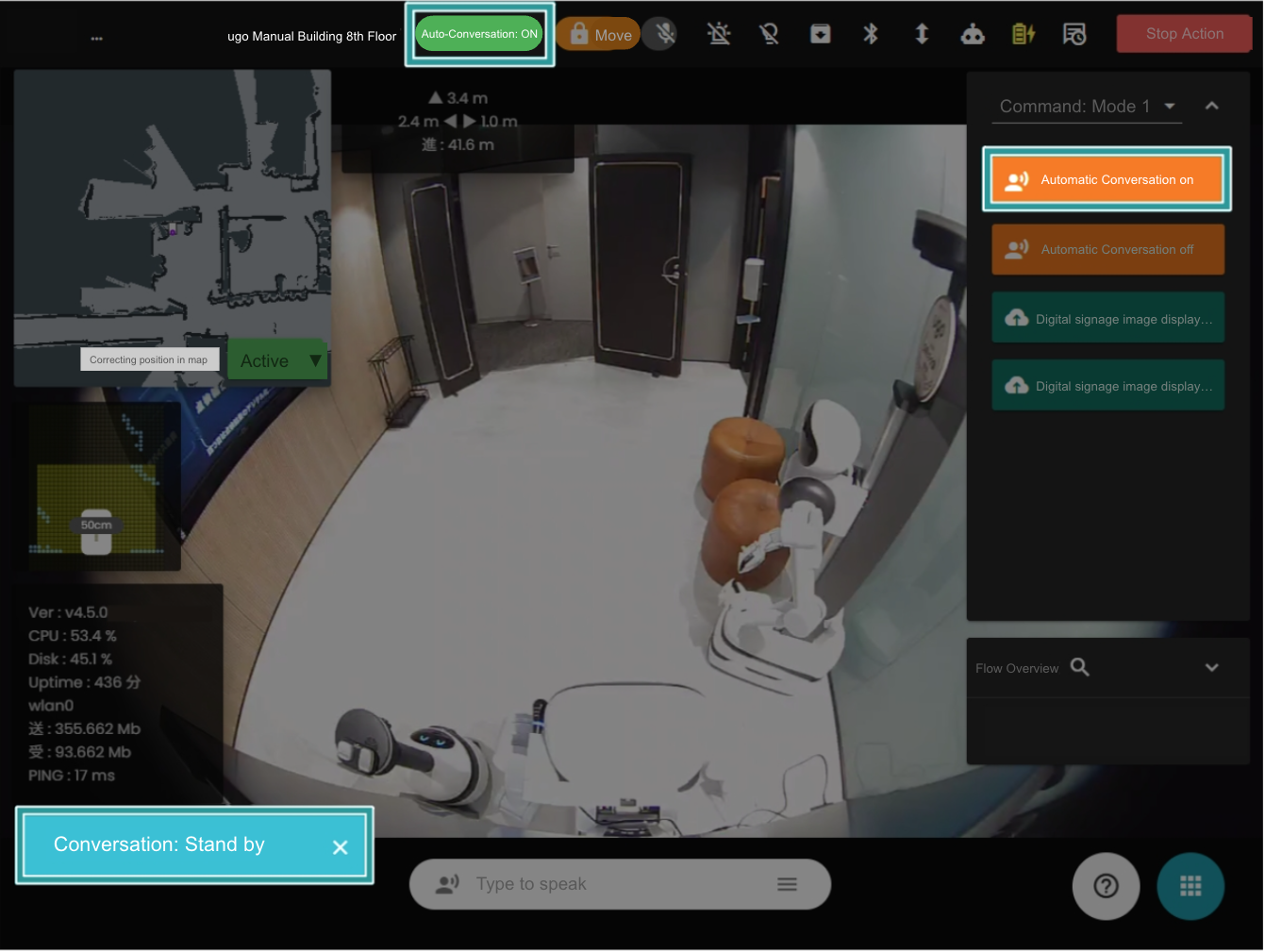

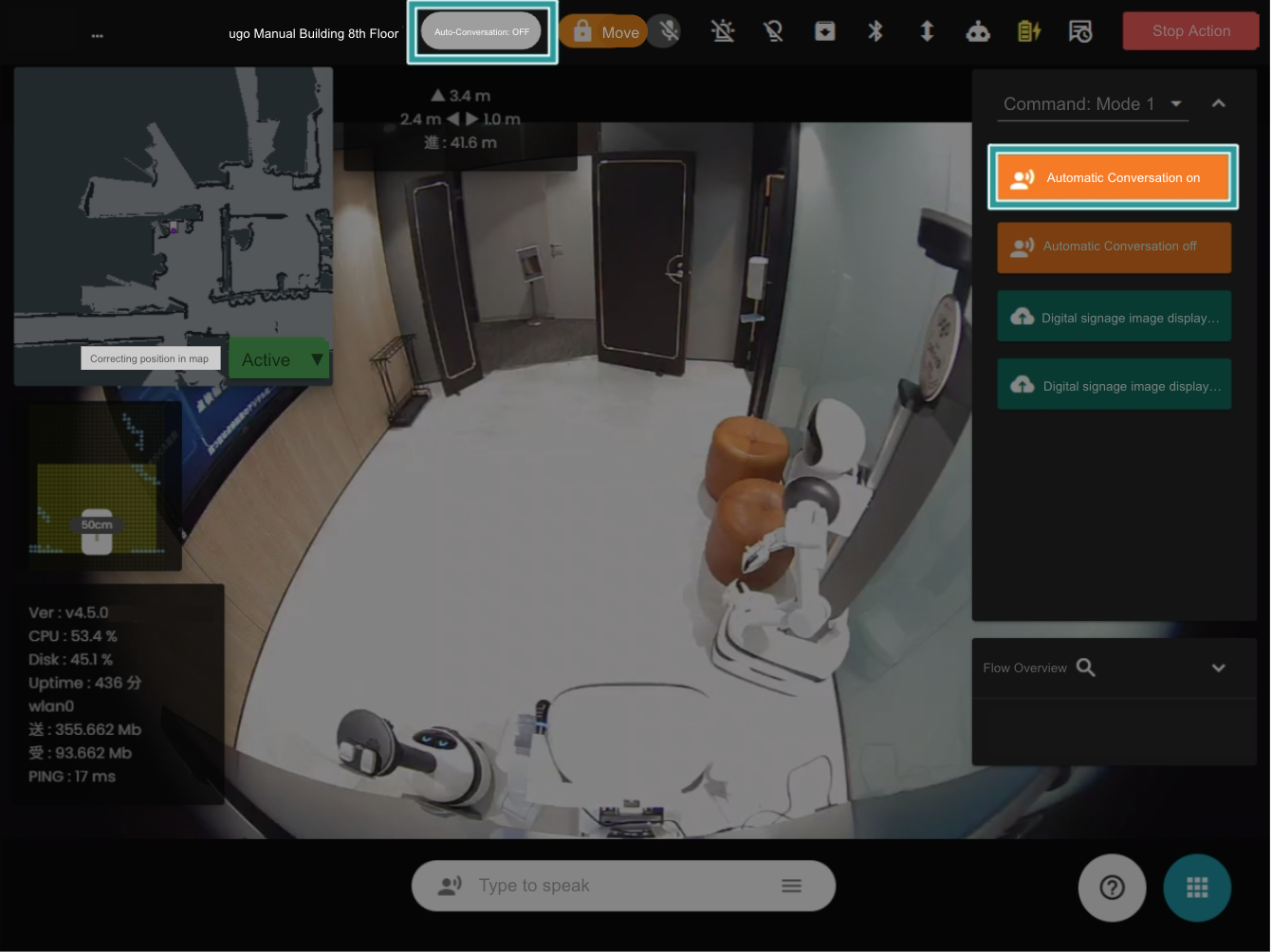

① Execute the [Automatic Conversation ON] command from the command list.

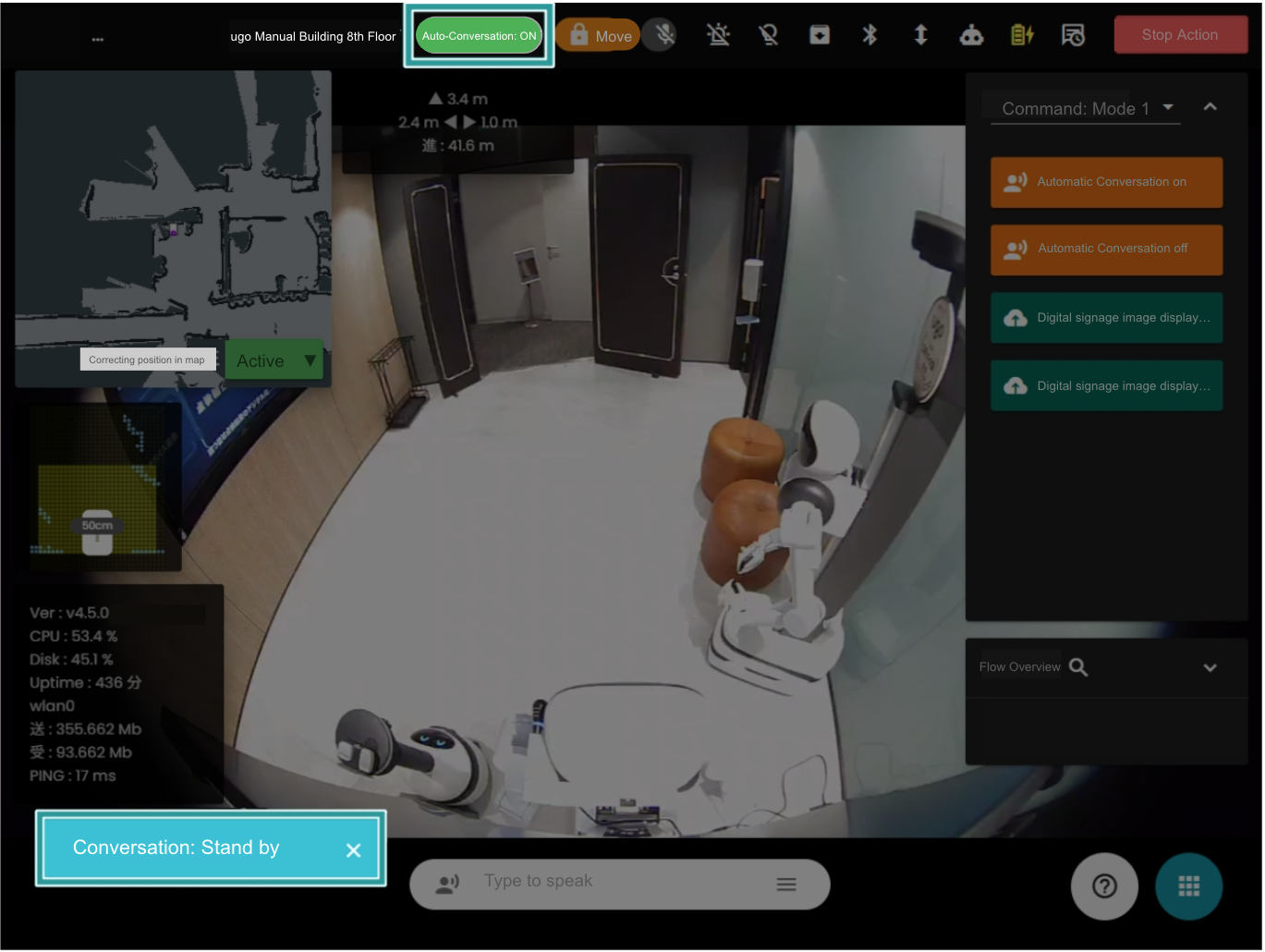

② The [Automatic Conversation Icon] will be turned ON, and the system will enter conversation standby mode.
■ Execute the "Automatic Conversation ON" command in Flow
- By incorporating the "Automatic Conversation ON" command into flow, you can run automatic conversations and flow at the same time.
|
Example: Turn on automatic conversation. Normally, ugo will greet people who passing by and will initiate an automatic conversation when a person stops in front of ugo. |

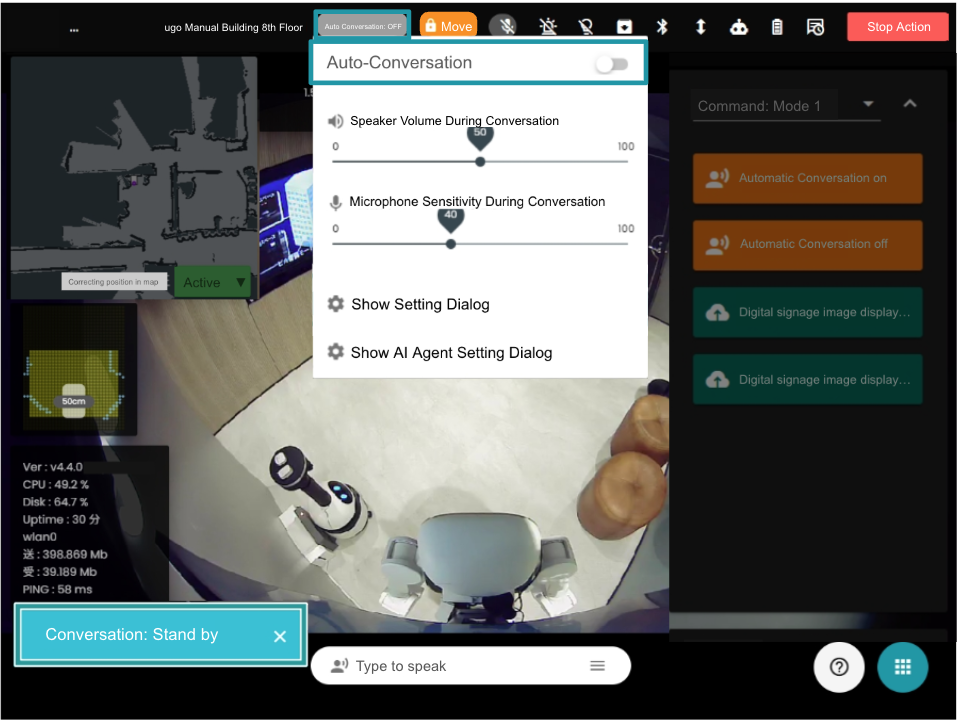

■Turn it ON from the "Automatic Conversation Icon"

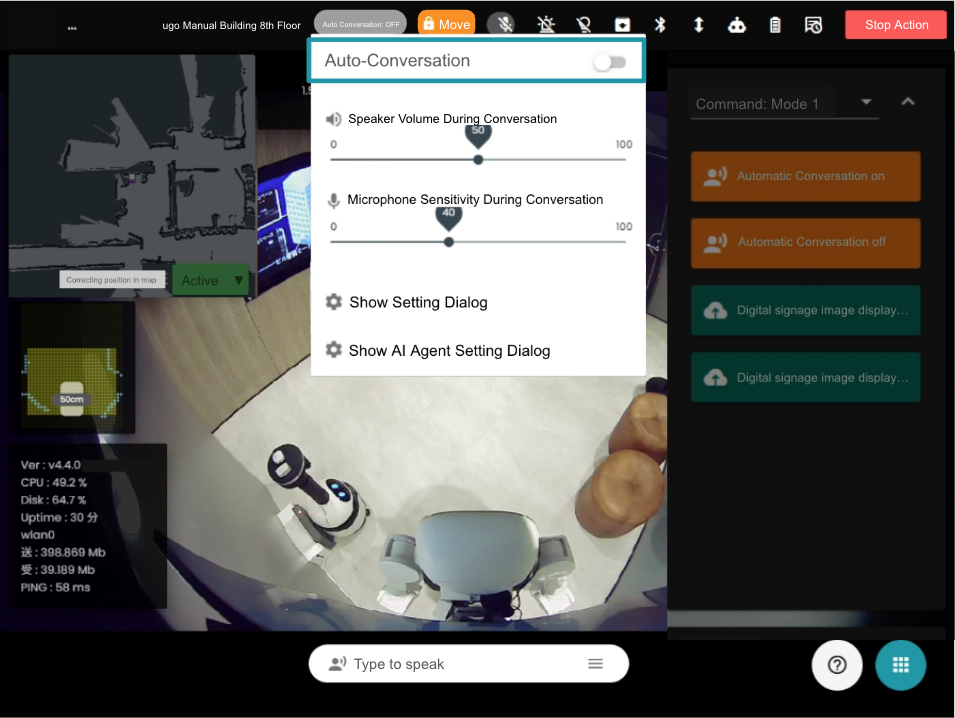

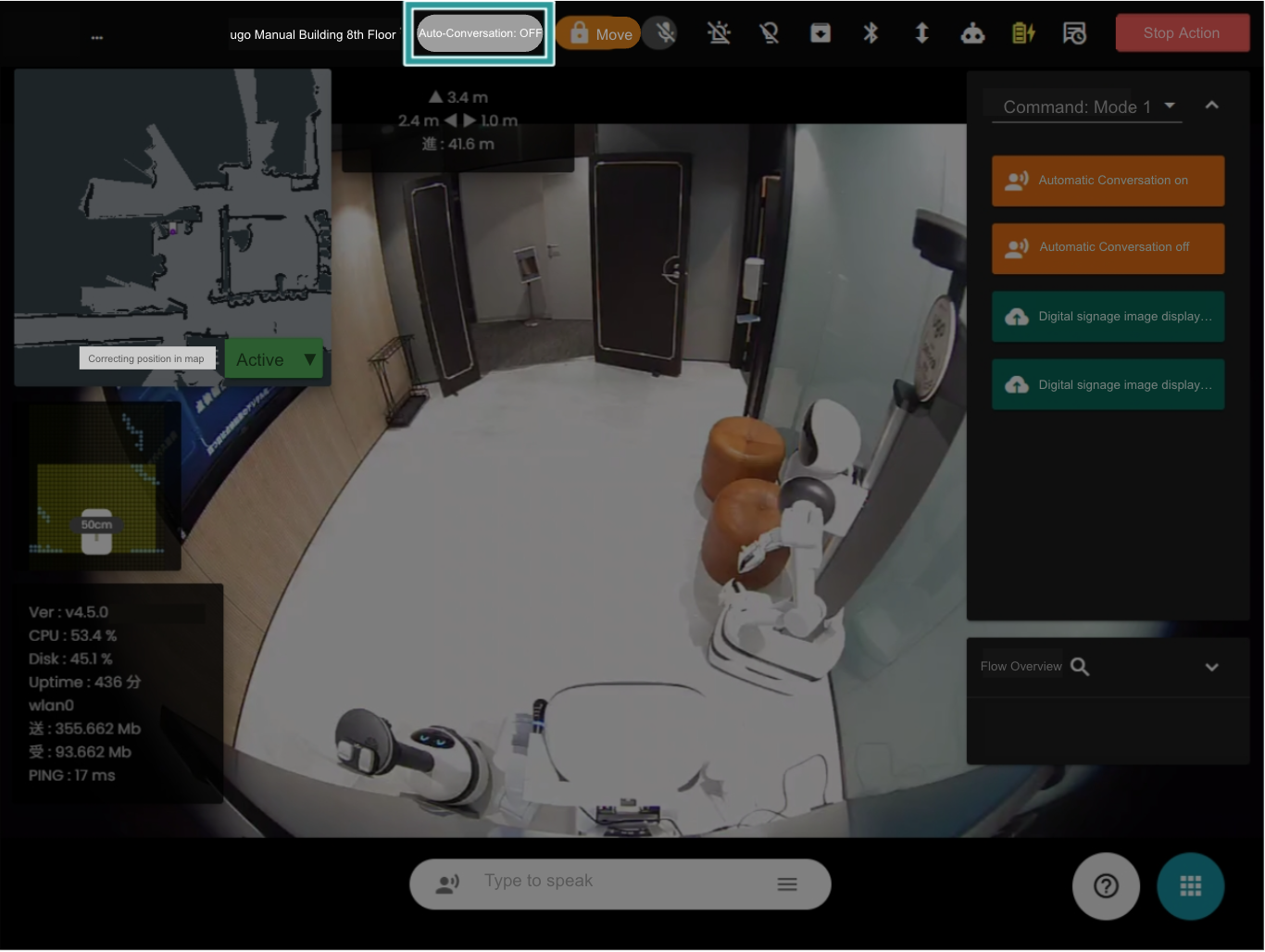

① Click the [Automatic Conversation Icon] at the top of the operation screen.
② Turn ON the toggle switch in the [Automatic Conversation Settings] dialog box.

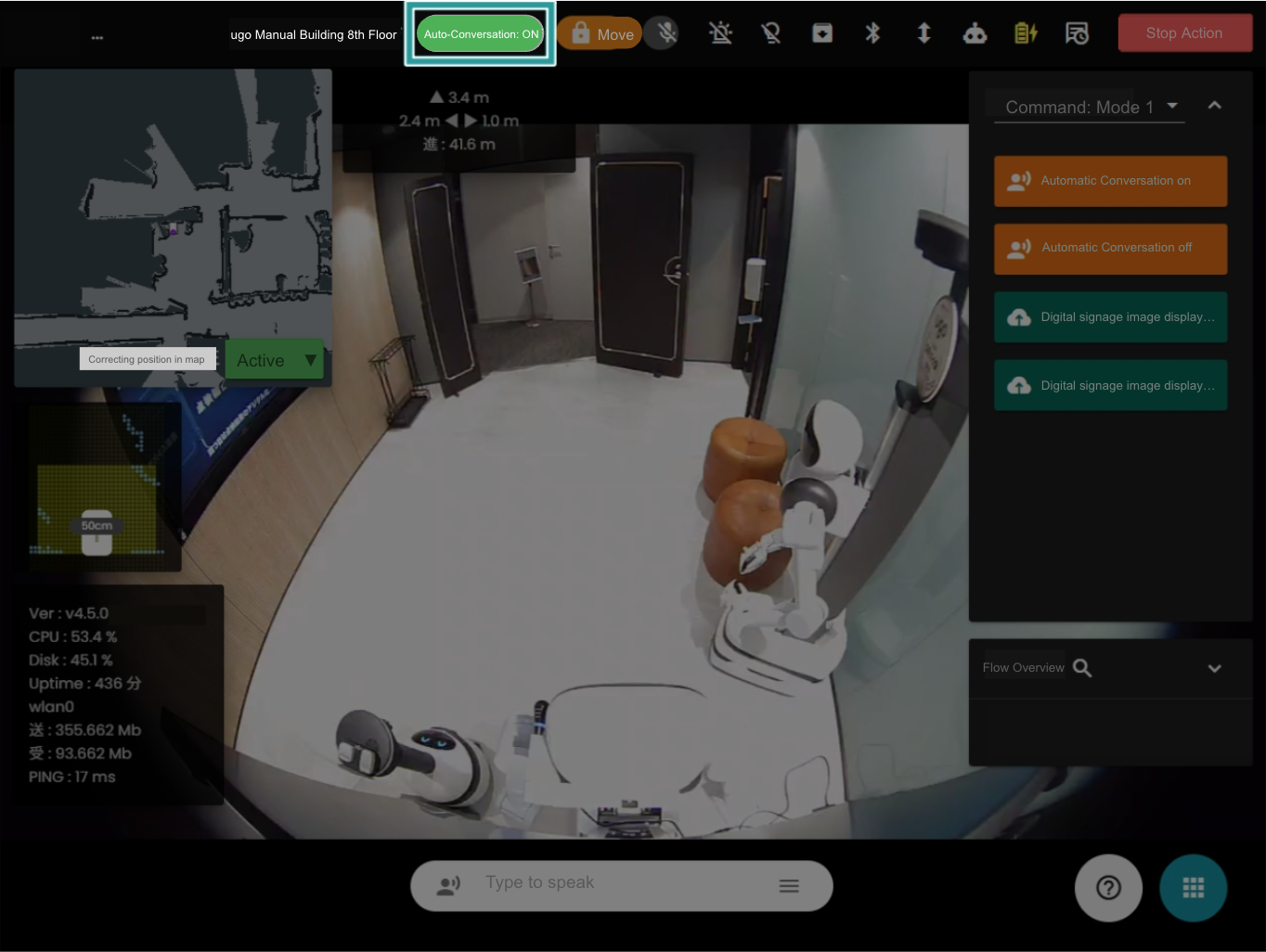

③ When you turn the toggle switch ON, the [Automatic Conversation Icon] will be ON, and the system will enter automatic conversation standby mode.
◆ How to turn off automated conversations
The AI automated conversation function does not turn off automatically.
Before stopping operation or executing a Flow that involves movement, be sure to turn it off using one of the following methods.
There are four methods:
(1) Turn it OFF from the "Automatic Conversation Icon" at the top of the operation screen. (2) Press the "Stop Operation" button / Space key. (3) Execute the "Automatic Conversation OFF" command from the command list (4) Execute the "Automatic Conversation OFF" command in Flow (linked with the scheduling function).
■ Turn it OFF from the "Automatic Conversation Icon" (when no conversation is in progress)

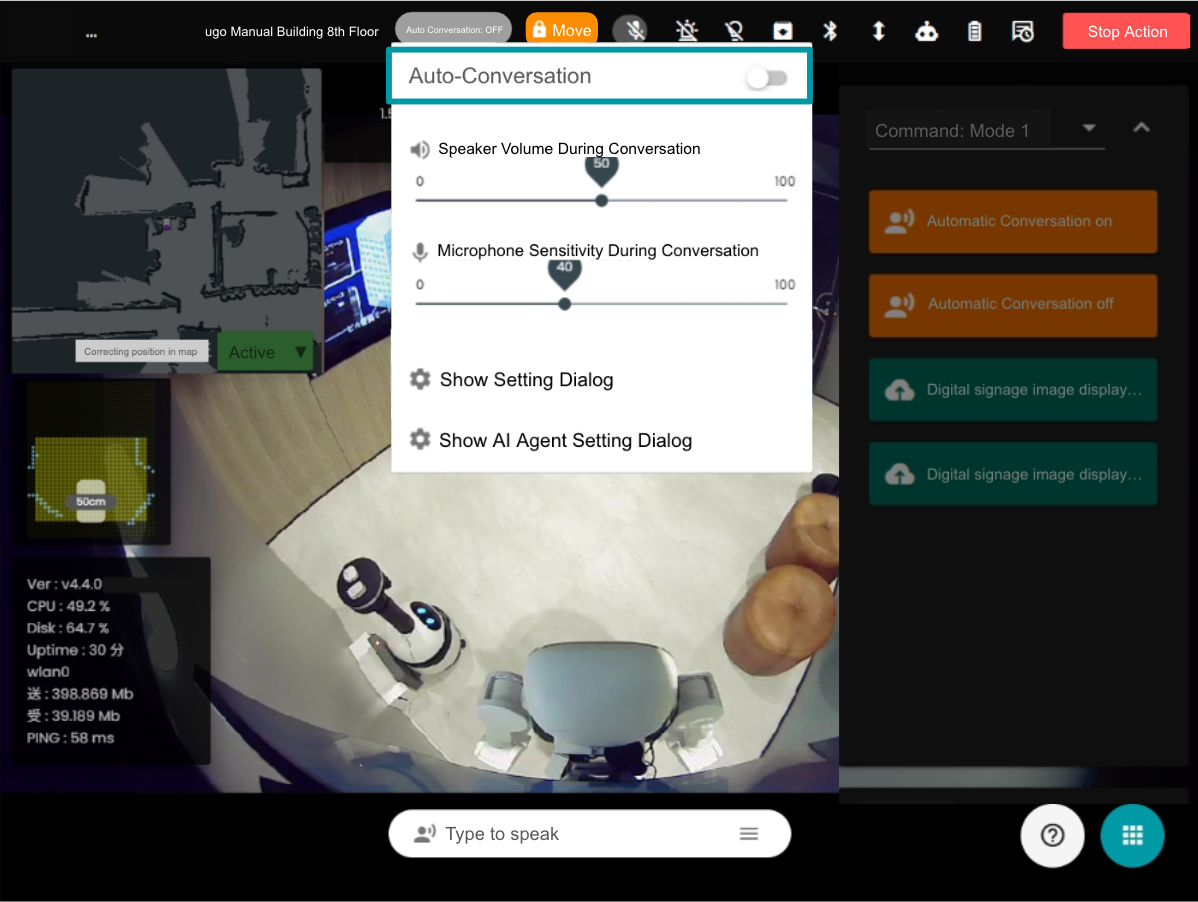

① Click the [Automatic Conversation Icon] at the top of the operation screen.
② Turn OFF the [Automatic Conversation Settings] in dialog box.
③ By switching off the toggle button, the [Automatic Conversation Icon] is off, and only automatic conversation will be turned OFF.
Note: The automatic conversation from the Flows will not stop, you will need to perform a separate Flow stop operation to turn it off.
■ Press the [Stop Operation] button on the operation screen / Press the spacebar on the keyboard
The behavior of the [Stop Operation] button / pressing the spacebar on the keyboard differs in the following three patterns.
Pressing the [Interrupt] button on the operation screen will not turn off the automated conversation.
| Situation | Behavior |
| Flow is running | Flow will stop operating, and automated conversations will be turned off. The startup standby screen will be displayed on the signage. |
| Flow not executed | Automatic conversation will be turned off. The startup standby screen will be displayed on the signage. |
| During the conversation | The conversation will stop immediately, and automated conversations will also be turned off. Flows that were running before the conversation started will also stop simultaneously. The startup standby screen will be displayed on the signage. |
■ "Automatic Conversation OFF" command
Execute the "Automatic Conversation OFF Command" from Flow or the command list.

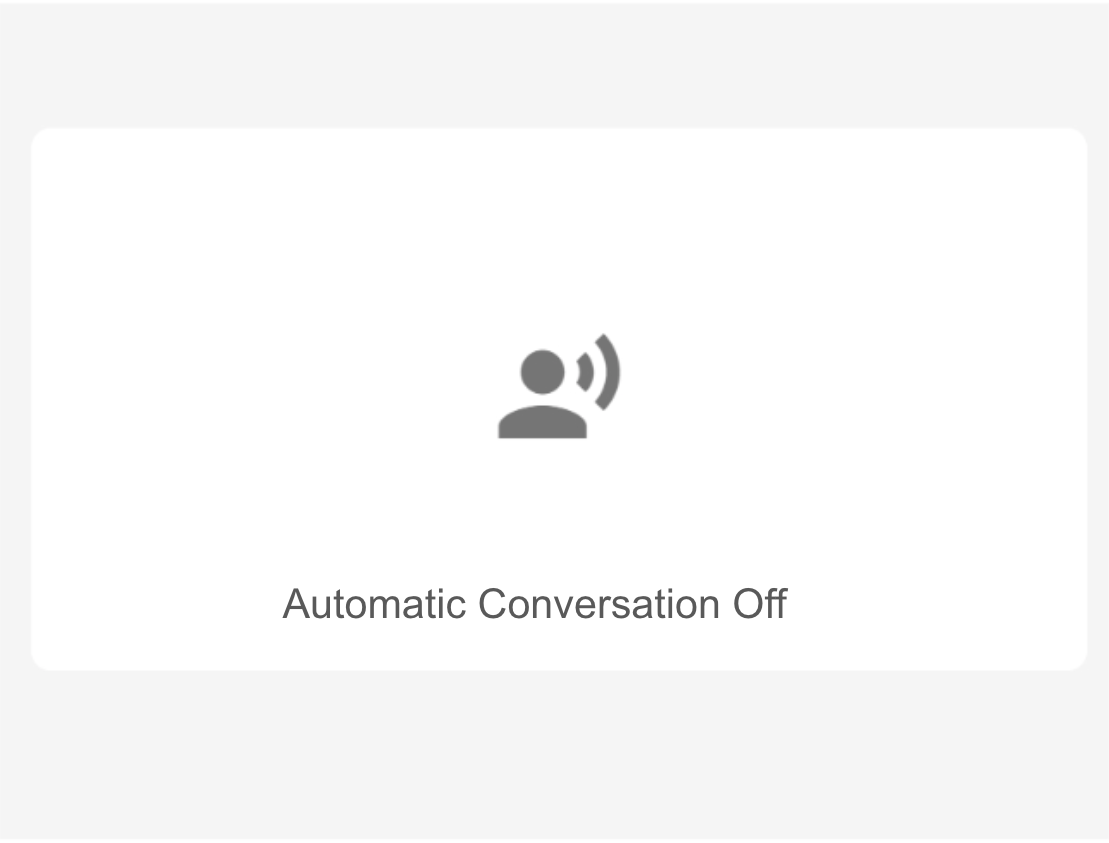

The [Automatic Icon] will be turned OFF, and only automatic conversations will be disabled.

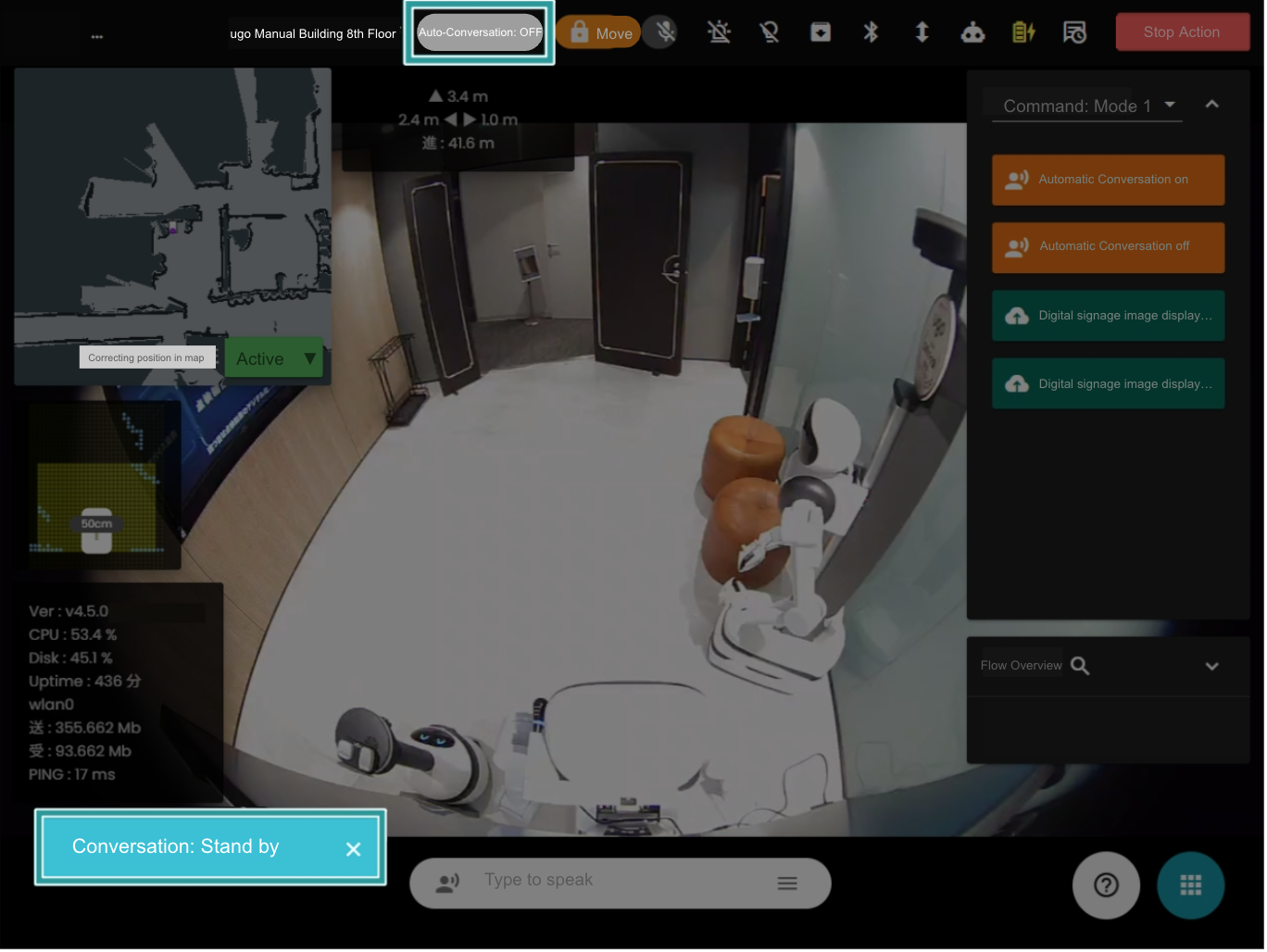

If you turn off automatic conversation during a conversation, the startup standby screen will be displayed on the signage.
Note: Running Flows will not stop, so if you want to stop a Flow as well, you will need to perform a separate Flow stop operation.
Execution from the command list

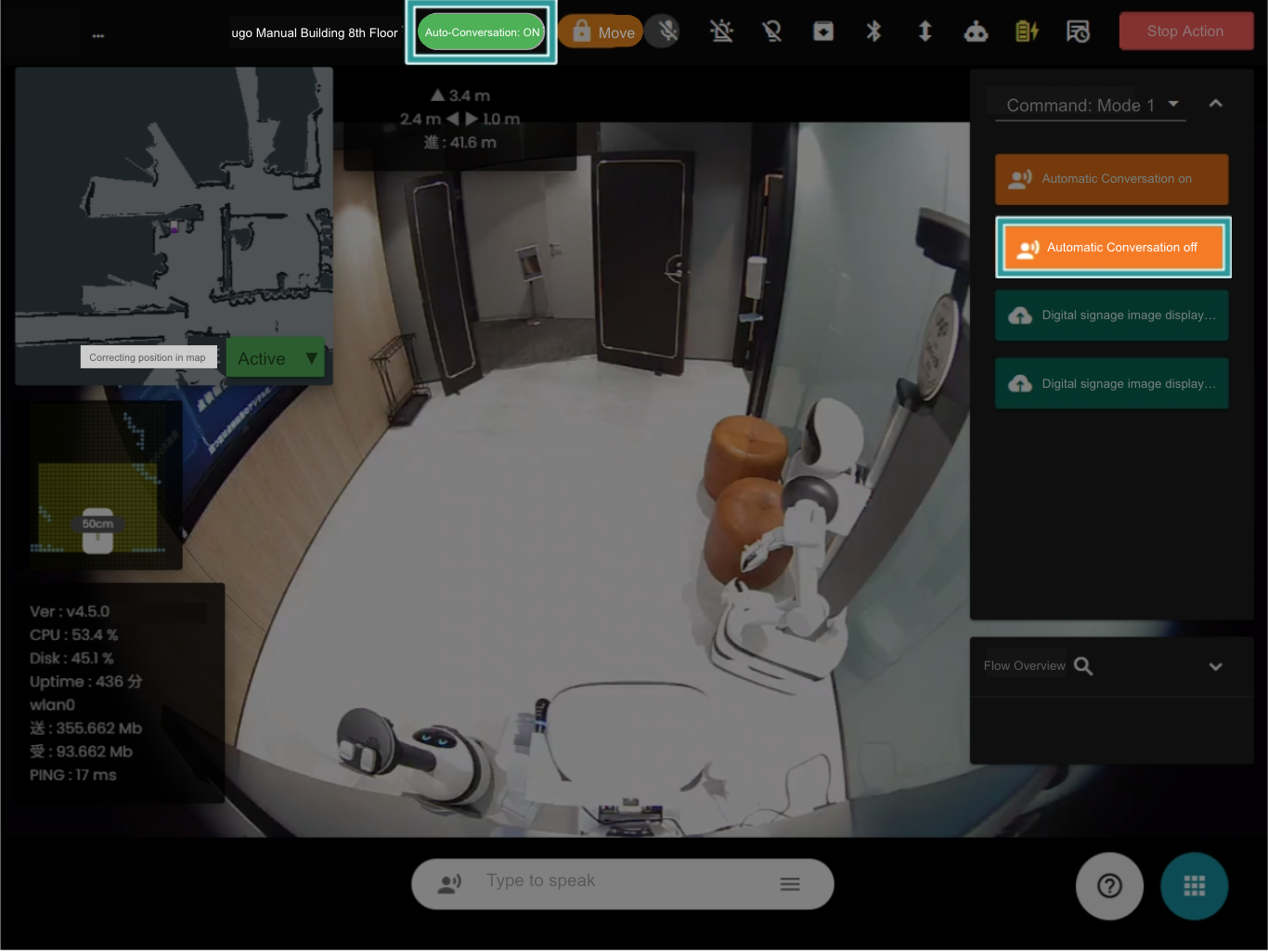

① Execute the [Automatic Conversation OFF] command from the command list.
② The [Automatic Conversation Icon] will be turned OFF.

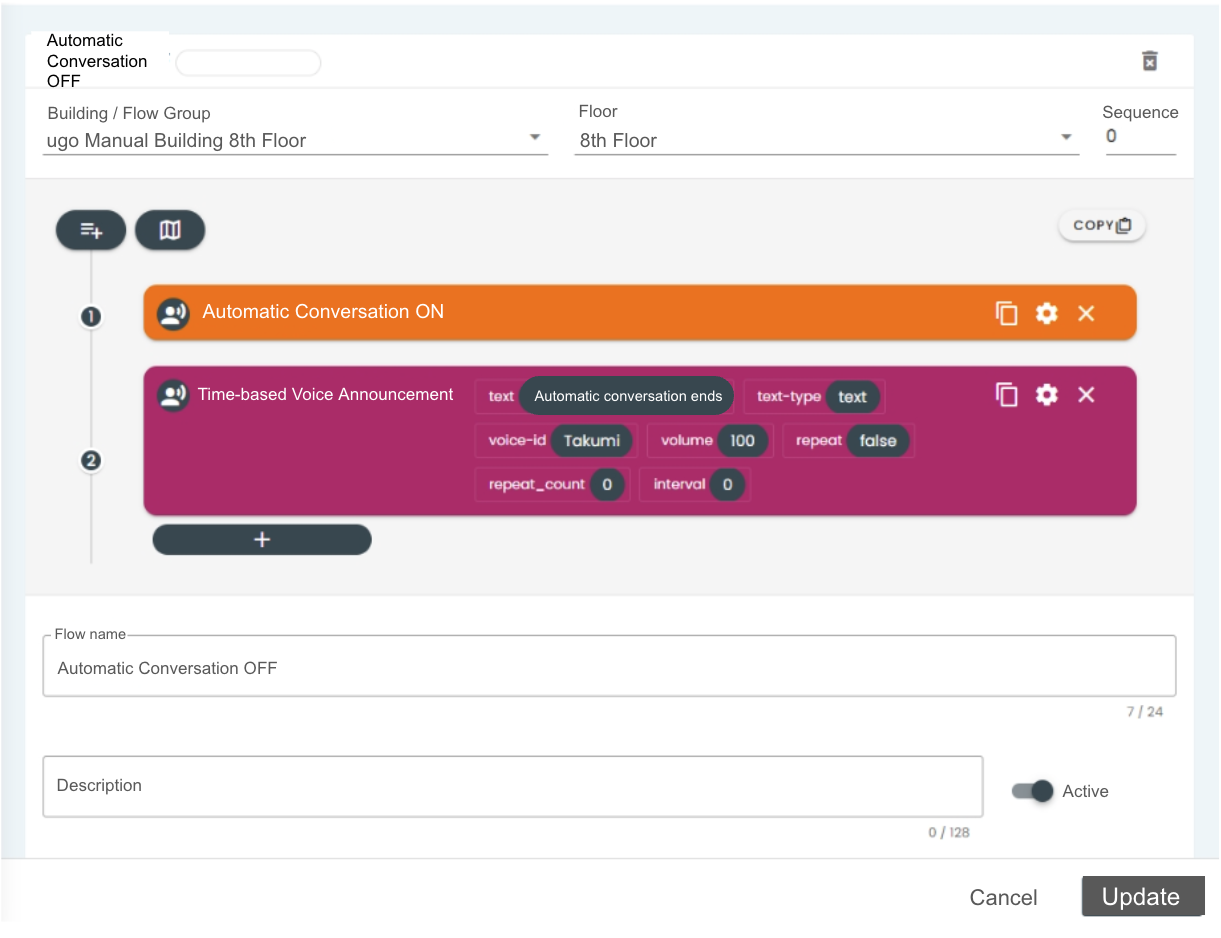

Execution via Flow (integration with scheduling function)
- You can disable automatic conversation by incorporating the "Automatic Conversation OFF" command into Flow.
Integration with the scheduling function is recommended.
Please refer to the scheduling function for details.
• Scheduling function: Let's get started with ugo's "automated operation"
◆ Behavior when switching to automatic conversation ON
|
No human detected (waiting for automated conversation) |
Start conversation | After the conversation ended | |
| Flow not executed | It will enter an automated conversation standby state. When a person stands in front of ugo, it will switch to an AI-powered conversation state. |
To start the conversation by greeting. |
The system will return to the standby state for automated conversation after greeting at the end of the conversation . |
| Flow is running. | Flow will continue to run. When a person stands in front of ugo, it will switch to an AI-driven conversation state. |
Flow interruption: Greeting at the start of the conversation. |
The system will speak a greeting to mark the end of the conversation. The Flow that was running before the conversation will automatically resume. The system will return to the automated conversation standby state. |

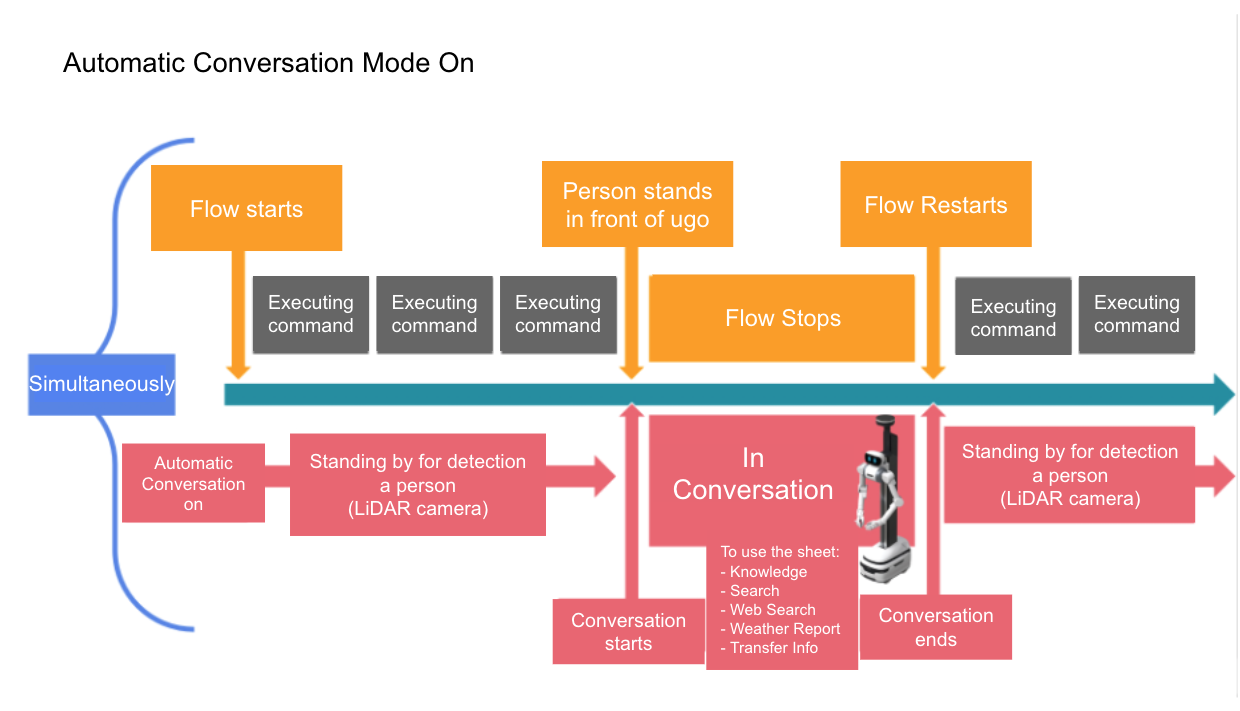

◆ Flow's behavior when automated conversation is ON
When the automated conversation function is turned ON, the execution of Flow and conversations with humans are synchronized.
① Click the [Automatic Conversation Icon] at the top of the operation screen.
② Turn ON the toggle button in the [Automatic Conversation Settings] dialog box.
③ Double check that the [Automatic Conversation Icon] is set to [Automatic Conversation: ON].
④ Execute the Flow while ugo is in a fixed location, such as a charging station.

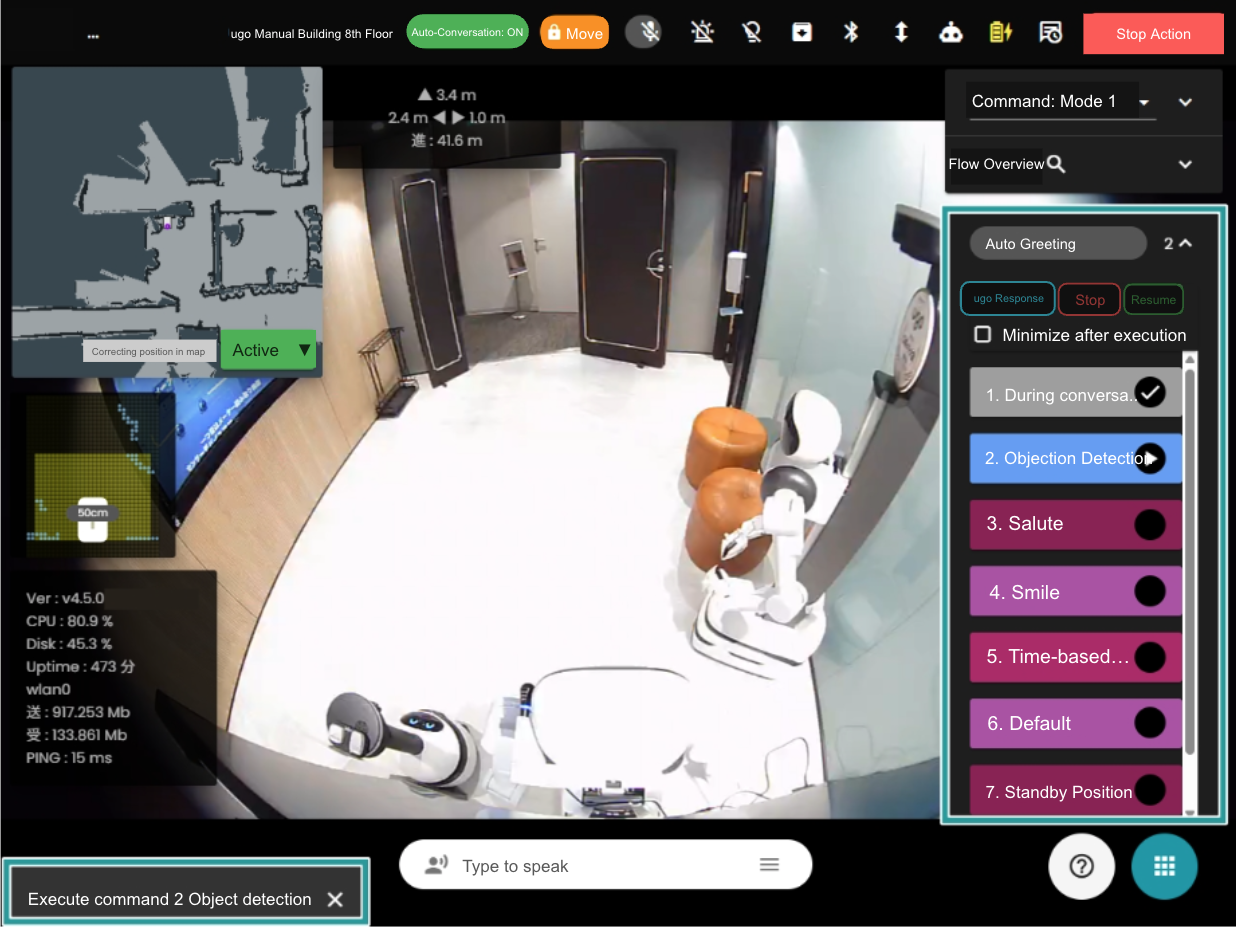

⑤ If a person is standing within the detection range set in [Automatic Conversation Settings] while Flow is running, the running Flow will be interrupted. The system will start with an opening greeting and then transit to automated conversation.
⑥ When the conversation ends and the person leaves in front of ugo, the Flow that will automatically resume.
◆ Recommended Usage Examples
This system combines stationary customer attraction and standing guard duties with AI-powered guidance and conversation services.
Usage Example 1: Person detection greeting
Normally, ugo will greet people who passing by and engage in a conversation with those who stop in front of it.

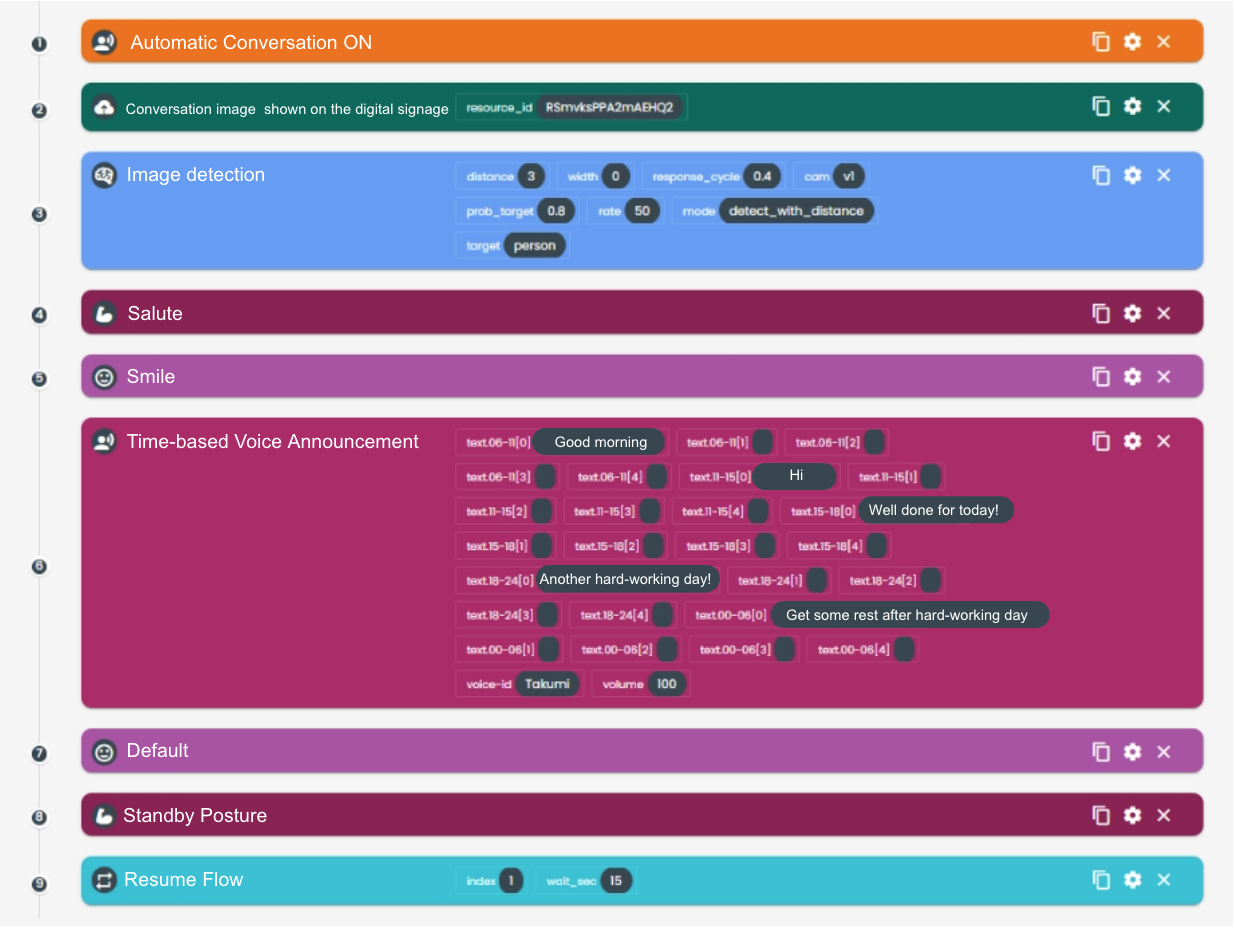

How to structure a flow:

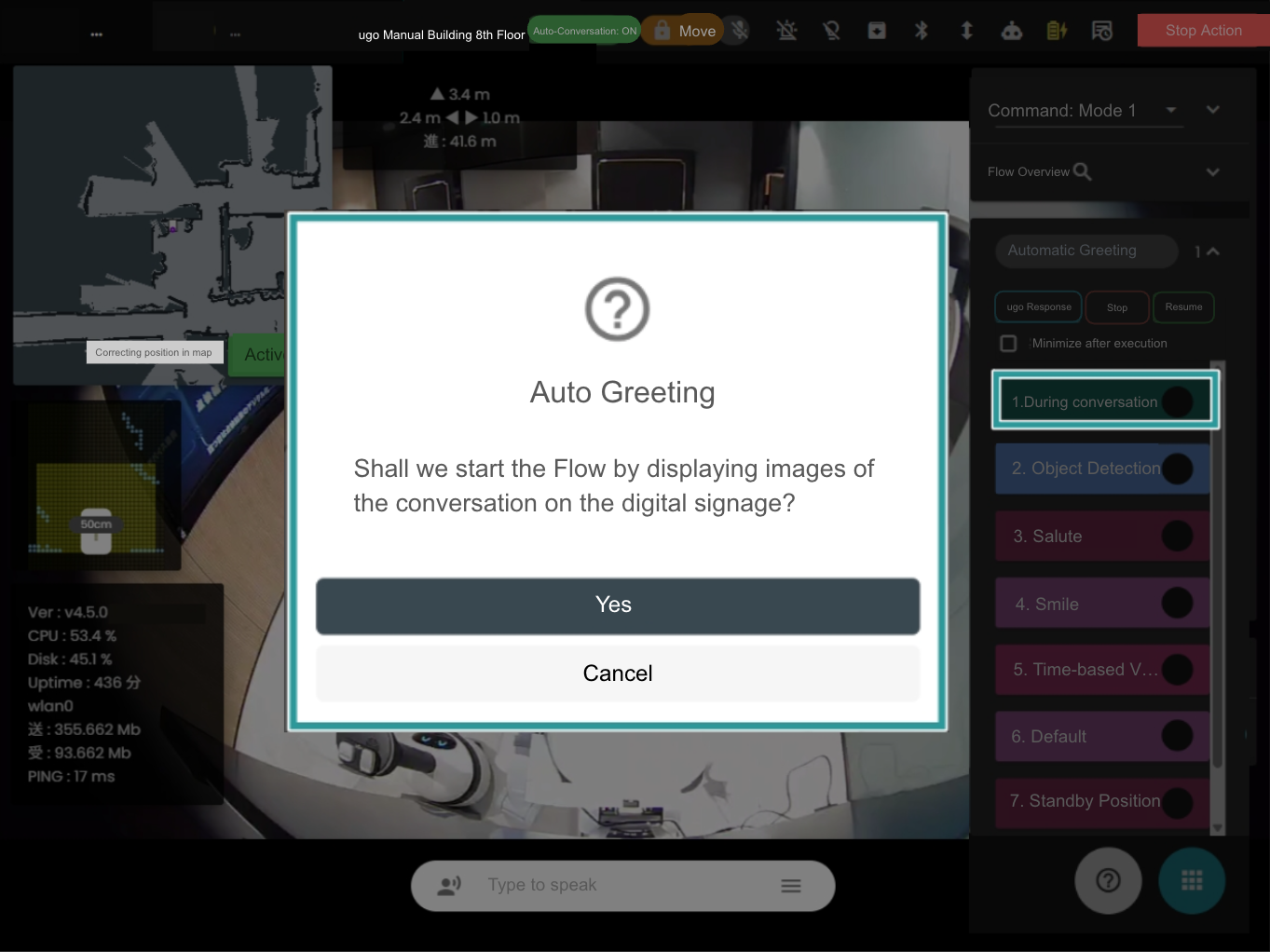

Use the "Object Detection" command.
Please refer to the instructions for creating a Flow that says "greet people" using ugo Pro .
In this integration with the AI automated conversation function, we've added the "Automatic Conversation ON" command at the beginning of the Flow to prevent users from forgetting to switch to "Automatic Conversation ON".
When the conversation ends, the image displayed on the signage switched back to the default image since we've incorporated a "Show Signage Image" command to display content on the signage.
Usage Example 2: Standard Phrases
The system works by uttering pre-set phrases at regular intervals and engaging in conversations with people who approach with interest.

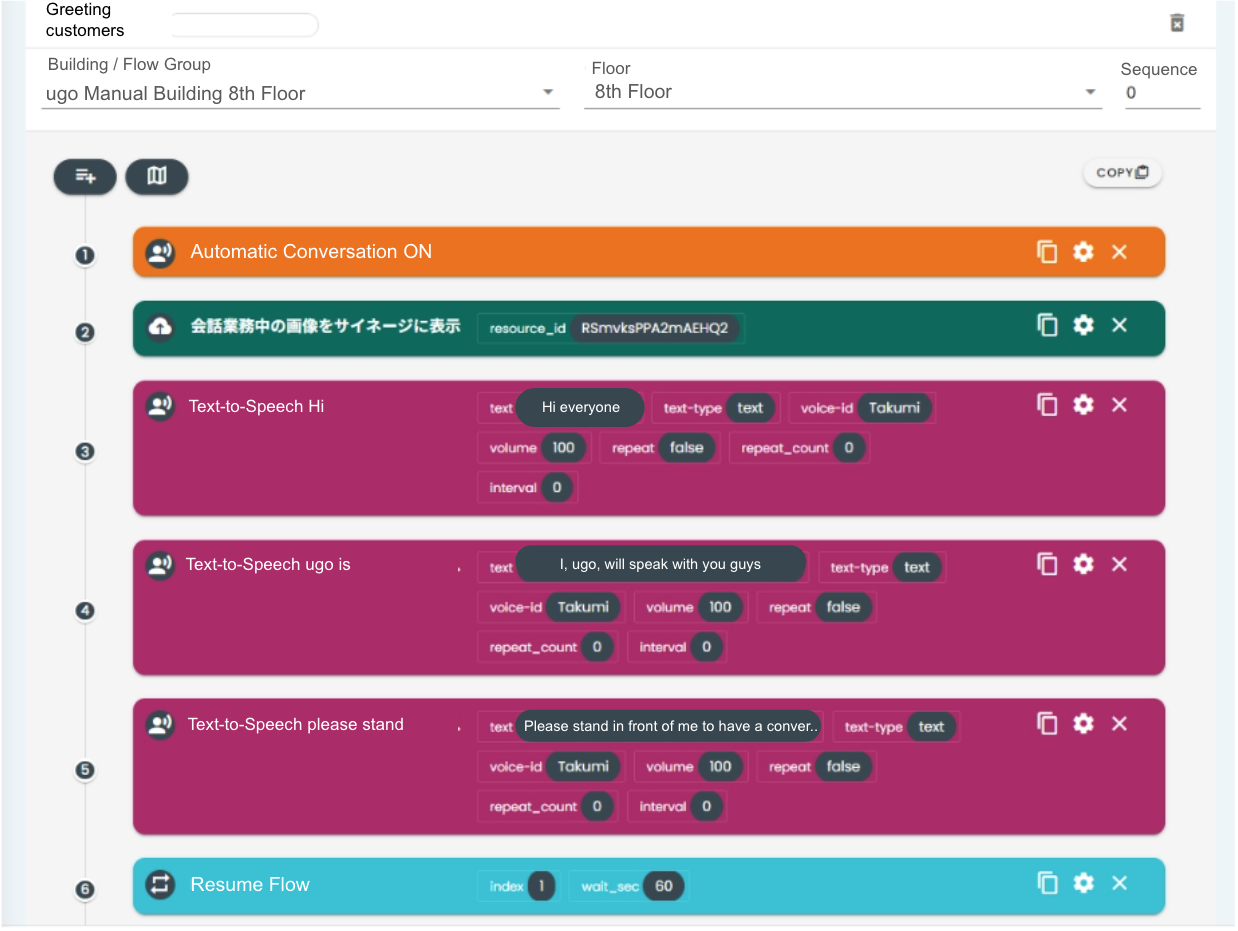

How to structure a flow:
Use "Text to Voice" commands to make the ugo speak its lines.
If you want to automatically repeat the Flow, please include the "Repeat Flow" command at the end.
*Unlike the previous "Automatic Guidance Function" call mode, there is no function to automatically repeat the Flow.
In this example, to prevent forgetting to switch ON the "Automatic Conversation," we use the "Automatic Conversation ON" command at the beginning of the Flow.
When the conversation ends, the image displayed on the signage switched back to the default image since we've incorporated the "Show Signage Image" command to display content on the signage.
◆ Notes on operation
🚫 Use while map patrolling and moving:
- Never use the automatic conversation function in combination with Flows that involve movement.
Never patrol or move around the map with automatic conversation ON. Flows executed with automatic conversation ON should only be those that in a fixed location and do not involve movement of ugo (greetings, speech).
If patrolling is performed with the same unit, be sure the "Automatic Conversation OFF" command is executed at the beginning of the patrol Flow.
🚫 Height retention of the lifter unit:
- When a person stands in front of the ugo, the AI detects the person and initiates a conversation with its arm automatically switch to standby position.
When the lifter unit height is lowered than the default 650mm while the automated conversation is in operation, the arm will hit the cart unit which may cause damage by collision.
When using the AI automatic conversation function, never lower the height of the lifter unit than the default setting of 650mm when starts.
Power OFF/Reboot:
- The automatic conversation ON/OFF state will be retained even after ugo is powered off or restarted.
If you turn ugo off/on while automatic conversation is enabled, conversation will start immediately when a person stands within the detection range after ugo restarts.
After restarting, please make sure not run the map patrol flow while automatic conversation is enabled.
When using the same ugo to patrol (move) the map after turning off automatic conversation:
- When using the same ugo for map patrols or other movements, please include the "Automatic Conversation OFF" command at the beginning of the flow.
This will prevent you from forgetting to switch off automatic conversation and ensure a safe operation.
[Pause] button:
- Pressing the [Pause] button on the operation screen will not turn off the automatic conversation.
What happens when you schedule a Flow to run during a conversation:
- If ugo uses the scheduling feature to run Flow during a conversation, the conversation will end immediately and Flow will start.
Actions when an operator executes a Flow during a conversation:
- If an operator executes a Flow from the control screen while ugo is in a conversation, the conversation will end immediately and the Flow will start. Please refrain from having the operator execute Flow during a conversation, as this will end the conversation abruptly.
Actions taken when the emergency stop switch is pressed:
- The following actions will occur if you press the emergency stop switch while using the automated conversation function. The behavior when the emergency button is pressed differs in the following three patterns.
| Situation | Behavior |
| Flow is running | Automated conversations will also be turned off, and Flow will stop. |
| Flow not executed | Automatic conversation will be turned off. |
| During the conversation | The conversation will stop immediately, and automated conversations will also be turned off. If Flow was running before the conversation started, Flow will also stop. |
Once you've started using AI automated conversations, the next step is
STEP 8: Improve the Q&A and additional instructions using the conversation history .
