This command is available to customers who have opted for the AI automated conversation function.
If you wish to use this feature for signage, please contact us.
◆ Table of Contents
- Overview
- Commands
- How to add images or video files to the "Signage Image Display" command
- Example of integrating the "Signage Image Display" command into Flow
- How to delete image or video files from "Resource Management"
- Notes
- Points to note when creating digital signage display resources (images and videos )
◆ Overview
This page explains how to use the Display Digital Signage Image command for the ugo Pro (G4). This command retrieves images and videos from the Resource Management section of the ugo Portal for display on the robot's screen. It is compatible with Command Lists, Flows, and WorkPlans.
◆ Commands

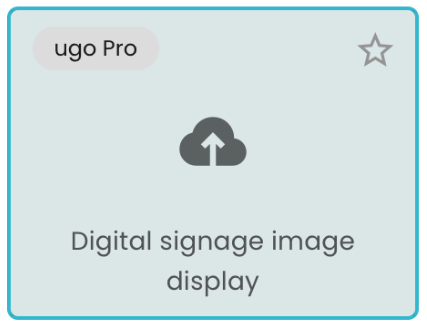

■ "Signage Image Display"
- This command displays an image or video file specified by the parameters on the digital signage.
It can be executed from the command list or integrated into a Flow or WorkPlan.
Only one image or video file can be displayed per command.
◆ How to add images or video files to the "Signage Image Display" command

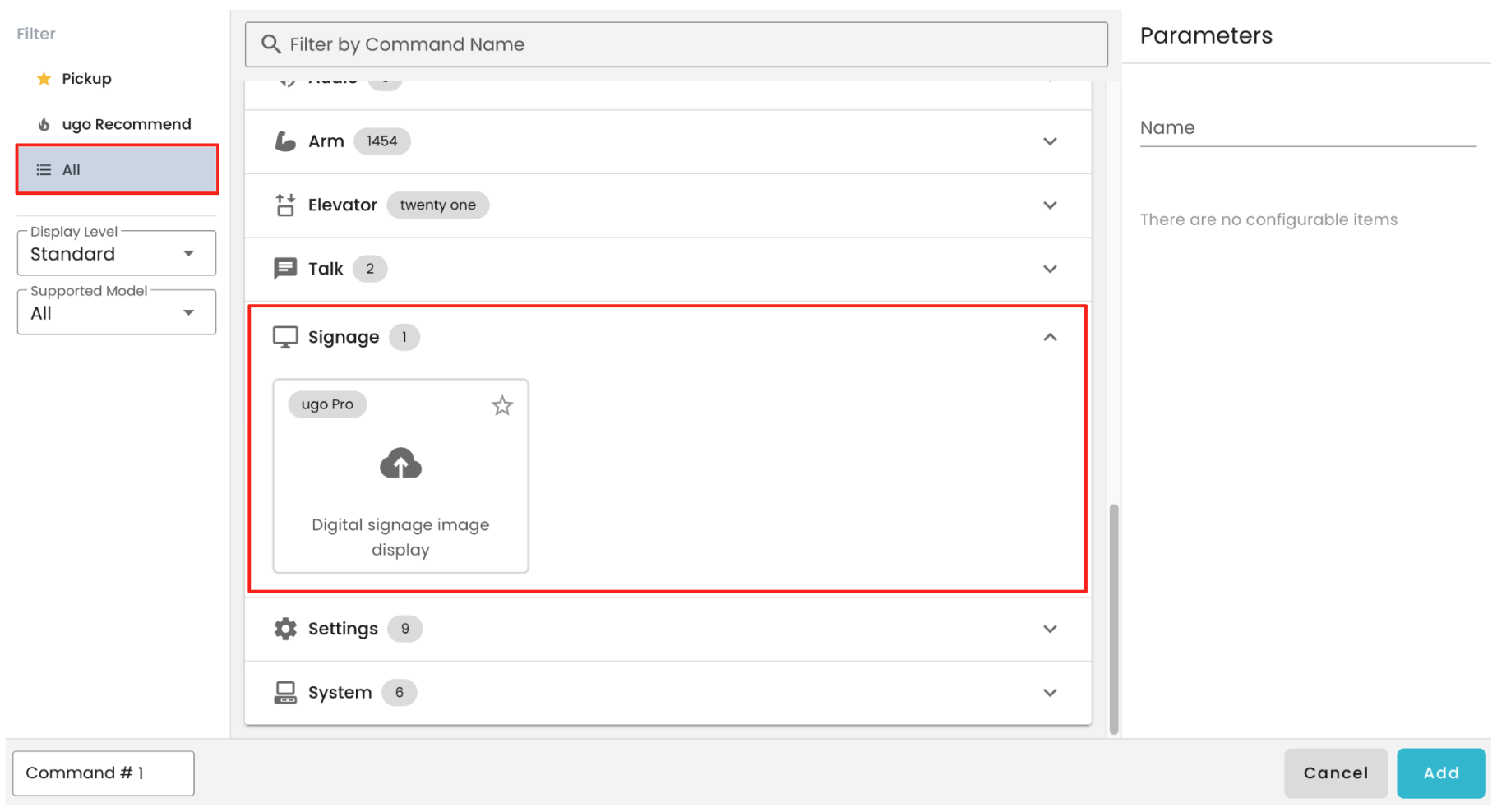

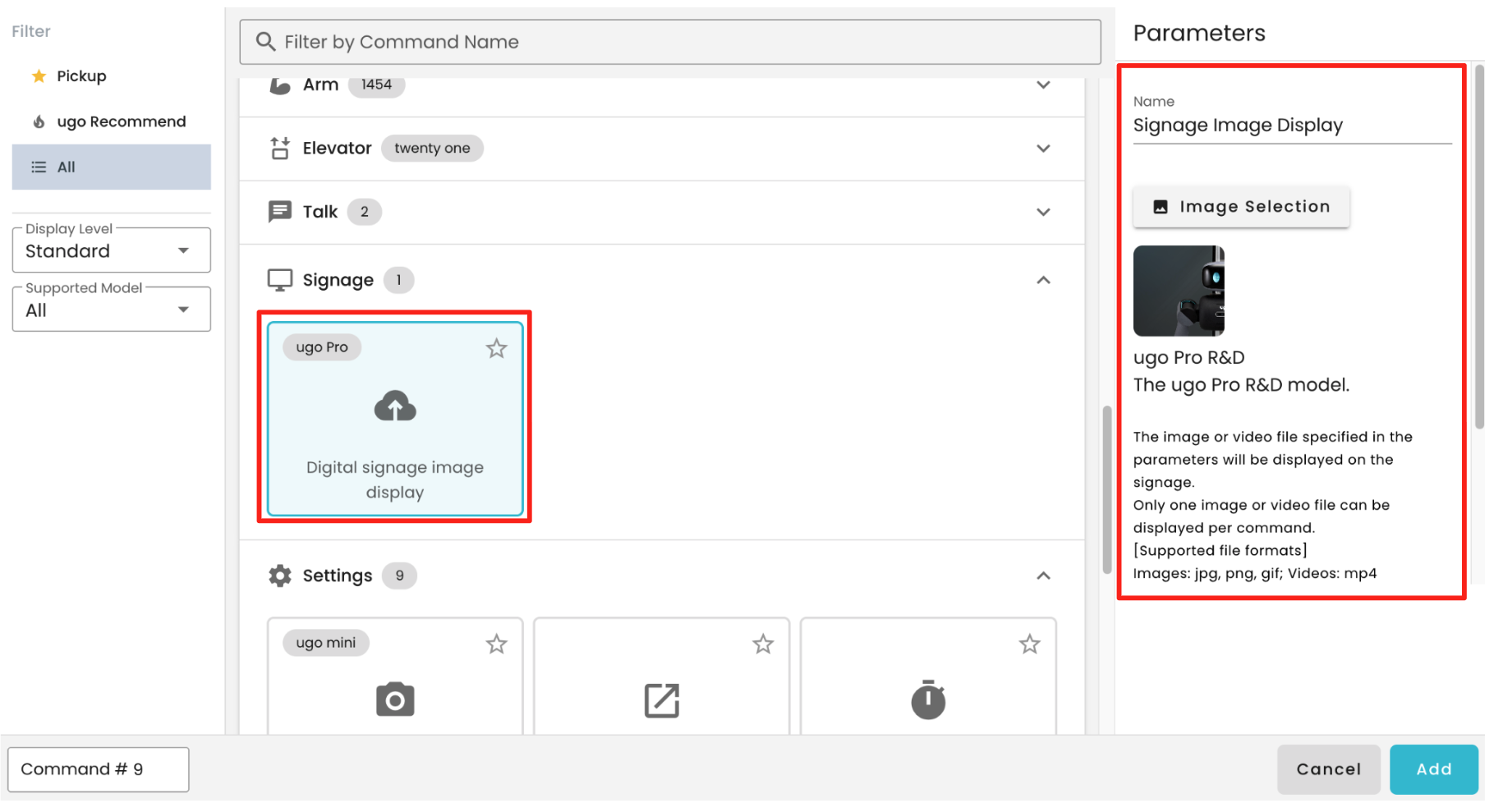

① Set the [Filter] in the command picker to [All].
Select the [Signage Image Display] command from the [Signage] tab.

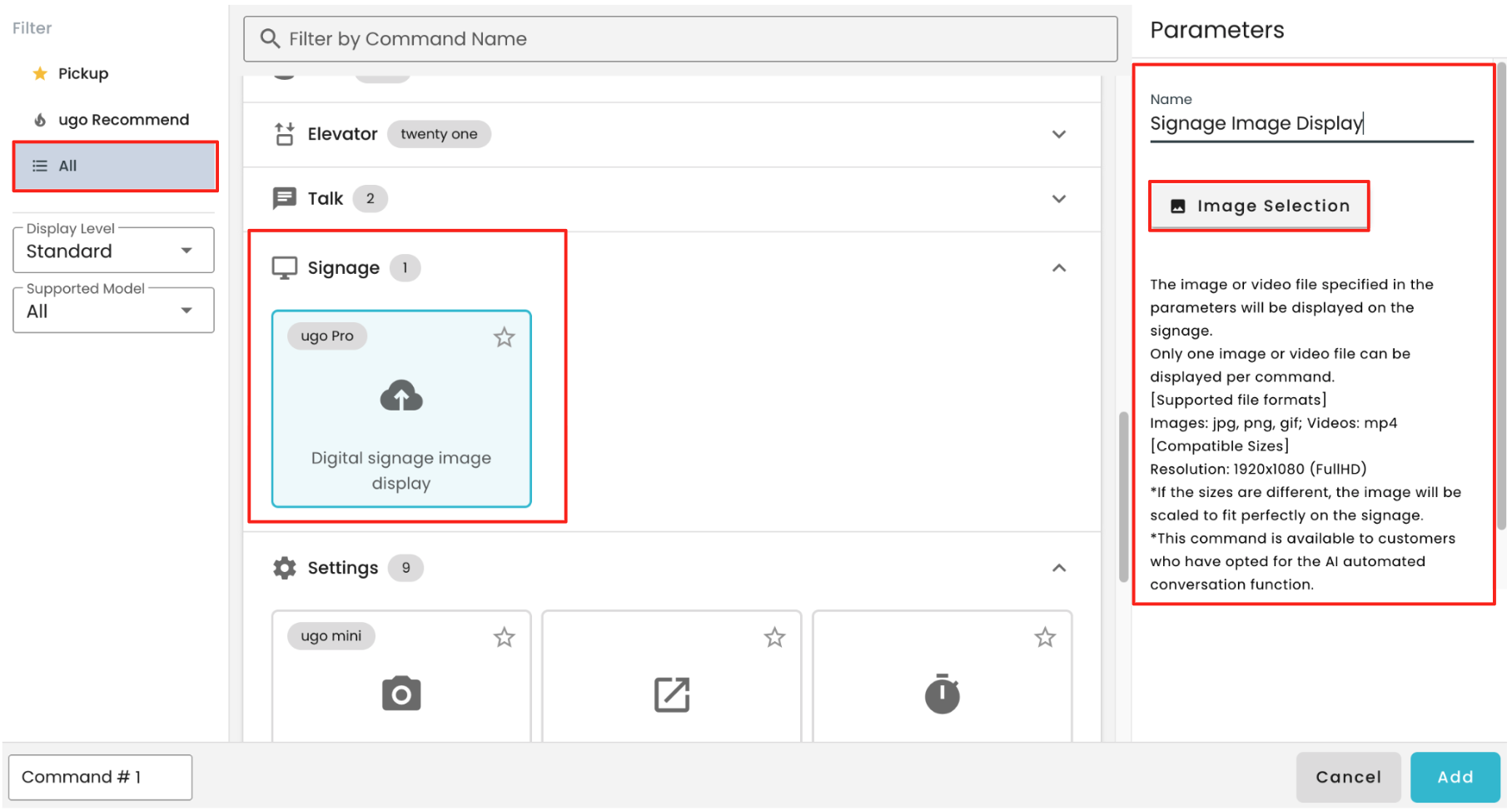

② Select the [Signage Image Display] command and click the [Image Selection] button under [Parameters].
③ Clicking the [Image Selection] button will display the [Resource Management] dialog box. [Resource Management] includes a list of images or video files uploaded to the ugo Portal for signage display.

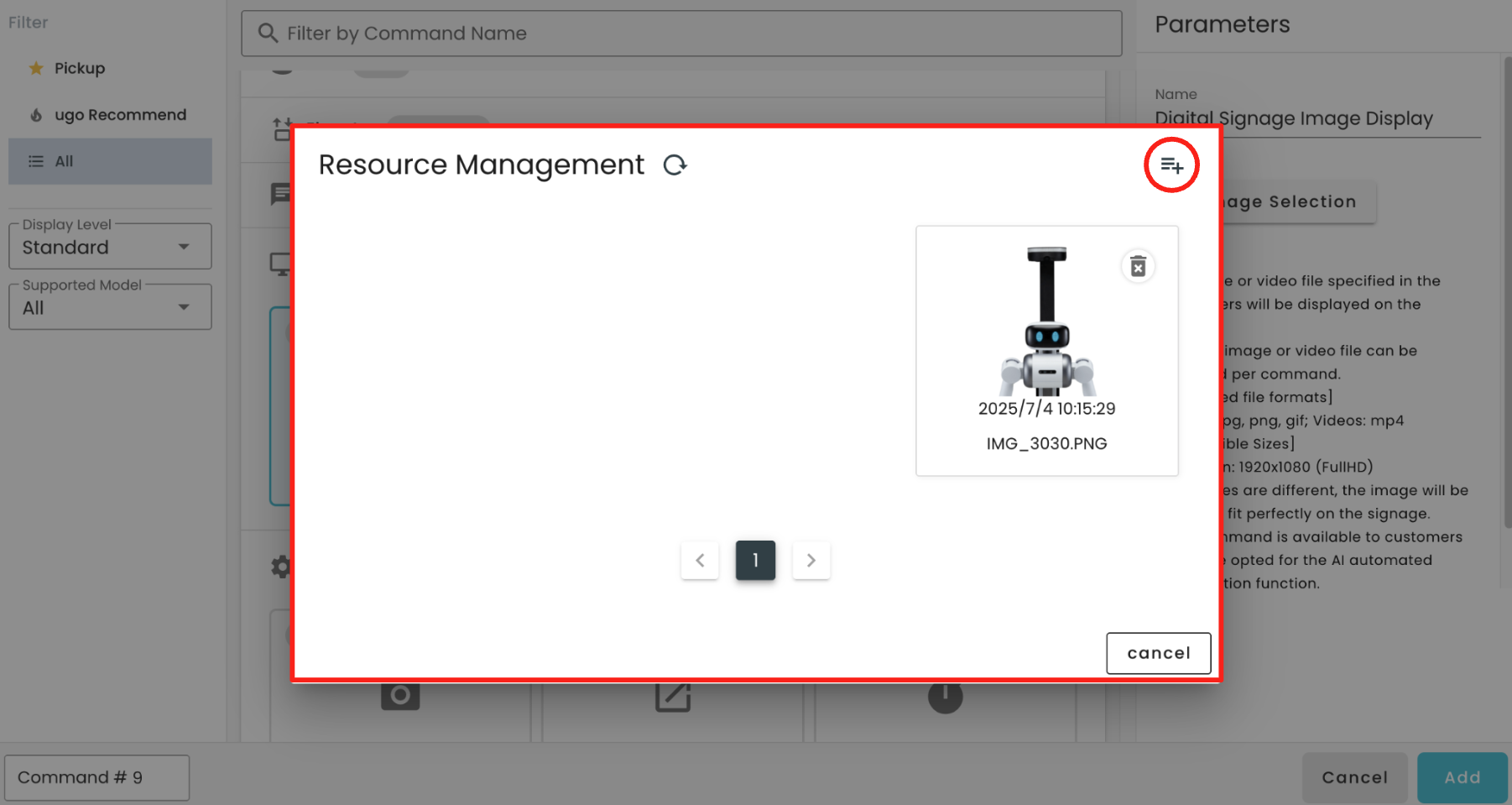

④ Click the "Create New" button in the upper right corner of the "Resource Management" dialog box.

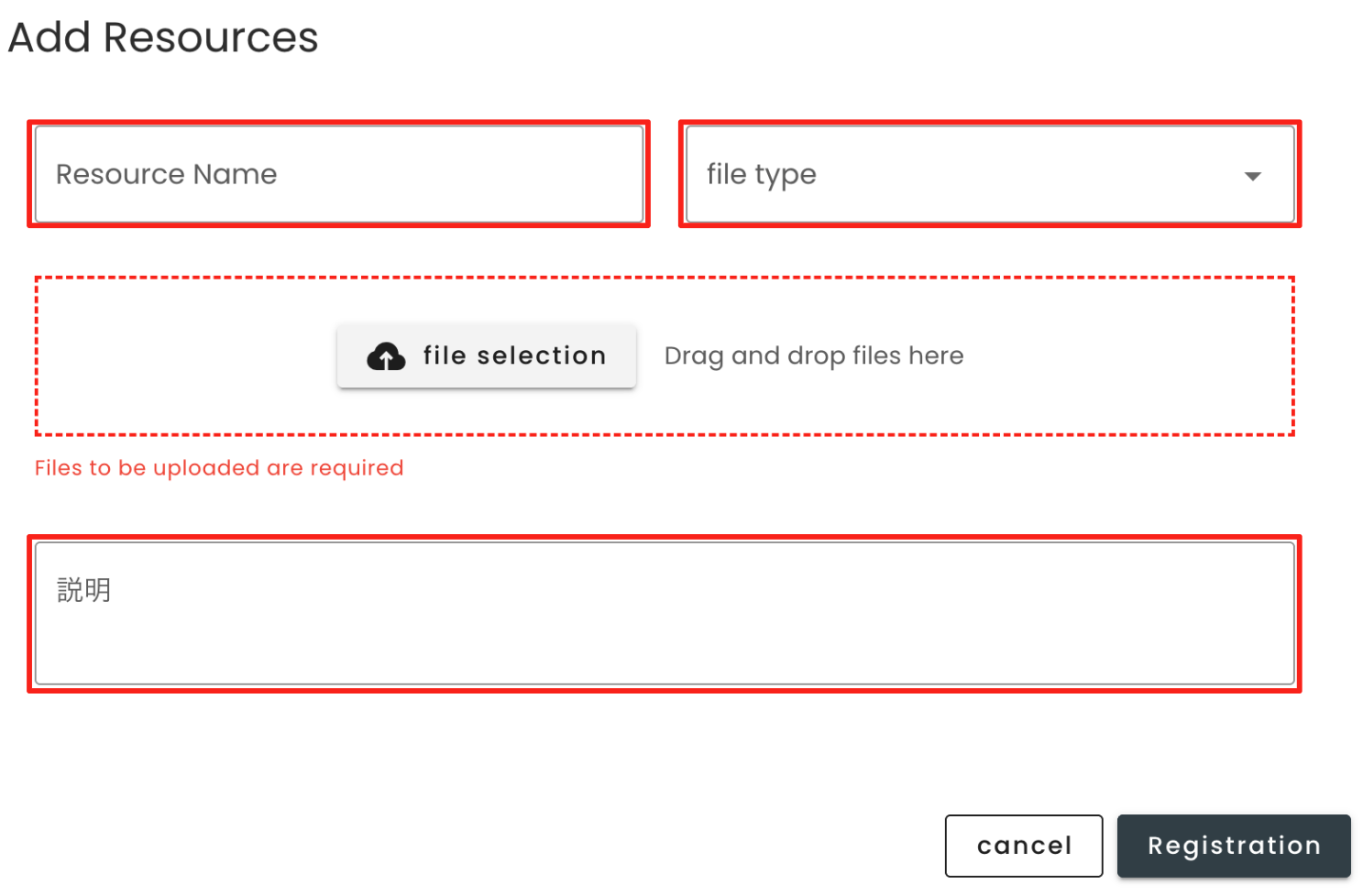

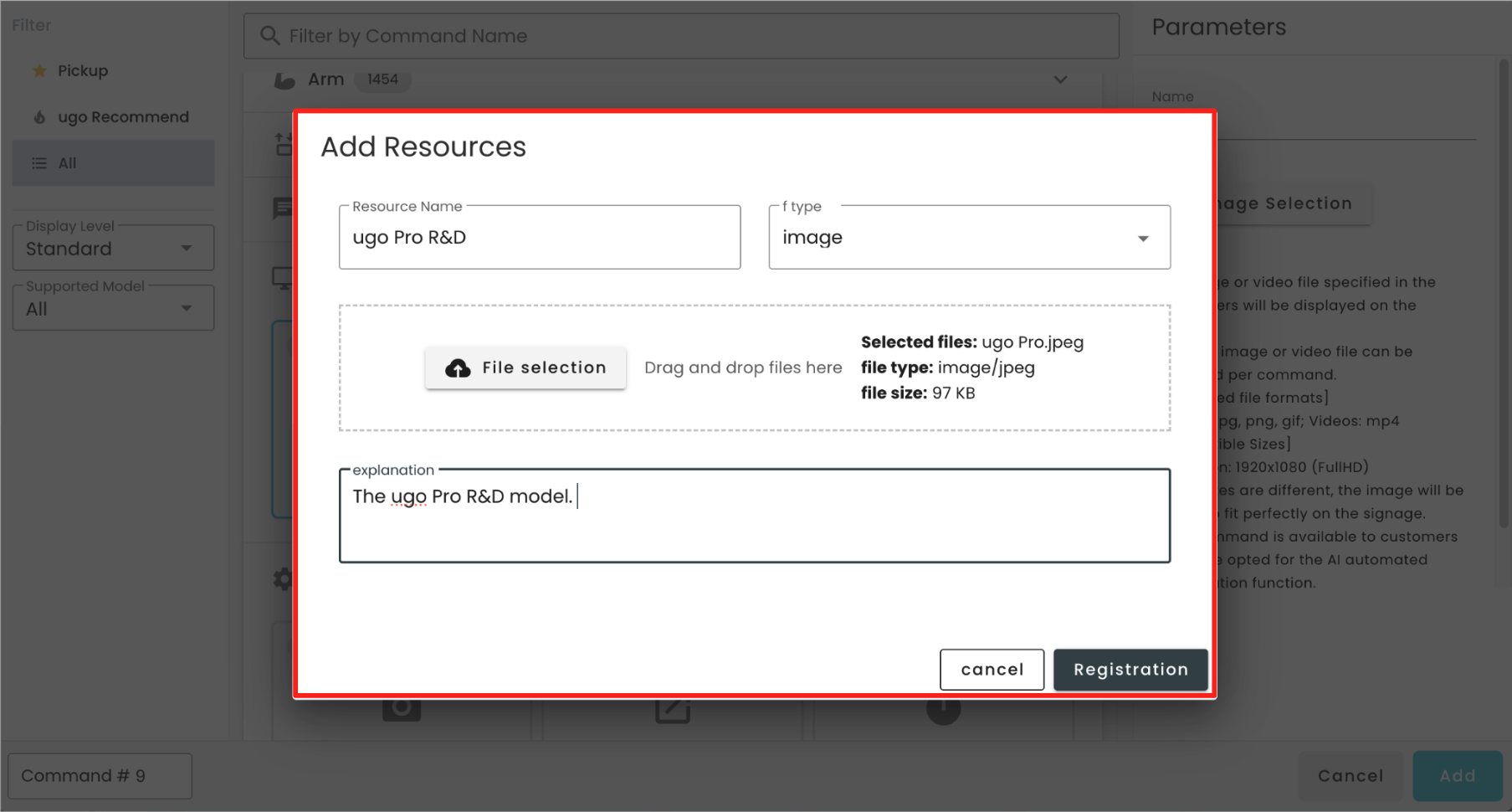

⑤ The "Add Resources" dialog box will appear. When adding new images or other content, please enter the information as shown in the image below. After entering your information, please click [Register].
| Item | Explanation | |
| ① | Resource Name | The name of the image or video you are uploading. *While ugo Portal assigns a unique ID to each image or video, it is recommended that you name them uniquely. |
| ② | File Type | Select the corresponding format: [Image] or [Video]. |
| ③ | File Selection |
You can upload image or video files by dragging and dropping them. [Supported file formats] [Supported Sizes] |
| ④ | Explanation |
Enter a description for the uploaded image or video file. When you register and use image or video files in the [Q&A] section of [Knowledge Groups], this information will be used by the AI in the Signage Automated Guidance function (Beta Version). Example input: "Image explaining the features of ugo mini" |
■Registration example

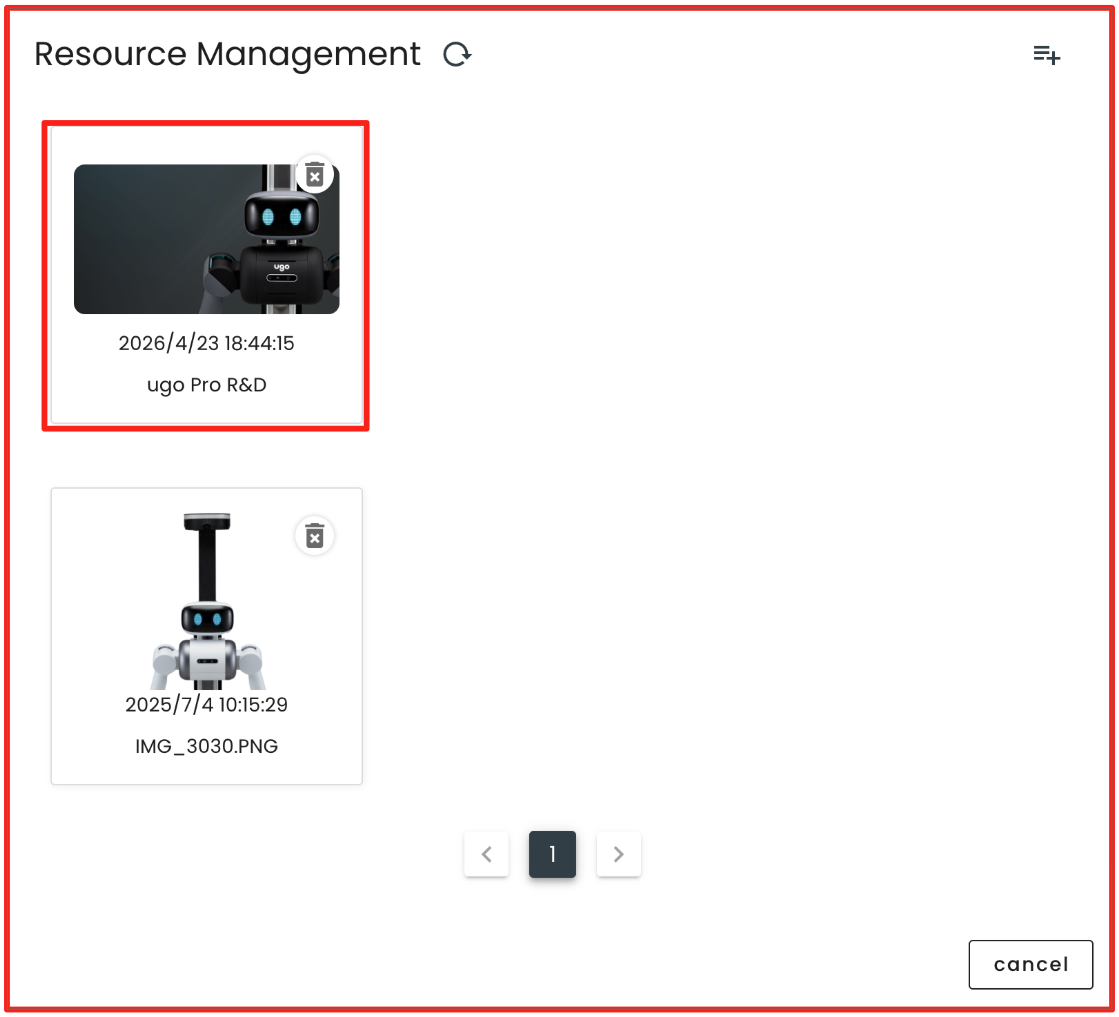

⑥ When you register an image or video file, it will be added to [Resource Management].
⑦ The thumbnail of the selected file will be displayed in the parameter field of the [Signage Image Display] command. *Only one image or video file can be displayed per command.

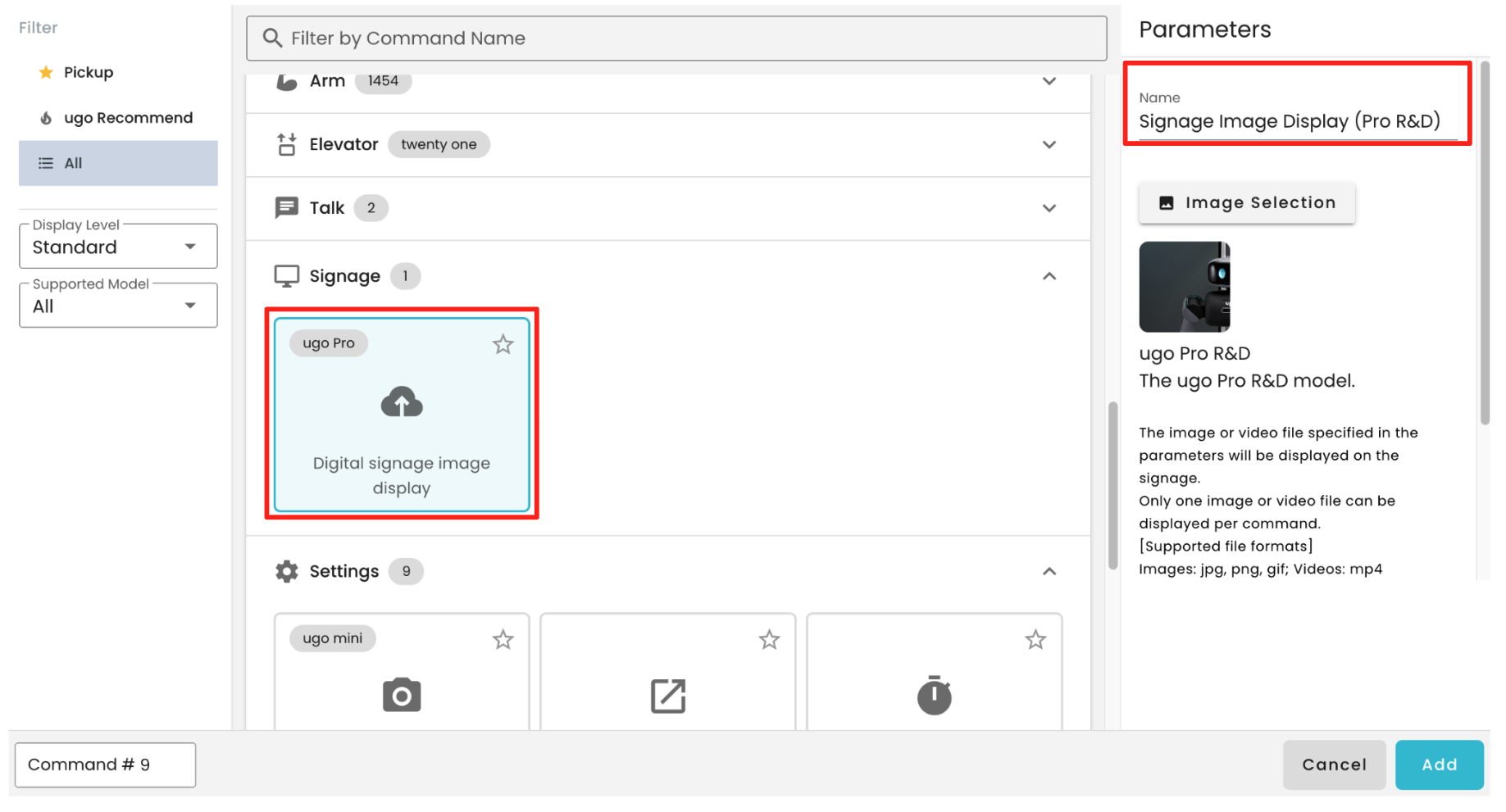

⑧ Change the [Name] in the parameter field of the [Signage Image Display] command to a name of your choice.
When adding the [Signage Image Display] command into a command list or Flow, it is recommended to rename the command.
- Example: "Signage Image Display (Pro R&D)"

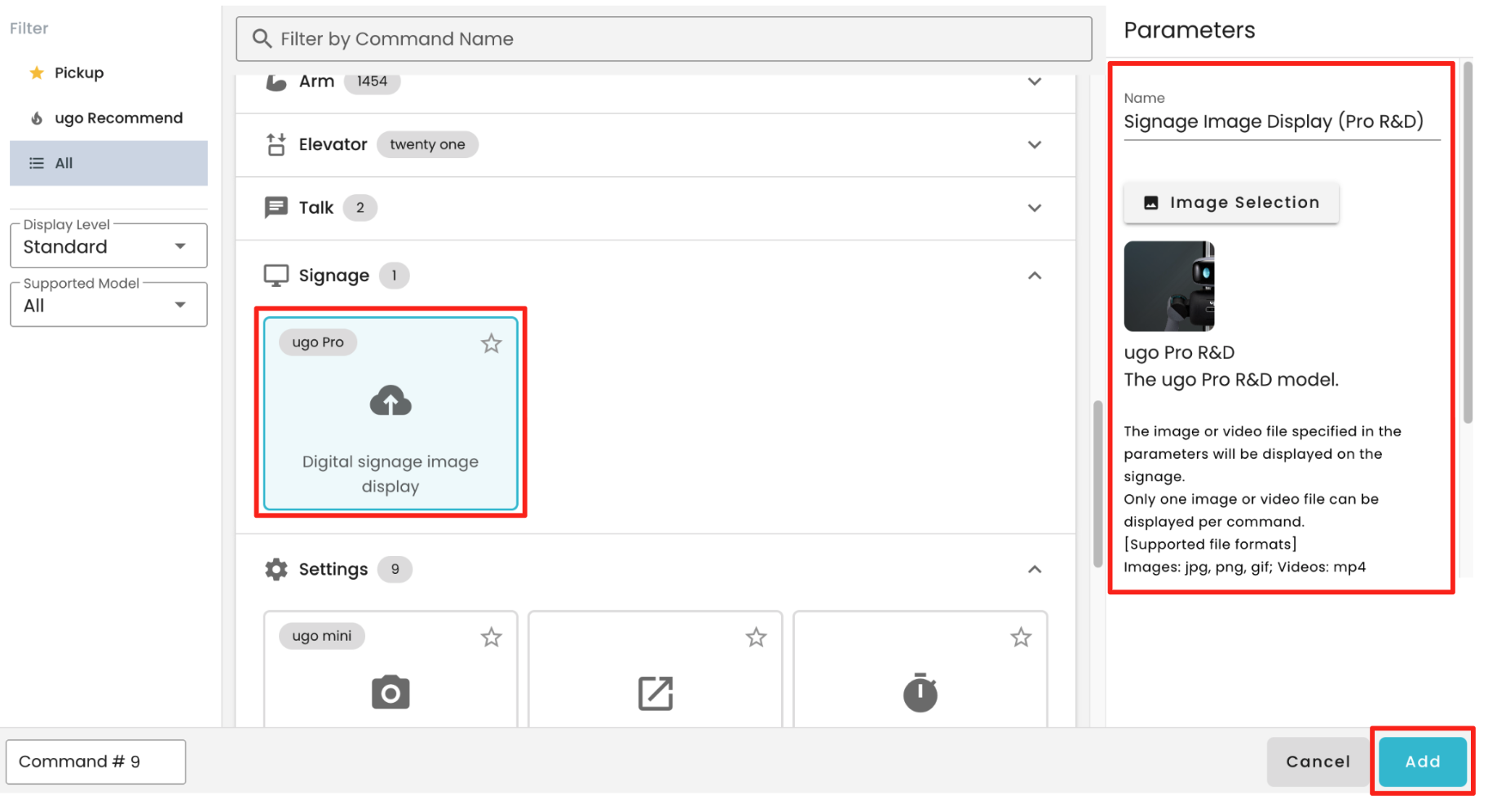

⑨ Clicking [Add] completes the addition to the command list, Flow, or WorkPlan.
◆ Example of running the "Signage Image Display" command from the command list
① Run the "Signage Image Display" command that has been added to the command list.

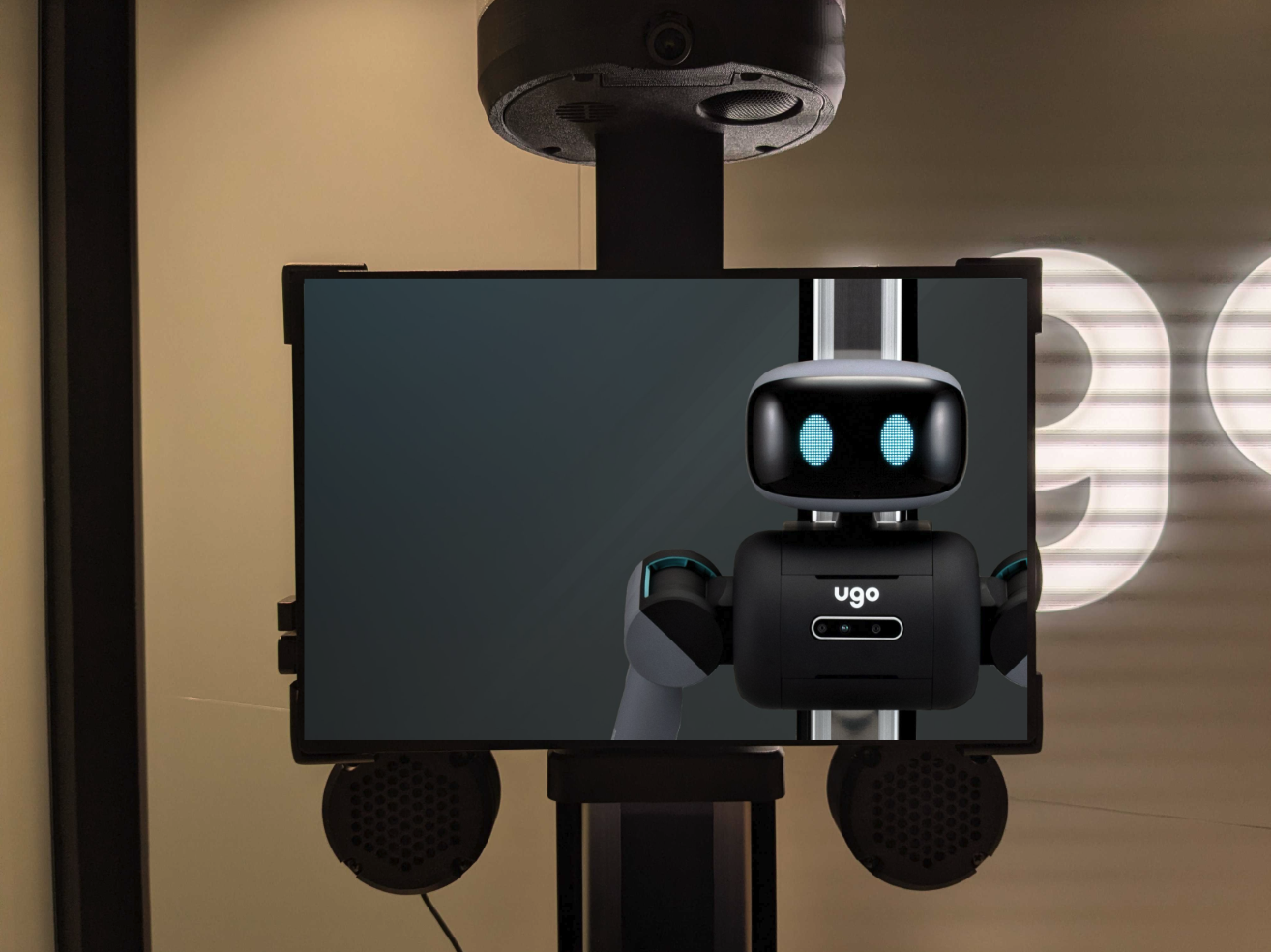

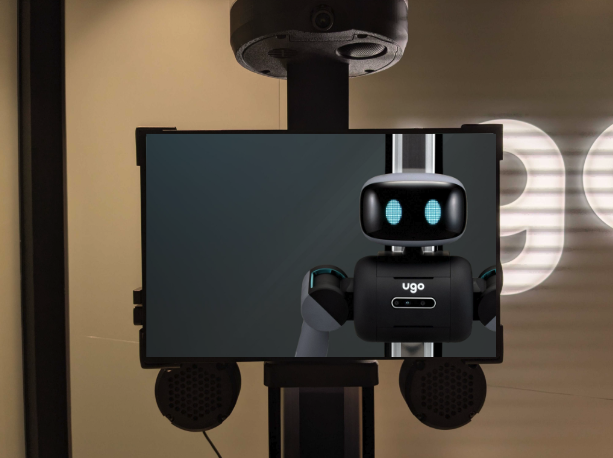

② The image set in the command parameters will be displayed on the signage.
◆ Example of integrating the "Signage Image Display" command into Flow

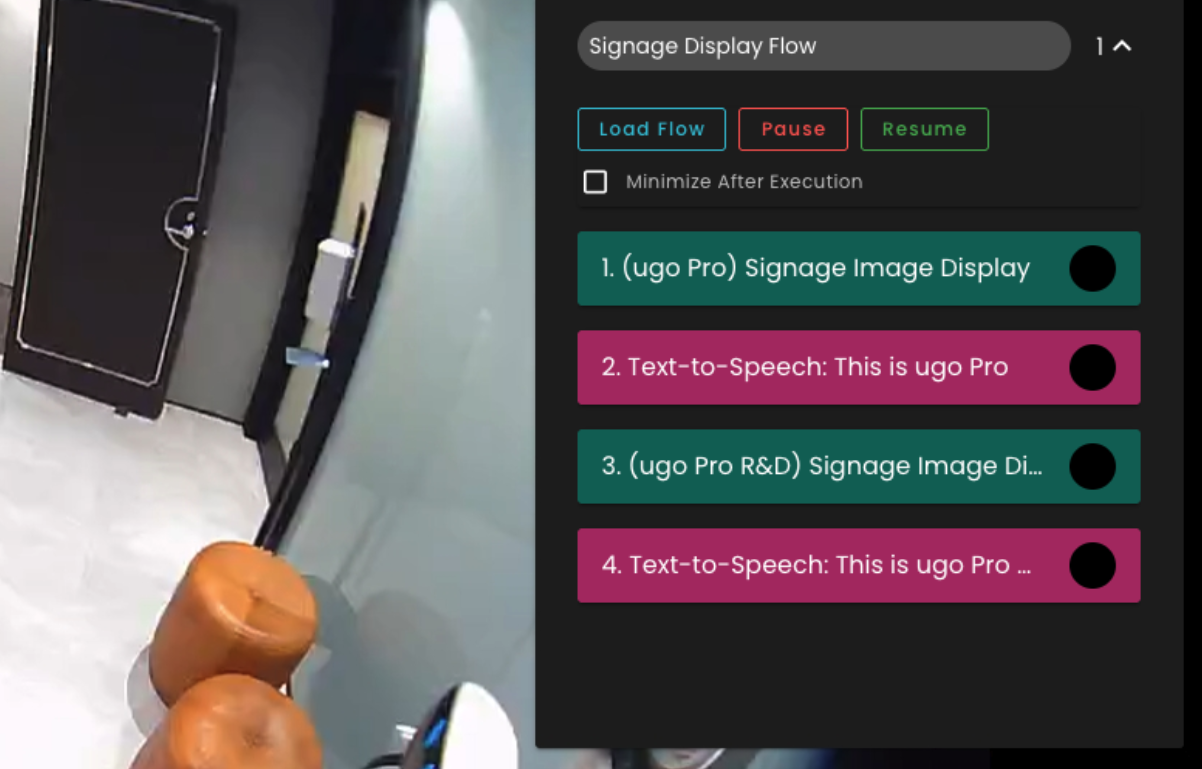

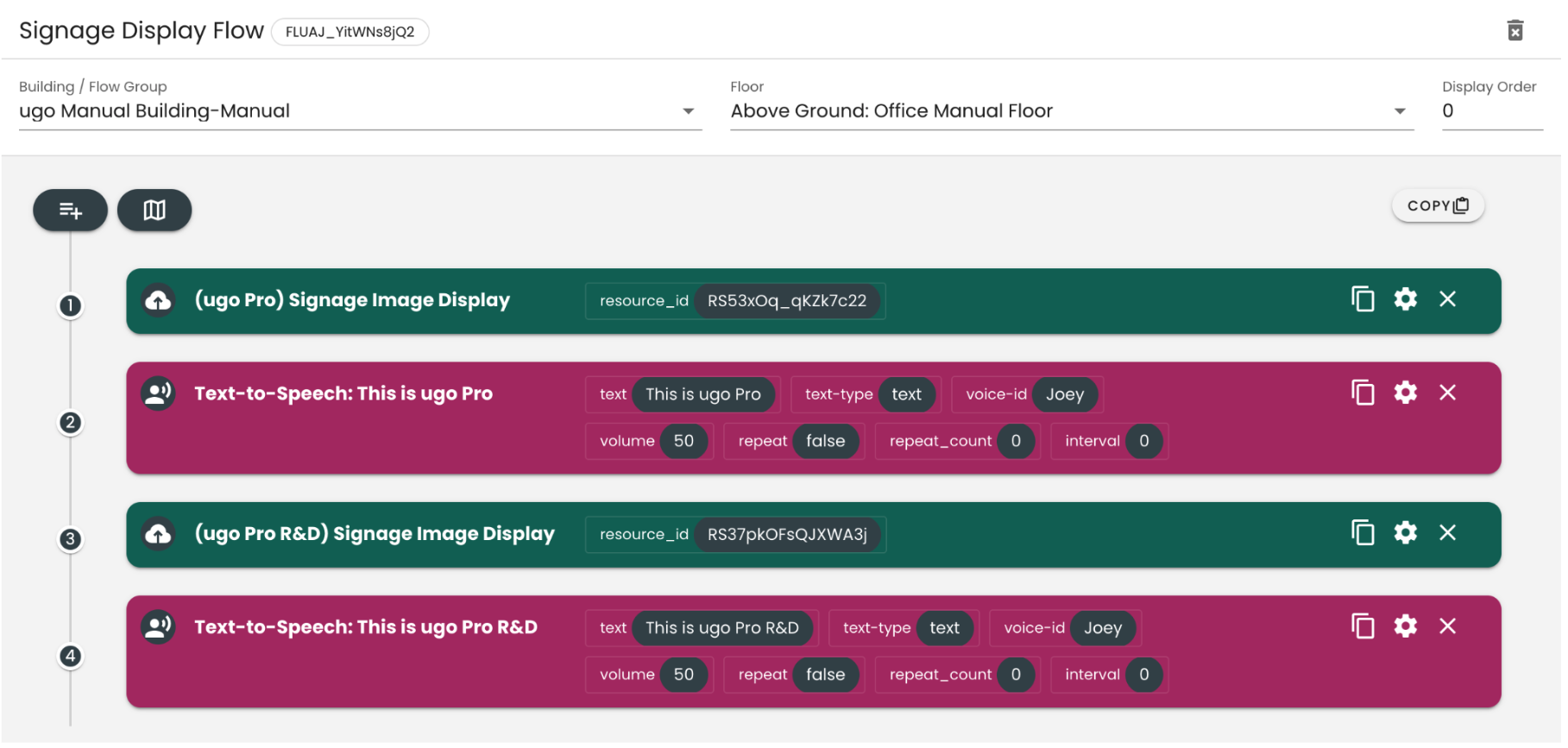

- This is a sample Flow that incorporates multiple "Signage Image Display" commands within a single Flow.
After displaying an image on the signage, it gives a voice description of that image.
◆ How to delete image or video files from "Resource Management"

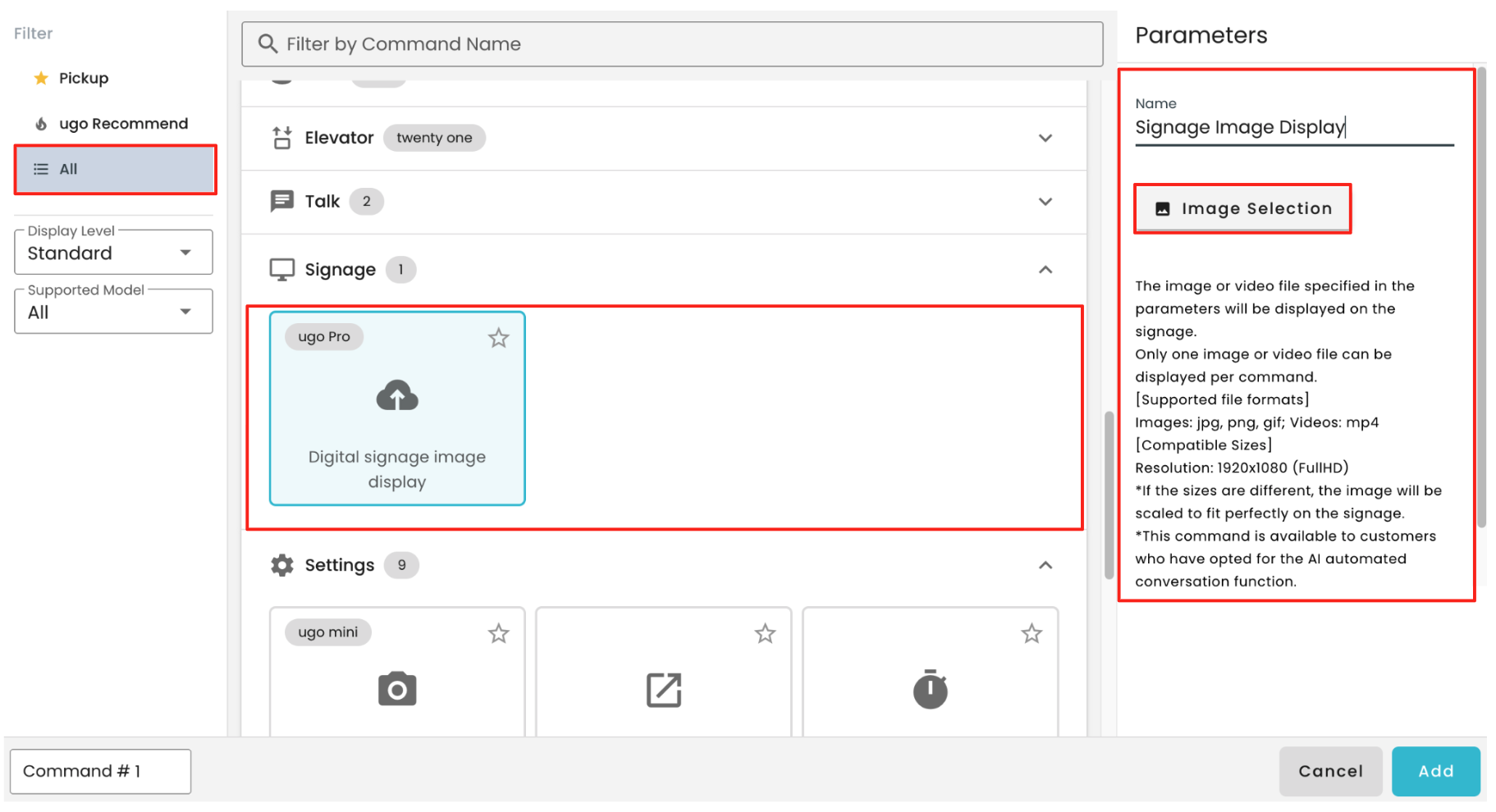

① From the Command Picker's [Signage] tab, select the [Signage Image Display] command, and then
click the [Image Selection] button under [Parameters].

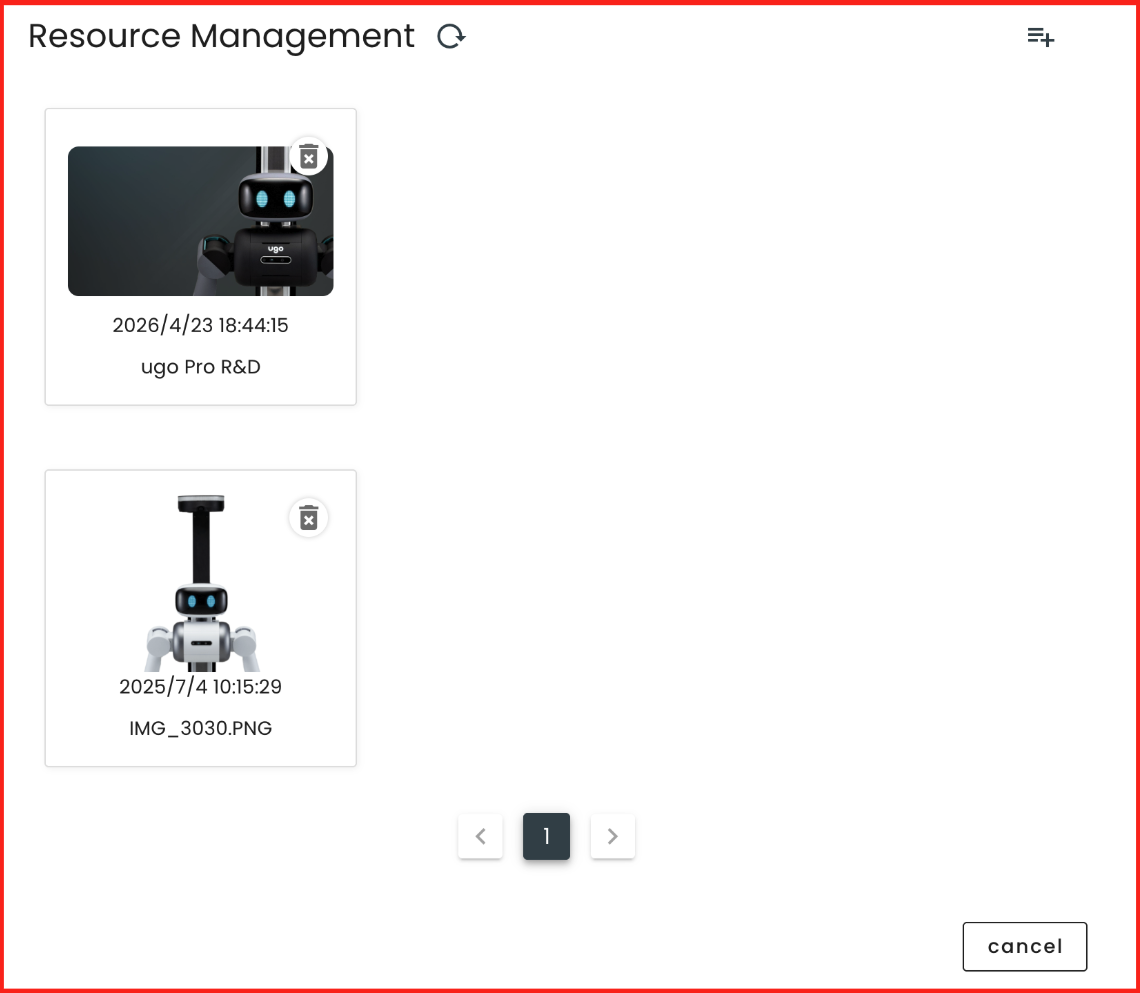

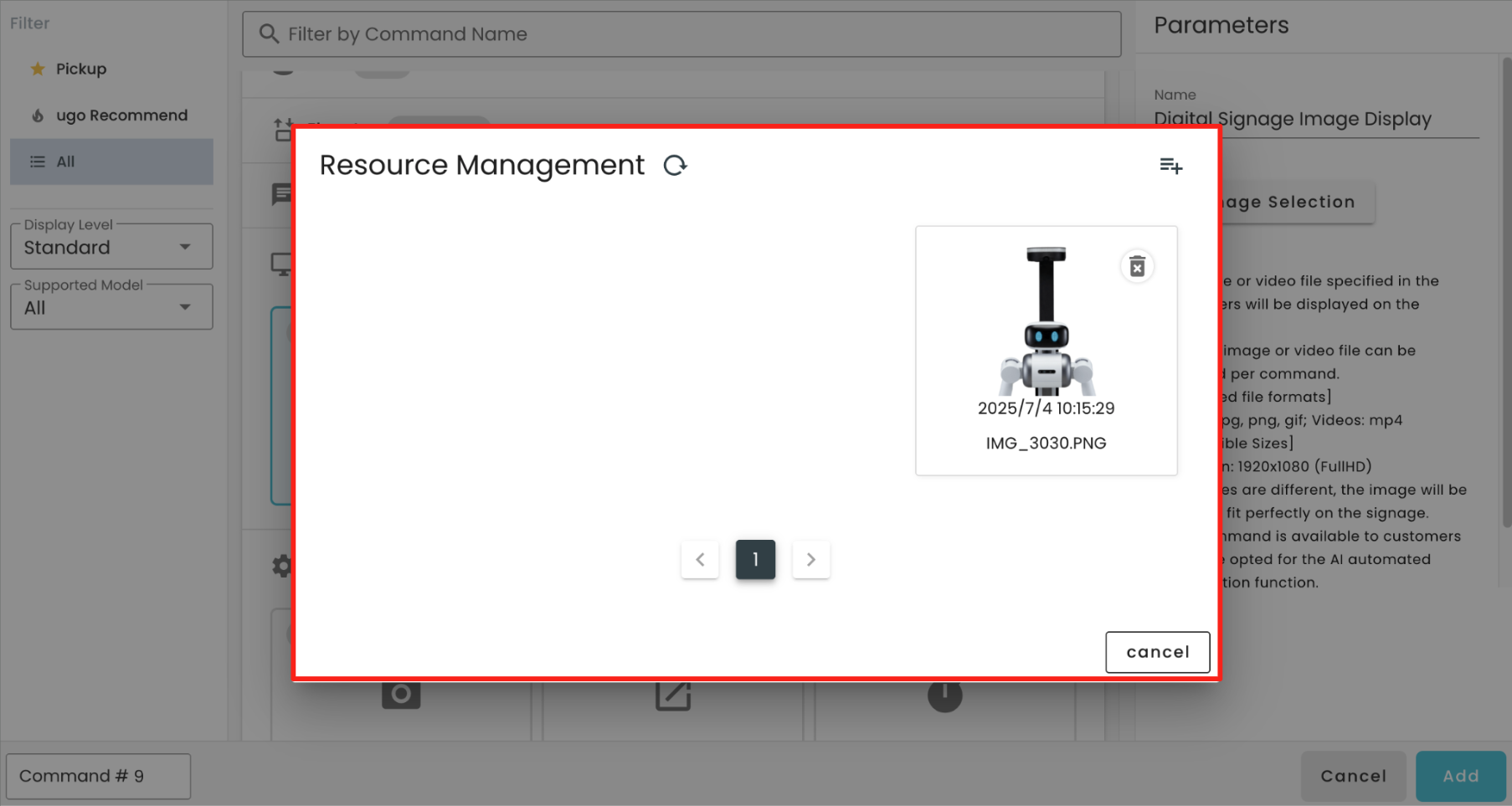

② When you click the [Select Image] button, the [Resource Management] dialog box will appear.

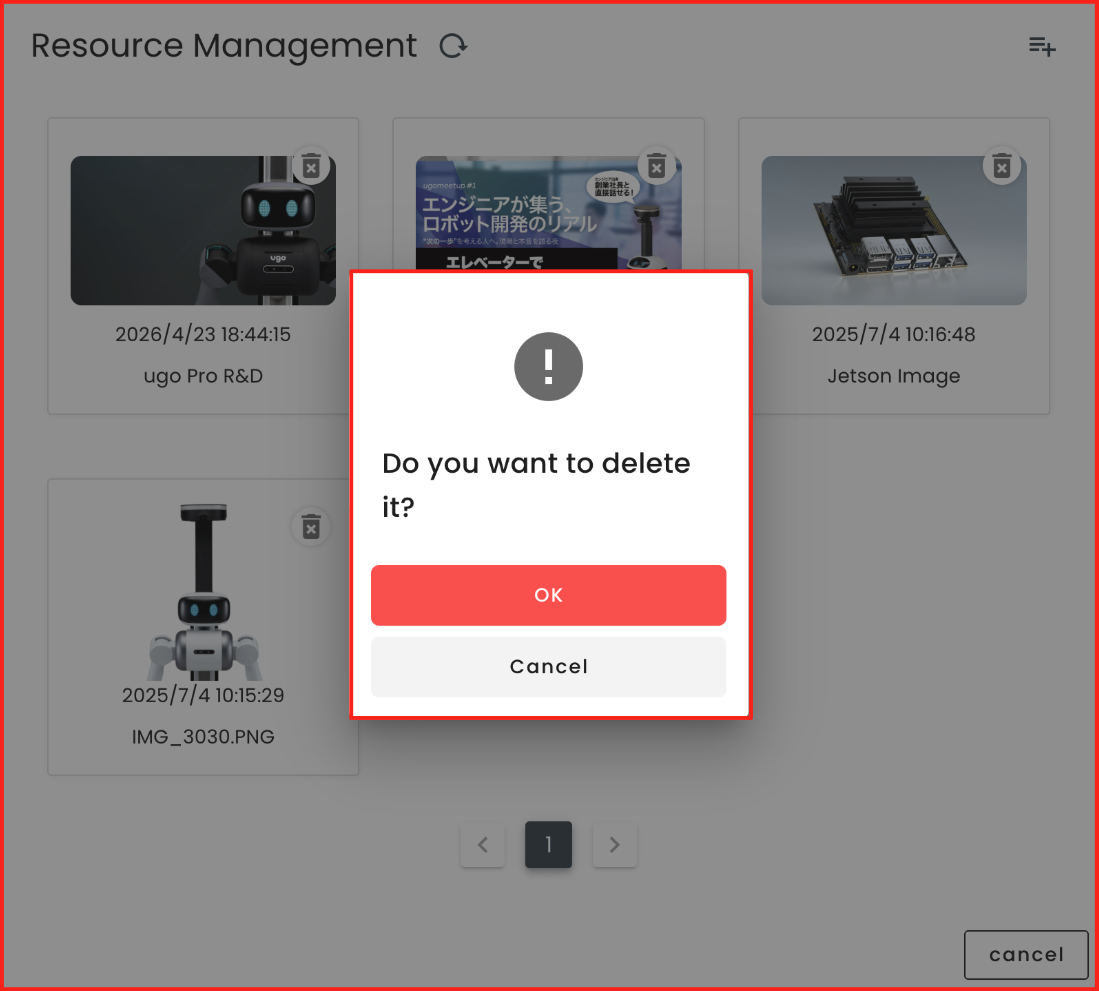

③ Click the [Delete button] displayed in the upper right corner of the file you want to delete, and the file will be deleted.
◆ Notes
- When displaying an image or video on the signage for the first time, the computer controlling the signage sends the file to the ugo Portal. It may take some time for the content to appear. *When displaying the image for the second time or later, the image will appear immediately after executing the command.
- When you add a video to the "Signage Image Display" command and execute it, the video displayed on the signage will play on-loop.
- If you add a video to the "Signage Image Display" command and execute it, the audio will not be output from the signage.
- The supported file formats and sizes for the "Signage Image Display" command are as follows: [Supported file formats] Images: jpg, png, gif;
Videos: mp4 [Compatible Sizes] Resolution: 1920x1080 (FullHD) *If the sizes are different, the image will be scaled to fit perfectly on the signage.
◆ Points to note when creating digital signage display resources (images and videos)
When using the AI automated conversation function to display images and videos on signage, ugo's speech will be displayed on the screen in real time as "text overlays (subtitles)". Since these text overlays are displayed on top of the content, please account for this display area when creating images and videos.
Regarding overlap with the display area of the on-screen text:

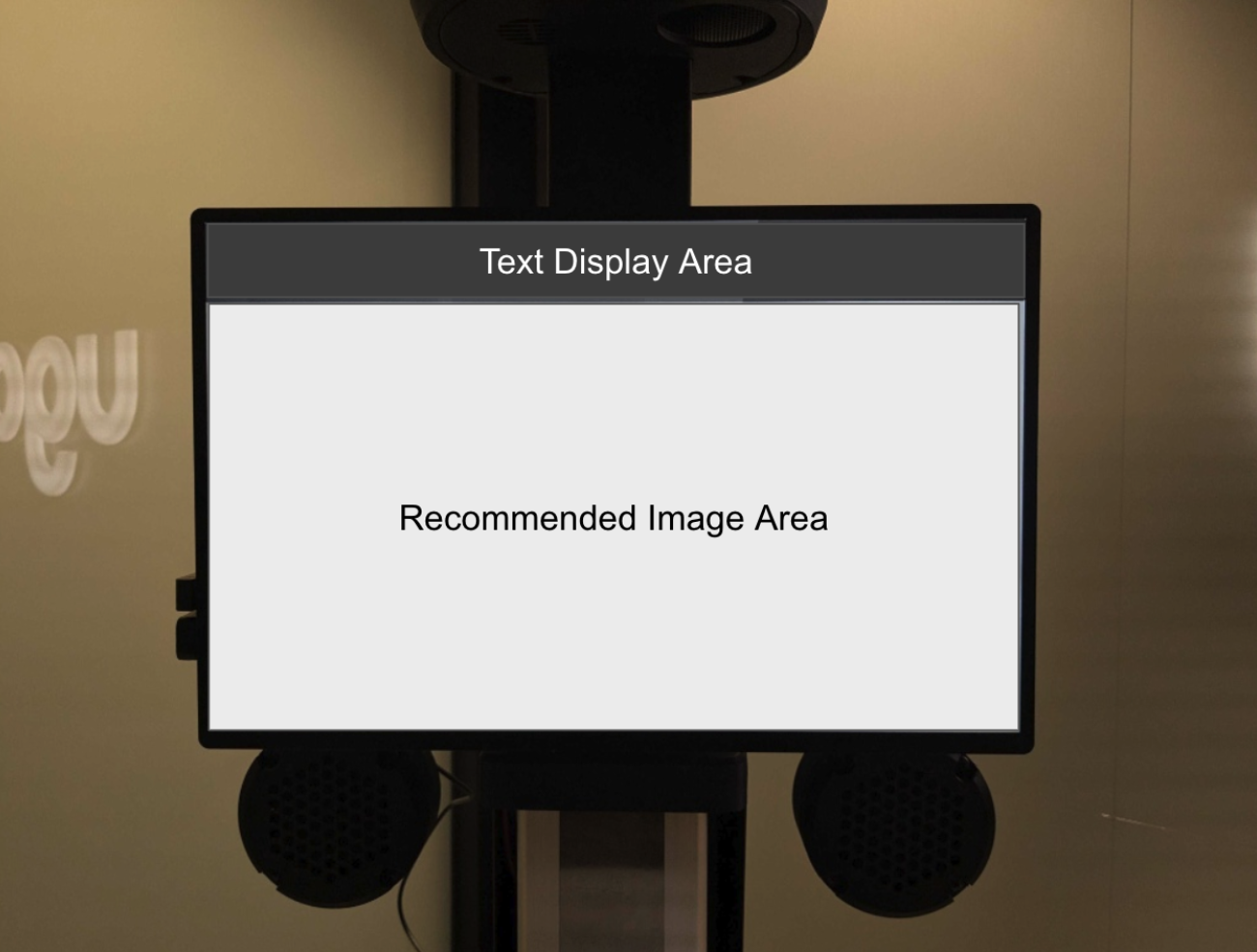

The top 200 pixels of the signage screen are designated text overlay dispay areas.
If important information (text, faces, logos, etc.) is placed within this area of an image or video, it may overlap with the text overlay during ugo's speech, significantly reducing its readability.
We strongly recommend designing the top 200px of the screen as a "safety zone for text overlays,"using only a background image or leaving it blank.
| Text Display area | Top of screen 200px |
| Recommended Image Area | Please place important content away from the top 200px. |
