◆Table of Contents
- Notes
- What to prepare
- ugo mini packing video
- Packing procedure
- Packaging and disassembly of the ugo mini charging station
◆ Notes
- Be sure to leave plenty of space and wear gloves when working.
- Be aware of people and objects around you while working.
- Please make sure that the original packaging box, cushioning material, and plastic bag are prepared.

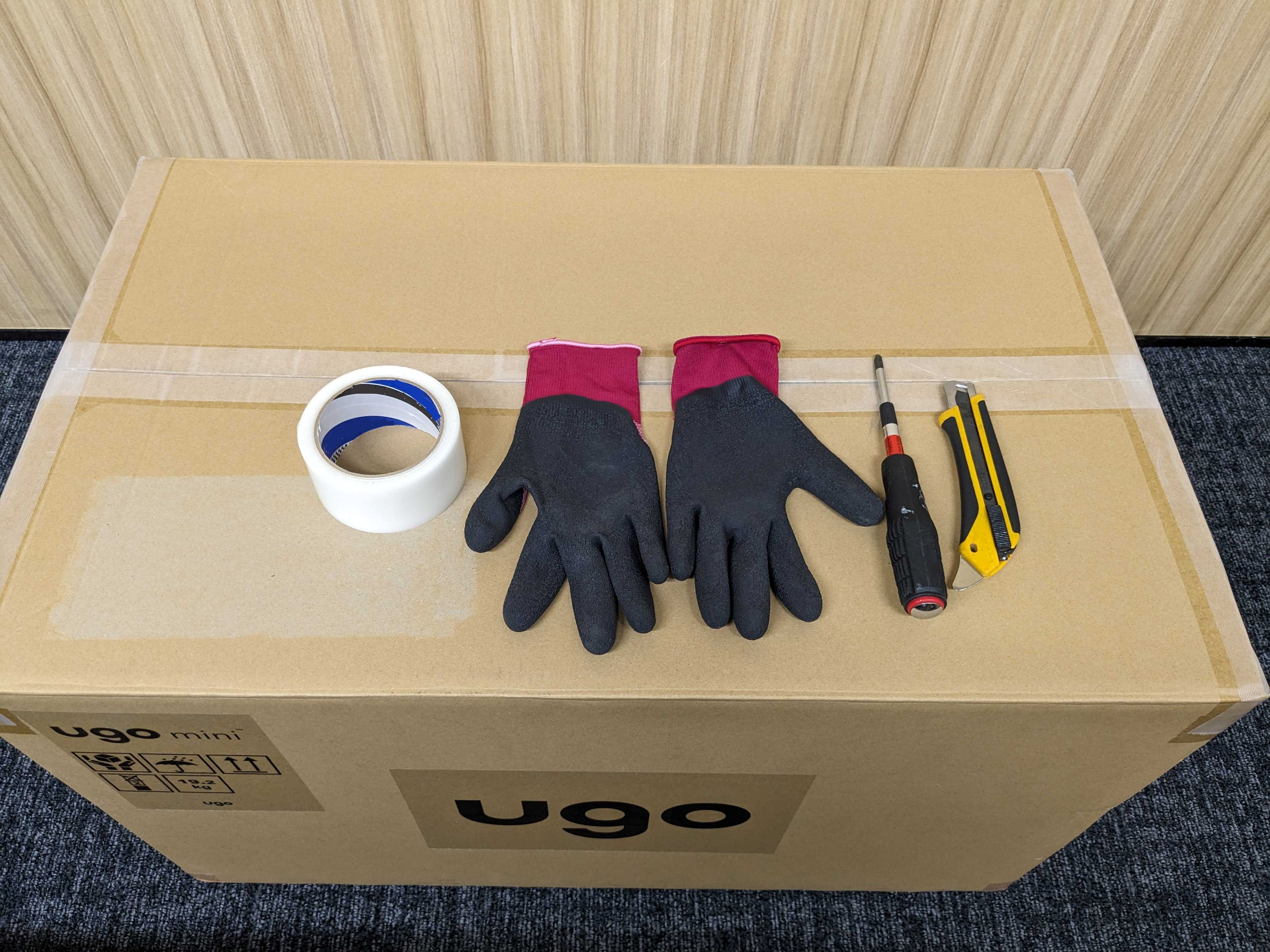

◆What to prepare
- Gloves (work gloves)
- Box cutter
- Phillips head screwdriver
- Masking tape
- Packing box and cushioning material at the time of delivery
◆ ugo mini Packing Video
Please see the link below. Please also see this page.
ugo mini G1 Packing
◆ Packing procedure
① Turn off the power of ugo mini.
Please refer to here for how to turn off the power of ugo mini.
*If you are using the optional router case, remove the router case.
Please refer to here for the procedure for removing the router case.

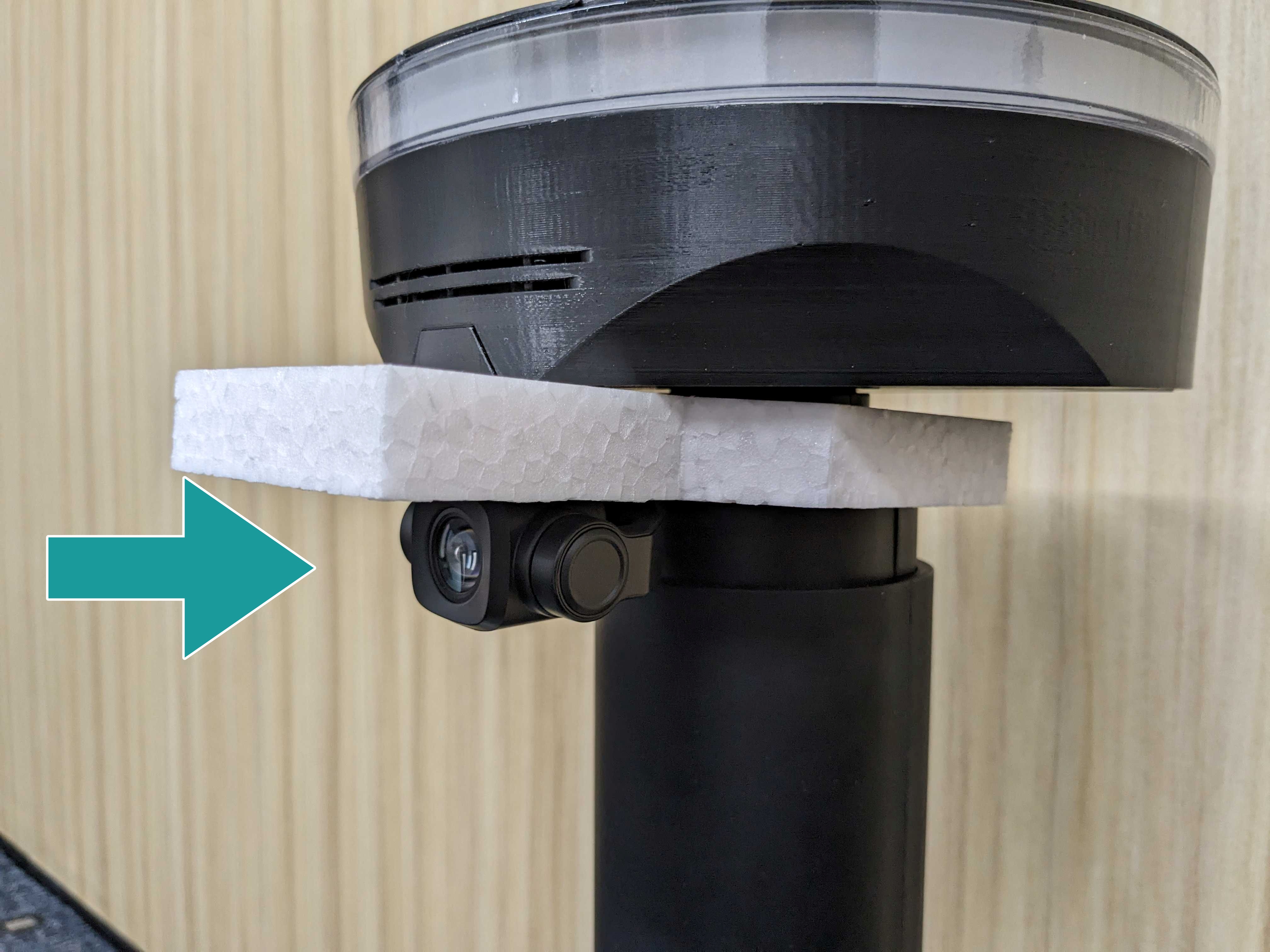

② Gently insert the cushioning material onto the top of the gimbal 4K camera, being careful not to shock the camera.
③ Put the ugo mini into the packaging box.

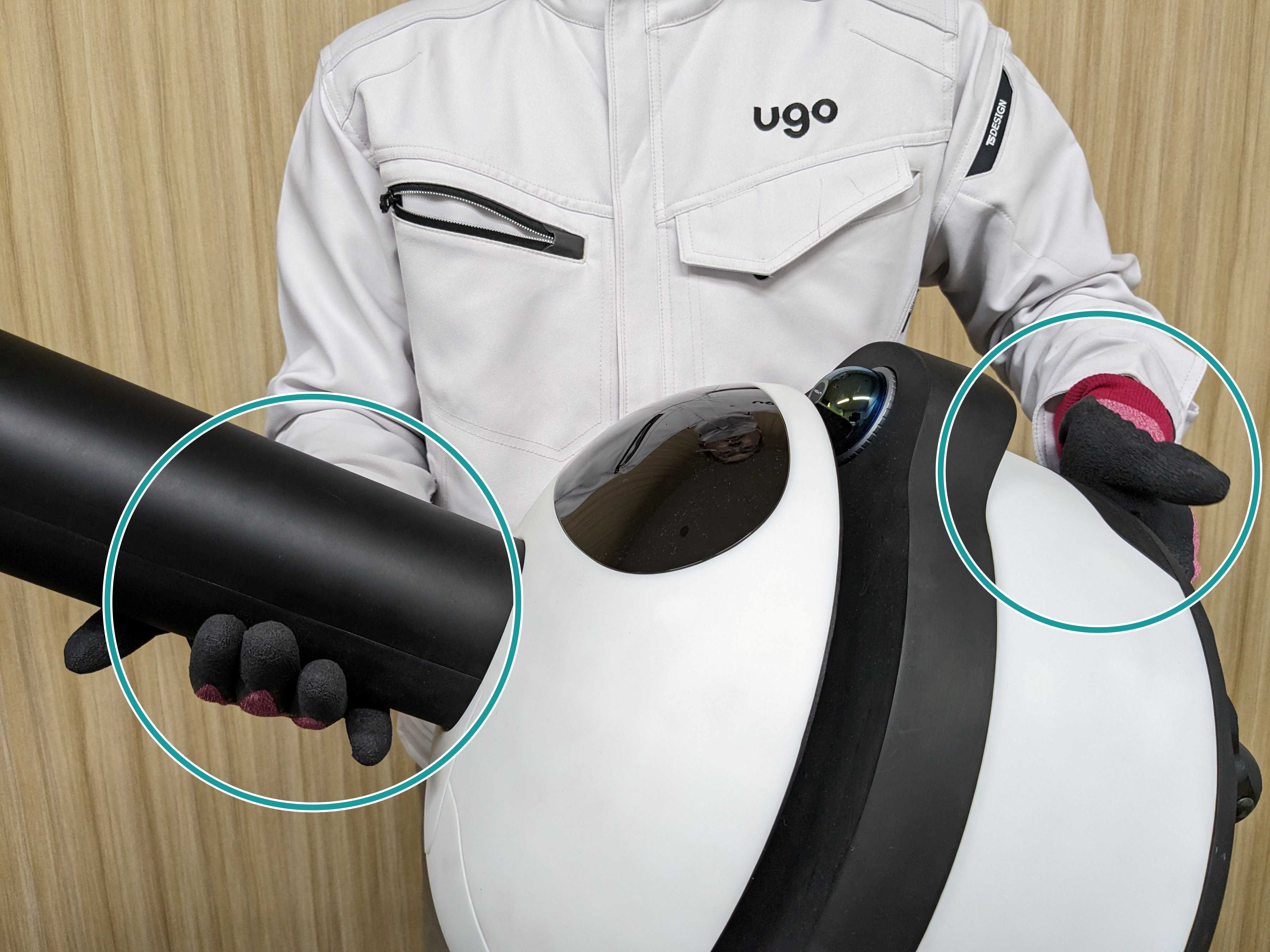

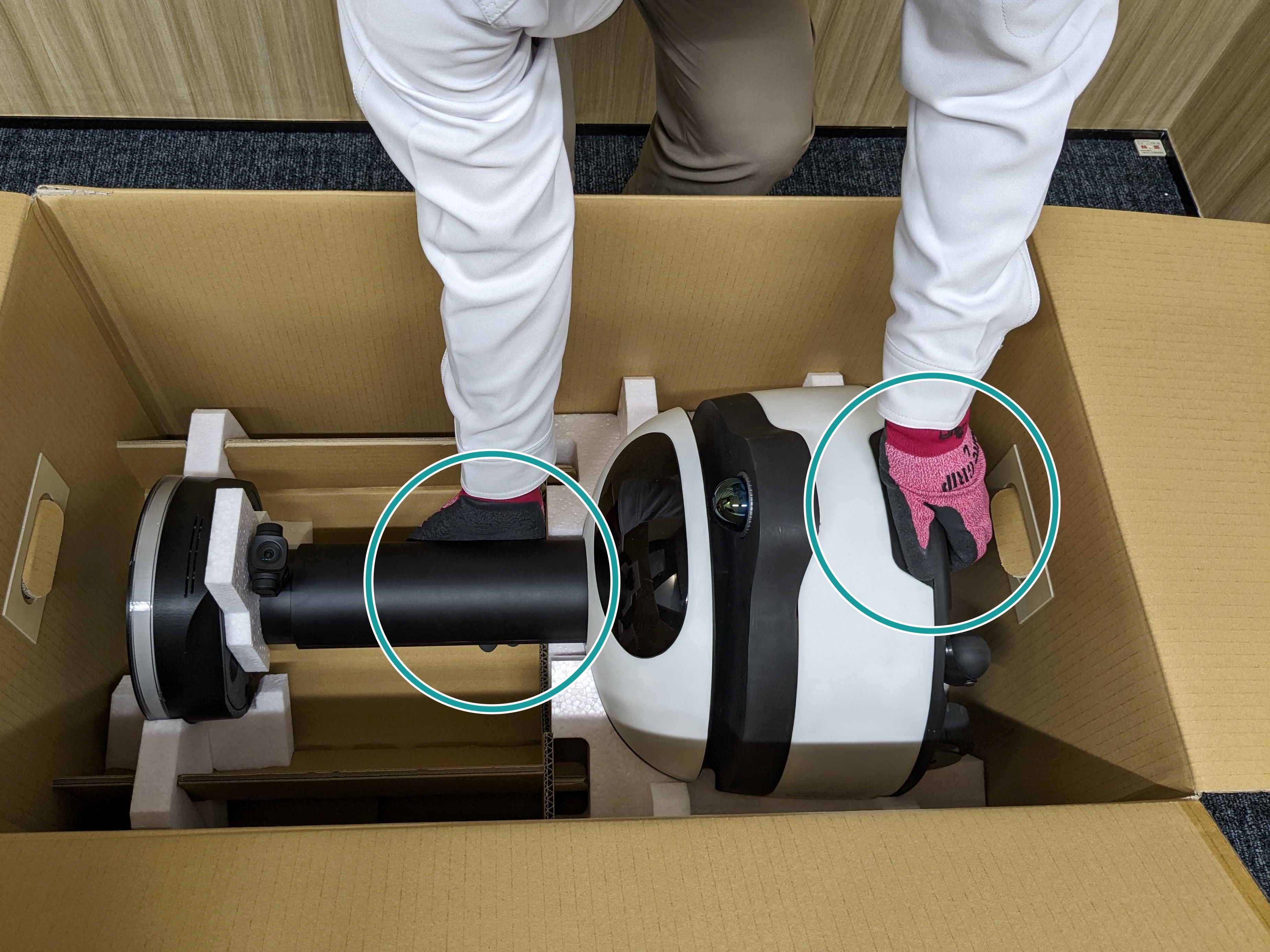

Hold the telescopic pole and the bottom, being careful not to apply too much force to the camera.
Hold the telescopic pole with your flat hand, supporting it from below, without pulling it.
*When returning the ugo mini to us, please put it in the plastic bag it came in before packaging it.

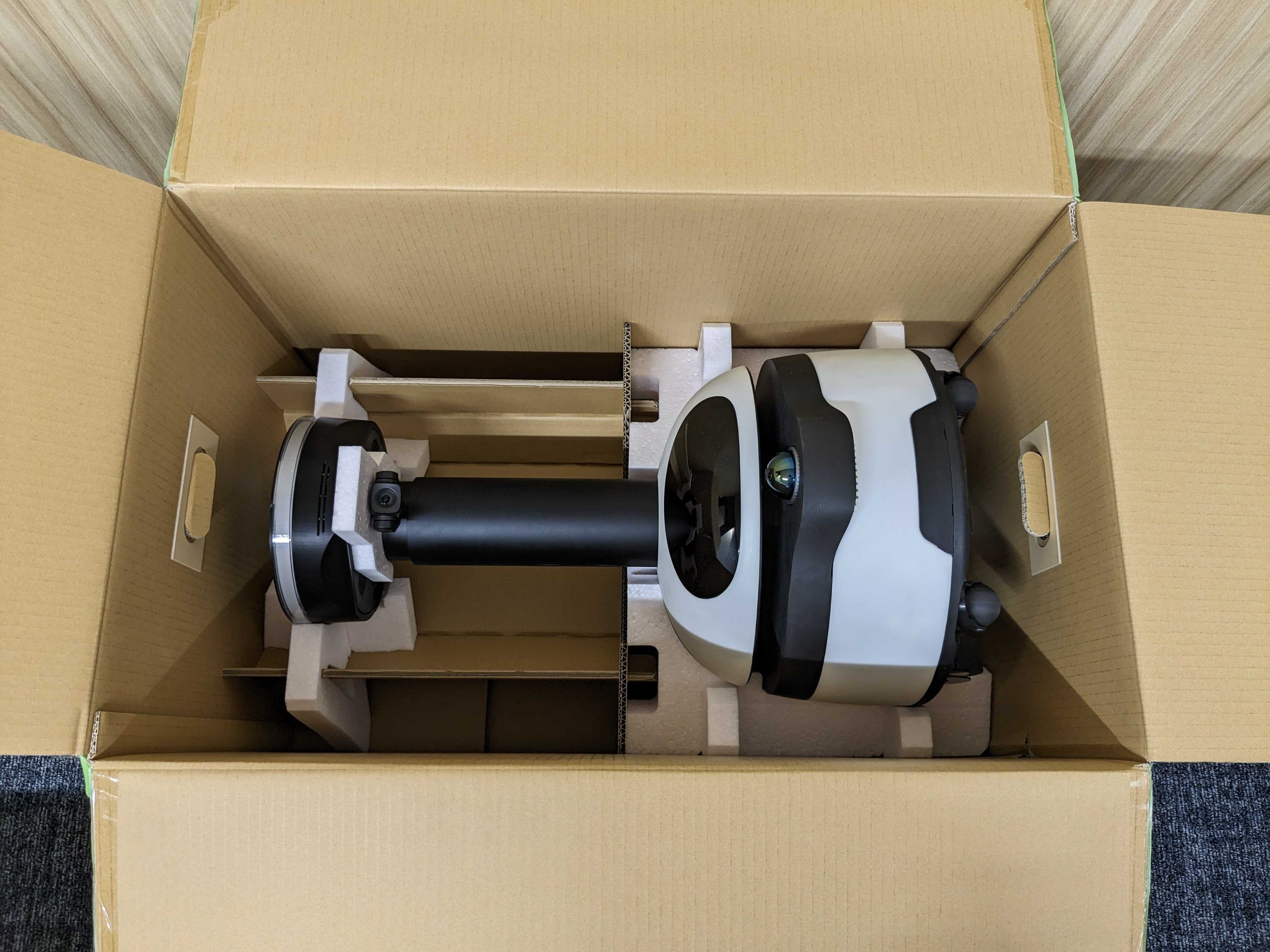

④ Store the ugo mini inside the packaging box, fitting it to the shape of the interior.

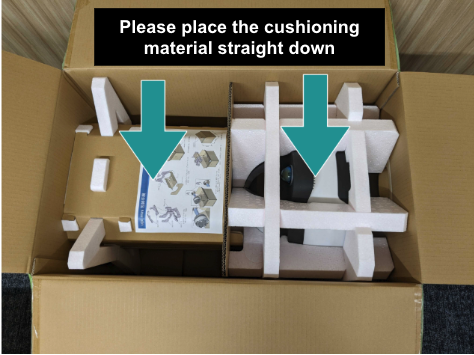

⑤ Place the two pieces of cushioning material over the camera.
Insert them straight down, being careful not to apply too much pressure to the camera.
⑥ Finally, seal the packaging box with masking tape and your ugo mini packaging is complete.
◆ Packing and disassembly of the ugo mini charging station

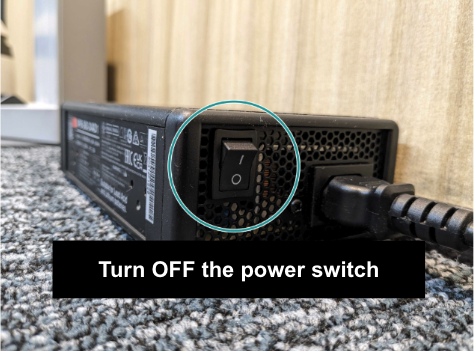

① Turn off the charger's power switch.
Check that the charger's charging status LED is off.
② Unplug the power cable from the outlet.

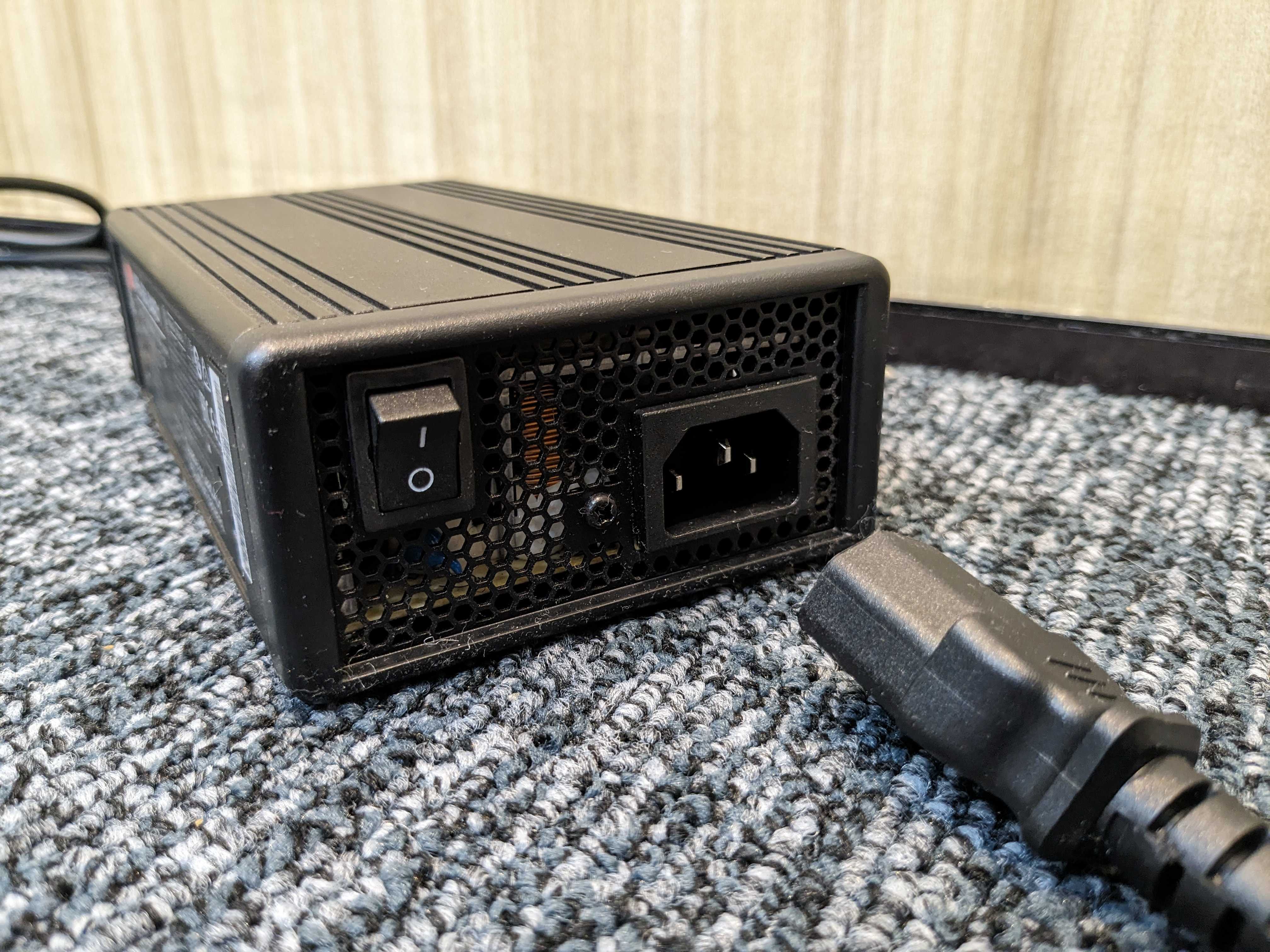

③ Remove the power cable from the charger.
*Please do this with the power cable not connected to a power outlet.

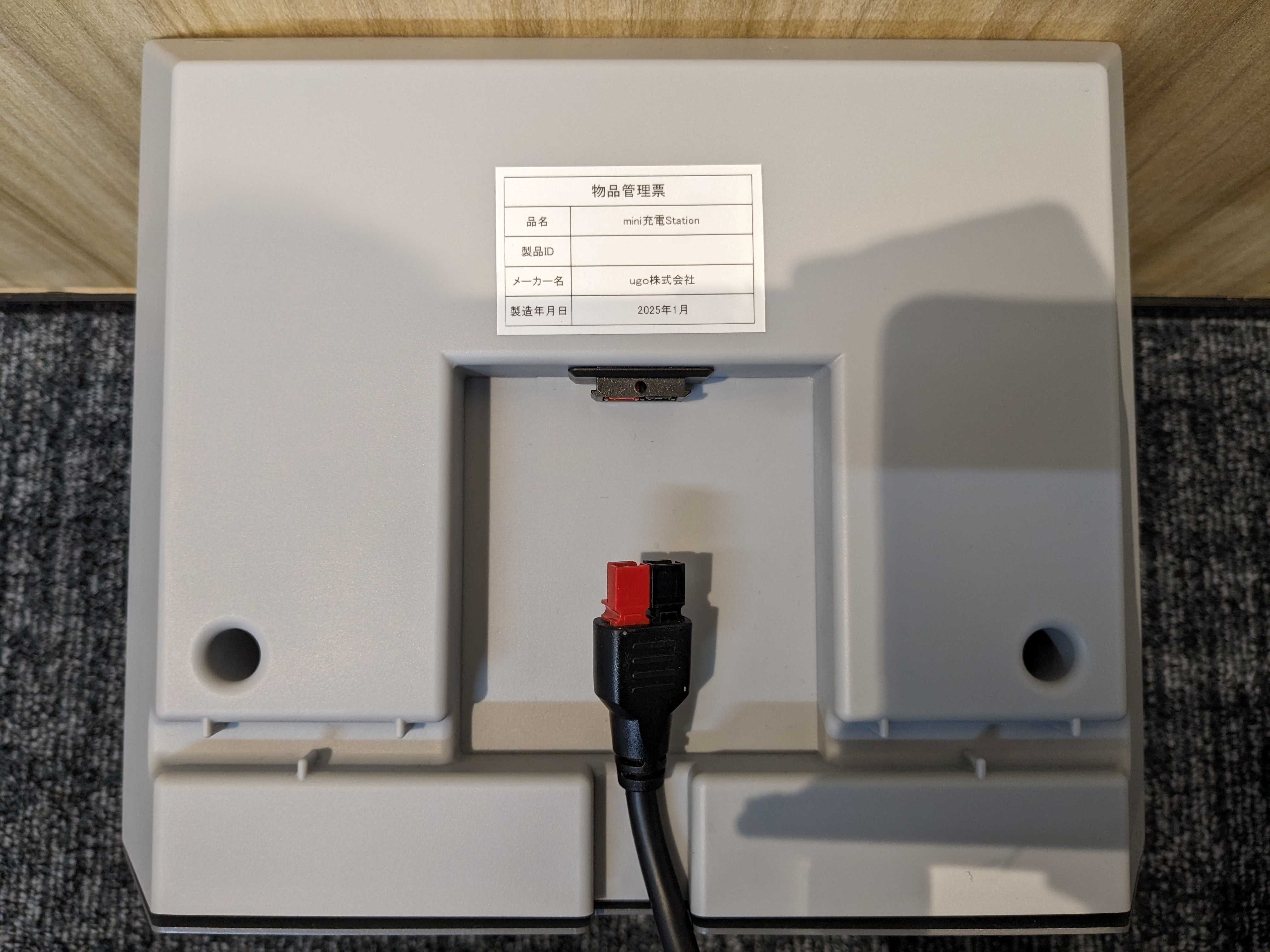

④ Unplug the charging connection cable from the back of the charging station.

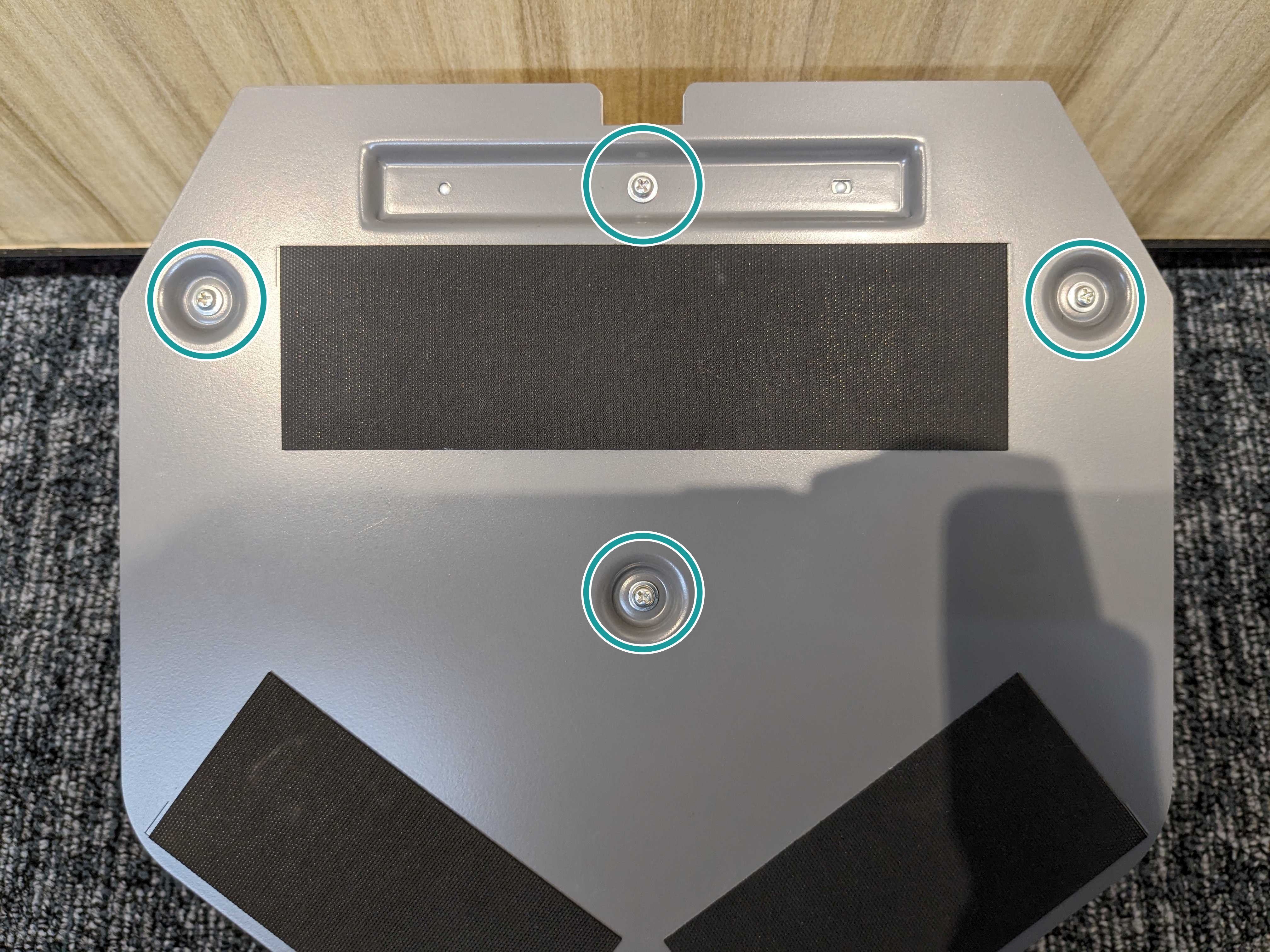

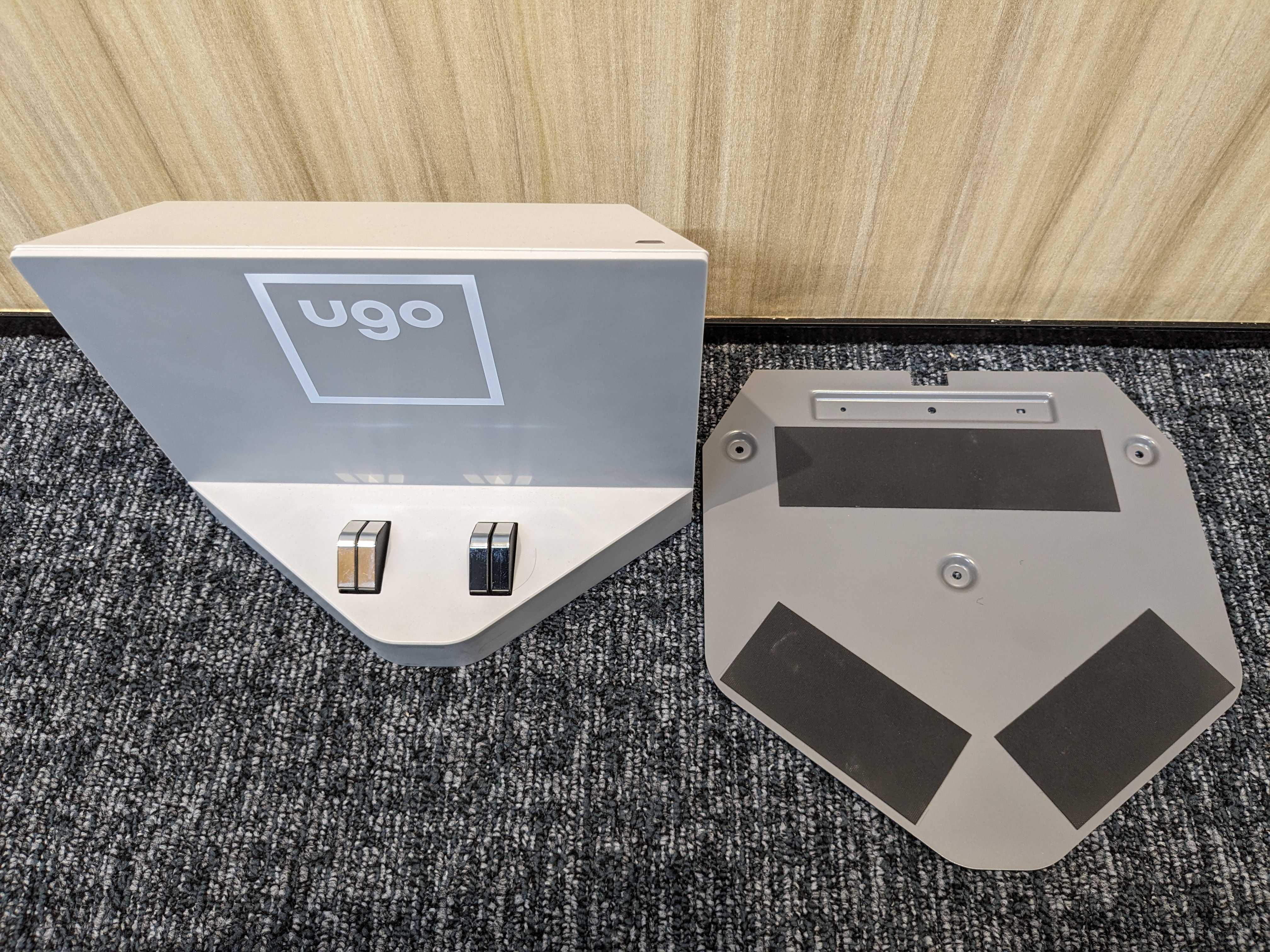

⑤ Remove the four screws securing the base plate on the bottom of the charging station and remove the base plate.

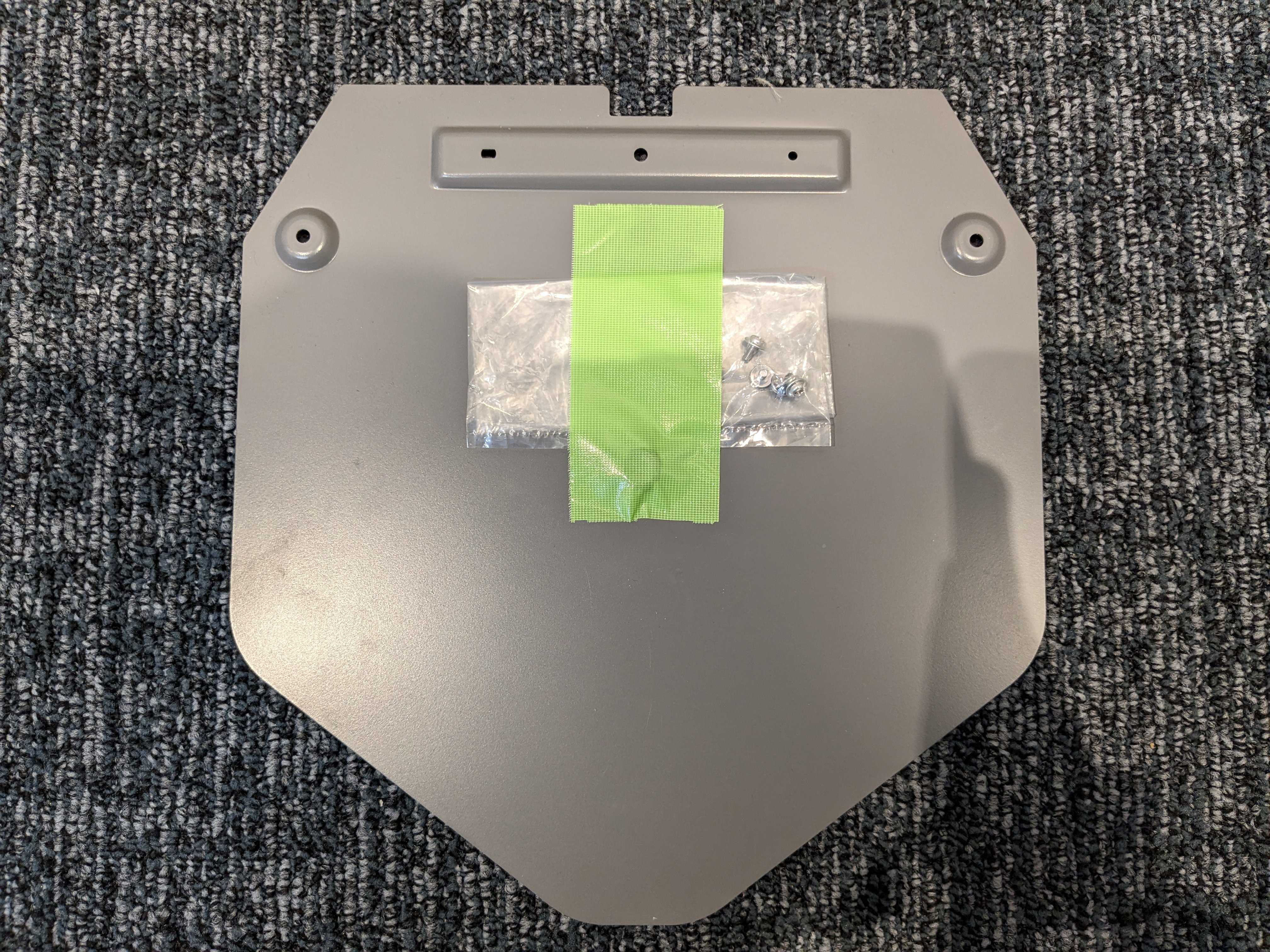

⑥ Place the removed screws in a bag and attach them to the base board.

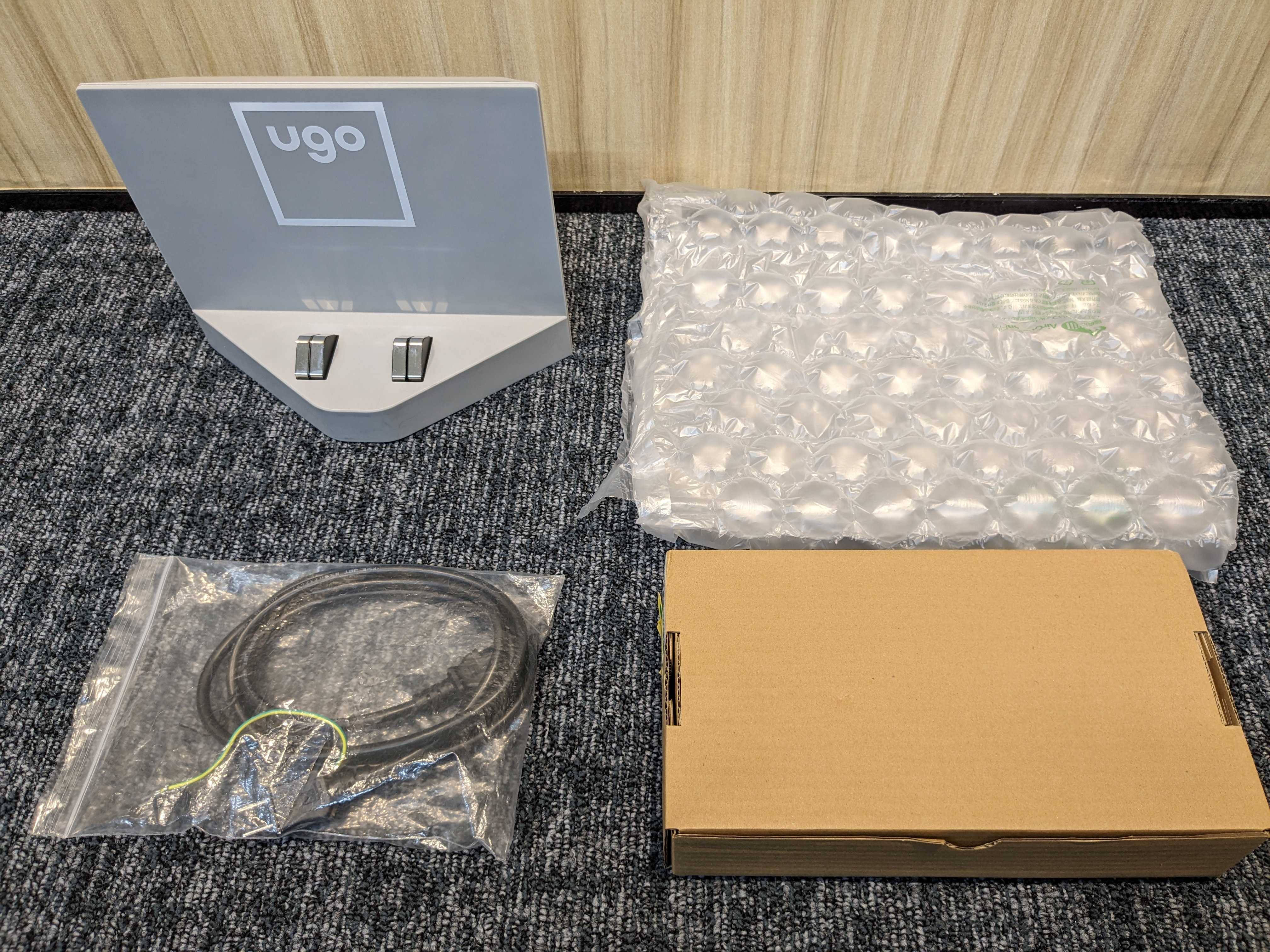

⑦ Store the charger, power cable, and base board in a cardboard box, bag, and cushioning material, respectively.

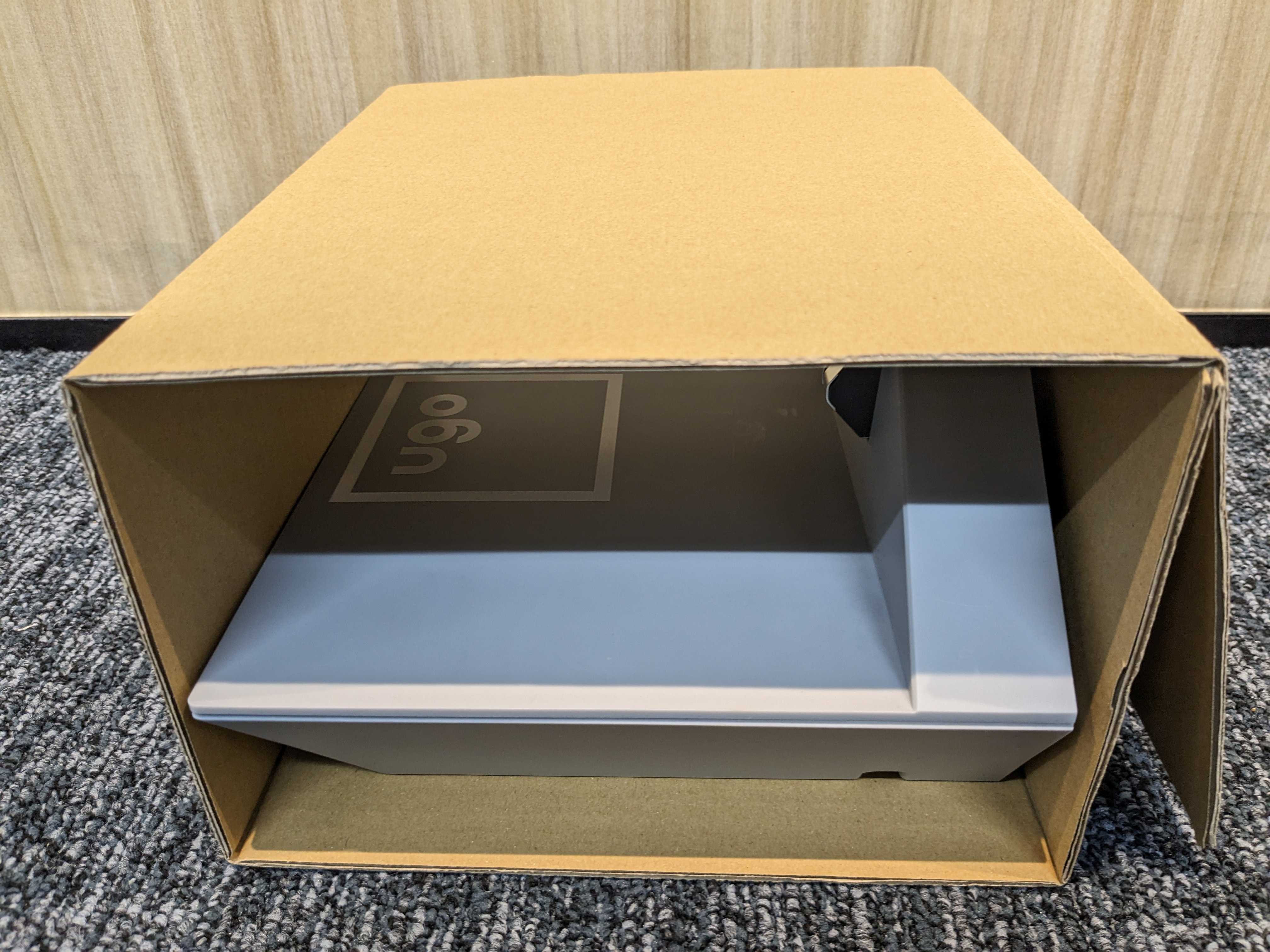

⑧ Cover the charging station with cardboard cushioning.
⑨ Place all protected items in the packaging box.

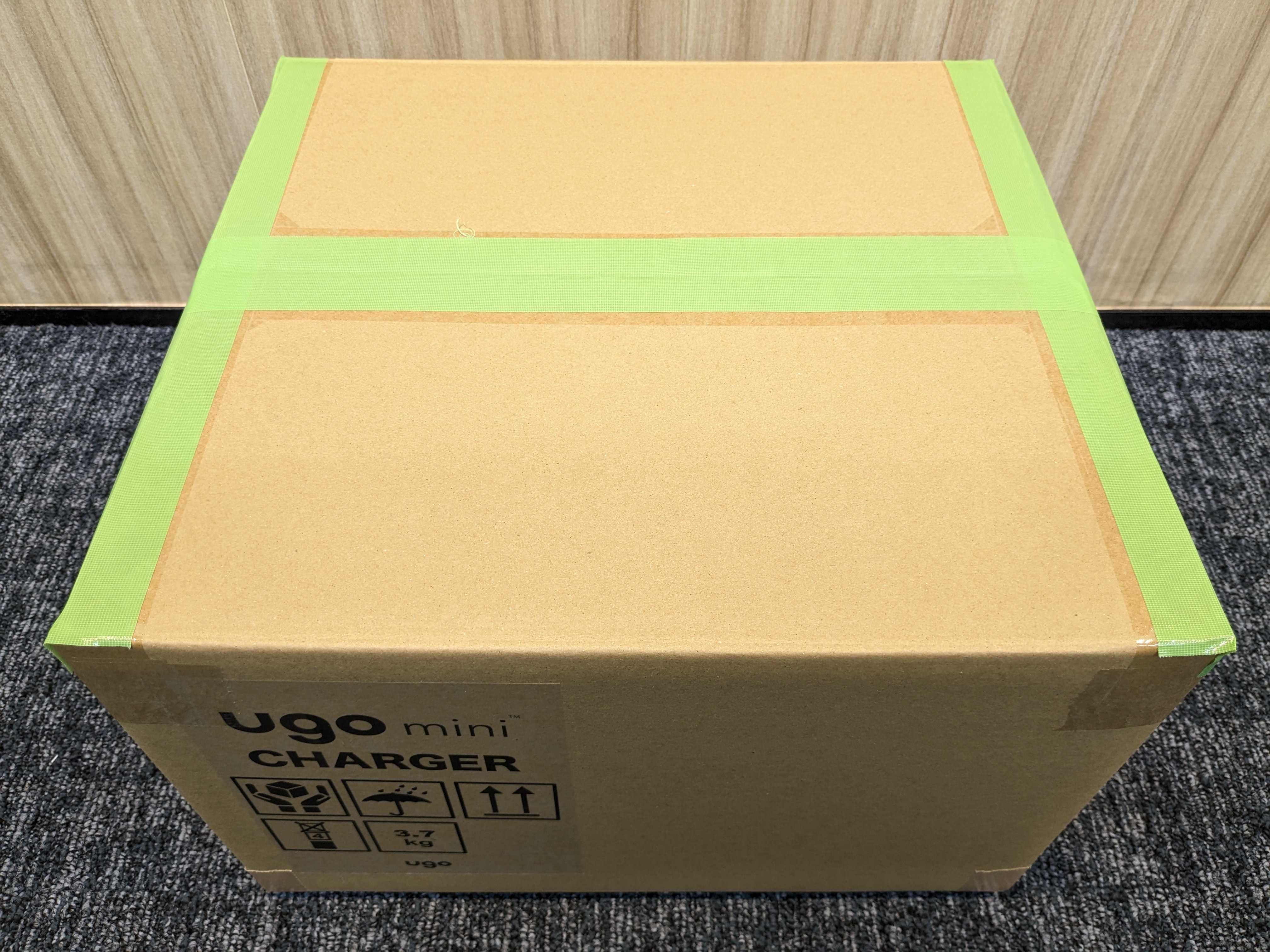

⑩ Finally, seal the packaging box with masking tape and the packaging of the ugo mini charging station is complete.
