Map Editor V1 Feature Description

This page explains the new features of Map Editor V1 implemented in ugo Portal Ver.1.11.4 .

*This function is being implemented on a trial basis, and we do not guarantee its accuracy or quality. It is currently being offered in beta, and the function may become unavailable or its specifications may change without notice.

◆ Table of Contents

- Map editor screen

- How to operate on the canvas

- Side panel

- Three lines next to the route name

◆ Map editor screen

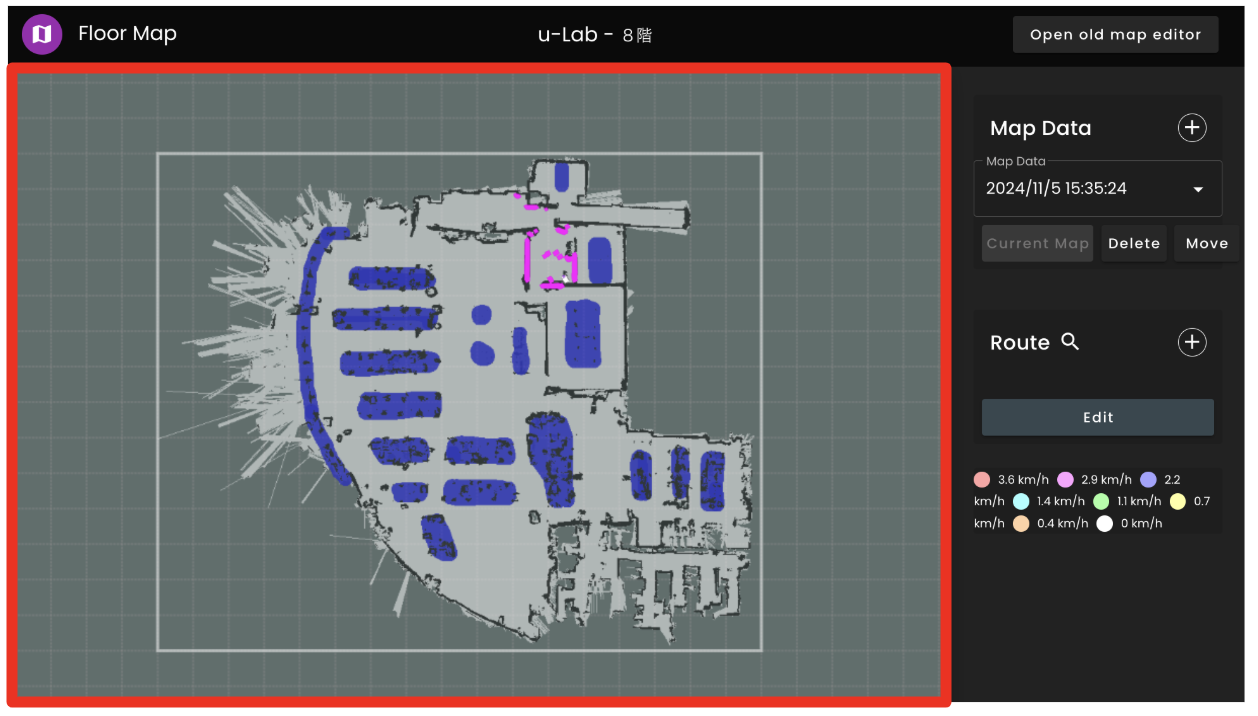

- Grid lines are now displayed on the area (canvas) where you can create a map.

◆ How to operate on the canvas

Mouse wheel rotation	Canvas zoom
Right drag	Moving the canvas display area
Left drag	Rectangle Selection
Drag the cart icon while holding down "Change position"	Cart icon moves
With "Change position" pressed Hover over the ugo icon + << E key / R key >>	Cart icon spinning ≪ E key: Rotate left / R key: Rotate right ≫
Double click *1 *2	Create a new waypoint
Left click / Shift + left click on waypoint	Waypoint selection (multiple selections possible)
Hover over a waypoint / Select + << D key or Delete key >>	Delete Waypoint
Hover over waypoint / Select + Left drag	Waypoint movement (multiple movement possible)
Hover over/select waypoint + << E key / R key >>	Waypoint rotation (multiple rotations possible) ≪ E key: Rotate left / R key: Rotate right ≫

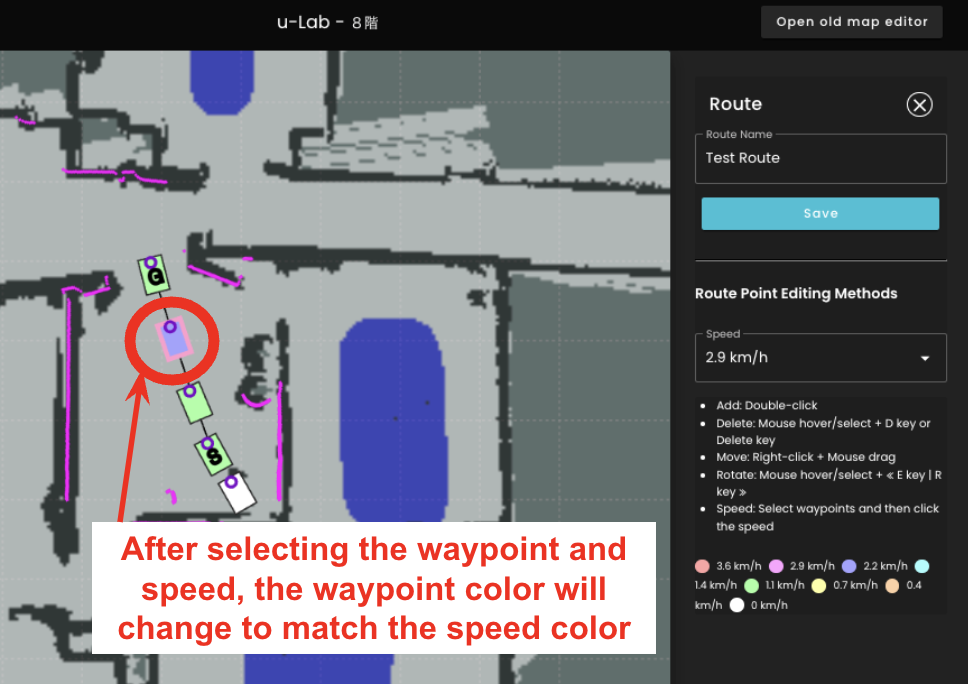

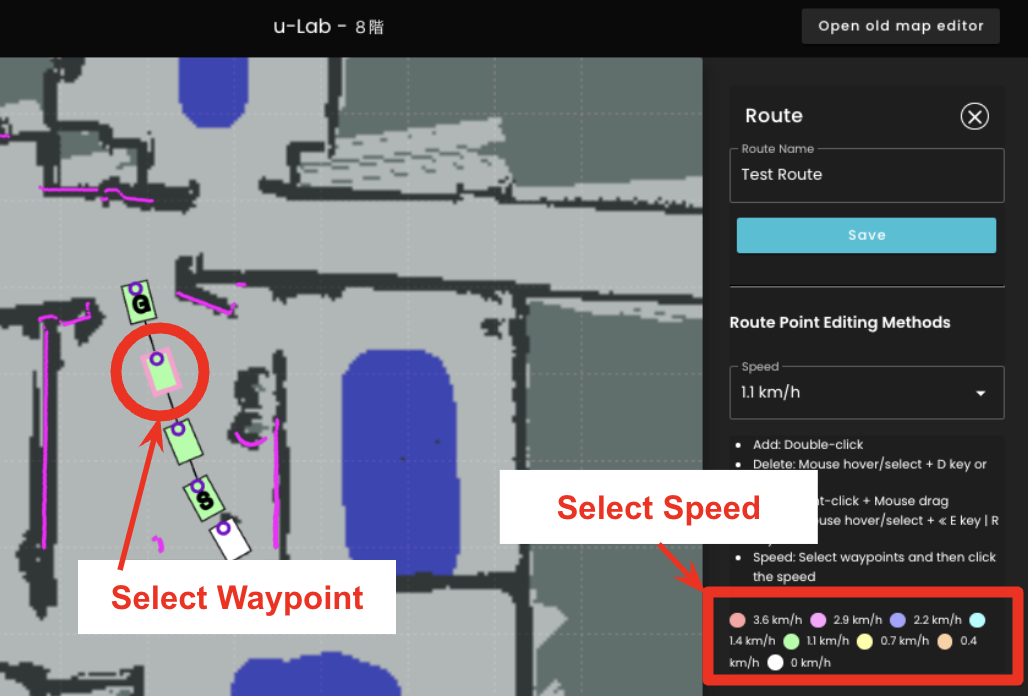

Click the speed button after selecting a waypoint *3	Waypoint Speed ​​Change

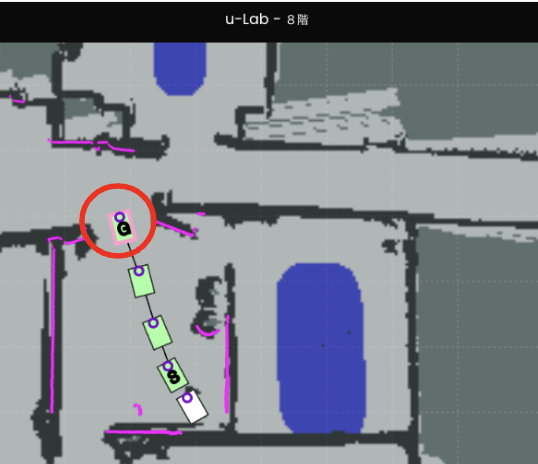

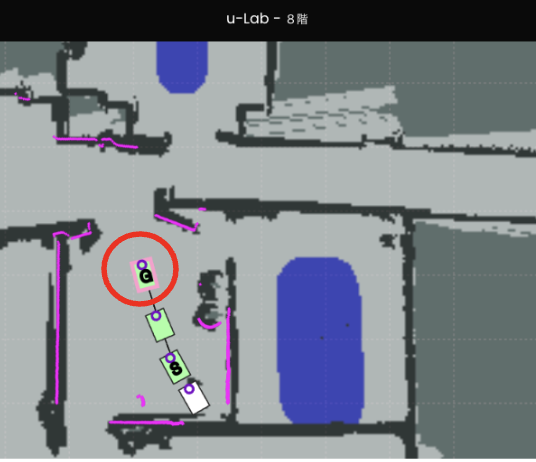

*1 If you double-click the end waypoint, you can create a new waypoint beyond the end point.

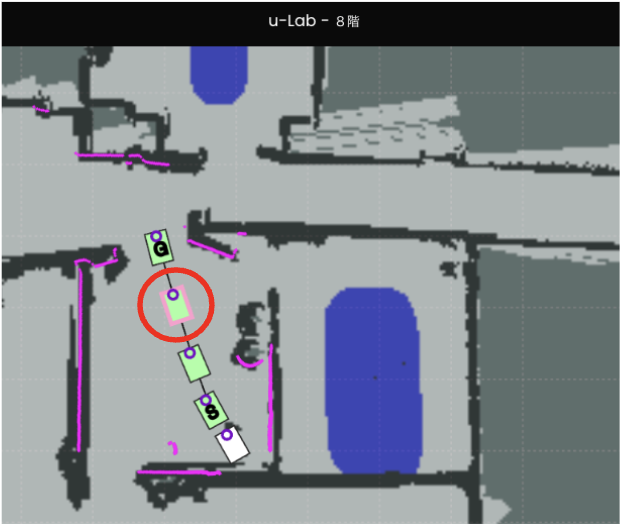

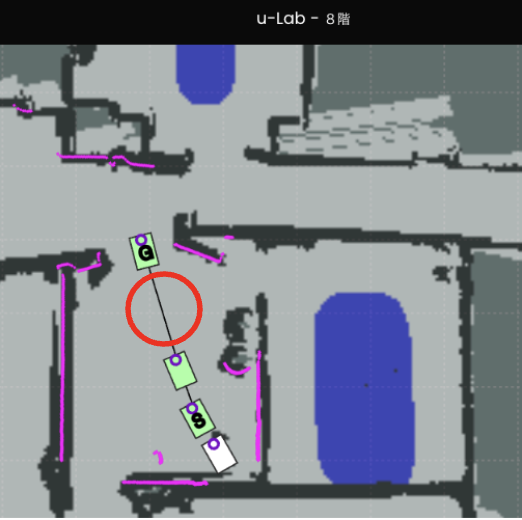

*2 Select a waypoint and double-click on the line connecting two waypoints to create a new waypoint in between.

*3 Select a waypoint and click the speed button to change to the selected speed.

◆ Side Panel

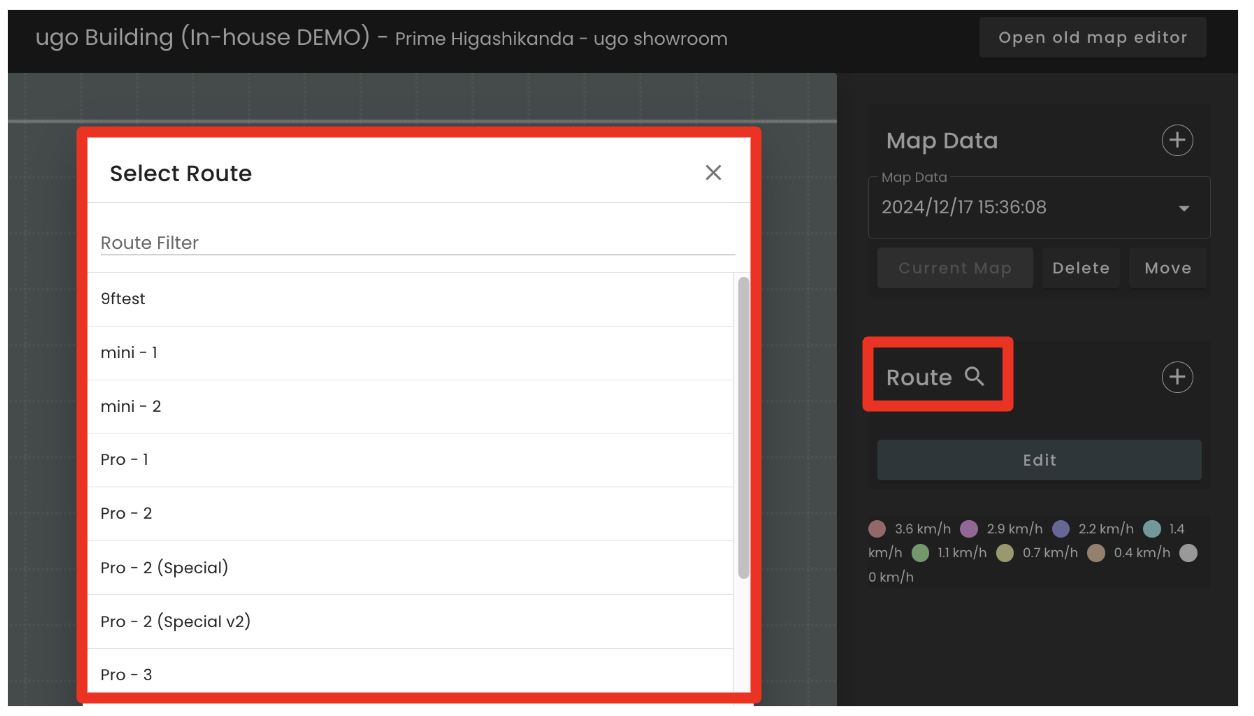

Click the 🔍 icon to the right of the route	The route selection screen appears.

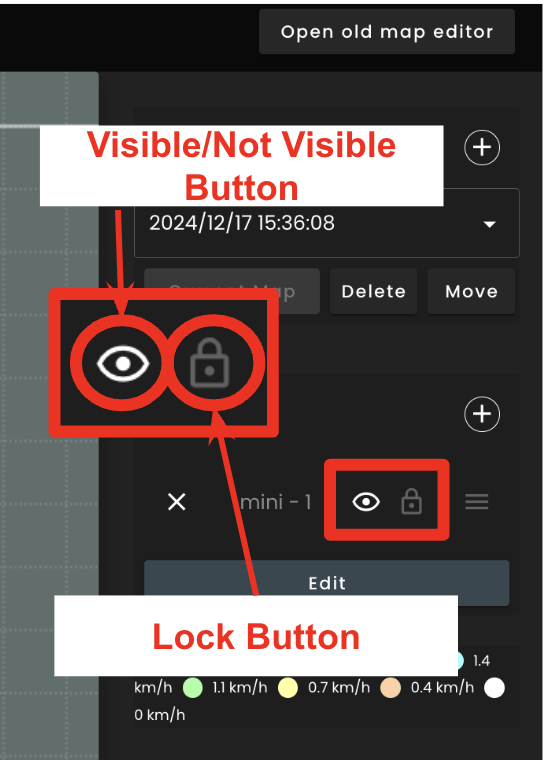

Click the Show/Hide button	Show/hide route on map editor
Click the lock button	Lock route (selectable/unselectable waypoints)

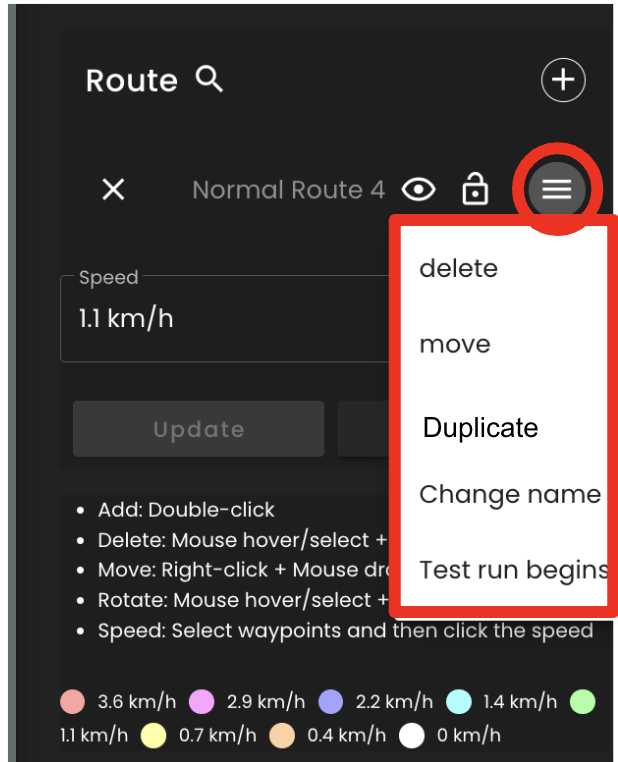

◆ Three lines next to the route name

Delete	Delete the selected route
Move	Move the selected route data to another floor
Duplicate	Duplicate selected route data
Change name	Edit the name of the selected route
Test run begins	Start test driving the selected route
