Precautions when assembling
- Please ensure there is enough space to work.
- Assembly should be done by two or more people as long items are involved.
- Please be aware of people and objects around you as long items are handled during assembly.

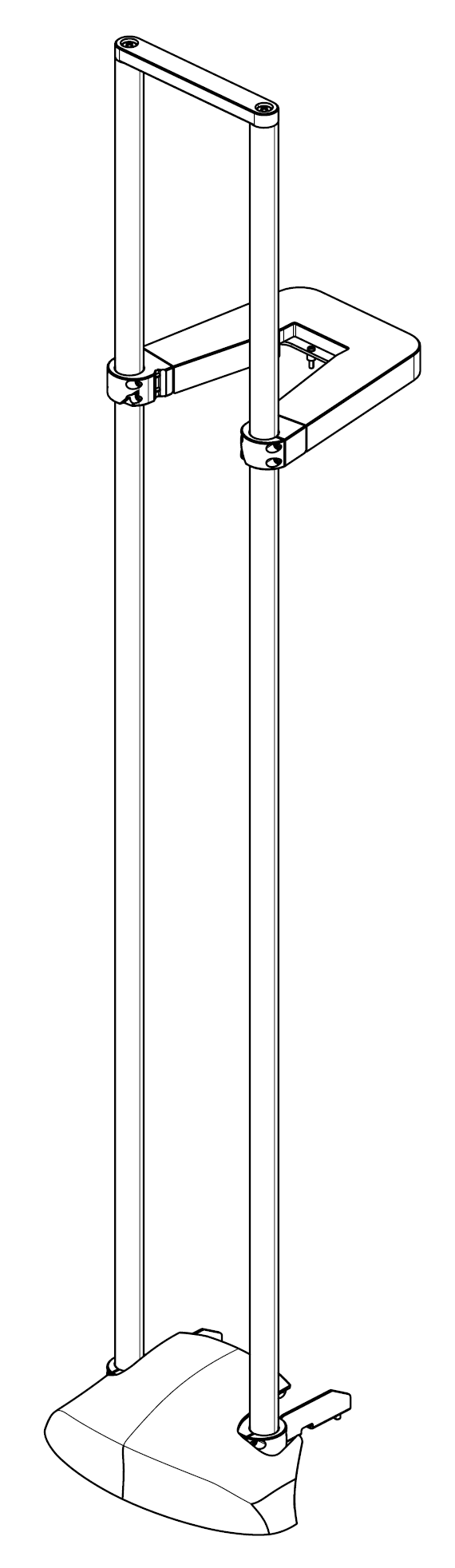

Completed drawing of pole option

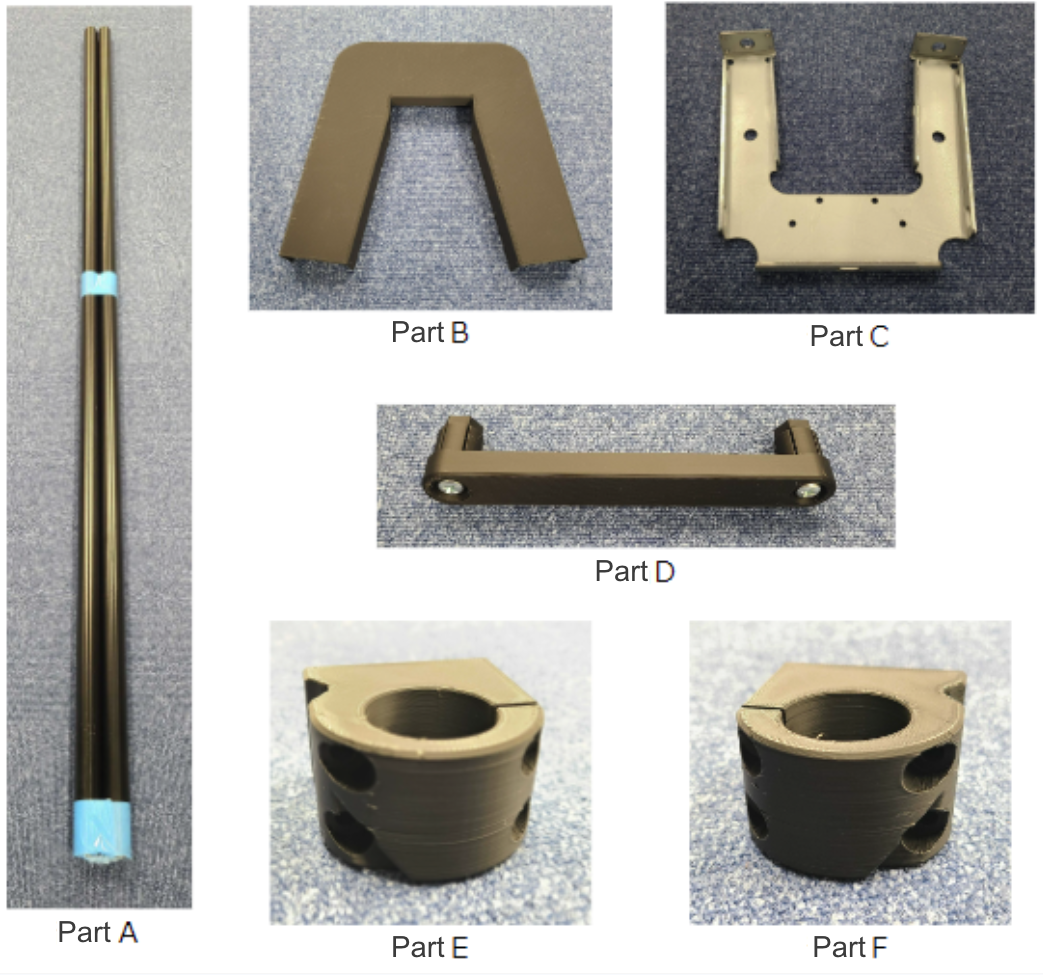

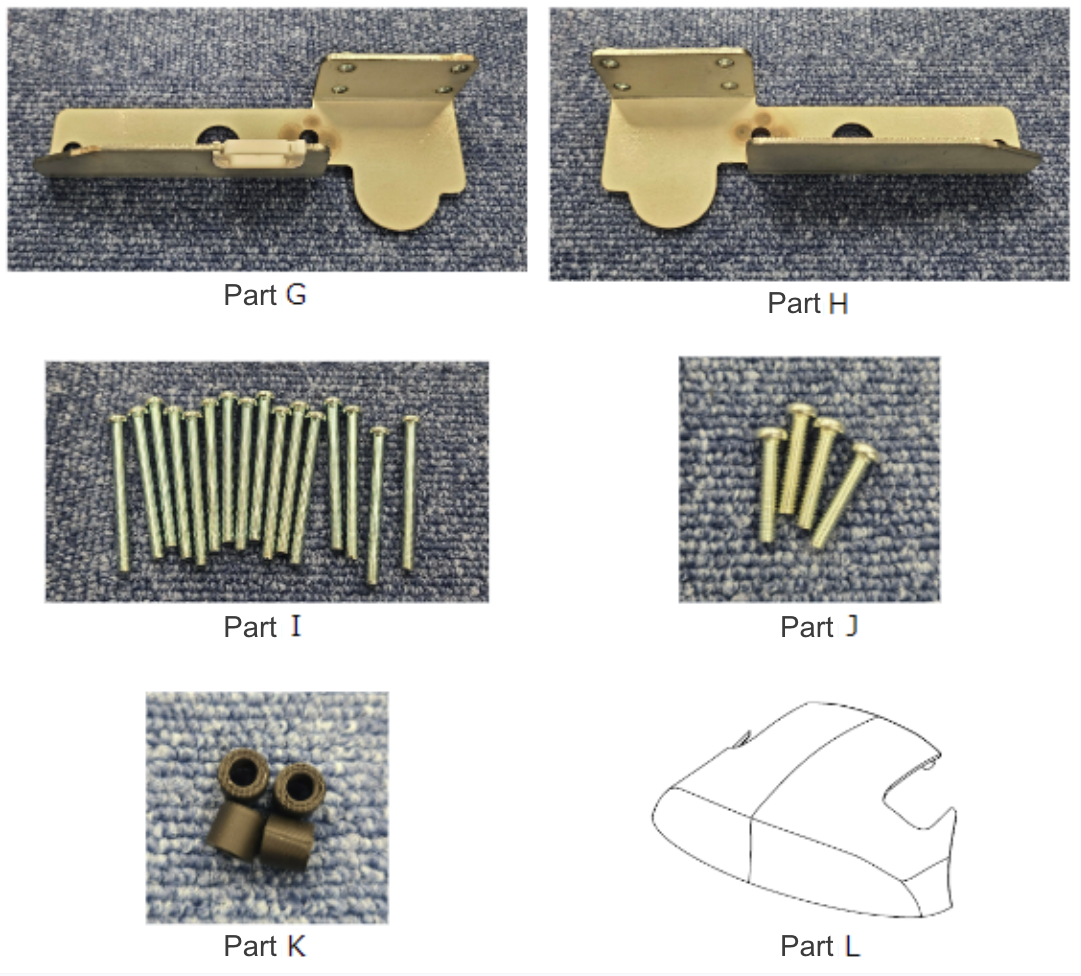

Pole Optional Accessories
- Part A: Pole x 2
- Part B: Fixture cover (lifter part) x 1
- Part C: Fixing device (lifter part) x 1
- Part D: Ball joint x 1
- Part E: Fixing device (for left side of cart) x 1
- Part F: Fixing device (for right side of cart) x 1
- Part G: Pole fixing device (for left) x 1
- Part H: Pole fixing device (right) x 1
- Part I: Screws (large) x 16
- Part J: Screws (small) x 4
- Part K: Cushioning material x 4 pieces
- Part L: Bumper cowl x 1
【Note】
If the pole option is shipped at the same time as the aircraft, part L will be shipped attached to the aircraft.
Assembly work

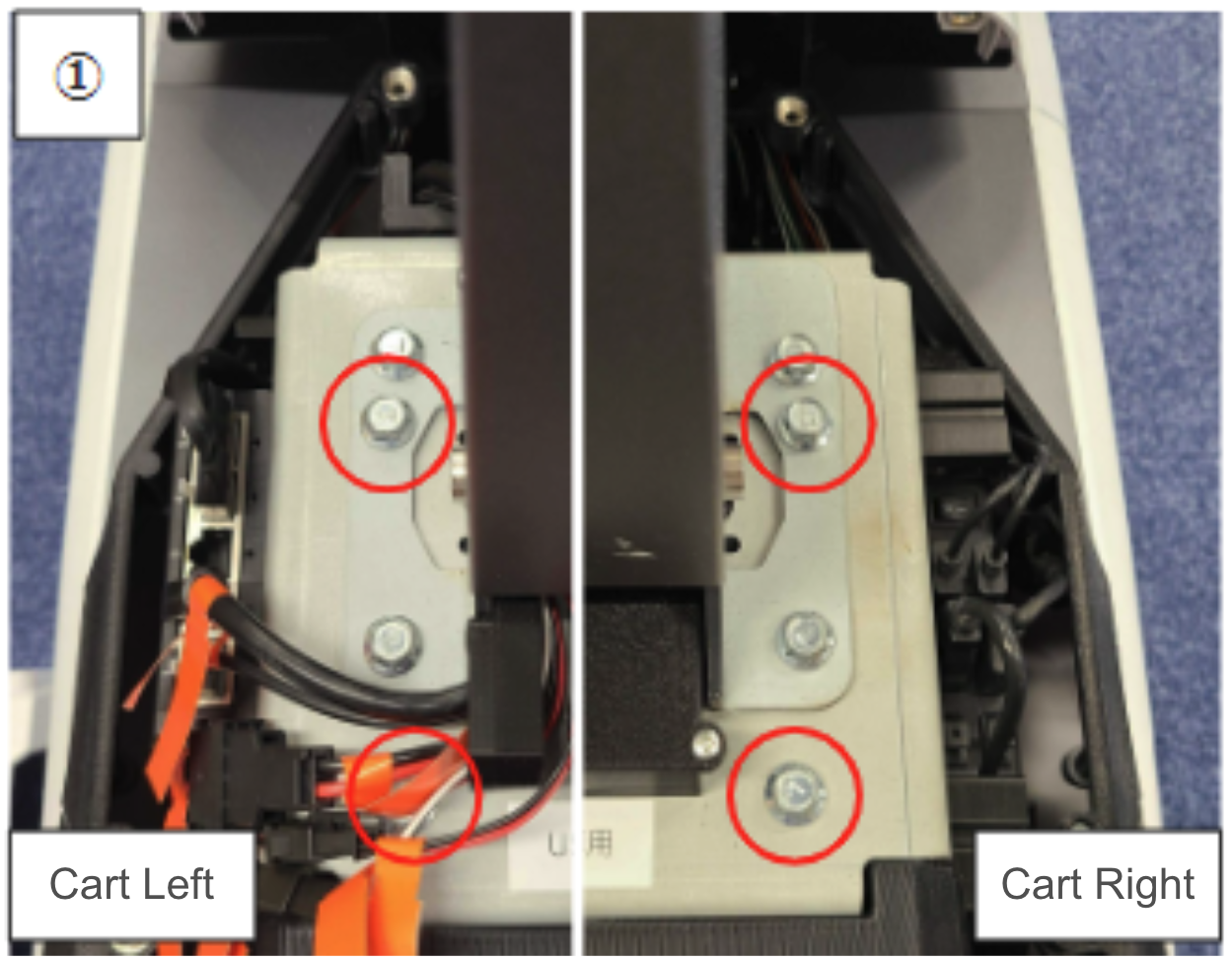

① Remove the cart cowling from the aircraft to which you will be installing the pole option.
The bolts in the red circle on the left (bolts that secure the lifter to the cart)
Use a spanner or box wrench to remove the two parts on each side of the cart.

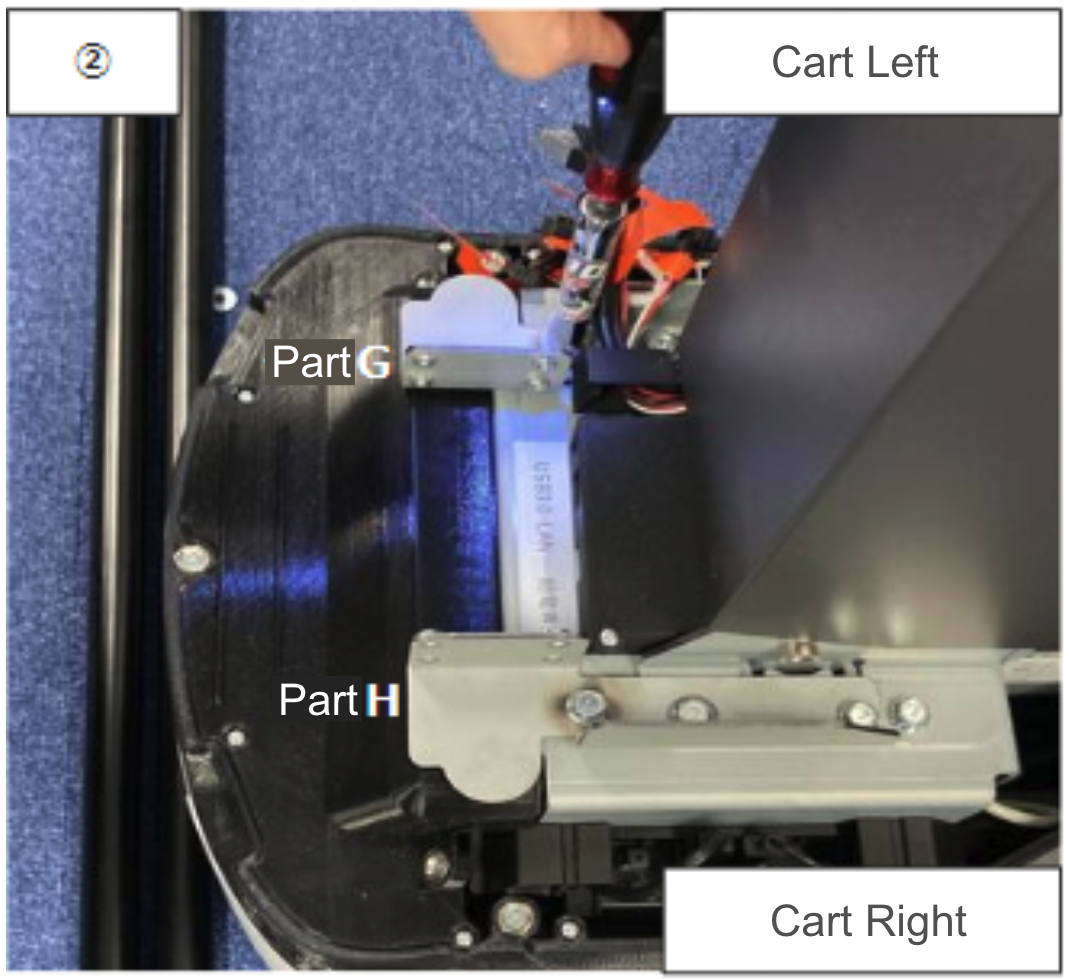

②Use a box socket and bolts to temporarily fix parts G and H to the left and right sides of the cart.
(Use the bolts removed in step ①. Also, parts G and H have different left and right sides.)

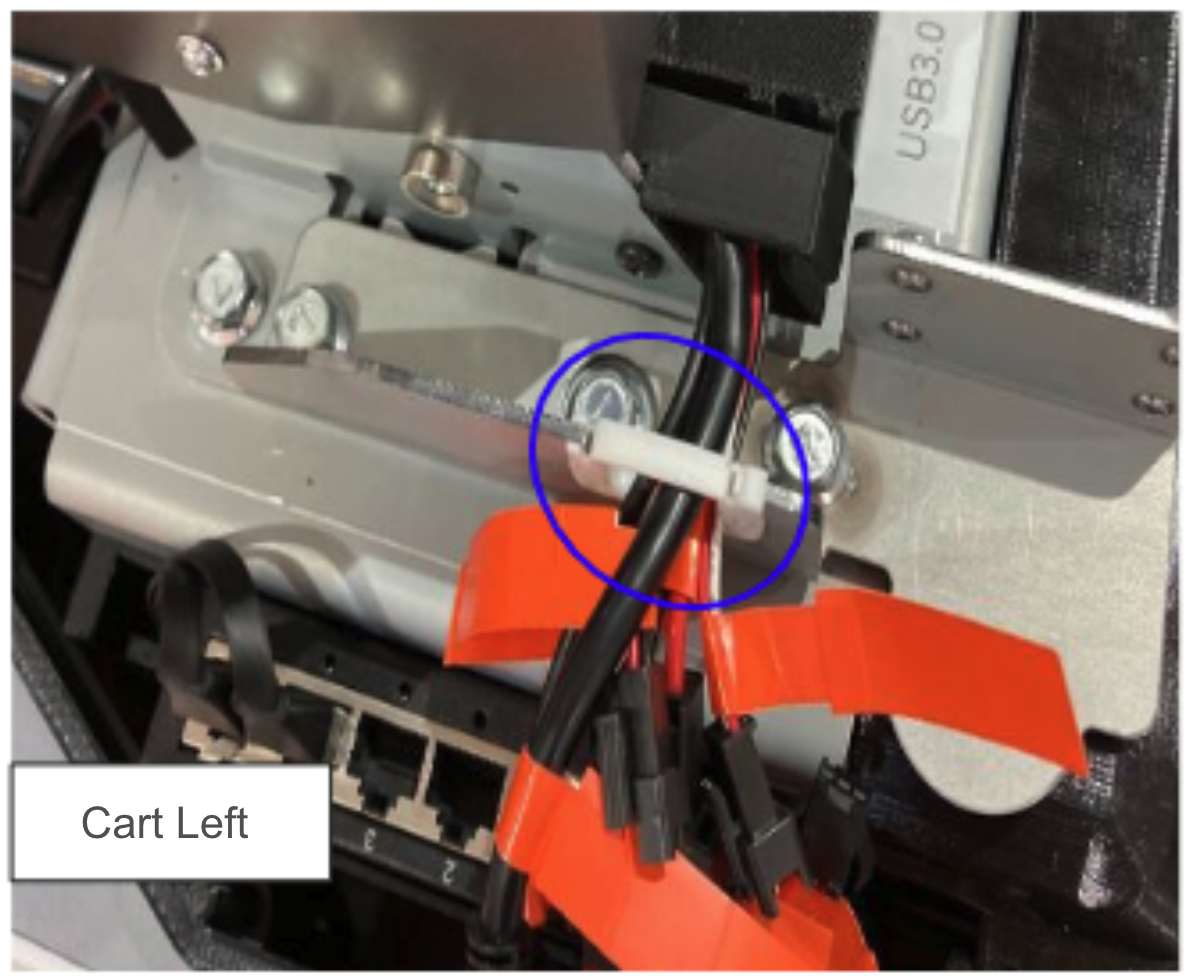

Part G (with cable clip): Used on the left side of the cart
[See figure below]

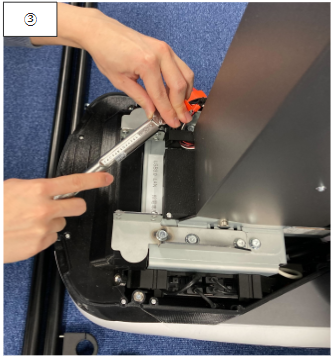

③ After temporarily fixing the bolts in ②, use a torque wrench to tighten the bolts to a torque of 5.2 [N・m].

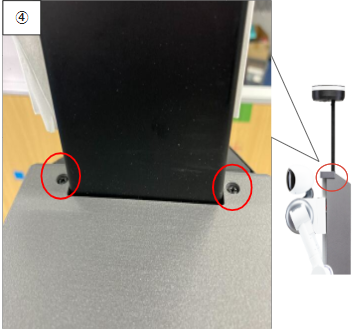

④ After removing the Phillips head screw ( red circle in the left image) used to attach the lifter cover , remove the lifter cover.

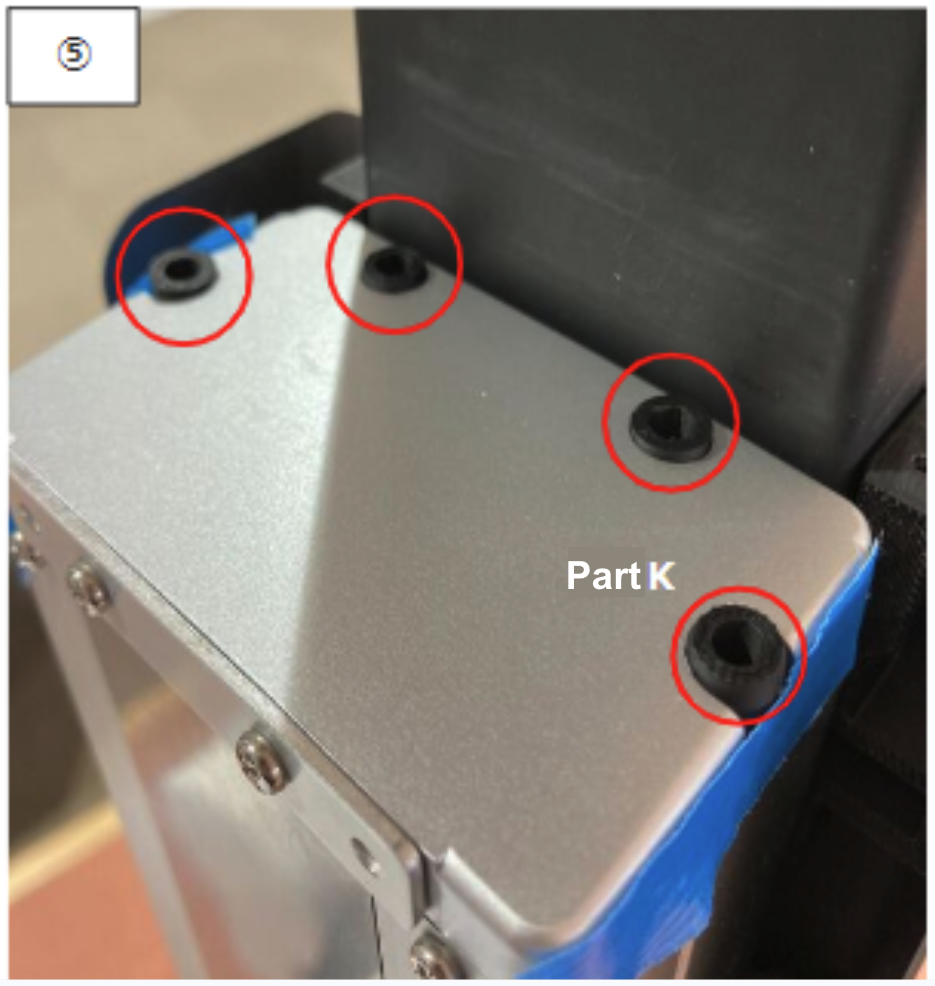

⑤Insert part K into the four recesses on the top of the lifter .
* At this time, please fix the side of part K with masking tape etc. so that part K does not fall off.

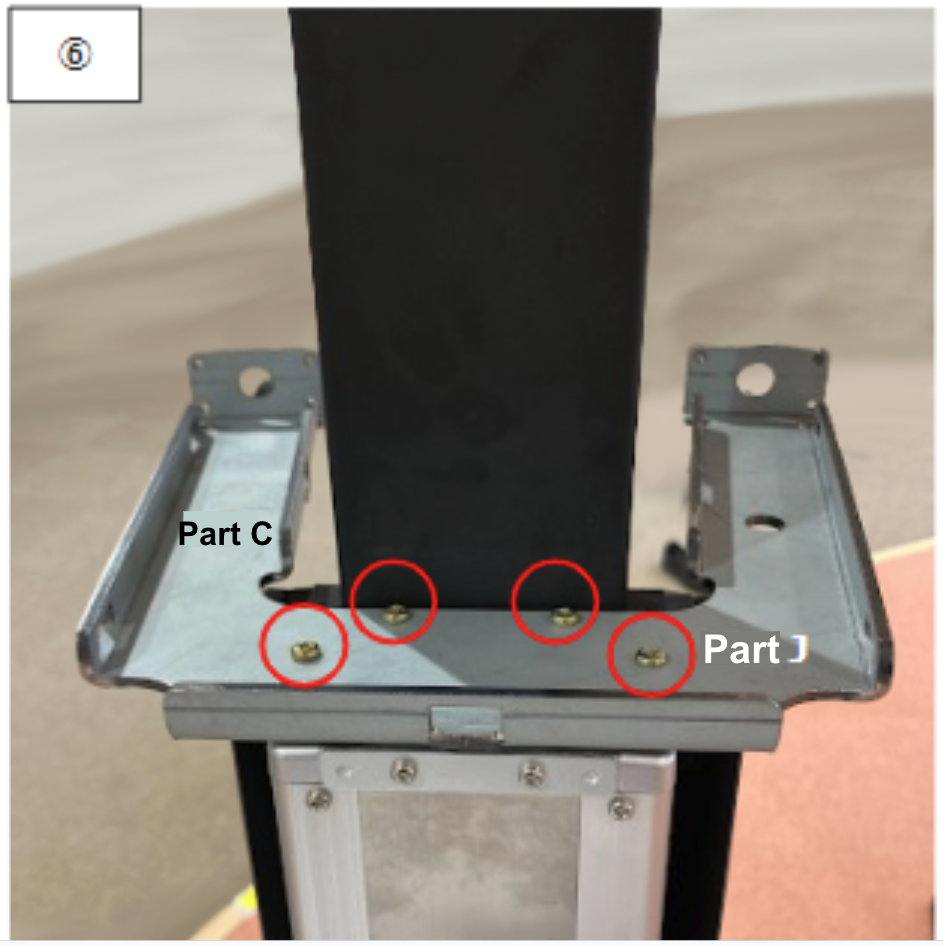

⑥ Place part C on the top of the lifter so that the hole of part K overlaps with the position of part C, and secure it with part J (small cross head screw).

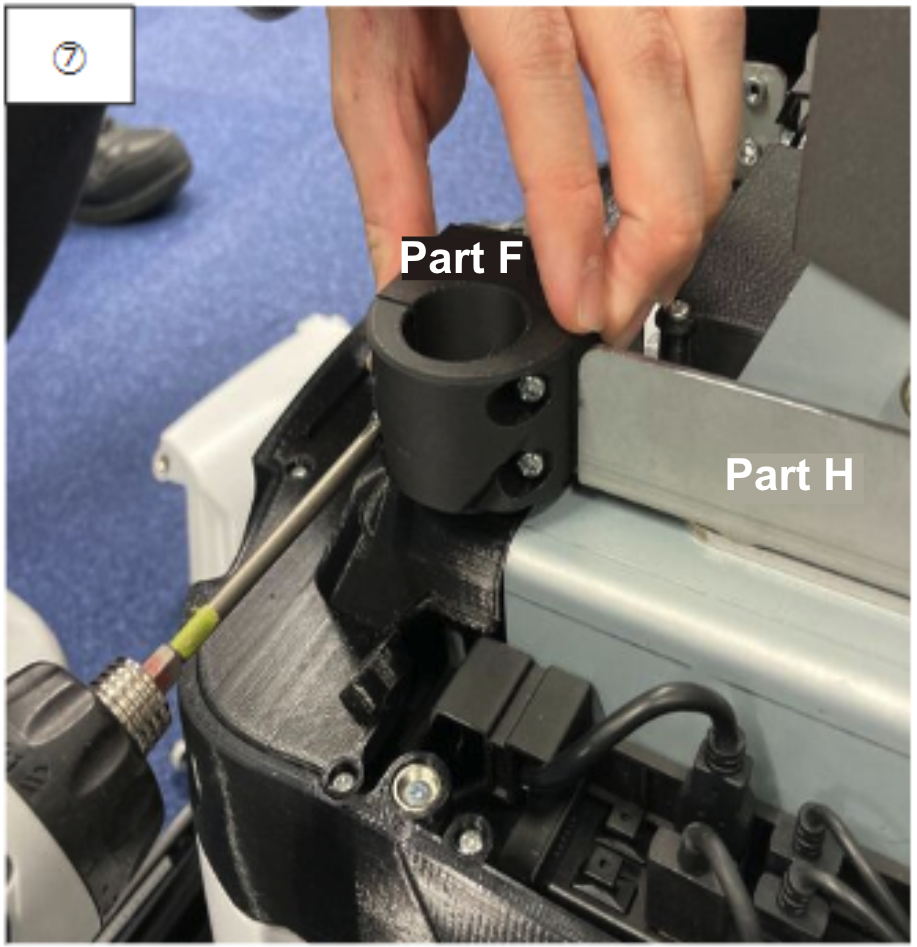

⑦Use part I (large Phillips screw) to secure parts E and F to parts G and H.

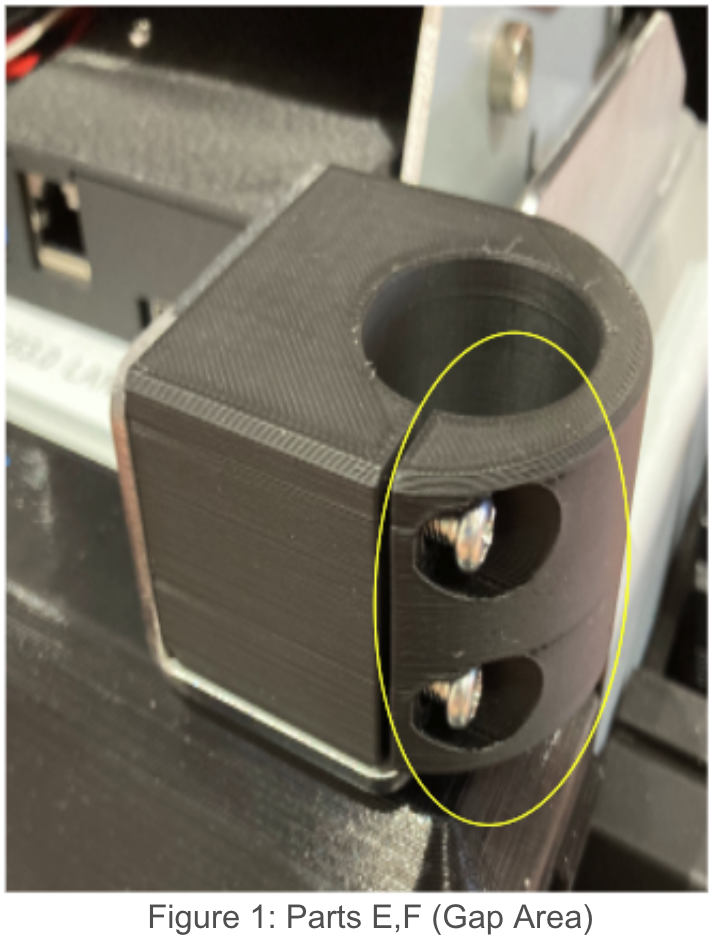

* At this time, use the screws on the side with the gap between parts E and F as temporary fixation (see Figure 1).
⇒To insert the pole in step ⑧

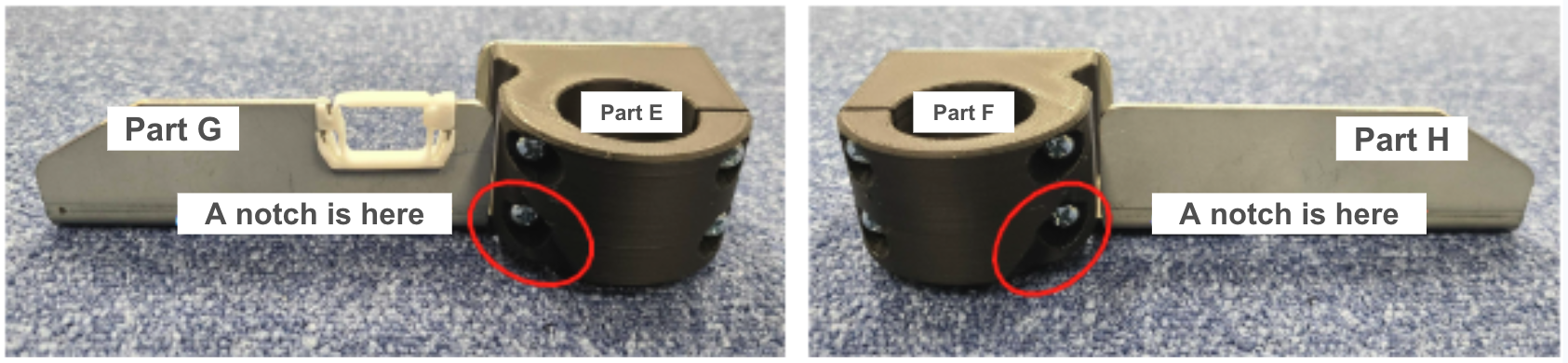

*Please be careful about the left and right of parts E and F (see Fig. 2. They can be distinguished by the position of the notch).
⇒ Attach part E to part G, and part F to part H

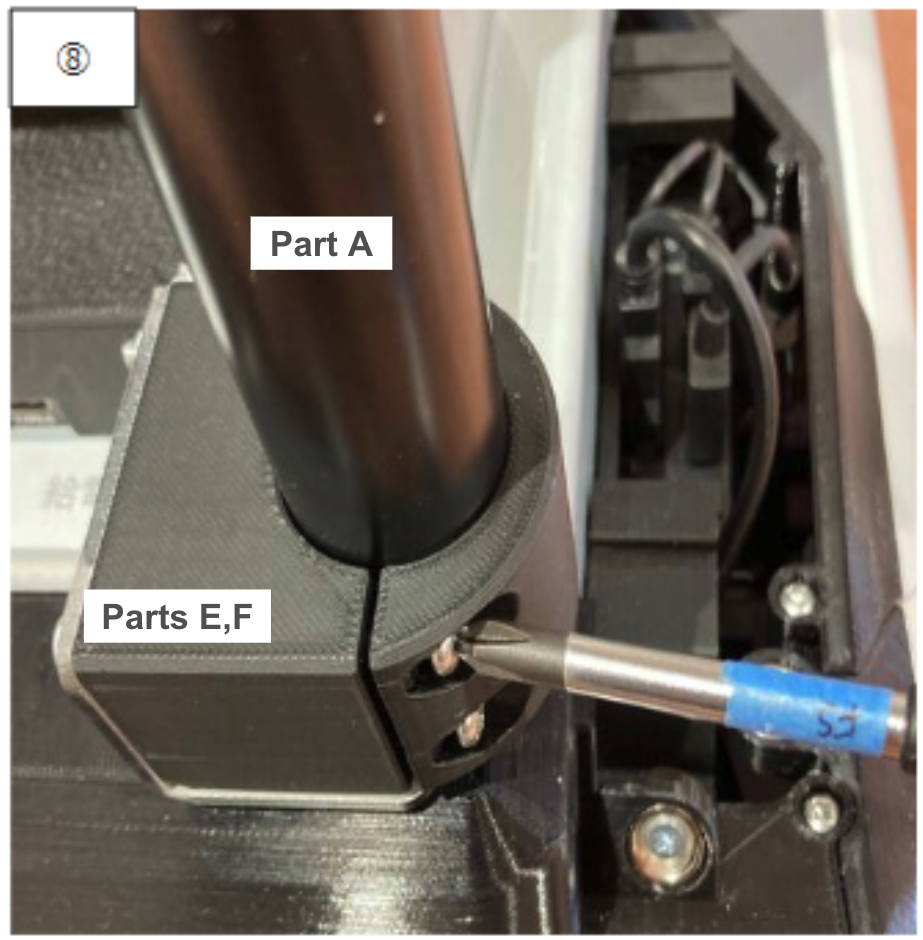

⑧ Insert part A into parts E and F. After insertion, tighten part I (large Phillips head screw) to secure it in place.

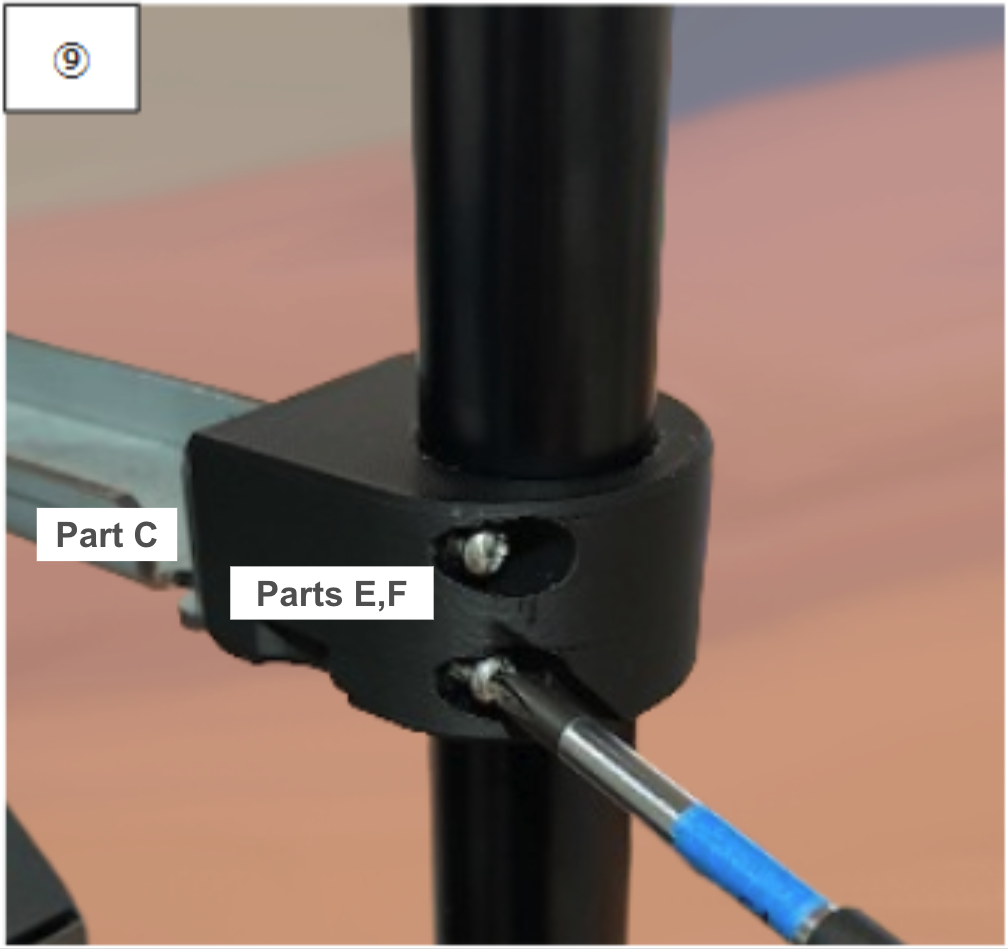

⑨ Use part I (large Phillips screw) to secure parts E and F to part C installed in ⑥.

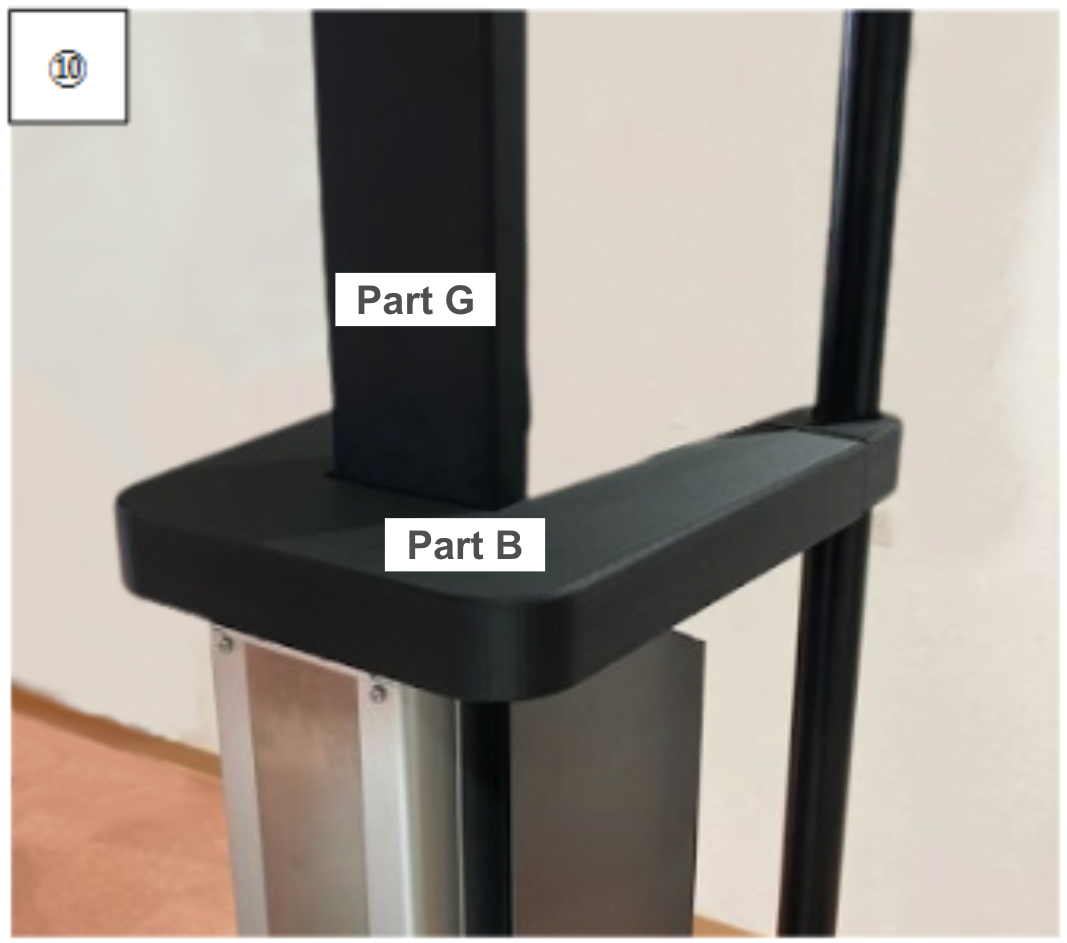

⑩ Attach part B on top of part C.
* Push the cover all the way in until it catches.

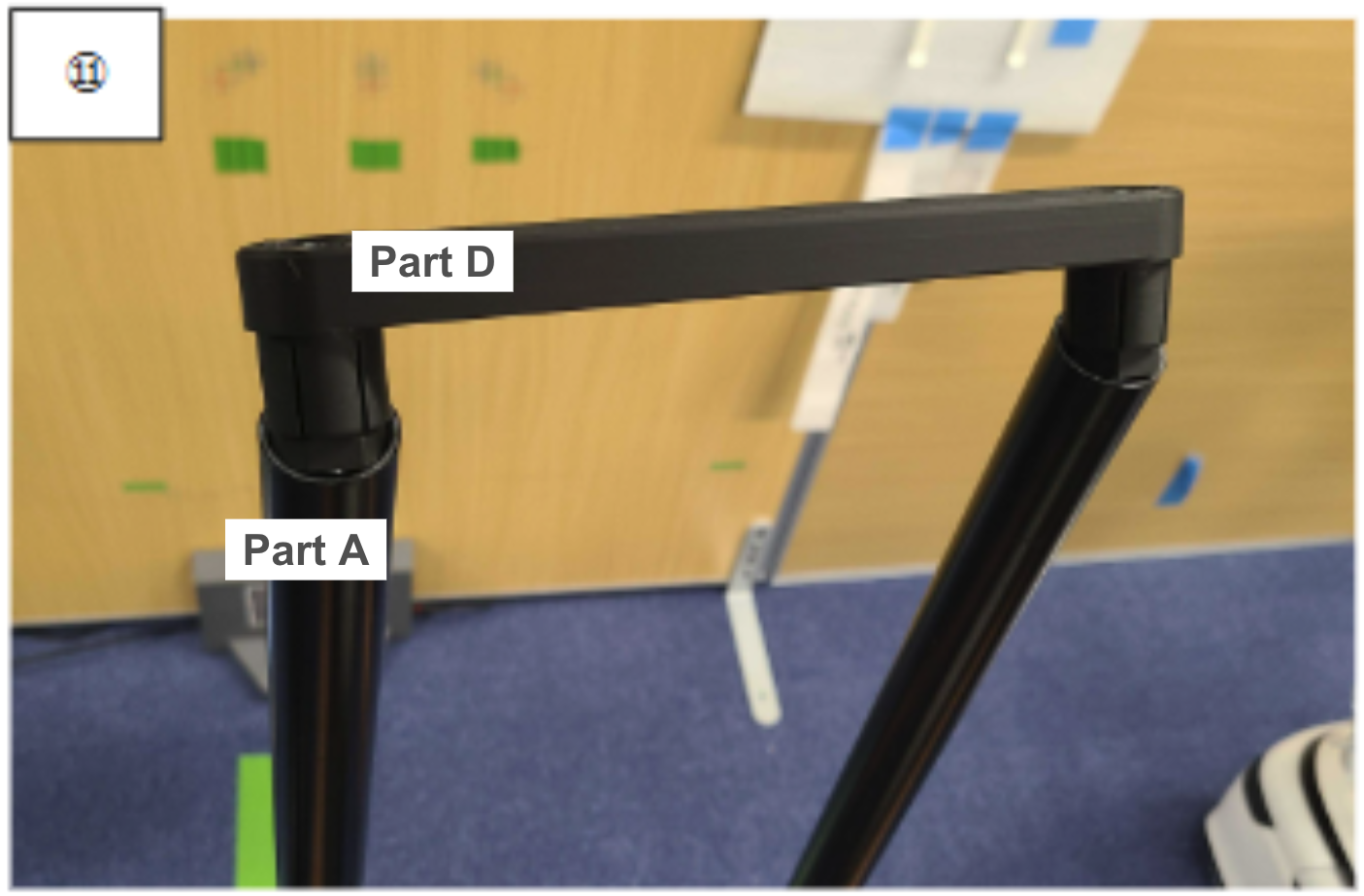

⑪Insert part D onto the top of part A.

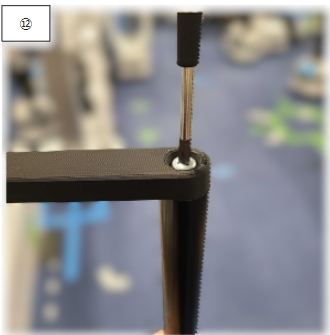

⑫After inserting part D, tighten the left and right Phillips screws to secure part D in place.

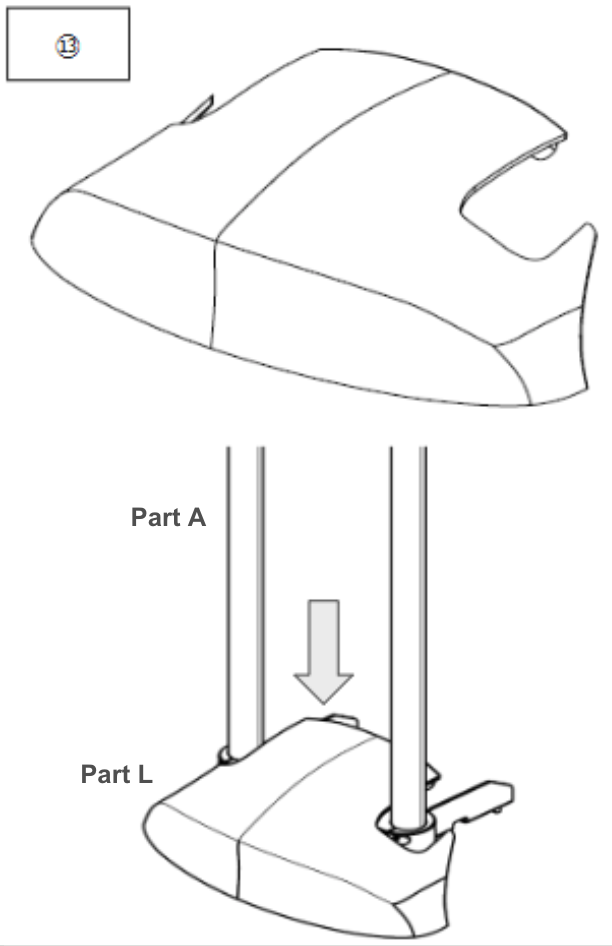

⑬Finally , attach part L to the rear of the cart.
