How to download/upload map images

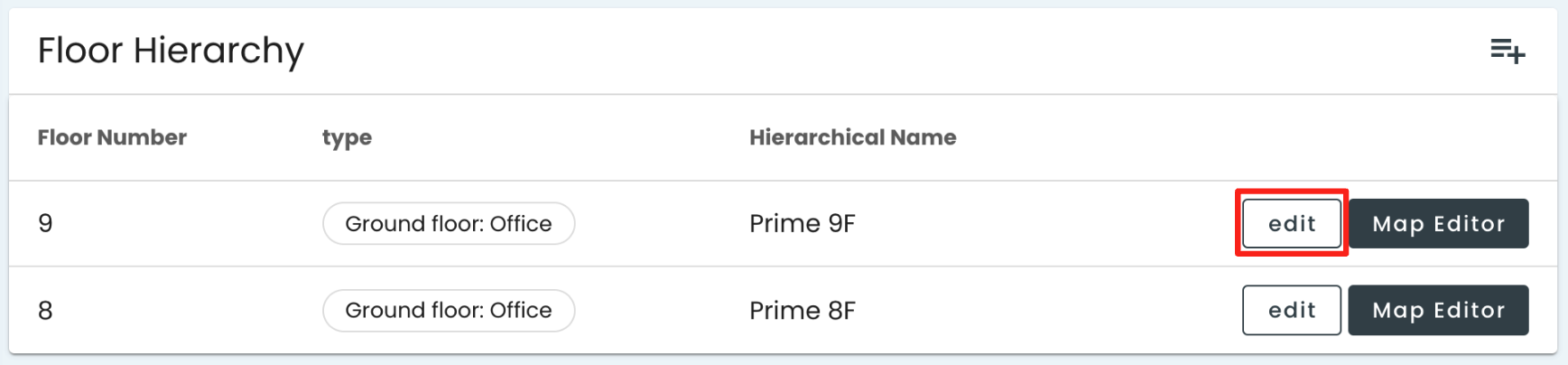

Click "Edit" on the right of the floor hierarchy where you want to download/upload a map image
How to download map images

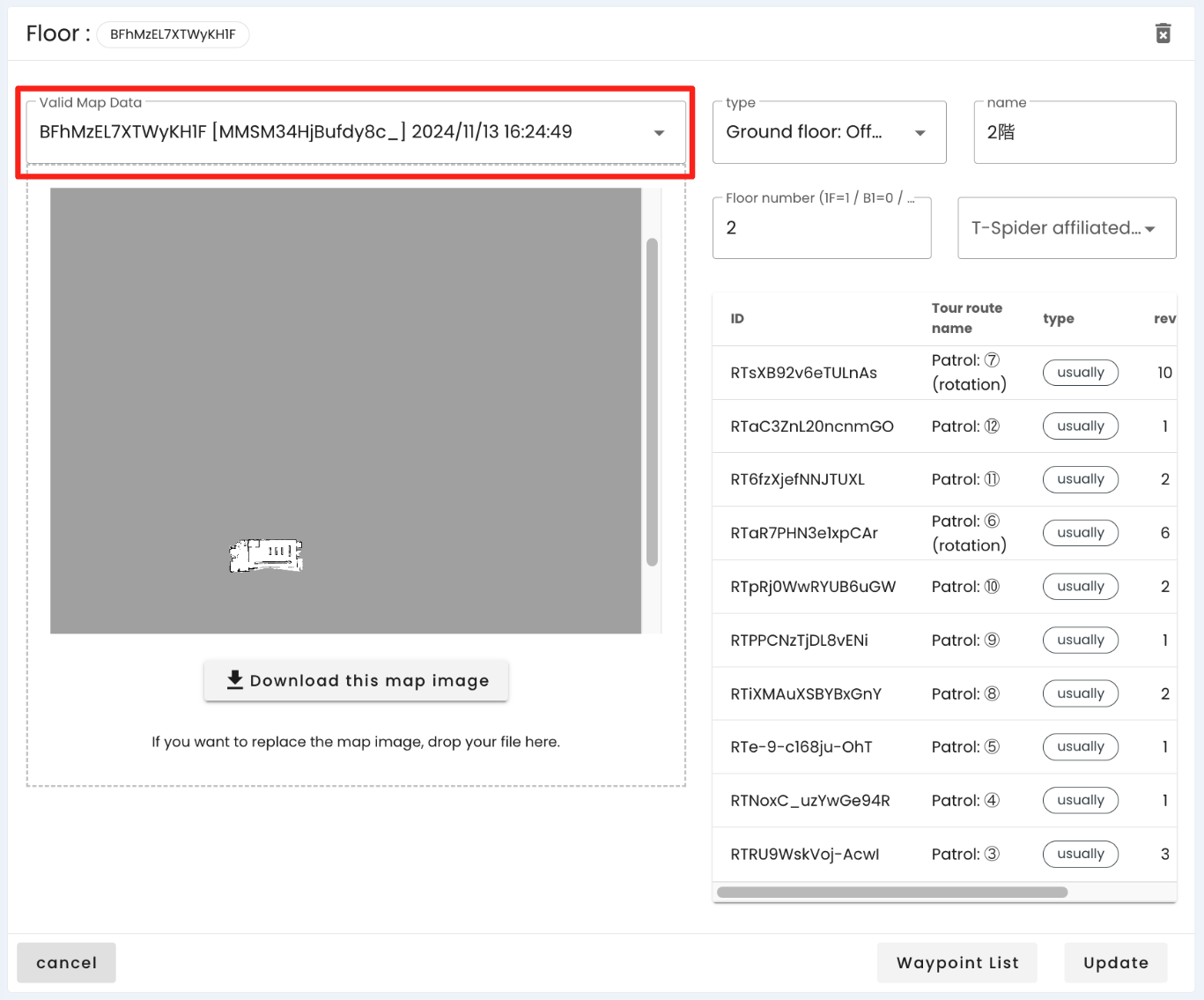

①Select the map you want to download from the "Available Map Data" drop-down list in the upper left corner of the screen
Map information is displayed by a unique ID and the creation date.

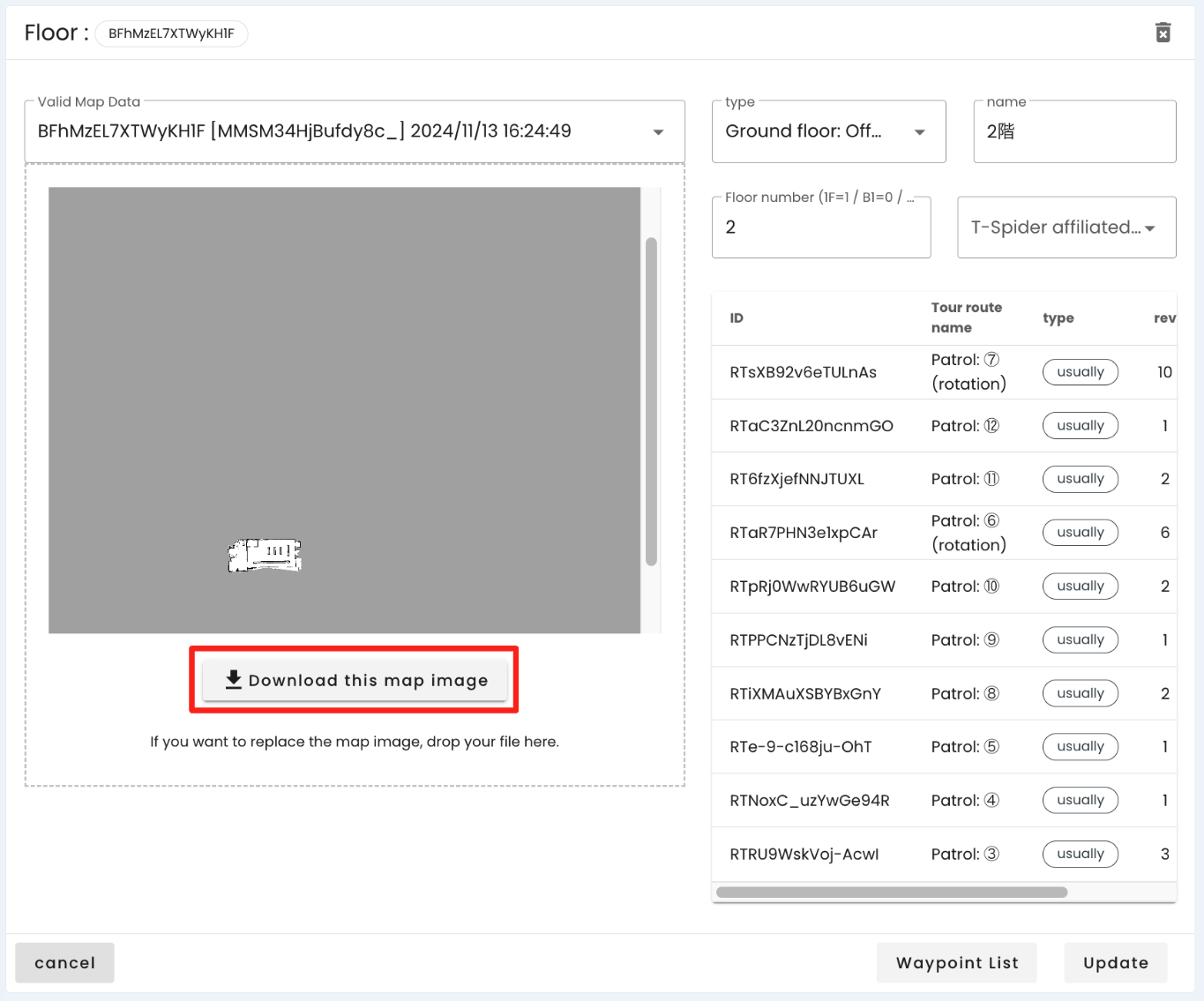

②Click "Download this map image" and download it (※)
*1 The saved map image is in PNG format with transparent background. You can use a compatible tool to edit the map image
*2 The download destination depends on your computer settings.
Upload/Download/Edit
How to upload (replace) a map image
① Select the map you want to replace the map image with from the "Valid Map Data" pull-down list in the upper left of the screen.
Map information is displayed by a unique ID and the creation date.

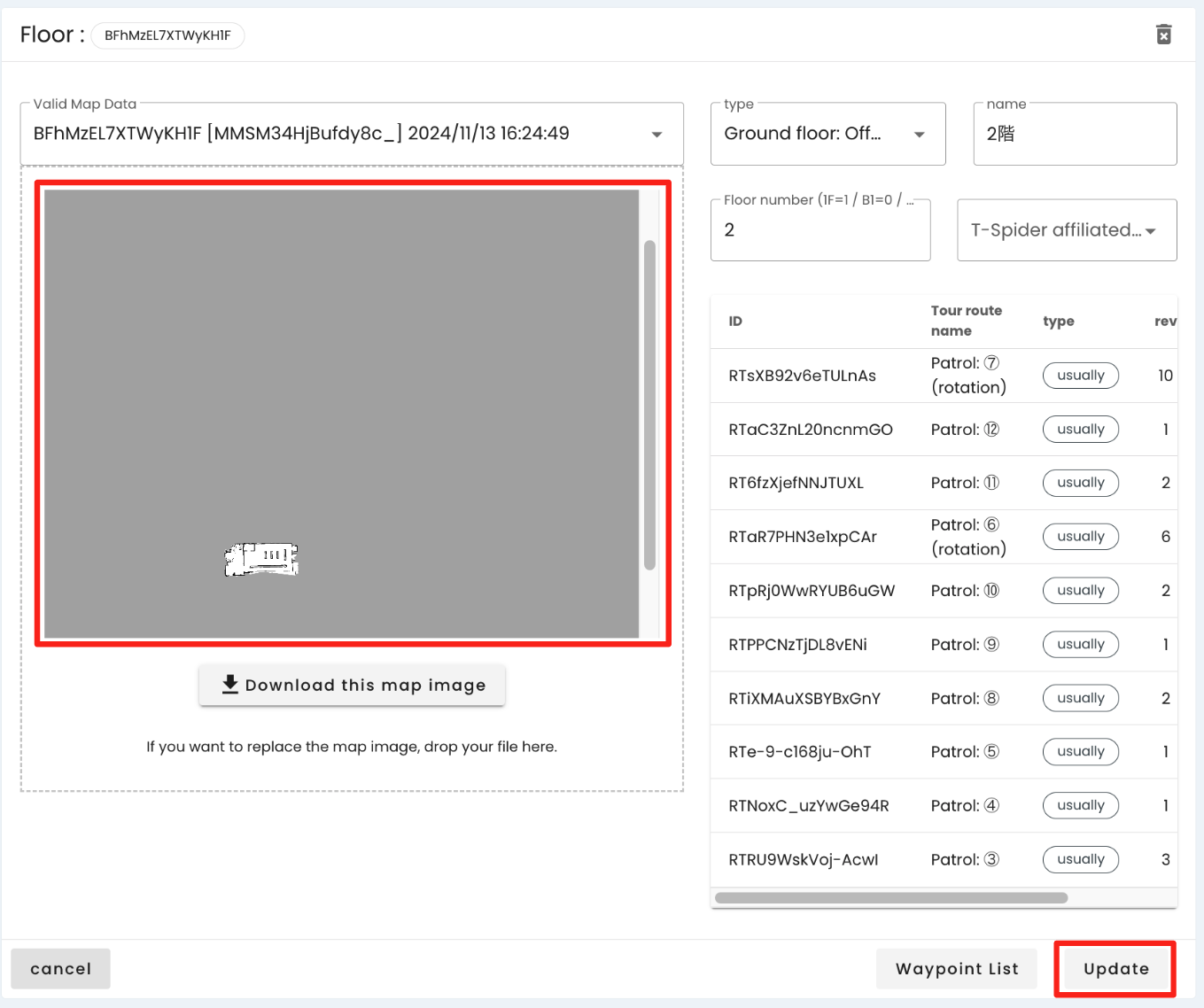

②Drop the map image (png file) to be updated within the red frame in the image below and click "Update".
*Please note that the original map image will be deleted.

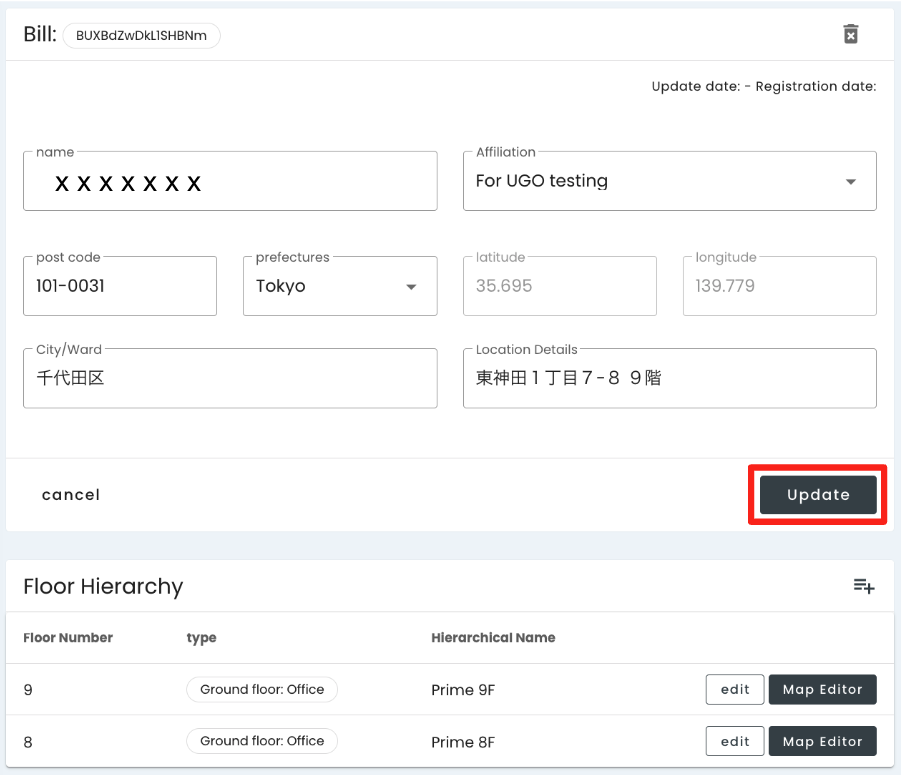

③The "Building: Building Name" screen shown below will be displayed, so click "Update"
